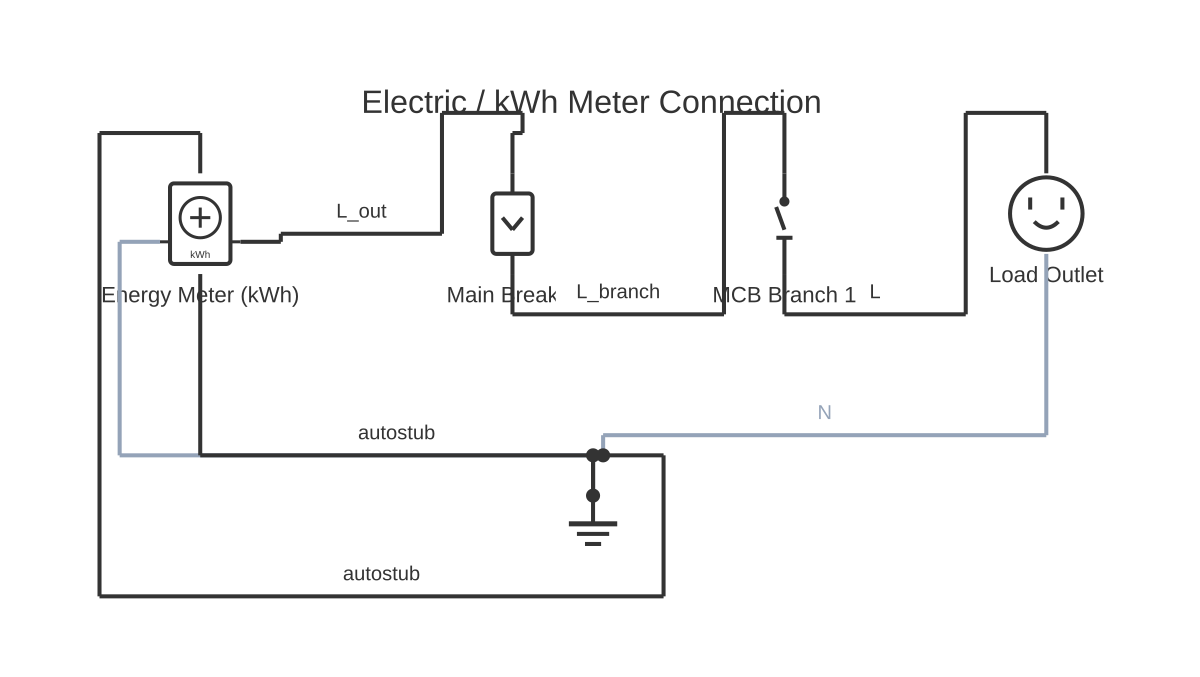

Electric Meter Wiring Diagram
This is a free printable electric meter wiring diagram: download the diagram as SVG or open it and print to paper or PDF.
Understand how a kWh electricity meter connects between the utility supply and consumer load — covering single-phase, three-phase, direct-connect, and current-transformer-operated meter wiring.
An electricity meter (kWh meter) measures the electrical energy consumed at a premises by monitoring both voltage and current on each phase. The meter sits between the utility supply feed and the consumer's distribution board (main panel), making it one of the highest-consequence connection points in any electrical installation. Wiring diagrams for meters always distinguish between the line side (supply from the utility, upstream) and the load side (outgoing conductors to the consumer's main switch and distribution board).
For a single-phase direct-connect meter the wiring sequence is: utility active (line) conductor enters terminal 1 (or L-in); from terminal 2 (L-out) the active conductor continues to the consumer's main isolator. The neutral conductor similarly passes through (or across) terminal positions 3 (N-in) and 4 (N-out). The exact terminal numbering varies by meter manufacturer and jurisdiction — always follow the terminal diagram printed on the meter's terminal cover.
A three-phase four-wire direct-connect meter has six active terminals (L1-in, L1-out, L2-in, L2-out, L3-in, L3-out) and neutral in/out positions, following the same in/out pattern repeated per phase.
For large commercial and industrial installations where load current exceeds the meter's direct measuring capacity (typically above 100 A in most standards), a current-transformer-operated (CT-operated) meter is used. The CTs are installed around each phase conductor and produce a reduced secondary current (typically 5 A at full load for a 100:5 CT ratio) that is fed into the meter's current coil terminals. In a CT installation, the voltage coil terminals connect directly across the supply phases and neutral; the current terminals are clearly separated and labelled IL1+, IL1−, IL2+, IL2−, IL3+, IL3−. The CT secondary circuit must never be open-circuited while the primary (main line conductor) carries current — an open CT secondary develops dangerously high voltage.
Electricity meter installation and wiring is regulated work in all jurisdictions. In most countries, only a licensed electrician and/or the utility's authorised metering contractor may install, modify, or remove the meter or its associated seals. Attempting unauthorised meter wiring is illegal, dangerous, and can result in serious electrocution risk.
How to wire electric meter wiring diagram
- Understand the scope: meter work requires authorisation In virtually all jurisdictions, the electricity meter and its seals are the property of the utility or a government-licensed metering contractor. Any work on the line-side terminals or on the meter enclosure seals is illegal without written authorisation and appropriate licensing. This guide describes the wiring for the purpose of understanding and verification — all physical installation work must be performed by a licensed electrician and, for the line-side connections, by the utility's authorised metering contractor.
- Identify the meter type from its nameplate The meter nameplate states the maximum current (Imax), the basic current (Ib), the voltage rating, the number of phases and wires (e.g. 3P4W for three-phase four-wire), the pulse constant (imp/kWh), and the meter class (class 1 or class 2 for most installations). For CT meters, the nameplate also states the CT ratio for which the meter is calibrated (e.g. 100/5 A). A direct-connect meter will list a rated current without a CT ratio.
- Sketch the circuit from the terminal diagram inside the meter cover Remove the terminal cover (with supply isolated and utility permission where required). The inside of the terminal cover carries the wiring diagram specific to that meter model. Trace and sketch the sequence: which terminal number receives L-in, which carries L-out, where neutral enters and exits, and for CT meters, which terminals are voltage coil connections and which are current coil connections.
- Verify conductor sizing and connection method Conductors must be sized for the installation's maximum demand with appropriate derating for installation method, ambient temperature, and grouping — per the applicable wiring standard for your jurisdiction (NEC/NFPA 70, BS 7671, AS/NZS 3000, or IEC 60364). Meter terminals are typically designed for a specific conductor size range printed on the terminal. Do not force undersized or oversized conductors into meter terminals.
- Install CT secondary wiring (CT meter installations only) CT secondary wiring must be rated for the CT secondary voltage under fault conditions. Use twisted-pair wiring for each CT secondary circuit to minimise inductive interference. CT secondary circuits must include a shorting terminal block or shorting switch that can safely short the secondary before the meter current terminals are disconnected, allowing safe meter removal without open-circuiting the CT. Label all CT secondary wiring with the phase it monitors.
- Apply anti-tamper seals and record meter data After the utility or authorised contractor connects the line-side terminals and commissions the meter, anti-tamper seals are applied to the terminal cover and meter enclosure. The meter's serial number, installation date, and initial register reading must be recorded in the installation's wiring documentation. Breaking or missing seals must be reported to the utility immediately — it is both a billing issue and a safety concern.
Specifications
| Applicable accuracy class (revenue metering, most jurisdictions) | Class 1 (IEC 62053-21) for active energy; Class 0.5S or 1 for CT-type meters |
|---|---|
| CT secondary rated current (standard) | 5 A at full primary load (most IEC jurisdictions); 200 mA on some electronic meters |
| Typical direct-connect meter maximum current | 60 A to 100 A (single-phase); varies by meter rating — check nameplate |
| CT secondary wiring minimum conductor size | 2.5 mm² copper (typical; verify against meter manufacturer specification for run length) |
| Meter enclosure ingress protection (external installation) | IP54 minimum (IEC 60529); IP65 in exposed or marine environments |
| Governing installation standard (region-dependent) | NEC/NFPA 70 (USA), BS 7671 (UK), AS/NZS 3000 (Australia/NZ), IEC 60364 (international) |
| Governing meter standard | IEC 62052-11, IEC 62053-21 (active energy class 1/2); ANSI C12.1/C12.20 (North America) |
Safety warnings
- The line-side terminals of an electricity meter are live at mains voltage at all times — they cannot be isolated without utility disconnection of the incoming supply. Under no circumstances should an untrained or unauthorised person work on or near line-side meter terminals. This is a lethal-voltage hazard.
- CT secondary circuits must never be open-circuited while the primary conductor carries current. The resulting high-voltage spike in the CT secondary can reach thousands of volts and is fatal. Always use a CT shorting switch or shorting terminal before disconnecting a CT secondary circuit.
- All electricity meter installation, commissioning, and disconnection work must be performed by a licensed electrician in compliance with the applicable wiring standard for your jurisdiction (NEC/NFPA 70, BS 7671, AS/NZS 3000, or IEC 60364), and line-side connections must be made only by the utility's authorised metering contractor.
- Tampering with, bypassing, or damaging anti-tamper seals on an electricity meter is a criminal offence in all jurisdictions and carries both legal penalties and severe safety risks. An improperly wired meter can cause fires, electrocution, and equipment damage.
- After any work adjacent to the meter enclosure, verify that the earth (protective conductor) bonding from the consumer's main earthing terminal to the utility earth is intact and continuous before re-energising the installation.
Tools needed
- Digital multimeter with CAT III or CAT IV rating appropriate for the installation voltage
- Phase rotation tester (three-phase installations)
- Torque screwdriver or torque wrench (for terminal screws — overtightening damages meter terminals)
- Wire strippers and insulated crimping tool
- Conductor ferrules and ferrule crimping tool (for stranded conductors at meter terminals)
- Insulated screwdrivers rated for the installation voltage
- Clamp meter (for verifying CT ratio and current measurement)
Common mistakes
- Connecting line and load conductors in reverse: placing the utility incoming conductor on the load terminal reverses the meter's current measurement direction on some meter types and causes negative or zero registration. On modern bidirectional smart meters this may not cause obvious incorrect readings, making it harder to detect.
- Using undersized CT secondary wiring: the CT secondary impedance (burden) directly affects accuracy. Long, thin wiring increases burden resistance, which introduces measurement error. Use the minimum conductor size specified by the meter manufacturer for the CT wiring run length.
- Failing to install CT shorting facilities: a CT installation without accessible shorting terminals cannot be safely maintained. When the meter needs replacement, the CT secondary must be shorted before the meter current terminals are opened — without a shorting terminal block, this cannot be done safely.
- Applying sealant or adhesive around meter terminals: any moisture-sealing compound that contacts the meter terminals can contaminate contact surfaces and create corrosion pathways. Seal only the enclosure ingress points — never the meter terminal connections themselves.
- Assuming all meters have the same terminal layout: terminal numbering and L-in/L-out sequences differ between manufacturers, jurisdictions, and meter generations. Always read the terminal diagram inside the meter's terminal cover — never assume based on a generic diagram.
Troubleshooting
- Meter displays zero or negative energy registration despite load being connected
- Cause: Line and load conductors transposed on one or more current measurement elements, or CT secondary polarity reversed on a CT-operated meter Fix: With the load powered and using a clamp meter verified accurate, measure the current at the meter line-side and load-side terminals — they should be equal. For a CT meter, check CT secondary terminal polarity markings (S1 and S2) against the meter current terminal polarity markings. Reversing the S1 and S2 connections on one CT reverses its contribution to the meter's energy calculation.
- Meter registers significantly higher consumption than expected
- Cause: CT ratio programmed or labelled incorrectly in a CT meter installation, stray leakage current being measured, or a harmonic-heavy load causing over-registration in an older electromechanical meter Fix: Verify the CT ratio against the meter's programmed ratio setting or nameplate. Cross-check total energy at the meter against a calibrated sub-meter downstream over the same period. For harmonic-heavy loads (variable-speed drives, UPS systems), consult the meter manufacturer regarding compliance with IEC 62053-23 for reactive energy or harmonic measurement.
- Meter enclosure showing signs of overheating at CT secondary terminals
- Cause: High-resistance connection at CT secondary terminal due to loose screw or corroded conductor, causing localised I²R heating; or CT secondary open-circuited intermittently Fix: Isolate the installation per the utility's safe isolation procedure before inspecting CT secondary terminals. Remove conductor ferrules and inspect for oxidation. Restrip, re-ferrule, and re-torque all CT secondary terminals to specification. Never energise the CT primary while correcting a CT secondary fault — short the CT secondary first.
Frequently asked questions
What is the difference between the line side and load side of a meter?
The line side (sometimes called the supply side or upstream side) is where the utility's incoming conductors connect — it is permanently live from the street. The load side is where the outgoing conductors run to the consumer's main isolator and distribution board. This distinction is critical: the line side terminals are live even when the main switch is open. Only authorised utility personnel or their approved contractors may work on the line side.
Why can't I open a CT secondary circuit while the primary is energised?
A current transformer's secondary winding is designed to operate into a low-impedance burden (the meter's current coil). If the secondary is open-circuited, the primary current — which cannot be interrupted by the CT — continues to drive flux into the core. With no secondary current to oppose it, the flux reaches saturation and induces a very high voltage spike in the secondary winding — potentially thousands of volts — sufficient to destroy insulation, damage the meter, and electrocute anyone touching the secondary terminals.
Can I read my own meter for energy monitoring without touching the meter wiring?
Yes. Many modern meters have an optical pulse output port (LED that pulses a defined number of times per kWh, commonly 1000 pulses/kWh) or a communication port (RS-485, DLMS/COSEM, or smart meter protocol). These can be read by a separate energy monitor without any modification to the meter wiring. Clip-on current transformers installed by a licensed electrician on the consumer side of the meter are another common approach for real-time energy monitoring.
What terminal markings indicate the meter's line and load sides?
Terminology varies by standard and region. Common line-side labels: L, Line, In, Supply, Mains, or a downward arrow. Common load-side labels: Load, Out, Consumer, or an upward arrow. The terminal diagram is printed inside the meter's terminal cover and on the meter body. IEC 62053 and ANSI C12 standards govern meter terminal markings in their respective regions.
What is the difference between a direct-connect meter and a CT meter?
A direct-connect meter carries the full load current through its internal current measurement coil. This limits practical use to lower load currents — typically up to 60 A or 100 A per phase depending on meter design. A CT-operated meter uses external current transformers to step down the load current to a low secondary value (typically 5 A at full load) that is fed into the meter's isolated current input terminals, allowing the same meter to measure loads of hundreds or thousands of amperes.
