Residential Electric Meter Box Wiring Diagram: Understanding the Service Entrance and Load Side Boundary

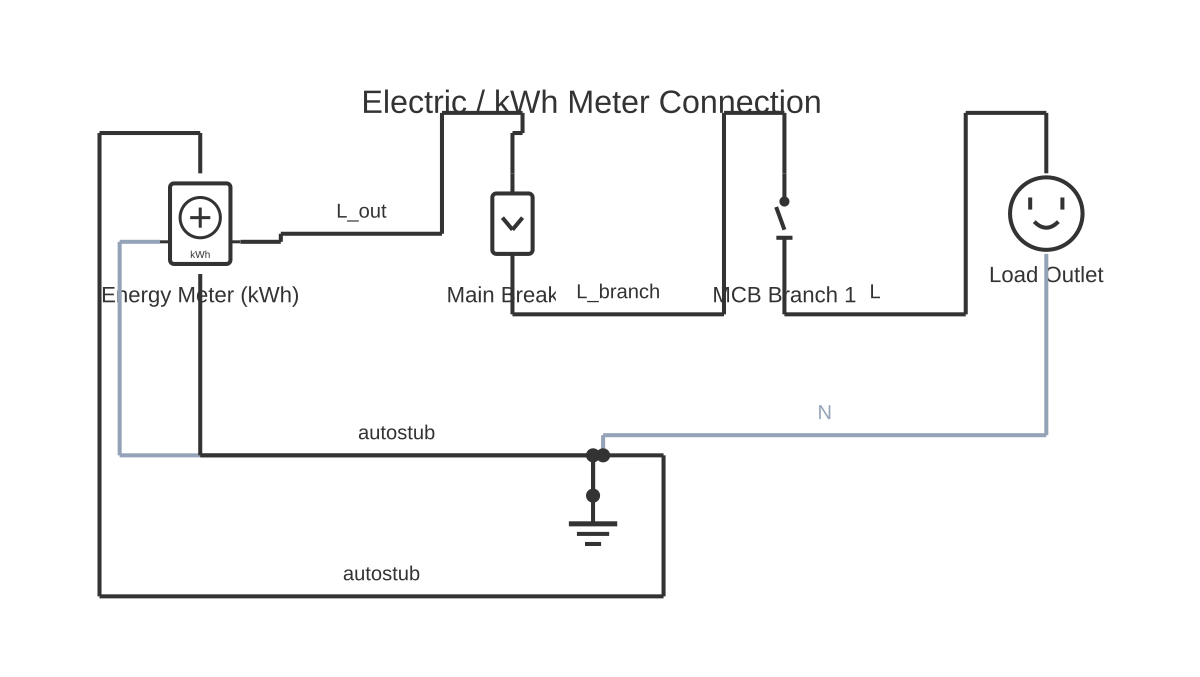

This is a free printable residential electric meter box wiring diagram: download the diagram as SVG or open it and print to paper or PDF.
Understand how a residential electric meter box is wired, which parts belong to the utility, and what work requires a licensed electrician — before touching anything.
The residential electric meter box (also called the meter socket, meter base, or meter pan) is the point at which the utility company's service conductors connect to the homeowner's or building owner's electrical system. Understanding the physical and legal boundary between utility-owned infrastructure and customer-owned infrastructure is essential before any work is considered.
CRITICAL SAFETY NOTE: The conductors entering the meter base from the utility (the service drop from an overhead line, or the service lateral from an underground cable) are energised at all times. They are NOT de-energised by the main circuit breaker. In most jurisdictions, only the utility company is permitted to disconnect or work on service entrance conductors. Contacting service entrance conductors is potentially fatal. This boundary is not negotiable.
The typical residential meter socket assembly can be understood as having two sides: the supply (line) side, and the load side.
The supply side consists of the conductors entering the meter socket from the utility. In a North American 120/240 V split-phase system, these are two ungrounded service conductors (hot legs, typically black insulation or aluminium) and one grounded service conductor (the neutral, typically white or grey insulation). These connect to the line-side terminals of the meter socket. The utility's meter is plugged into the meter socket; the meter's current-measuring elements sit in series with the ungrounded conductors.
The load side consists of the conductors exiting the meter socket toward the main service panel (distribution board). The two hot conductors continue from the meter's load-side jaws to the main circuit breaker's line terminals in the main panel. The neutral continues from the meter socket's neutral bar to the main panel's neutral bus, where it bonds to the grounding electrode conductor in the first panel in the system.
In modern installations, the meter base, main disconnect, and main distribution panel are often physically separate enclosures or combined in different configurations. The specific topology depends on the utility's requirements, local code, and installation design.
All work on the load side (from the load terminals of the meter socket toward the panel and throughout the house) requires a licensed electrician in most jurisdictions and must be inspected and approved by the local authority having jurisdiction (AHJ).
How to wire residential electric meter box wiring diagram
- Understand the boundary — what you may and may not touch Before approaching any part of the meter enclosure, identify the utility-side boundary. In a standard installation, the supply-side terminals of the meter socket (the jaws into which the meter plugs, and all conductors entering from outside the building) are utility property and are always energised. Do not touch, probe, or work near these conductors under any circumstances without the utility de-energising the service. This is not a matter of skill level — it is a matter of what is physically safe and legally permitted.
- Contact the utility to de-energise the service if load-side work requires meter removal If work on the meter socket itself, the service entrance conductors on the load side, or the main panel requires the meter to be pulled, contact the utility company to arrange a temporary disconnect. In many areas this is a free or low-cost service. Never attempt to pull the meter yourself — in many jurisdictions this is illegal, and even if the utility's seal is broken by accident, you must report it.
- Obtain a permit for main panel or service upgrade work Any work on the load side of the meter that involves upgrading the service (increasing ampacity), replacing the meter base, or replacing the main panel requires a permit from the local authority having jurisdiction (AHJ). The permit process triggers an inspection after the work is complete. Work performed without a permit is not only illegal — it is uninsurable, and can expose the property owner to significant liability.
- Licensed electrician: verify dead conductors before working on load side With the utility service de-energised and the meter pulled, a licensed electrician working on load-side conductors must still verify that all conductors are de-energised with a calibrated voltage tester before contact. Even with the meter pulled, feedback voltage from generators, solar inverters, or other sources in the building can be present on load-side conductors.
- Licensed electrician: verify conductor sizing and service rating Service entrance conductors must be sized to carry the service's rated ampacity continuously. In North American residential installations, a 200 A service typically uses 4/0 AWG aluminium or 2/0 AWG copper service entrance cable. Conductor sizing must comply with NEC Table 310.12 (or equivalent local code table). The meter socket must be rated at or above the service ampacity.
- Licensed electrician: inspect and torque all load-side connections All terminal connections in the meter enclosure must be torqued to the manufacturer's specified torque value using a calibrated torque screwdriver or torque wrench. This is a code requirement (NEC 110.14(D)). Under-torqued connections overheat, corrode, and eventually fail or cause fires. Record the torque values applied if the AHJ requires documentation.
Specifications
| Applicable standard (USA) | NFPA 70 (NEC), current edition as adopted by local AHJ; utility tariff requirements also apply |
|---|---|
| Standard residential service voltage (North America) | 120/240 V AC, single-phase, 3-wire (split-phase) |
| Common residential service ratings | 100 A (older installations), 200 A (standard modern residential), 400 A (large residential or multi-unit) |
| Meter socket mounting height (NEC 230.204 reference) | Typically 1.5–2.0 m above finished grade; exact requirement per utility and local AHJ |
| Ground rod minimum depth and size (NEC 250.52, 250.53) | Minimum 2.4 m (8 ft) driven depth; 16 mm (5/8 inch) diameter for copper-clad steel rods |
| Neutral-to-ground bonding location | Only at the first means of disconnect (main service panel); must not be bonded at sub-panels |
| Terminal connection torque requirement | Per manufacturer's specification on each device and enclosure; required by NEC 110.14(D) since 2014 NEC edition |
Safety warnings
- The conductors on the supply (line) side of the meter socket are energised at all times. They carry the full utility voltage and available fault current, which in a residential service can exceed 10 000 A. Contact with these conductors is potentially fatal. Only the utility company may disconnect or work on supply-side conductors. Under no circumstances should a non-utility person work on, probe, or contact the supply-side terminals, conductors, or lugs.
- All work involving the meter socket, service entrance, or main distribution panel must be performed by a licensed electrician and must be inspected and approved by the local authority having jurisdiction (AHJ). Unpermitted electrical work on service entrance equipment is illegal, is not covered by homeowner's insurance in the event of fire or injury, and may be required to be demolished and replaced as a condition of property sale.
- Before any licensed electrician works on load-side service conductors, the utility must de-energise the supply by pulling the meter. Even after the meter is pulled, verify all conductors are dead with a calibrated voltage tester — feedback from on-site generation (solar inverters, standby generators) can energise load-side conductors.
- Work near the meter enclosure on the exterior of a building is subject to weather exposure. Never perform electrical work on service entrance equipment in wet conditions. Service entrance enclosures must be rated for outdoor use and must have weatherproof seals around all conduit and cable entry points.
- Any modification to the service entrance must comply with the utility company's own requirements in addition to the NEC or local code. The utility's technical requirements (called tariff rules or service requirements in most territories) govern meter socket type, mounting height, enclosure type, and access provisions. Failing to meet utility requirements can result in the utility refusing to energise the service.
Tools needed
- Calibrated voltage tester (verify dead — test the tester on a known live source first)
- Calibrated torque screwdriver and torque wrench (for terminal connections per NEC 110.14(D))
- Conduit bender and conduit reamer (for service conduit installations)
- Insulated screwdrivers rated for the working voltage (licensed electricians only, on load side)
- Ground rod driver or hammer and drive cap
- Ground rod clamp and GEC lug
- Permit documentation and approved plans (AHJ requirement before work begins)
Common mistakes
- Attempting to pull the meter or work on supply-side components without utility authorisation — the supply conductors are live at all times and this is both extremely dangerous and illegal in virtually all jurisdictions.
- Installing a meter socket that is not approved by the local utility — utilities maintain lists of approved meter socket models and configurations, and a non-approved socket will be rejected at inspection and the utility will refuse to energise the service.
- Failing to torque terminal connections to the manufacturer's specification — under-torqued connections in a service entrance are a leading cause of service entrance fires and present as arcing or overheating at the connection point.
- Installing only one ground rod when two are required by NEC 250.53(A)(2) unless the single rod meets the 25-ohm resistance-to-earth requirement verified by measurement.
- Bonding the neutral and ground at a sub-panel (a downstream panel fed from the main panel) instead of only at the service entrance main panel — creating multiple neutral-to-ground bonds causes circulating currents on grounding conductors, which is a code violation and a shock hazard.
Troubleshooting
- Smart meter (revenue meter) displaying error or not communicating
- Cause: Utility infrastructure issue, meter provisioning fault, or a load-side fault the meter has detected; in some cases a failed meter Fix: This is entirely within the utility's domain. Contact the utility's fault reporting line. Do not attempt to remove, reseat, or tamper with the meter — meter tampering is a criminal offence. The utility will test and replace the meter if faulty.
- Main circuit breaker trips immediately upon reset
- Cause: A fault (short circuit or sustained overload) on the load side of the main breaker; in rare cases a failed main breaker Fix: Turn off all circuit breakers in the distribution panel. Reset the main breaker. Turn on each branch circuit breaker one at a time. If the main breaker trips when a specific branch is switched on, that branch has a fault. If the main breaker trips with all branches off, the main breaker itself may be faulty — consult a licensed electrician.
- Intermittent power loss to the whole building or to one half (one phase) of a split-phase service
- Cause: Loose connection at a service entrance terminal, a failed utility connection at the pole or transformer, or a failing main breaker Fix: If power is intermittent or one 240 V leg is absent, this is most likely a utility supply issue or a loose service entrance connection. Contact the utility immediately — this is a utility-side fault until proven otherwise. Do not work on any part of the service entrance. A licensed electrician can verify load-side connections under utility supervision after the service is de-energised.
Frequently asked questions
Can a homeowner legally replace or work on the meter base?
In most jurisdictions, the meter base and all conductors on the utility side of the meter are utility property and must only be worked on by the utility. The load side (from the meter base output terminals into the main panel) is the customer's responsibility but typically requires a licensed electrician and a permit. Contact your local utility and building authority before touching any part of the meter enclosure.
Why are service entrance conductors always energised, even when the main breaker is off?
The main circuit breaker interrupts the load side of the circuit — the conductors from the panel to the rest of the building. It does not interrupt the service entrance conductors feeding the meter from the utility. Those conductors are connected to the utility transformer at the other end, which is always energised. Only the utility can de-energise the service by pulling the meter or opening the utility's upstream protection.
What is the difference between the grounded conductor (neutral) and the grounding conductor (earth) in a meter installation?
The grounded conductor (neutral) is a current-carrying conductor that completes the circuit for the 120 V legs in a split-phase system. The grounding conductor (equipment ground, connected to a grounding electrode such as ground rods or the water main) provides a fault return path and bonds equipment to earth potential. These are bonded together at only one point — typically the main service panel — to prevent circulating ground currents.
What is a main disconnect and where is it required?
A main disconnect (main circuit breaker or main service disconnect) is a single switch or breaker that de-energises all load-side conductors. The NEC requires a main disconnect that can be reached and operated safely in an emergency. It may be located in the meter socket enclosure, in a separate disconnect enclosure mounted adjacent to the meter, or as the main breaker in the distribution panel — the specific requirement depends on the installation type and local code.
What is a meter socket adapter or meter socket bypass?
A meter socket bypass or temporary power adapter is a device that allows the electrical service to be maintained while the meter is removed for testing or replacement. Only utility-authorised personnel use these devices. A property owner or unlicensed individual using a meter bypass to obtain electrical service without the meter in circuit is committing electricity theft, which is a criminal offence in all jurisdictions.
