EV1 Connector (Jetronic Fuel Injector Connector)

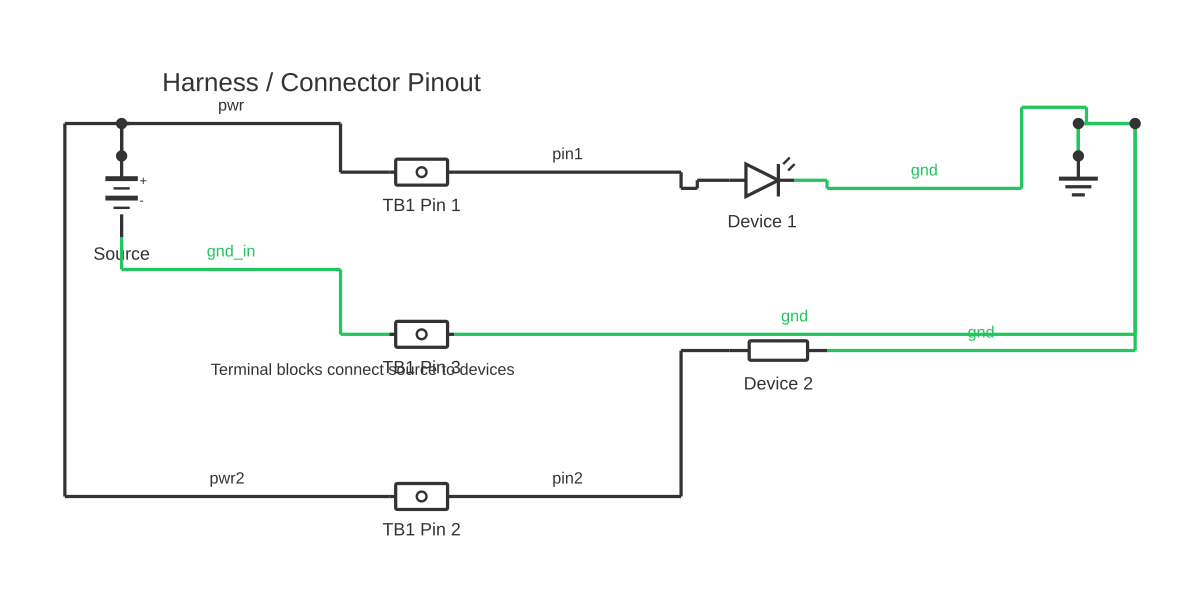

EV1 Connector (Jetronic Fuel Injector Connector) — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable ev1 connector: download the diagram as SVG or open it and print to paper or PDF.

The EV1 connector, also called the Jetronic connector, is a standardised two-pin fuel injector plug used across many petrol-engined vehicles — correct wiring polarity and circuit protection are essential for injector reliability.

The EV1 connector (also referred to as the Jetronic connector, USCAR connector, or simply the standard injector connector) is an industry-standardised two-pin electrical connector designed specifically for port fuel injectors. It was developed to provide a consistent, reliable, vibration-resistant electrical connection for the electromagnetic solenoid inside a port fuel injector.

The connector locks onto the injector body using a clip or tab mechanism and is designed to withstand the heat, fuel vapour, vibration, and contamination environment of an engine bay. The mating connector on the wiring harness uses a housing body with a wiring pigtail sealed with an IP67-rated rubber seal around each terminal.

**Electrical circuit**

A port fuel injector is essentially a solenoid valve. When the engine control unit (ECU) applies current through the injector solenoid, a magnetic field opens a pintle valve against a return spring, allowing pressurised fuel to spray into the intake port. The ECU controls the injector in one of two basic circuit topologies:

- **Peak-and-hold:** the ECU applies a high initial current (peak current, typically 4–6 A) to open the pintle quickly, then reduces to a lower hold current (typically 1–2 A) to keep it open for the remainder of the injection pulse. This reduces solenoid heating and is used with high-impedance or low-impedance injectors.

- **Saturated switch (high-impedance):** used with high-impedance injectors (typically 12–16 Ω). The ECU simply switches current on and off through the injector. At 12 V supply, a 14 Ω injector draws about 0.85 A, so no current limiting is needed.

The two connector pins carry: (1) a switched positive supply (typically battery voltage switched by the injection relay or main relay) and (2) the ECU ground (or ECU-switched ground) which the ECU pulses on and off to control injection timing and duration.

**Pinout**

The EV1 connector does not have a universal standardised pin 1 / pin 2 function — in some installations the positive supply is on pin 1 and the ECU ground on pin 2; in others it is reversed. The injector solenoid has no inherent polarity, so either pin can be positive or ground. What matters is that one pin connects to a switched positive supply and the other to the ECU driver output (switched ground). Always verify against the vehicle-specific wiring diagram. Do not assume polarity from wire colour alone.

**Aftermarket and retrofit use**

The EV1 connector housing is widely available as a standalone pigtail for injector substitution, harness repair, or engine swap projects. It is used on many naturally aspirated and turbocharged petrol engines across a broad range of vehicle manufacturers.

This is a generic educational reference for the EV1/Jetronic connector type. No specific pinout is fabricated here. Always consult the vehicle-specific service manual or OEM wiring diagram for your exact application.

How to wire ev1 connector

Identify the injector and verify connector type Confirm you are working with an EV1 (Jetronic) style two-pin connector by comparing the housing shape to a reference image. The EV1 has a rectangular body with a single locking tab or clip. EV6 (USCAR2) connectors look similar but have different housing dimensions — they are not directly interchangeable.
Disconnect the battery before working on the fuel injection system Disconnect the battery negative terminal. This removes power from the injection relay and ECU driver, eliminating the risk of an ECU pin being inadvertently driven while probing the circuit.
Release the locking tab and disconnect the connector Press or lift the locking tab on the connector housing while pulling the connector body straight off the injector. Do not pull on the wires — grip the connector body only. Some connectors require a small flat-blade tool to release the tab without breaking it.
Inspect the connector and terminals Check the rubber seals at each wire entry for cracking or displacement. Inspect the terminals for corrosion, discolouration, or pushed-back contacts. Gently probe each terminal with a fine pick to confirm it is fully locked in the housing and does not push back.
Measure injector solenoid resistance Set the multimeter to resistance (Ω). Probe across the two injector terminals (not the harness). Record the reading. Consult the service manual for the specific injector's expected resistance. A reading far outside specification indicates a failed injector.
Reconnect the battery and test with a noid light Plug a noid light into the harness-side connector socket. Crank the engine. A flashing noid light confirms ECU injection pulses are present. No flash indicates a circuit fault upstream of the injector — check the injection relay, injector fuse, and ECU driver output for that cylinder.
Repair or replace the connector pigtail if damaged If the connector body or terminals are damaged, replace using a pre-terminated EV1 pigtail. Crimp or solder the new pigtail to the harness wires with proper heat-shrink insulation. Do not use scotchlok or push-in connectors for injector circuits — vibration and heat will cause these to fail.

Specifications

Connector pin count	2
Injector solenoid resistance — high impedance type	Typically 12–16 Ω at 20 °C
Injector solenoid resistance — low impedance type (peak-and-hold)	Typically 2–5 Ω at 20 °C
Nominal supply voltage	12 V DC (battery voltage via injection relay)
Typical high-impedance injector current draw at 12 V	Approximately 0.75–1.0 A
ECU driver control method	Switched ground (ECU controls the negative/ground side)
Environmental rating	IP67 (mated); designed for automotive underhood environment

Safety warnings

Fuel injection systems are part of a pressurised flammable fuel system. Before disconnecting injector connectors or fuel lines, relieve system fuel pressure and ensure there is no fuel leak in the area. Do not work near open flames or sources of ignition.
Disconnect the battery before probing injector circuits to avoid inadvertently activating the ECU driver or injection relay, which could cause fuel to spray from a disconnected injector.
The fuel injection relay supplies battery voltage directly to injector positive terminals. This voltage is present as long as the relay is energised, even with the ignition off if the relay is stuck. Verify injector supply voltage is absent before working on connectors.
Aftermarket high-impedance injectors installed in a vehicle designed for low-impedance (peak-and-hold) injectors may not operate correctly and can overheat the ECU driver stage. Verify injector impedance compatibility before installation.

Tools needed

Digital multimeter (resistance and DC voltage)
Noid light set, EV1 compatible
Fine flat-blade screwdriver or trim removal pick (for connector tab release)
Terminal removal pick set (for removing terminals from connector housing)
Ratchet crimp tool (for terminal crimping; avoid hammer-type crimpers for fine injector terminals)
Heat gun (for heat-shrink sleeves)
Fuel pressure gauge (for system pressure relief verification)

Common mistakes

Pulling on the injector harness wires rather than the connector body to disconnect the connector, which backs terminals out of the housing or breaks wires at the crimp.
Probing injector resistance with the harness connected to the ECU, which measures ECU driver impedance in parallel with the injector and gives a false low reading.
Using a general-purpose wire connector (Scotchlok, push-in connector) for a pigtail repair — these fail from heat and vibration in an engine bay environment.
Assuming all two-pin injector connectors are EV1 type and using EV1 pigtails on EV6 (USCAR2) injectors, which are dimensionally incompatible.
Failing to reseal the connector body properly after terminal replacement, allowing moisture ingress that causes terminal corrosion and intermittent misfire.
Replacing a suspected faulty injector without first testing whether the ECU injection signal is present using a noid light, missing the actual fault in the harness or ECU.

Troubleshooting

Engine misfires on one cylinder; injector connector suspected: Cause: Corroded or backed-out terminal in the EV1 connector causing high resistance or intermittent open circuit in the injector solenoid circuit Fix: Unplug the connector and inspect terminals for corrosion. Gently probe each terminal in the housing to confirm it does not push back. Clean terminals with electrical contact cleaner if corroded. If the terminal is backed out, use a terminal removal pick to extract it, re-form the locking lance, and reinsert until it clicks.
Noid light does not flash on one cylinder during cranking: Cause: Missing ECU drive signal, open injector circuit fuse, or failed injection relay Fix: Check the injector fuse in the fuse box. Verify the injection relay is functioning (battery voltage at the relay switched output with ignition on). If fuse and relay are good, probe the ECU injector driver pin (harness side, with vehicle-specific wiring diagram) for pulsing ground during cranking. No pulse indicates an ECU driver fault.
Injector solenoid reads open-circuit on multimeter: Cause: Broken solenoid winding inside the injector — the injector is failed Fix: Replace the injector. Confirm by measuring resistance across the two EV1 terminals on the injector body (harness disconnected) — open circuit (overload reading) confirms a broken coil that cannot be repaired.

Frequently asked questions

Does the EV1 connector have a defined pin 1 and pin 2 polarity for positive and ground?

No universal standard defines which pin is positive and which is ECU ground for all applications. Since a fuel injector solenoid has no polarity, the connector can be installed with either pin as the supply. Always check the vehicle-specific wiring diagram. Reversing the connections does not damage the injector but ensures you identify the correct ECU driver pin.

How do I test a fuel injector with an EV1 connector?

Measure solenoid resistance across the two pins with the harness disconnected. High-impedance injectors typically read 12–16 Ω; low-impedance (peak-and-hold) injectors read 2–5 Ω. An open-circuit reading (overload on meter) indicates a broken solenoid coil. A shorted reading (near 0 Ω) indicates a failed winding. You can also use an injector pulse tester or a noid light to verify the ECU is sending a drive signal.

What is a noid light and how is it used with the EV1 connector?

A noid light is a purpose-made LED test device that plugs into the EV1 connector socket on the wiring harness (with the injector removed). When the engine is cranked or run, the noid light flashes each time the ECU sends an injection pulse. A flashing noid light confirms the ECU is commanding injection; a non-flashing light indicates a missing signal, blown fuse, or failed ECU driver.

Can I replace an EV1-style injector with one using a different connector type?

Yes, using an injector adaptor pigtail that converts between connector types — for example EV1 to EV6 (USCAR2). These pigtails use the same two-pin solenoid interface and simply change the physical connector body. The electrical circuit is identical. Verify the new injector's impedance matches what your ECU's driver circuit expects.

What causes an EV1 connector to fail or cause a misfire?

Common failure modes are: terminal corrosion inside the connector reducing current flow; a cracked or broken locking tab allowing the connector to back off the injector body under vibration; heat damage to the connector body from proximity to exhaust components; and terminal push-back inside the housing from a poorly crimped pigtail repair.
