fan capacitor connection diagram

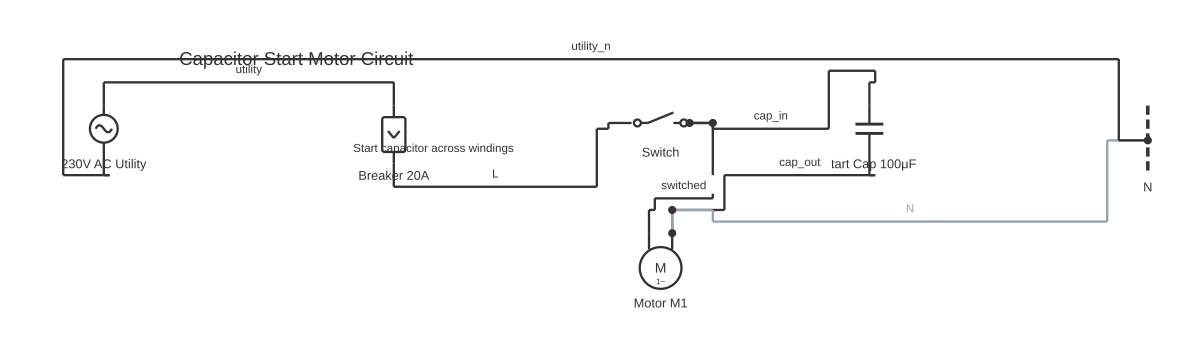

This is a free printable fan capacitor connection diagram: download the diagram as SVG or open it and print to paper or PDF.
Detailed wiring diagram explanation for fan capacitor connection diagram systems and circuit architecture.
How to wire fan capacitor connection diagram
- Disconnect power and discharge capacitor Switch off and lock out the supply. Assume the capacitor is charged — discharge it through a 10kΩ 5W resistor connected across the terminals. Never short a capacitor directly; the arc can damage the internal plates and create a short-circuit failure mode.
- Identify motor terminals Locate the motor terminal block. Typical single-phase fan motor terminals are: C (common), M (main winding), S (start/auxiliary winding). Some motors label these differently — check the motor wiring diagram on the nameplate label.
- Confirm capacitor rating Check the old capacitor body for its capacitance (μF) and voltage rating. The voltage rating of the replacement must equal or exceed the original. Never fit a capacitor rated below the circuit voltage.
- Mount the capacitor Secure the capacitor in the mounting bracket with the terminals facing away from hot motor surfaces. Capacitors degrade faster at elevated temperatures — position them with airflow around the body where possible.
- Connect capacitor to motor terminals Connect one capacitor terminal to the motor's S (start) terminal and the other capacitor terminal to the M (main) terminal or C (common) terminal, depending on the motor wiring type. Confirm with the motor's wiring diagram — incorrect connection causes reversed rotation or no-start.
- Connect supply wires Connect brown (live) to the motor common terminal via the switch. Connect blue (neutral) directly to the motor. All connections must use correctly rated spade terminals — bare wire wrapped around a screw terminal will arc and fail.
- Test rotation direction Apply power briefly. Confirm the fan rotates in the correct direction. If reversed, swap the capacitor connection from S-terminal to C-terminal or vice versa — this reverses the phase shift and reverses rotation.
- Measure running current Clamp a current meter around the live feed wire during normal operation. Running current should match the motor nameplate amps. Elevated current with the correct capacitor fitted indicates a mechanical fault (seized bearing, blocked impeller).
Frequently asked questions
What does the capacitor do in a single-phase fan motor?
The capacitor creates a phase shift between the main winding and the auxiliary winding, generating the rotating magnetic field needed to start and run a single-phase motor. Without it, the motor hums but does not rotate — it has no directional force to begin spinning.
How do I know what capacitor value to use?
The correct value is printed on the motor nameplate (e.g. 5μF, 8μF, 10μF). Never substitute a higher-value capacitor — it shifts the phase angle incorrectly, causes the motor to overheat, and reduces efficiency. Replace only with the exact specified value.
How do I test if a fan capacitor has failed?
Discharge the capacitor first by shorting its terminals through a 10kΩ resistor — never short directly as this damages the capacitor internally. Then measure capacitance with a capacitance meter. A reading more than 10% below the rated value means the capacitor needs replacement.
Can I start a single-phase fan motor without a capacitor?
The motor will hum but not start. If left on, the main winding draws locked rotor current (6–8 times running current) and will overheat and burn out within minutes. Never leave a motor running without its capacitor even briefly.
Why does my fan run slowly after replacing the capacitor?
The replacement capacitor is likely the wrong value — either too low (motor lacks torque, runs sluggishly) or too high (motor runs in the wrong magnetic phase condition). Confirm the capacitor rating against the motor nameplate and replace with the exact specified value.
