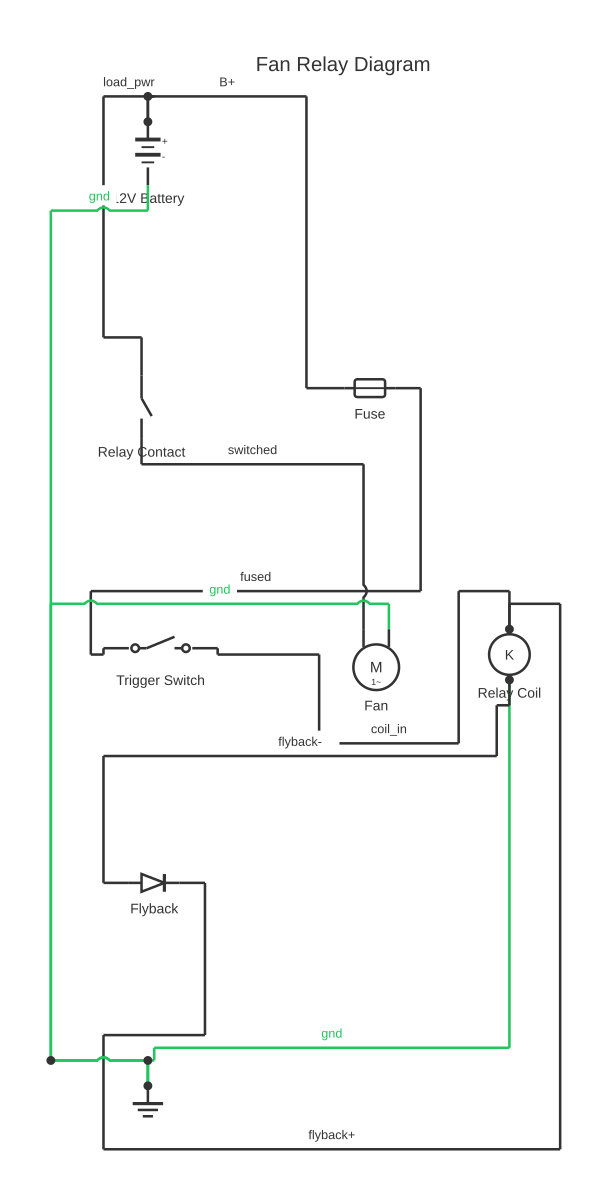

Fan Relay Diagram

Fan Relay Diagram — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable fan relay diagram: download the diagram as SVG or open it and print to paper or PDF.

A fan relay diagram shows how a relay's coil and switching contacts are wired to control a fan from a low-current signal, covering coil polarity, contact selection, and suppression of inductive voltage spikes.

A relay is an electromechanical switch whose coil and switching contacts are electrically isolated from each other. This isolation allows a low-power control signal (from a thermostat, humidity sensor, BMS output, or microcontroller) to switch a fan motor drawing significantly more current than the control signal could handle directly.

The relay coil produces a magnetic field that attracts an armature, closing (NO) or opening (NC) the main contacts. When coil power is removed, the magnetic field collapses rapidly and the armature snaps back. This fast collapse induces a back-EMF voltage spike that can reach hundreds of volts and damage the coil drive circuit. A suppression device — a flyback diode (for DC coils) or a varistor/RC snubber (for AC coils) — placed across the coil terminals absorbs this spike and is essential for any relay controlled by a transistor, microcontroller output, or solid-state relay.

For fan control, the normally open (NO) contact is the standard choice: the fan is off when the coil is de-energised and runs when the coil is energised. Normally closed (NC) contacts are used for fail-safe applications where the fan must run if control power is lost (e.g. equipment cooling fans in server rooms).

Fan motors are inductive loads. The relay's contact current rating for inductive loads (AC3 or FLA × 1.25 with service factor) is lower than its resistive rating. Always confirm the relay's inductive duty rating against the fan motor's full-load current.

Three-speed fans (common in residential ceiling fans) use tapped windings, with one relay per speed tap. Multi-speed relays or dedicated fan controllers with built-in relay banks simplify this wiring.

For brushless DC (BLDC) fans with PWM speed control, the relay need only switch the fan's supply voltage; speed control is handled separately through the fan's signal wire (typically a 0–10 V or PWM input), not through relay contacts.

Fan relay diagrams cover a wider range of applications than basic switched circuits, from HVAC air-handler relays to LS-swap engine-cooling setups and thermostatically controlled auxiliary fans. In every case the relay isolates the high-current fan motor load from the low-current control signal, protecting switches and ECUs. Whether you are wiring a thermo fan with a temperature switch, adding an auxiliary fan on a cooling system, or roughing out an HVAC fan-relay schematic, you can draft and edit your diagram entirely free in the browser at circuitdiagrammaker.com — no download required.

How to wire fan relay diagram

Select the relay Choose a relay with a coil voltage matching the control circuit (5 V DC, 12 V DC, 24 V DC, 24 V AC, or 230 V AC) and main contacts rated for the fan's inductive load current at AC3 duty. Confirm the contact configuration (SPDT for most fan applications).
Install suppression across the coil For DC coils: solder or wire a flyback diode (e.g. 1N4007) across the coil terminals with the anode to the negative terminal and the cathode to the positive terminal. For AC coils: connect an appropriately rated metal oxide varistor (MOV) or RC snubber across the coil terminals.
Wire the coil to the control source Connect the positive (or live) side of the coil drive to the coil terminal. Connect the negative (or switched) side to the coil's other terminal via the control device (thermostat contact, transistor collector, or BMS relay output). Ensure the control circuit is protected by a fuse or current-limiting resistor appropriate to the coil's current draw.
Connect the main contact — load side Connect the fan motor's live (hot) supply conductor to the relay's common (COM) terminal. Connect the fan motor live terminal to the relay's normally open (NO) terminal. The neutral and earth conductors run directly to the fan without passing through the relay contact.
Connect earth continuity Ensure a continuous earth (protective) conductor runs from the supply earth to the relay enclosure, to the fan motor enclosure, and to any metallic fan housing. Class I fan motors require this continuity for electrical safety.
Test before final installation Apply control signal and verify the relay coil energises (audible click or LED indicator). Confirm the NO contact is closed with a continuity tester. Restore fan supply power and verify the fan starts and runs correctly. Remove the control signal and confirm the fan stops.

Specifications

Typical relay coil voltage options	5 V DC, 12 V DC, 24 V DC, 24 V AC, 120 V AC, 230 V AC
Contact configuration	SPDT (single-pole double-throw): COM, NO, NC terminals
Fan motor inrush current (typical AC induction)	4–8 × full-load current at start
Suppression (DC coil)	Flyback diode (1N4007 or equivalent) wired anti-parallel across coil
Suppression (AC coil)	MOV or RC snubber (68 Ω + 0.1 µF in series, rated for supply voltage)
Contact duty for inductive loads	AC3 per IEC 60947-4-1 (motor and inductive load duty)
Applicable standards	IEC 60947-4-1, IEC 61810-1, NEC/NFPA 70, BS 7671, AS/NZS 3000

Safety warnings

Isolate and lock out the fan supply circuit before making or inspecting any wiring. Rotating fan blades can cause serious injury. Verify the supply is de-energised before reaching into any enclosure.
Do not exceed the relay contact's inductive current rating. Connecting a fan motor whose inrush current exceeds the relay's make rating (typically 6–10× FLA on motor start) without verifying the relay's inrush specification can weld the contacts.
Always install suppression (flyback diode for DC, MOV or snubber for AC) across relay coils. Omitting suppression will damage transistors, microcontroller outputs, and BMS relay driver circuits that switch the coil.
Fan relay circuits must comply with NEC/NFPA 70, BS 7671, AS/NZS 3000, or IEC 60364 as applicable. Earth continuity to the fan motor body is mandatory for Class I (metallic enclosure) motors.
This diagram is provided for illustrative and reference purposes only. All wiring must follow the relay and fan manufacturer's instructions and be carried out by a suitably qualified electrician.

Tools needed

Multimeter (voltage and continuity modes, CAT III rated)
Insulated screwdrivers
Wire strippers
Ferrule crimping tool (for stranded conductors)
Soldering iron (if flyback diode is soldered rather than wired)
Lockout/tagout device

Common mistakes

Wiring the fan neutral through the relay contact instead of direct to the neutral bar — this is incorrect and may leave the fan neutral floating when the relay opens.
Omitting the flyback diode on a DC relay coil driven by a transistor or microcontroller output — the resulting back-EMF spike destroys the driving transistor.
Selecting a relay based on its AC1 (resistive) contact rating and connecting a fan motor that exceeds the lower AC3 (inductive) rating, causing rapid contact erosion and welding.
Running control and high-voltage power conductors in the same cable without proper shielding or separation, coupling electrical noise onto the control signal and causing erratic relay switching.
Installing a relay socket without locking the relay in place — vibration from the fan can work the relay loose from the socket, causing intermittent operation.

Troubleshooting

Fan does not start when control signal is applied: Cause: Relay coil not energising (no control voltage, blown fuse, broken coil) or relay contact not closing (worn contacts, relay socket not seated) Fix: Measure coil voltage at the relay coil terminals. If correct voltage is present but relay does not click, the coil has failed. If voltage is absent, trace the control circuit for an open circuit or blown fuse. If relay clicks but fan does not start, test continuity across the NO contact.
Fan runs continuously regardless of control signal: Cause: Relay NO contact has welded closed due to overcurrent or inrush, or the wiring is connected to NC instead of NO Fix: Isolate the supply. Use a multimeter to test whether the relay contact opens when the coil is de-energised. Welded contacts require relay replacement. Confirm the load is wired to the NO terminal, not the NC terminal.
Control circuit (microcontroller or BMS output) fails after relay switching: Cause: Back-EMF spike from coil de-energisation destroying the transistor or output driver — suppression component missing or failed Fix: Check for the presence and correct orientation of the flyback diode (DC) or MOV (AC). A failed diode will show low resistance in both directions. Replace the diode or MOV. Test the coil drive circuit before reinstalling the microcontroller or BMS output card.

Frequently asked questions

Why does a relay need a flyback diode or snubber when controlling a fan?

Fan motors and relay coils are both inductive. When coil current is switched off, the collapsing magnetic field generates a high-voltage back-EMF spike (potentially hundreds of volts). A flyback diode across a DC coil or an RC snubber across an AC coil absorbs this spike, protecting the transistor, microcontroller pin, or BMS output that drives the coil.

What is the difference between a normally open and normally closed relay contact for fan control?

With a normally open (NO) contact, the fan is off when the relay coil is de-energised and runs when the coil is energised — the most common arrangement. With a normally closed (NC) contact, the fan runs continuously and stops only when the coil is energised. NC contacts are used where the fan must keep running if control power is lost.

Can one relay control a multi-speed fan?

A standard single-pole relay can control only one speed tap at a time. For a three-speed fan with separate winding taps, three separate relays (one per speed) are required, with interlocking to ensure only one relay is energised at a time. Dedicated fan controller modules with built-in relay banks simplify this application.

What relay contact rating is needed for a 1/3 HP (250 W) fan motor?

A 1/3 HP 230 V AC fan draws approximately 1.1–1.5 A full-load. The relay must be rated for inductive (AC3) duty at this current with adequate margin. A 5 A or 10 A AC3-rated relay contact is suitable. Never select a relay based on its resistive (AC1) rating alone for a motor load.

How is a thermostat used to control a relay for fan switching?

The thermostat's switched output provides the coil drive signal. When the temperature exceeds the setpoint, the thermostat closes its output contact, energising the relay coil, which closes the main contact and starts the fan. When temperature falls below the setpoint, the thermostat opens, the coil de-energises, and the fan stops.

How do I wire a relay for a fan?

Connect terminal 85 of the relay to chassis ground and terminal 86 to your control signal (switch, ECU output, or thermostat). Run the battery positive through a fuse to terminal 30, and the fan motor positive from terminal 87 back to the fan. The fan negative goes to chassis ground. When the control signal energises the coil, the relay closes and powers the fan.

What does a fan relay wiring diagram look like for an HVAC system?

An HVAC fan relay diagram shows the 24 V control circuit on one side — thermostat G terminal energising the relay coil — and the 120 V or 240 V line-voltage circuit on the other side powering the air-handler blower motor. The relay coil is typically housed on the air-handler control board. The diagram must separate the low-voltage and line-voltage sections clearly, usually with dashed boundary lines.

How do I wire a fan relay for an LS swap?

On a typical LS-swap cooling setup, the ECM drives the relay coil (terminals 85/86) directly via a PWM or switched ground output. Terminal 30 connects to a fused battery feed; terminal 87 feeds the electric fan. Use a 30–40 A relay rated for the fan's stall current and keep wiring runs short with 10–12 AWG cable. Many builders add a separate override relay triggered by the A/C compressor clutch signal.

How does a thermo fan relay wiring diagram work?

A thermo fan relay uses a temperature-sensitive switch (thermoswitch) mounted in the radiator or coolant passage as the control input to the relay coil. When coolant reaches the thermoswitch's rated temperature, it closes, energising the relay coil and switching power to the fan. When coolant cools below the threshold, the switch opens, the relay de-energises, and the fan stops. Always wire a manual override or A/C input in parallel with the thermoswitch.

How do I wire an auxiliary fan relay?

An auxiliary (secondary) fan relay diagram is usually identical in topology to a primary fan relay: fused battery to terminal 30, fan to terminal 87, coil trigger to terminal 86, and ground to terminal 85. The difference is the trigger source — it may be the A/C pressure switch, a second thermoswitch, or an ECU output. Ensure the combined fan current is within the relay's continuous-duty rating.
