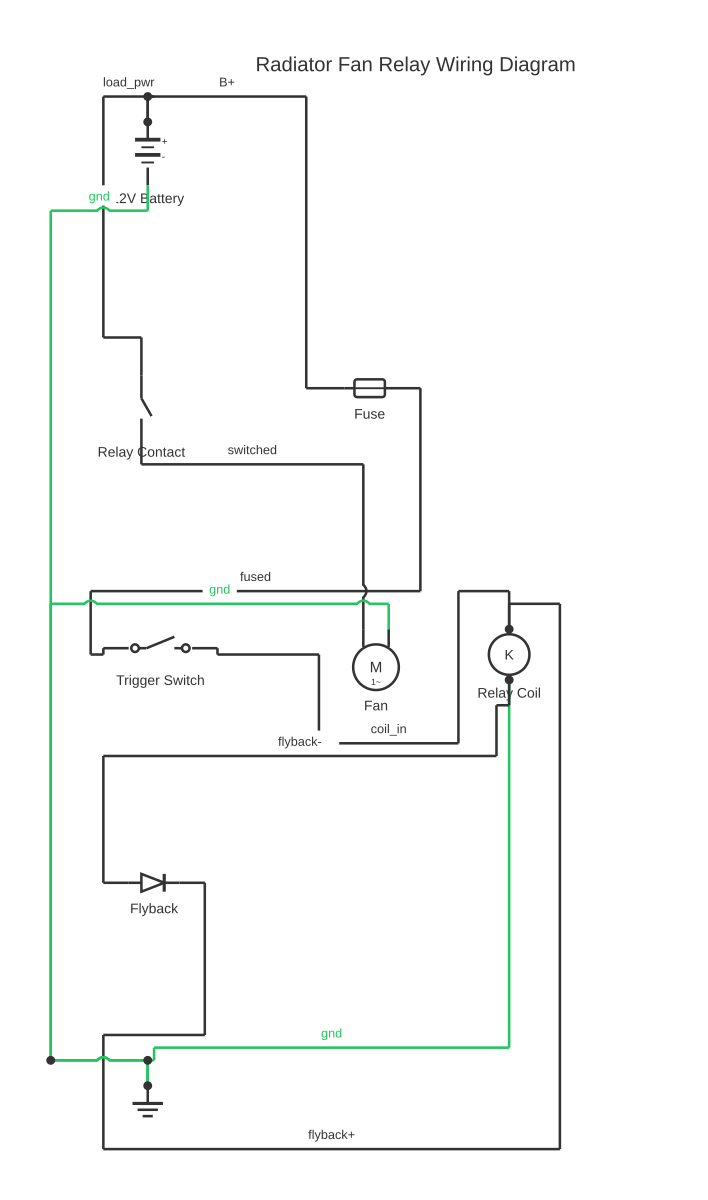

Radiator Fan Relay Wiring Diagram

Radiator Fan Relay Wiring Diagram — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable radiator fan relay wiring diagram: download the diagram as SVG or open it and print to paper or PDF.

Learn how automotive radiator fan relay circuits work, including coolant temperature switch logic, relay terminal identification, and correct fusing for electric cooling fans.

Electric radiator cooling fans are high-current DC loads — a typical 12 V single fan motor draws 10–25 A at full speed, and a dual-fan assembly can draw 30–40 A. Running that current through the engine control unit (ECU) or a simple temperature switch would destroy them. The relay solves this: a small control current (typically 150–200 mA through the relay coil) switches a robust set of contacts that carry the full fan current.

The standard automotive relay circuit for a radiator fan uses a four-pin or five-pin ISO mini relay. The coil terminals are 85 (coil negative, usually grounded) and 86 (coil positive, switched by the coolant temperature switch or ECU output). The load terminals are 30 (common, feeds from the fuse) and 87 (normally-open contact, feeds the fan motor). In a five-pin relay, terminal 87a is the normally-closed contact, used in some circuits to drive the fan at low speed via a series resistor when the AC condenser fan is needed.

The coolant temperature switch (sometimes called a thermostatic switch or thermo-switch) is a bi-metallic or NTC-based switch threaded into the radiator or coolant housing. It closes when coolant temperature reaches its calibrated actuation temperature (typically 85–95 °C for a standard-speed switch, 95–105 °C for a high-speed switch on vehicles with two-speed fans) and opens again with hysteresis as the coolant cools.

Proper fusing is critical. The fan circuit fuse should be rated at 125–150% of the fan's maximum rated current to protect the wiring without nuisance blowing during motor startup inrush. Wire gauge must be selected to carry the rated current with acceptable voltage drop: a 20 A circuit over a 2-metre run should use a minimum of 2.5 mm² (13 AWG) cable to keep drop below 0.5 V.

A flyback (freewheeling) diode across the fan motor terminals — cathode toward positive — suppresses the inductive voltage spike when the relay contacts open, protecting the relay contacts and any connected ECU outputs from high-voltage transients.

How to wire radiator fan relay wiring diagram

Identify the fan motor's rated current Check the fan motor specification or measure with a clamp meter under operating conditions. This determines fuse rating, wire gauge, and relay contact rating. Never assume — a fan listed as '10 A' may have a startup inrush of 25 A for the first 100 ms.
Select an appropriately rated relay Choose an ISO mini relay with a contact current rating exceeding the fan motor's maximum rated current. For most single fans, a standard 30 A relay is suitable. For dual-fan assemblies or high-performance fans, use a 40 A relay or a purpose-made fan relay module.
Route the power supply and fuse Run a fused cable from the battery positive terminal (or a suitable high-current fusebox feed) to relay terminal 30. Size the fuse at 125–150% of fan rated current. Use the correct wire gauge for the run length.
Connect the fan motor to relay terminal 87 Run a cable from relay terminal 87 to the fan motor positive terminal. Connect the fan motor negative terminal to chassis ground at a clean, corrosion-free earthing point. The ground connection quality is as important as the supply: a poor earth causes voltage drop and fan underperformance.
Connect the relay coil Connect relay terminal 85 to chassis ground. Connect relay terminal 86 to the coolant temperature switch output or ECU fan control output. The temperature switch should have one terminal grounded and the other feeding terminal 86 via a supply-side pull-up, or the ECU output may directly supply 12 V to the coil.
Install a flyback diode across the fan motor Fit a 1N4007 or equivalent diode across the fan motor terminals — cathode (banded end) to positive, anode to negative. This suppresses the inductive back-EMF spike when the relay opens, preventing contact erosion and ECU transient damage.
Test the circuit With the engine cold, verify the fan does not run. Warm the engine to normal operating temperature and confirm the fan cuts in. If the vehicle has an air conditioning system, verify the fan also runs whenever the AC compressor is engaged, as required by most designs.

Specifications

Relay coil voltage	12 V DC nominal (operates 9–16 V for standard automotive relays)
Relay coil current (typical)	150–200 mA
Relay contact rating (standard ISO mini)	30 A continuous, 40 A intermittent
Typical single fan motor current	10–25 A at 12 V (verify per motor specification)
Recommended supply wire gauge (20 A circuit)	2.5 mm² (13 AWG) minimum for runs up to 3 m
Temperature switch actuation (typical)	88–95 °C closing, 80–88 °C opening (hysteresis varies by application)
Fuse rating (guideline)	125–150% of fan motor rated current, nearest standard value above
Maximum allowable voltage drop (12 V circuit)	0.5 V or less from battery to fan motor terminals

Safety warnings

Disconnect the battery negative terminal before working on any automotive electrical circuit. Accidental short circuits can cause fires, explosive battery gas ignition, or serious burns from high short-circuit currents.
Electric cooling fans can activate without warning when the engine is at operating temperature, even with the ignition off, if the temperature switch or ECU enables them during cooldown. Keep hands and loose clothing clear of the fan blades whenever the battery is connected.
Always fuse the supply circuit as close to the power source as possible. An unfused cable run, even a short one, is a fire hazard in the event of a downstream short circuit.
Verify correct relay contact current rating before installation. Using a relay with an undersized contact rating will cause contact welding under startup inrush current, leaving the fan running permanently.
Ensure all earthing connections are to clean, bare metal chassis points. Paint, corrosion, or grease under a ring terminal creates resistance that causes voltage drop, heat, and unreliable fan operation.

Tools needed

Digital multimeter
DC clamp meter (for measuring fan current without breaking the circuit)
Wire strippers and crimp tool
Heat gun (for heat-shrink insulation on joints)
Socket set and spanners (for temperature switch installation)
Electrical contact cleaner
Cable ties and loom tape

Common mistakes

Using undersized wire gauge for the fan supply circuit, causing excessive voltage drop, heat buildup, and fan underperformance.
Grounding the fan motor to a painted body panel rather than a clean bare-metal chassis point, resulting in a high-resistance earth and voltage drop.
Installing the fuse at the load end (near the relay or fan) rather than at the supply end (near the battery), leaving most of the supply cable unprotected.
Omitting the flyback diode across the fan motor, leading to relay contact pitting and eventual ECU output damage from inductive spikes.
Connecting the relay coil (terminal 86) to an ignition-switched supply that does not stay live during engine-off cooldown, preventing post-shutdown fan operation needed to protect turbochargers and coolant in modern vehicles.

Troubleshooting

Fan does not run at operating temperature: Cause: Open fuse, faulty relay, failed temperature switch, or broken circuit continuity Fix: Test fuse continuity first. Apply 12 V directly to relay terminals 30 and 86, and ground 85; if the fan runs, the relay is good — suspect the temperature switch or its supply. If the fan does not run with direct power, check fan motor and ground connection.
Fan runs continuously regardless of temperature: Cause: Welded relay contacts, short to supply on relay coil circuit, or failed-closed temperature switch Fix: Remove the relay: if fan stops, the relay contacts are welded — replace relay. If the fan continues with the relay removed, there is a direct supply short on the fan motor wire. Also test the temperature switch resistance when cold; a failed-closed switch will read near zero ohms when it should be open circuit.
Fan runs weakly or slowly: Cause: High resistance in supply or earth circuit due to poor connections, undersized wire, or corroded terminals Fix: Measure voltage at the fan motor terminals with the fan running. It should be within 0.5 V of battery voltage. If it is significantly lower, perform a voltage drop test across each segment of the circuit (supply cable, relay contacts, earth cable) to isolate the high-resistance point.

Frequently asked questions

What are the terminal numbers on a standard automotive fan relay?

A standard ISO mini relay uses: 30 = common (supply in), 85 = coil negative (ground), 86 = coil positive (switched control), 87 = normally-open contact (load out when energised), 87a = normally-closed contact (load out when de-energised, five-pin relays only).

Why does the radiator fan need a relay rather than a direct switch?

Fan motors draw 10–25 A or more. A direct temperature switch or ECU output carries only a small control signal rated for milliamps to a few amps. Routing full fan current through these devices causes contact welding, harness overheating, and ECU output damage. The relay separates the low-current control circuit from the high-current power circuit.

What wire gauge should I use for the fan relay circuit?

Size the wire to the fan's maximum current draw with no more than a 3% voltage drop over the circuit length. For a 20 A fan over a 2 m supply run, use minimum 2.5 mm² (13 AWG). The relay control wiring (coil circuit) can be much lighter — typically 0.5–1.0 mm² (20–18 AWG) — since coil current is under 250 mA.

Where should the fuse be positioned in the fan relay circuit?

The fuse must be positioned as close as practicable to the power source — typically within 300 mm (12 inches) of the battery positive terminal or the fusebox connection. This protects the maximum length of cable in the event of a fault. A blown fuse at the load end leaves most of the cable unprotected.

Why does my radiator fan run continuously even when the engine is cold?

This usually indicates a welded relay contact (relay permanently closed), a failed-closed temperature switch, or a short to supply voltage on the relay control wire (terminal 86). Test by unplugging the relay: if the fan stops, the relay contacts are welded. If the fan continues with the relay removed, the fan motor supply wire has a direct short to battery.
