Full Wave Rectifier Circuit Diagram: Bridge Topology, Formulas & Filter Design

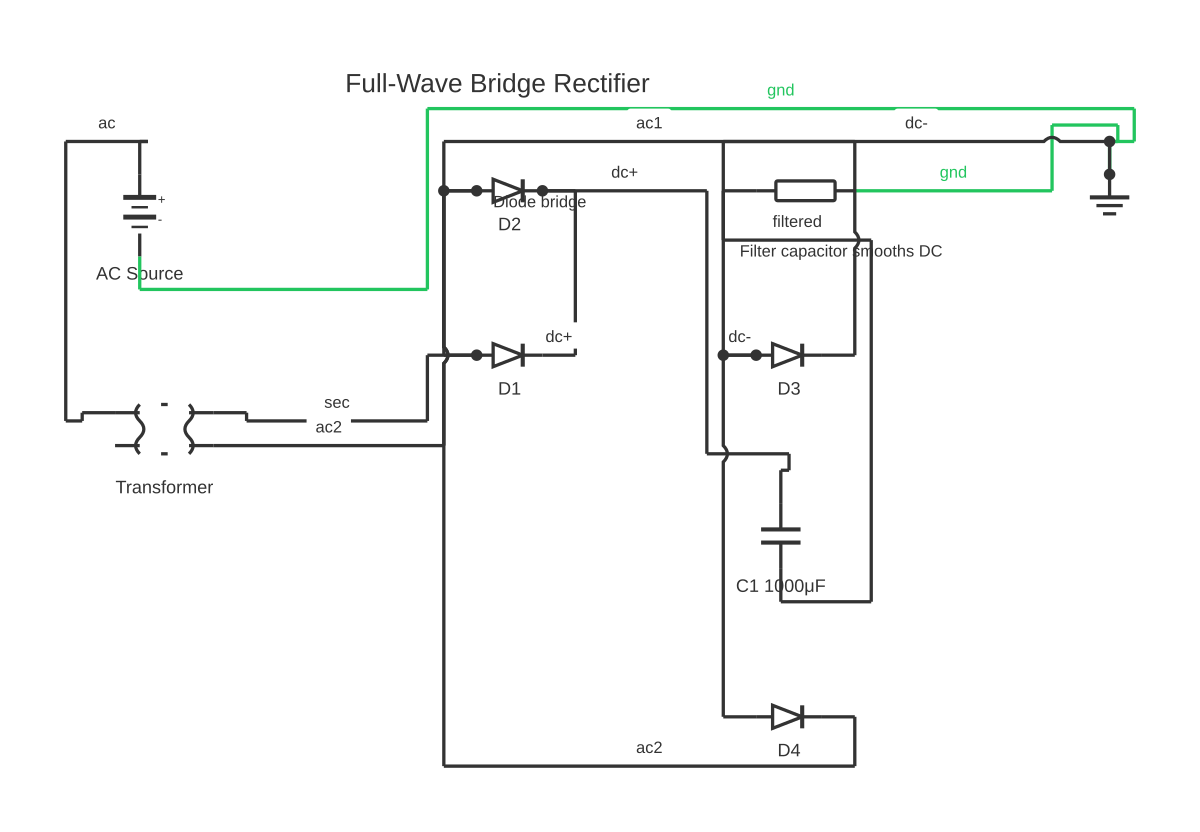

This is a free printable full wave rectifier circuit diagram: download the diagram as SVG or open it and print to paper or PDF.
A full wave rectifier converts both the positive and negative half-cycles of an AC input into unidirectional (pulsating DC) output, delivering significantly higher efficiency and lower ripple than a half wave rectifier. Two main topologies exist: the bridge rectifier (4 diodes, no centre-tap transformer) and the centre-tap rectifier (2 diodes, centre-tap transformer). Understanding the full wave rectifier circuit diagram is fundamental to power supply design.
Unlike the half wave rectifier that discards the negative AC half-cycle, a full wave rectifier flips the negative half-cycle so both halves contribute to the DC output. This doubles the output frequency (2×fin) and dramatically reduces ripple.
**Two Topologies**
**1. Bridge Rectifier (4-Diode)**
The bridge rectifier uses four diodes arranged in a diamond (Wheatstone bridge) configuration: - During the positive AC half-cycle: D1 and D3 conduct; D2 and D4 are reverse-biased - During the negative AC half-cycle: D2 and D4 conduct; D1 and D3 are reverse-biased - Current through RL always flows in the same direction
The bridge rectifier requires a simple (no centre-tap) transformer but loses 2 diode drops (2 × 0.7V = 1.4V) on each half-cycle.
**2. Centre-Tap Rectifier (2-Diode)**
The centre-tap rectifier uses two diodes and a transformer with a centre-tap secondary: - Each diode handles one half-cycle, using the centre-tap as the common return - Only one diode drop (0.7V) per half-cycle - Requires a more expensive centre-tap transformer - PIV per diode = 2 × Vm (higher than bridge)
**Key Formulas**
Peak voltage: Vm = √2 × Vrms
DC output voltage: Vdc = 2Vm / π ≈ 0.636 × Vm
For bridge: Vdc_actual = 0.636 × (Vm − 1.4) (two diode drops)
For centre-tap: Vdc_actual = 0.636 × (Vm/2 − 0.7) per half-winding
Ripple factor (no filter): r = 0.48 (48%) — much better than half-wave 121%
Output frequency: fout = 2 × fin (120 Hz for 60 Hz mains, 100 Hz for 50 Hz)
Rectifier efficiency: η ≈ 81.2% (theoretical, vs 40.6% for half-wave)
Ripple voltage (with capacitor C, load RL): Vr ≈ Vm / (2 × f × RL × C)
Note the factor of 2 in the denominator compared to half-wave: the capacitor is replenished twice per cycle, halving the discharge time and the ripple.
PIV rating: - Bridge diode PIV: ≥ Vm - Centre-tap diode PIV: ≥ 2 × Vm
**Filter Capacitor Design**
Because the output pulses at 2×fin, the filter capacitor is recharged twice per AC cycle. For the same capacitance and load, a full wave rectifier produces approximately half the ripple of a half wave rectifier. This makes the full wave bridge the dominant topology in practical power supplies.
Capacitor selection: C ≥ Vm / (2 × Vr × f × RL)
Example: Vm=16.97 V, Vr=0.5V, f=60 Hz, RL=500 Ω → C ≥ 16.97/(2×0.5×60×500) ≈ 566 µF. Use 1000 µF.
**Bridge Rectifier Modules**
Bridge rectifiers are available as single 4-pin modules (e.g. 2W005 through 2W10 for 1.5 A, or KBU series for up to 6 A). The pins are labelled AC (two AC input pins), + (positive DC output), and − (negative DC output / common).
**Practical Applications**
Full wave bridge rectifiers are found in virtually every AC-DC power supply: wall adapters, laptop chargers, linear regulated supplies (followed by a 7805/LM317 regulator), uninterruptible power supplies, and motor drive power stages.
**Adding a Voltage Regulator**
A bridge rectifier + filter capacitor provides unregulated DC. For stable regulated DC, add a linear voltage regulator (e.g. LM7805 for 5V, LM7812 for 12V) or a switching regulator (buck converter) after the filter stage. The rectifier output must be at least 2–3V above the regulator output to remain in regulation.
Simulate your full wave rectifier circuit diagram in the free circuitdiagrammaker.com editor. Place four diodes in bridge configuration, connect an AC source, add a load resistor and filter capacitor, and observe how the negative half-cycle is inverted to contribute to the DC output.
How to wire full wave rectifier circuit diagram
- Choose bridge or centre-tap topology Use a bridge rectifier for simplicity (standard transformer, 4 diodes). Use a centre-tap design if you need lower voltage drop (1 diode instead of 2 in series) and have access to a centre-tap transformer.
- Select diodes for bridge configuration For a bridge, all four diodes must have PIV ≥ Vm and average forward current ≥ IL (load current). For a 12V transformer secondary (Vm=17V) at 500 mA load, 1N4001 (50V PIV, 1A) is suitable.
- Wire the bridge Connect D1 anode and D3 cathode to AC terminal 1. Connect D2 anode and D4 cathode to AC terminal 2. Connect D1 cathode and D2 cathode together — this is the positive DC output (+). Connect D3 anode and D4 anode together — this is the negative DC output (common/GND).
- Add the filter capacitor Connect an electrolytic capacitor (+ to positive DC output, − to common) in parallel with the load. Calculate C ≥ Vm/(2×Vr×f×RL). For a 12V, 100 mA load with 0.5V ripple at 60 Hz: C ≥ 17/(2×0.5×60×120) ≈ 1.18 mF, so use 2200 µF.
- Measure Vdc and ripple With load connected, measure DC voltage with a multimeter. Set multimeter to AC for ripple measurement (or use oscilloscope AC-coupled). Confirm Vdc ≈ 0.636 × Vm minus 1.4V diode drops.
- Add a bleed resistor Connect a high-value resistor (10 kΩ to 100 kΩ) in parallel with the output capacitor. This ensures the capacitor discharges when load is disconnected, preventing hazardous stored charge.
- Add a voltage regulator (optional) If regulated DC is required, follow the rectifier and filter with an LM7805 (5V), LM7812 (12V), or LM317 (adjustable). Ensure the rectifier output exceeds the regulator output by at least 2.5V under full load.
Specifications
| Vdc (no filter) | 2Vm/π = 0.636 × Vm |
|---|---|
| Vrms output (no filter) | Vm / √2 = 0.707 × Vm |
| Ripple factor (no filter) | 0.48 (48%) |
| Rectifier efficiency | 81.2% (theoretical max) |
| Form factor | 1.11 |
| Output frequency | 2 × fin (100 Hz at 50 Hz / 120 Hz at 60 Hz) |
| Bridge diode PIV rating | ≥ Vm |
| Centre-tap diode PIV rating | ≥ 2 × Vm |
| Diode drops (bridge) | 2 × 0.7V = 1.4V total |
| Diode drops (centre-tap) | 1 × 0.7V = 0.7V total |
| Capacitor ripple formula | Vr ≈ Vm / (2 × f × RL × C) |
| Example cap (0.5V ripple, 60Hz, 500Ω) | C ≥ 566 µF → use 1000 µF |
Safety warnings
- Mains-connected rectifier circuits operate at lethal voltages. ALWAYS use a safety-isolated step-down transformer. Never build a mains-connected half-wave or full-wave rectifier without proper enclosure, fusing, and earth bonding.
- Filter capacitors in power supplies store significant charge even after power is removed. A 2200 µF capacitor charged to 20V holds enough energy to cause serious burns. Discharge through a 1 kΩ resistor and verify with a multimeter before touching any component.
Tools needed
- Step-down transformer (12V or 24V secondary, VA rating ≥ 2× output power)
- Four rectifier diodes (1N4001–1N4007 for low current; KBU series bridge module for high current)
- Electrolytic filter capacitor (1000–4700 µF, voltage rating ≥ 1.5 × Vm)
- Bleed resistor (10 kΩ, 1W) in parallel with filter capacitor
- Digital multimeter (DC volts for output, AC volts for ripple measurement)
- Oscilloscope (strongly recommended for visualising the full wave rectified waveform and ripple)
Common mistakes
- Connecting bridge diodes in the wrong orientation — one common error is reversing D1 and D2, which short-circuits the AC source through two forward-biased diodes. Always draw the bridge diamond carefully and verify each diode's polarity before powering up.
- Using centre-tap diodes with PIV rated only to Vm: centre-tap diodes see 2×Vm in reverse. Using 1N4001 (50V) for a 24Vrms secondary where Vm≈34V and 2Vm≈68V will cause reverse breakdown and diode failure.
- Connecting electrolytic capacitor with reversed polarity: reversed electrolytic capacitors overheat, can vent, or explode. Always confirm positive (marked with +) connects to the positive DC rail.
- Forgetting a bleed resistor: without a bleed resistor, the filter capacitor remains charged at Vm after power is removed. This voltage can persist for minutes and is a shock hazard.
Troubleshooting
- No output voltage but AC input confirmed
- Cause: One or more bridge diodes installed backwards or failed open Fix: With power off, use multimeter diode-test mode on each of the four diodes. A healthy diode shows ~0.6–0.7V forward, OL reverse. Replace any failed diode and recheck bridge orientation.
- Excessive output ripple despite large filter capacitor
- Cause: Electrolytic capacitor has high ESR due to age, damage, or incorrect type Fix: Measure capacitor ESR with an LCR meter. Replace with a low-ESR capacitor. Also check that the capacitor value is correct — 100 µF vs 1000 µF is a common misread.
- Output voltage lower than calculated
- Cause: Transformer secondary voltage sags under load (poor transformer regulation), or diodes have higher-than-expected Vf Fix: Measure secondary voltage under full load with a multimeter. If it sags by more than 10–15%, the transformer VA rating is insufficient. Upgrade transformer or reduce load.
- Diodes overheating under normal load
- Cause: Diode forward current rating too low, or no heatsinking for high-current applications Fix: Calculate peak diode current (Ipeak ≈ 5–10× average DC current for a capacitor-input filter). Upgrade to a higher-current diode or a packaged bridge rectifier module with better thermal characteristics.
Frequently asked questions
What is a full wave rectifier?
A full wave rectifier converts both positive and negative half-cycles of AC into DC by routing both cycles in the same direction through the load. It uses either 4 diodes in a bridge or 2 diodes with a centre-tap transformer.
What is the Vdc formula for a full wave rectifier?
Vdc = 2Vm/π = 0.636 × Vm, where Vm is the peak AC voltage (Vm = 1.414 × Vrms). For a 12 Vrms transformer secondary: Vm ≈ 16.97V, Vdc ≈ 10.8V before subtracting diode drops.
What is the ripple factor of a full wave rectifier?
The ripple factor without a filter capacitor is 0.48 (48%), compared to 1.21 for a half wave rectifier. With a filter capacitor, ripple is further reduced because the capacitor is replenished at twice the AC frequency.
What is the PIV requirement for bridge rectifier diodes?
For a bridge rectifier, each diode needs PIV ≥ Vm. For a centre-tap rectifier, each diode needs PIV ≥ 2×Vm because the reverse voltage is across the full secondary winding.
Why does a bridge rectifier have two diode drops while a centre-tap has one?
In a bridge, current always passes through two diodes in series (one in each half-cycle), losing 2 × 0.7V = 1.4V. In a centre-tap design, current passes through only one diode (0.7V drop) per half-cycle.
What is the output frequency of a full wave rectifier?
The output ripple frequency is twice the input frequency: 100 Hz for 50 Hz mains and 120 Hz for 60 Hz mains. This higher frequency is easier to filter with a capacitor compared to the 50/60 Hz output of a half wave rectifier.
What capacitor size is needed for a full wave rectifier filter?
Use C ≥ Vm / (2 × Vr × f × RL), where Vr is the acceptable ripple voltage. For a 12V secondary, 500 mA load, 0.5V ripple at 60 Hz, this gives C ≥ 283 µF. Standard practice is to use 2×–4× the minimum calculated value.
