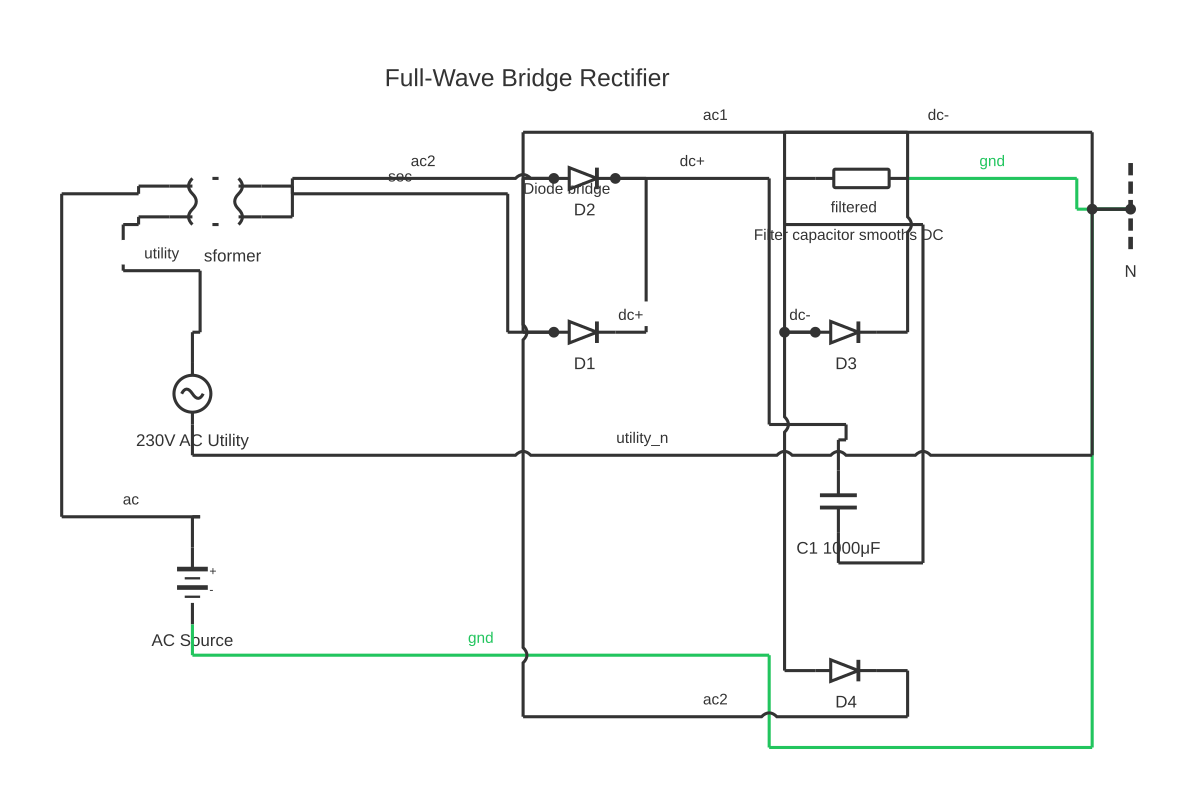

A bridge rectifier circuit uses four diodes arranged in a bridge configuration to convert both half-cycles of an AC waveform into pulsating DC. It is the standard full-wave rectifier topology found in virtually every mains-powered AC-to-DC supply.

The bridge rectifier is the workhorse of AC-to-DC power conversion. Understanding exactly why four diodes are used — and why this arrangement produces a better output than a simple half-wave or two-diode full-wave rectifier — is fundamental to electronics.

In a half-wave rectifier, a single diode passes only the positive half-cycle of the AC waveform and blocks the negative half. The result is pulsating DC at the mains frequency (50 Hz or 60 Hz). The filter capacitor must store enough energy to supply the load for the full cycle period between conduction events — a significant demand.

The bridge rectifier eliminates this problem by conducting on both half-cycles. During the positive half-cycle of the AC input, diodes D1 and D2 conduct, routing current through the load from the positive rail to the negative rail. During the negative half-cycle, diodes D3 and D4 conduct, routing current through the load in the same direction. The output is still pulsating DC, but it pulses at twice the input frequency — at 100 Hz for a 50 Hz mains supply, or at 120 Hz for a 60 Hz supply. This is the key characteristic of full-wave rectification: the ripple frequency is twice the mains frequency.

This higher ripple frequency is extremely beneficial for filtering. A reservoir capacitor across the output needs to store energy for only half a cycle (not a full cycle) before the next conduction event recharges it. For the same ripple voltage specification, a full-wave rectifier requires roughly half the capacitance of a half-wave rectifier. This translates directly to a smaller, cheaper, and more efficient power supply.

The voltage output of a bridge rectifier is the peak AC voltage minus two diode forward voltage drops (one for each diode pair in the conduction path). For a standard silicon diode with a forward voltage of approximately 0.7 V, this is 1.4 V lost. For a mains-connected supply with a step-down transformer, this loss is usually acceptable. For low-voltage supplies where 1.4 V represents a significant proportion of the output voltage, Schottky diodes (with forward voltages of 0.2–0.4 V) are used to reduce this loss.

The bridge rectifier is available as a discrete four-diode circuit built from individual components, or as a single integrated package (a bridge rectifier module) with four terminals: two AC input terminals and positive (+) and negative (−) DC output terminals. The integrated package is compact, thermally optimised, and much simpler to use in a PCB layout.

Bridge rectifier circuits convert AC to pulsating DC using four diodes arranged so that both halves of the AC cycle forward-bias a pair of diodes in turn. Adding a zener diode and filter capacitor to the output produces a simple regulated DC supply suitable for low-power electronics. Understanding both the basic four-diode bridge and the zener-stabilised variant is fundamental to power supply design. You can diagram either configuration interactively and for free using Circuit Diagram Maker.

How to wire bridge rectifier circuit diagram

Determine the required DC output voltage and current Establish the required output voltage (e.g., 12 V DC) and maximum load current (e.g., 1 A). This determines the transformer secondary voltage, the diode current and voltage ratings, and the filter capacitor value. The transformer secondary RMS voltage should be the required DC output voltage plus allowance for diode drops and ripple.
Select a step-down transformer Choose a transformer whose secondary RMS voltage produces the required peak output after accounting for diode drops. The DC output peak voltage = (secondary RMS × 1.414) − 1.4 V (for silicon diodes). The transformer VA rating must exceed the product of the required DC output voltage and current, accounting for rectifier efficiency losses.
Select four matched diodes Choose diodes rated for at least 1.5× the expected peak inverse voltage (PIV = peak AC voltage × 2) and a forward current rating that exceeds the peak load current. Common general-purpose bridge rectifier diodes are suitable for most low-frequency mains applications. For efficiency at low voltages, use Schottky diodes.
Arrange the four diodes in the bridge configuration Connect the four diodes in a diamond (bridge) pattern. The two AC input terminals are the opposite-facing junctions of the bridge. The positive DC output is the junction of the two diode cathodes (marked K or indicated by the cathode band). The negative DC output is the junction of the two diode anodes. Refer to the circuit diagram to verify the orientation of each diode.
Add a reservoir (filter) capacitor across the DC output Connect an electrolytic capacitor across the positive and negative DC output rails, observing polarity. The capacitor smooths the pulsating DC to a near-steady DC voltage. Calculate the required capacitance using the formula in the FAQ. The capacitor voltage rating must exceed the peak DC output voltage — use a device rated at least 20% above the peak.
Add a load resistor or connect the load circuit Connect the intended load (resistor for testing, or the actual circuit) across the DC output. If using a resistive load for testing, calculate the resistance using Ohm's law (R = V / I). Verify that the load current does not exceed the diode and transformer ratings.
Measure and verify the output With the circuit energised, measure the DC output voltage with a multimeter (DC setting). The output should be the expected smoothed DC level. For ripple measurement, use an oscilloscope set to AC coupling on the DC output — the ripple waveform should be at twice the mains frequency (100 Hz or 120 Hz) and within the design specification.

Specifications

Number of diodes	4 (full-wave bridge)
Output ripple frequency	2 × input AC frequency (100 Hz at 50 Hz mains; 120 Hz at 60 Hz mains)
Diode forward voltage drop (silicon)	approximately 0.7 V per diode; 1.4 V total per conduction path
Diode forward voltage drop (Schottky)	approximately 0.2–0.4 V per diode
Peak inverse voltage rating (minimum)	PIV >= 2 × peak AC input voltage
Output peak voltage	(Secondary RMS × 1.414) − 1.4 V (silicon)
Filter capacitor ripple frequency	100 Hz (50 Hz mains) or 120 Hz (60 Hz mains)

Safety warnings

Any bridge rectifier connected to the mains supply carries lethal voltages. All mains-side work must be carried out by a qualified electrical engineer or licensed electrician in accordance with local safety regulations.
Always isolate and verify dead before working on or modifying a mains-connected rectifier circuit. Even after disconnection, the filter capacitor may hold a charge at lethal voltage — discharge via a resistor before touching any rail.
Transformerless (capacitor-drop) rectifier designs present a shock hazard on both output rails because neither rail is isolated from the mains. These designs require full double-insulated enclosure and are not suitable for DIY construction.
Electrolytic capacitors are polarised — connecting one in reverse will cause it to overheat, vent electrolyte, and potentially rupture explosively. Always verify polarity before energising the circuit.

Tools needed

Digital multimeter (DC voltage, AC voltage, continuity)
Oscilloscope (for ripple measurement)
Soldering iron and solder
Breadboard or PCB (for prototyping)
Wire stripper and cutters
Resistive dummy load (for testing under load)
Isolation transformer (recommended for safe mains bench work)

Common mistakes

Installing a diode in reverse orientation — one reversed diode in the bridge short-circuits the AC supply on one half-cycle, blowing the fuse or destroying the diode immediately.
Selecting a filter capacitor with an insufficient voltage rating — the capacitor voltage rating must exceed the peak DC output voltage, not the RMS output voltage. Peak = RMS × 1.414.
Under-sizing the filter capacitor, resulting in excessive ripple voltage at the output that causes hum in audio circuits or instability in sensitive electronics.
Omitting primary-side fusing on the transformer, leaving the circuit unprotected against a transformer or capacitor failure.
Confusing the diode anode and cathode — the cathode is marked with a band on the diode body. In the bridge, the two cathodes face toward the positive output rail.

Troubleshooting

DC output voltage is approximately half the expected value: Cause: Two of the four diodes are not conducting — either they are installed backwards, are open-circuit failures, or are missing from the bridge Fix: Power down and discharge the capacitor. Test each diode in-circuit with the diode test function on a multimeter — a forward-biased silicon diode reads approximately 0.5–0.7 V. Verify all four diodes are correctly oriented (cathode banded end toward the positive rail in each pair).
Fuse blows immediately on power-up: Cause: A diode is installed in reverse, short-circuiting the supply on one half-cycle; or the capacitor is installed reverse-polarity and has shorted; or there is a wiring short Fix: Disconnect the load. Test each diode orientation. Verify the capacitor polarity (positive lead to positive rail). Check for any solder bridges or wiring shorts. Replace the fuse only after the root cause has been identified and corrected.
Output has excessive ripple despite a large capacitor: Cause: The electrolytic capacitor has degraded (high ESR — equivalent series resistance), or the load current is higher than the design value, or the capacitor value is insufficient Fix: Measure the ESR of the capacitor with an ESR meter or LCR meter — a healthy capacitor has low ESR. Replace a high-ESR capacitor. Recalculate the required capacitance for the actual load current and replace with a correctly sized device if necessary.

Frequently asked questions

Why does a bridge rectifier use exactly four diodes?

Four diodes are the minimum required to route both the positive and negative half-cycles of an AC waveform through the load in the same direction. Two diodes handle the positive half-cycle and two handle the negative half-cycle. Using fewer diodes — as in a two-diode full-wave rectifier — requires a centre-tapped transformer, which is bulkier and more expensive.

What is the output ripple frequency of a bridge rectifier?

The output ripple frequency of a bridge rectifier is twice the input AC frequency. On a 50 Hz mains supply, the output ripple is 100 Hz. On a 60 Hz supply, it is 120 Hz. This is because both the positive and negative half-cycles of the AC input are converted to DC pulses, producing two pulses per input cycle.

How much voltage does a bridge rectifier lose across the diodes?

A bridge rectifier loses approximately 1.4 V across the two diodes in the conduction path at any given time (approximately 0.7 V per silicon diode). Schottky diodes reduce this to approximately 0.4–0.8 V total. The DC output peak voltage equals the peak AC input voltage minus these two diode forward voltage drops.

Can I use a bridge rectifier without a transformer directly on the mains?

Yes — transformerless (capacitor-drop) bridge rectifier circuits exist and are used in low-cost LED drivers and small appliances. However, these circuits present a significant electric shock hazard because the output is not isolated from the mains. They must be fully enclosed, treated as mains-potential circuits, and should only be designed by qualified electronics engineers.

What size filter capacitor do I need for a bridge rectifier output?

The required capacitance depends on the load current, the acceptable ripple voltage, and the output ripple frequency. A commonly used approximation is C = I / (2 × f × Vripple), where I is the load current in amps, f is the mains frequency (50 or 60 Hz), and Vripple is the acceptable peak-to-peak ripple voltage. This gives the capacitance in farads; multiply by 1 000 000 for microfarads.

What is the circuit diagram of a bridge rectifier?

A bridge rectifier uses four diodes arranged in a diamond configuration: AC input connects to the two mid-points of the diamond, while DC output (positive) is taken from the top diode junction and DC negative (or ground) from the bottom junction. During the positive AC half-cycle, two diodes conduct; during the negative half-cycle, the other two conduct, so current always flows in the same direction through the load. A smoothing capacitor across the output reduces ripple voltage.

How does a zener bridge rectifier circuit diagram work?

A zener bridge rectifier adds a zener diode in reverse-bias across the DC output of a standard bridge rectifier, in series with a current-limiting resistor. The bridge first converts AC to pulsating DC; the filter capacitor smooths the ripple; then the zener clamps the output to its breakdown voltage, providing basic regulation. This design is compact and inexpensive but suited only for low-current applications because the zener must dissipate the excess power as heat. For higher currents, a series pass transistor is added to share the current load.
