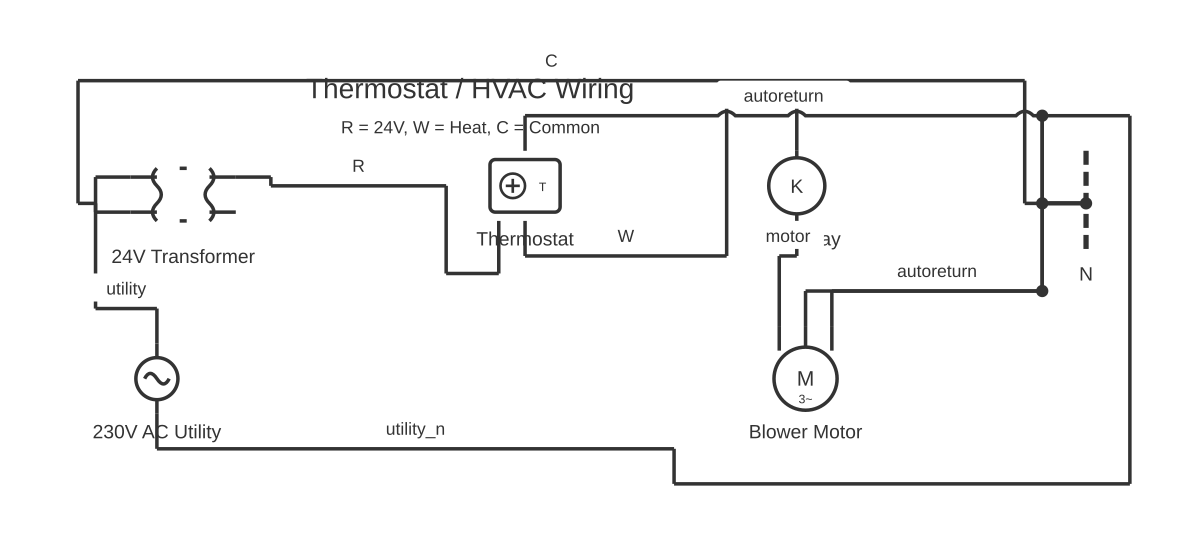

Furnace Wiring Diagram
This is a free printable furnace wiring diagram: download the diagram as SVG or open it and print to paper or PDF.
A residential forced-air furnace wiring diagram covers two distinct voltage levels — 120 V (or 240 V) mains for the blower and controls, and 24 V low-voltage for the thermostat and safety circuit.
A forced-air gas furnace is an electromechanical system with two separate wiring levels that serve distinct functions. Understanding both is essential for safe diagnosis and servicing.
Line voltage circuit (120 V AC in North America; 230 V AC in other markets): The furnace is supplied by a dedicated branch circuit, typically 15 A in North America. This circuit powers the main control board, the circulating air blower motor, and the draft inducer motor. An on/off service disconnect switch (similar to a light switch) is installed near the furnace for safe isolation during servicing. The line voltage also feeds the primary of the control transformer.
Low-voltage control circuit (24 V AC): The control transformer inside the furnace steps the line voltage down to 24 V AC, which powers the thermostat, the gas valve (typically 24 V coil), the ignition control module, and all safety interlocks. The low-voltage circuit uses standardised terminal designations on the furnace control board:
- R (or RH/RC): 24 V power from the transformer secondary — the 'hot' leg of the control circuit. - C: Common terminal — the return path (neutral) for all 24 V loads, including the thermostat's display and smart thermostat power. - W (or W1): Heating demand signal from the thermostat. Energising W through the safety string activates the ignition sequence. - Y (or Y1): Cooling demand signal (activates AC compressor contactor via air handler or furnace board). - G: Fan demand signal — activates the circulating blower for fan-only mode. - E or X: Emergency heat (heat pumps).
The safety circuit is a series string of normally-closed safety switches connected in the control circuit. If any safety switch opens, the heating sequence stops immediately. Common safety switches include the high-limit switch (opens if the heat exchanger overheats), the draft-pressure switch (verifies that the draft inducer is running and creating negative pressure), the rollout switch (opens if flames roll out of the burner box — a serious condition indicating blocked heat exchanger or flue), and the ignition lockout (shuts down if ignition fails after multiple attempts).
A heating sequence in a modern furnace proceeds as follows: thermostat closes W-to-R, board activates draft inducer motor, pressure switch confirms draft, ignition sequence begins (spark or hot-surface igniter), gas valve opens, burner ignites, flame sensor (rectification rod) confirms flame, blower delay timer starts, then the circulating blower starts after a warm-up period. Each step must succeed for the next to proceed.
Servicing furnace wiring without full knowledge of the safety interlock system is dangerous. The gas valve, ignition system, and flue gas path interact with combustion and must be handled by a licensed HVAC technician or gas fitter.
How to wire furnace wiring diagram
- Isolate line voltage power at the furnace disconnect switch and at the breaker Locate the service disconnect switch on or near the furnace and turn it off. Then switch off the branch circuit breaker in the panel. Verify dead at the furnace with a non-contact voltage tester on the line-voltage terminals inside the furnace cabinet. Do not proceed until both the local disconnect and panel breaker are confirmed off.
- Photograph the existing thermostat and furnace board wiring before disconnection Take clear photographs of all terminal connections at both the thermostat sub-base and the furnace control board before disconnecting any wires. Label wires with masking tape and a marker if the terminal designations are not already printed on the wire. This documentation is essential for correct reconnection.
- Identify the thermostat terminal designations on the control board Locate the low-voltage thermostat terminal strip on the furnace control board. Standard designations are R, C, W, Y, G, and sometimes O/B (heat pump reversing valve). Confirm each terminal matches the wire colour convention in your installation — wire colours are not standardised across all manufacturers.
- Connect or inspect the C wire at both ends If adding a C wire for a smart thermostat, run a new wire (typically 18 AWG, 5-wire thermostat cable) or identify an unused spare conductor in the existing thermostat cable. Connect one end to the C terminal on the furnace board and the other to the C terminal on the new thermostat. Confirm the thermostat cable has enough conductors for all required functions.
- Inspect the safety switch wiring for damage or loose connections With power isolated, follow the safety circuit from the R terminal through each series-connected safety switch. Inspect each switch connector for corrosion, cracked insulation, or loose push-on connectors. A loose safety switch connector causes intermittent shutdowns that are difficult to diagnose without systematic inspection.
- Restore power and observe the ignition sequence Restore line voltage at both the panel breaker and the local disconnect. Set the thermostat to heat and raise the set-point above room temperature. Observe the sequence: inducer should start within 30 seconds, followed by the igniter glowing (hot-surface type) or sparking, then burner ignition, then blower starting approximately 30–90 seconds after ignition. Each step should occur smoothly.
- Verify safe operation and check for error codes Allow the furnace to complete a full heating cycle. After the thermostat is satisfied, the burner should shut off and the blower should run for a post-purge period before stopping. Many modern furnaces display fault codes via LED blink patterns on the control board — count the blinks and refer to the fault code chart on the furnace's access panel for interpretation.
Specifications
| Line voltage (North America) | 120 V AC, 60 Hz; dedicated 15 A branch circuit |
|---|---|
| Control circuit voltage | 24 V AC (from on-board step-down transformer) |
| Thermostat cable gauge | 18 AWG solid copper, multi-conductor (minimum 5-wire for heat/cool/fan/common) |
| High-limit switch trip temperature (typical) | 60 °C to 90 °C (140–200 °F) — varies by model |
| Pressure switch trip differential (typical) | 0.1–0.5 in W.C. (water column) negative pressure required to close |
| Applicable standards (North America) | NEC/NFPA 70 (electrical), NFPA 54 / CSA B149.1 (gas), UL 1995 (furnace safety) |
| Applicable standards (UK) | Gas Safety (Installation and Use) Regulations, BS 7671, Gas Safe Registration mandatory |
| Carbon monoxide alarm requirement | Required adjacent to sleeping areas in most North American and UK jurisdictions when a combustion appliance is present |
Safety warnings
- Gas appliances must be serviced, repaired, and commissioned by a licensed HVAC technician or registered gas fitter. Incorrect gas valve wiring, ignition system faults, or heat exchanger damage can result in carbon monoxide poisoning, fire, or explosion. In North America, furnace work is governed by NEC/NFPA 70 (electrical), NFPA 54 (gas), and local codes. In the UK, all gas appliance work must be carried out by a Gas Safe Registered engineer. In Australia, work on gas appliances is controlled by state plumbing and gas regulations.
- Always isolate line voltage at both the local service disconnect switch and the main circuit breaker before opening the furnace cabinet. The control board, transformer, and blower motor all operate at lethal line voltage.
- Never bypass or disable safety switches (high-limit, rollout, pressure switch) to make the furnace run. These devices prevent dangerous conditions — heat exchanger overtemperature, flame rollout, and flue gas spillage — that can cause fire and carbon monoxide poisoning.
- A cracked heat exchanger allows combustion gases (including carbon monoxide) to enter the distributed air supply. If a cracked heat exchanger is suspected (visible cracks, rust, flue gas odour in the heated air), shut down the furnace immediately and have it inspected by a licensed technician before restarting.
- A tripped manual-reset rollout switch indicates a serious combustion condition — blocked flue, cracked heat exchanger, or improper combustion. Do not simply reset and restart without a qualified inspection. The rollout switch is the last line of defence before a structural fire.
Tools needed
- Non-contact voltage tester and two-pole voltmeter (CAT III rated)
- Digital multi-meter with AC/DC voltage, resistance, and DC microamp modes (for flame sensor testing)
- Flathead and Phillips-head insulated screwdrivers
- Needle-nose pliers (for push-on connector inspection and removal)
- Fine steel wool or emery cloth (for flame sensor cleaning)
- Carbon monoxide detector (to verify safe combustion when reinstating the furnace)
Common mistakes
- Reversing the R and C terminals on the thermostat sub-base — the control board receives 24 V with reversed polarity; some boards tolerate this, others lock out or fail.
- Leaving the C wire unconnected when installing a smart thermostat, then wondering why the thermostat display is dim or the WiFi connection is unreliable — the thermostat is power-stealing through the W or Y wire, causing interference.
- Resetting a tripped rollout switch without investigating why it tripped — the underlying condition (blocked flue, cracked heat exchanger) recurs and causes repeated rollout events.
- Installing a universal replacement igniter with an incompatible inrush current profile for the furnace control board — some boards control igniter power through a relay rated for a specific igniter type; a mismatched igniter can damage the relay.
- Ignoring the error code LED blink pattern on the control board, which directly indicates the failure sequence — referring to the fault code chart eliminates guesswork and reduces diagnosis time.
Troubleshooting
- Furnace short-cycles: burner ignites, runs for 1–3 minutes, then shuts off
- Cause: High-limit switch is tripping due to insufficient airflow over the heat exchanger. Most common cause: dirty air filter, closed supply registers, or a failed circulating blower capacitor reducing blower speed. Fix: Replace the air filter. Confirm all supply and return registers are open. Measure blower motor running current — compare to nameplate. Test and replace the run capacitor if its capacitance is more than 10% below rated value.
- Furnace goes through ignition sequence but flame does not establish (or extinguishes within seconds)
- Cause: Failed hot-surface igniter (does not reach ignition temperature); or a contaminated flame sensor rod that cannot confirm ignition; or gas supply pressure too low. Fix: Visually inspect the igniter during the sequence (observe through sight glass or carefully) — it should glow orange-red. A failed igniter requires replacement with the correct part. If the igniter glows correctly but flame does not establish, or establishes and immediately extinguishes, clean the flame sensor rod with fine steel wool. If neither resolves the issue, measure gas pressure at the valve outlet — this requires a licensed gas technician.
- 24 V thermostat wire melts or discolours at the furnace board terminal
- Cause: A short circuit on the thermostat wiring has passed current through the wire at the board terminal, overheating the insulation. Possible cause: a staple or nail has pierced the thermostat cable in the wall, short-circuiting R to C or R to W. Fix: Isolate power immediately. Inspect the thermostat cable run for physical damage — particularly at staple points, wall penetrations, and behind the thermostat sub-base. Replace damaged wiring and check whether the furnace board's thermostat fuse (fitted on many boards) has blown. Replace the fuse with the correct rating only after the short circuit is repaired.
Frequently asked questions
What does the C (common) wire on a furnace thermostat connection do?
The C wire is the return path (neutral) for the 24 V control circuit from the furnace transformer. Without a C wire, a smart or WiFi thermostat cannot obtain a continuous power supply and must use power-stealing techniques — drawing small currents through the heating or cooling call wires — which can cause interference or unreliable operation. Adding a C wire provides a stable power supply.
Why does my furnace start the blower but no heat is produced?
The blower runs but no heat means the ignition sequence is failing or a safety switch has opened. Common causes: a failed hot-surface igniter (fragile ceramic element); a draft pressure switch that won't close because the inducer motor is weak or the flue is restricted; a lockout due to failed ignition attempts; or a tripped rollout or limit switch that must be manually reset.
What is a high-limit switch and why does it trip?
The high-limit switch is a thermal safety device on the heat exchanger. It opens when the heat exchanger temperature exceeds a safe threshold — typically between 60 °C and 90 °C (140–200 °F) depending on the furnace. Common causes of high-limit trips: dirty air filter restricting airflow, blocked supply or return air registers, failed circulating blower, or an undersized duct system. Some limit switches auto-reset; manual-reset rollout switches require a technician visit.
Is it safe to work on furnace wiring myself?
Basic thermostat wiring (24 V low-voltage connections) is within the scope of an informed DIYer if the mains power is isolated first. However, work on the 120 V line voltage, gas valve wiring, ignition systems, heat exchanger inspection, or any gas-carrying component must be performed by a licensed HVAC technician or gas fitter. In most jurisdictions, work on gas appliances is restricted by law to licensed tradespeople.
What does the flame sensor do and why does it cause the furnace to shut off shortly after ignition?
The flame sensor is a metal rod in the burner flame path that passes a small DC current through the ionised flame gas to the burner ground. This rectification proves that a flame is established. If the sensor is coated with oxidation (white residue), it cannot conduct adequately and the control board interprets this as flame failure, shutting off the gas valve within seconds. Cleaning the sensor rod with fine steel wool or emery cloth restores function.
