Garage Door Opener Wiring Diagram

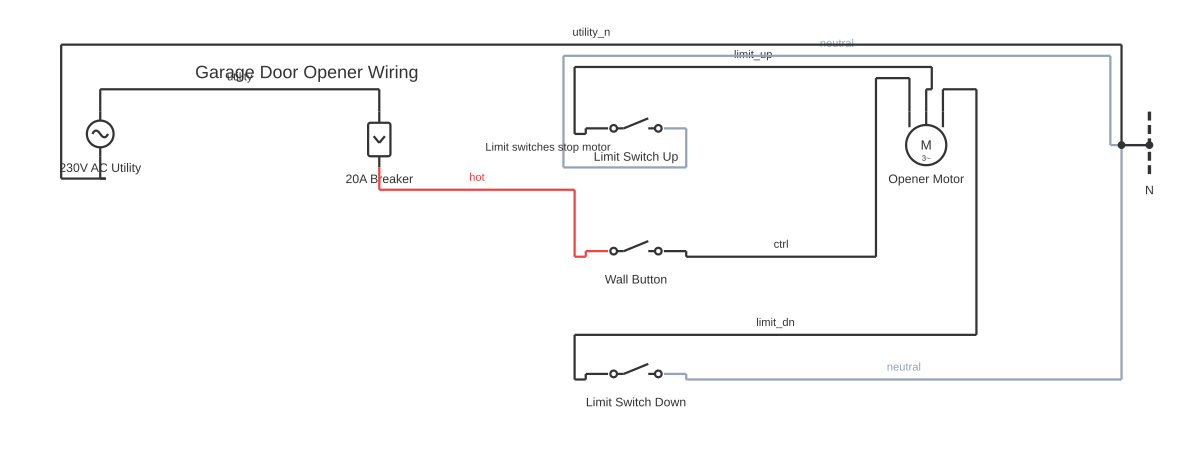

Garage Door Opener Wiring Diagram — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable garage door opener wiring diagram: download the diagram as SVG or open it and print to paper or PDF.

A garage door opener wiring diagram shows how the motor unit, safety photoelectric sensors, wall button, keypads, and limit switches interconnect — letting you install, fault-find, or replace components safely and correctly.

A residential garage door opener is a low-voltage control system layered over a mains-powered motor drive. Understanding the wiring separates a quick, safe installation from one that leaves the door inoperable or — more seriously — one that defeats the mandatory safety reversal system.

The system has four distinct wiring zones:

1. Mains Supply Circuit: The motor unit is powered from a standard household outlet — typically a 120 V/15 A circuit in North America or a 230 V/13 A fused outlet in the UK and Australia. The outlet is located in the ceiling of the garage and the power cord from the motor head plugs directly into it. Some codes require a dedicated circuit for the garage door opener, particularly if it is combined with a garage sub-panel.

2. Low-Voltage Wall Control Wiring: A two-conductor, low-voltage cable (18–22 AWG bell wire or equivalent) runs from the motor unit's control terminal strip to one or more wall-mounted push buttons. The motor unit's logic board provides a safe low voltage (typically 12–24 V DC or AC) on these terminals. A momentary short between the two terminals triggers the door cycle. Multiple wall buttons can be wired in parallel on this same two-conductor run.

3. Safety Sensor (Photo-Eye) Wiring: Two photoelectric sensors mount at the bottom of the door track, one on each side, facing each other across the door opening at a height of 150 mm (6 inches) or less above the floor as required by UL 325 and most national standards. The sending sensor (typically with a steady amber LED) and the receiving sensor (typically with a blinking or steady green LED when aligned) connect back to the motor unit via two separate cables — usually white-coded and white/black-coded pairs. Misidentifying or reversing these connections is a very common installation error. If the sensors are misaligned or wired incorrectly, the door will not close with the remote or wall button, or the safety reversal function is defeated.

4. Limit Switches and Internal Control Board: Inside the motor unit, the control board interfaces with mechanical or electronic limit switches that define the fully open and fully closed travel positions. Limit adjustments are made at the motor head, not by external wiring. The control board also manages the radio receiver for remote handsets.

All external wiring between the motor unit and sensors or wall buttons is low-voltage and carries no shock risk under normal conditions. The mains circuit to the ceiling outlet is the only part that requires a licensed electrician in jurisdictions with strict licensing requirements.

How to wire garage door opener wiring diagram

Mount the motor unit and rail assembly Attach the drive rail to the motor head and secure the motor unit to the ceiling via the provided L-bracket and safety cable, positioned centrally above the door opening. Confirm the motor unit is level and the rail is aligned with the centre of the door. Plug the motor unit into the ceiling outlet — verify the outlet is on a circuit protected by a correctly-rated circuit breaker or fuse.
Install the safety photoelectric sensors Mount the sending sensor (amber LED) and receiving sensor (green LED) on their respective brackets at the base of each vertical door track. Sensor height must be 150 mm or less above the floor. Thread the sensor cables up along the track and ceiling to the motor unit, keeping cables clear of the moving door and hardware. Do not connect to the motor unit terminal strip yet.
Connect the sensor cables to the motor unit Consult your motor unit's installation manual for the exact terminal designations — wiring varies between manufacturers. Typically: white wire to the white terminal (sending sensor), white/black wire to the white/black terminal (receiving sensor). Each sensor has its own pair of terminals on the control board. Incorrect connection prevents the door from closing. After connection, check both sensor LEDs; the green (receiving) LED should be solid when the beam is unobstructed.
Run and connect the wall control cable Route 18 AWG two-conductor cable from the motor unit terminal strip to the wall button location inside the garage — typically beside the door to the house. Connect the cable to the wall button terminals (polarity does not matter for most systems — the button is simply a contact closure). At the motor unit, connect the two conductors to the wall control terminals on the control board. Secure the cable to the wall with cable staples or clips, keeping it clear of door travel.
Set the travel limits and force adjustments With the door connected and the rail trolley attached, cycle the door manually and then power the motor unit. Using the limit adjustment screws or digital buttons on the motor head (refer to the manual), set the up-limit so the door stops fully open without straining the motor, and the down-limit so the door seals fully against the floor. Adjust the down-force sensitivity so the door reverses immediately if it contacts a 50 mm (2-inch) block placed under the door — this is the UL 325 reversal test.
Programme remote handsets and keypads Follow the motor unit manufacturer's instructions to programme remote transmitters — this typically involves pressing the learn button on the motor unit, then pressing the remote button within 30 seconds. Programme keypad entry devices following the same procedure. Test each remote and keypad from various positions in the driveway to confirm the radio range is adequate.
Test the complete safety system before handing over Perform the UL 325 reversal test: place a 50 mm solid object under the fully open door and trigger a close cycle. The door must reverse on contact. Interrupt the photoelectric beam mid-close with your hand — the door must immediately reverse. If either test fails, do not use the door until the fault is corrected. Document the test result date for your records.

Specifications

Safety sensor maximum beam height above floor	150 mm (6 inches) — per UL 325 and equivalent national standards
Wall control and sensor cable gauge	18–22 AWG (0.75–0.5 mm²) two-conductor
Motor unit mains supply (North America)	120 V AC, 60 Hz, 15 A circuit minimum
Motor unit mains supply (UK / Australia / Europe)	230 V AC, 50 Hz, 13 A fused outlet or 10 A circuit breaker minimum
Low-voltage control terminal voltage (typical)	12–24 V DC or AC (supplied by motor unit control board — varies by manufacturer)
Mandatory reversal test block height (UL 325)	50 mm (2 inches) — door must reverse on contact with this obstruction height
RF remote frequency (common standards)	315 MHz (North America) or 433.92 MHz (Europe/Australia)

Safety warnings

The safety photoelectric sensor system is a mandatory safety device required by UL 325 (USA), and equivalent standards in other jurisdictions. Never bypass, disconnect, or adjust sensors so that the beam is above the required maximum height of 150 mm. A disabled or misaligned sensor allows the door to close on a person, child, or animal without reversing — this has caused fatalities.
Before performing any wiring work on the motor unit, unplug the unit from the mains outlet. Even with the door in a stopped state, the control board remains live while the unit is plugged in. The low-voltage terminals present no significant shock risk, but working near the motor with the unit powered risks an unexpected door activation.
Garage door springs (torsion and extension types) are under extreme tension and are responsible for many serious injuries and fatalities during DIY maintenance. Spring adjustment, replacement, or balancing is not part of a standard opener installation, but never attempt spring work without specific training and tools. If the door does not balance properly at the halfway position (it should hold position without the motor), a qualified garage door technician must adjust the springs before the opener is installed.
Ensure the mains supply outlet in the garage is protected by a residual current device (RCD) or ground fault circuit interrupter (GFCI) as required by electrical codes for garage installations. This protects against shock in the damp environment of a garage.

Tools needed

Flat-blade and cross-head screwdrivers for terminal connections and bracket mounting
Electric drill and step drill bit for bracket holes in concrete or timber
Wire strippers for 18–22 AWG cable
Digital multimeter for verifying sensor voltages and control terminal continuity
Tape measure and pencil for marking sensor mounting height
Cable staple gun or plastic cable clips for securing wiring
Step ladder (suitable rated height for ceiling clearance in your garage)

Common mistakes

Swapping the sending and receiving sensor connections at the motor unit terminal strip — the two sensor types are not interchangeable. Reversed connections cause the control board to see a permanent beam obstruction and the door will not close.
Mounting safety sensors above the 150 mm maximum floor height — mounting at a convenient working height or mirroring the bracket position on both sides at whatever height feels right is a common shortcut that violates the safety standard.
Connecting the wall button cable to the sensor terminals or vice versa — these are different terminal pairs on the control board. Mixing them causes erratic operation or a permanent fault indication.
Omitting the travel limit adjustment — accepting the default limit settings without performing a proper up and down limit test means the door may not fully close (leaving a gap that allows weather and intruders in) or may over-travel on opening and strain the motor.
Not performing the UL 325 / mandatory reversal test after installation — the test must be done to confirm the installed system actually meets the safety requirement, not just assumed to be correct because the components are installed.

Troubleshooting

Door will not close with remote or wall button but motor activates: Cause: Safety sensor beam is broken or sensors are misaligned — the motor unit permits an open command but refuses a close command when sensors detect an obstruction or fault Fix: Check the sensor LEDs. The sending sensor (amber) should be solid. The receiving sensor (green) should be solid when the beam is clear. If the green LED is off or blinking, adjust the receiving sensor bracket until the LED becomes solid. Check that nothing is blocking the beam path and that the sensor cable connections at the motor unit are secure and correctly assigned.
Door reverses immediately after touching the floor on a close cycle: Cause: Down-force or down-limit adjustment is incorrect, causing the motor to interpret the door reaching the floor as an obstruction and triggering the automatic reversal protection Fix: Access the force/sensitivity adjustment on the motor head. Reduce the down-force sensitivity slightly — but verify after each adjustment that the door still reverses when the 50 mm block test is performed. If the door will not both close fully and pass the block test, the door itself may be unbalanced and the springs need professional adjustment.
Remote handset works from close range but not from the driveway: Cause: RF interference from LED lighting in the garage or nearby Wi-Fi equipment, low remote battery, or the motor unit aerial wire is not extended or is coiled inside the unit Fix: Inspect the motor unit for a thin wire aerial hanging from the bottom of the unit — it must hang down freely and not be coiled, wrapped around the rail, or tied back. Replace remote batteries. If interference from LED lights is suspected, power off the garage lights and test range — if range improves dramatically, the LED luminaire is generating RF interference and may need to be replaced with a less disruptive type.

Frequently asked questions

What is the correct height for garage door safety sensors?

Safety photoelectric sensors must be mounted so that the beam is no more than 150 mm (6 inches) above the finished floor surface. This is mandated by UL 325 (USA) and equivalent national safety standards in most countries. Mounting higher allows a child or small animal to pass under the beam undetected while the door closes, defeating the entire purpose of the entrapment protection device.

Why does my garage door opener not close with the remote but closes with the wall button held down?

This is the normal behaviour when the safety sensors are misaligned, obstructed, or have a wiring fault. The motor unit detects the sensor fault and prevents a standard close command from completing. Holding the wall button overrides the sensor and forces the door closed — a feature intended only for when sensors are being installed or serviced, not for regular operation. Restore sensor alignment or fix the wiring fault before using the door normally.

What gauge wire should I use for the wall control button and safety sensors?

18–22 AWG (0.75–0.5 mm²) two-conductor bell wire or security alarm cable is standard for both the wall control run and the sensor runs. These are low-voltage, low-current circuits and larger cable provides no operational benefit. Avoid cable with foil shielding for the wall button run, as the shield can create interference with some motor unit control boards.

Can I wire multiple wall buttons to one garage door opener?

Yes. Additional wall buttons are wired in parallel on the same two-conductor cable run. Each button creates a momentary short between the two control terminals when pressed, triggering the door cycle. There is no limit set by the motor unit electronics, though very long cable runs (over approximately 30 metres) with multiple buttons can cause false triggers in some units due to accumulated capacitance on the line.

Do I need a licensed electrician to install a garage door opener?

The low-voltage control and sensor wiring is generally within the capability of a competent DIY installer in most jurisdictions. However, if a new mains-voltage outlet needs to be installed on the garage ceiling, that work must be performed by a licensed electrician in most countries (USA, UK, Australia, Canada, and many others). Always verify local licensing requirements before starting any electrical work.
