Door Bell Wiring Diagram: How to Wire a Door Bell Chime Step by Step

Door Bell Wiring Diagram: How to Wire a Door Bell Chime Step by Step — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable door bell wiring diagram: download the diagram as SVG or open it and print to paper or PDF.

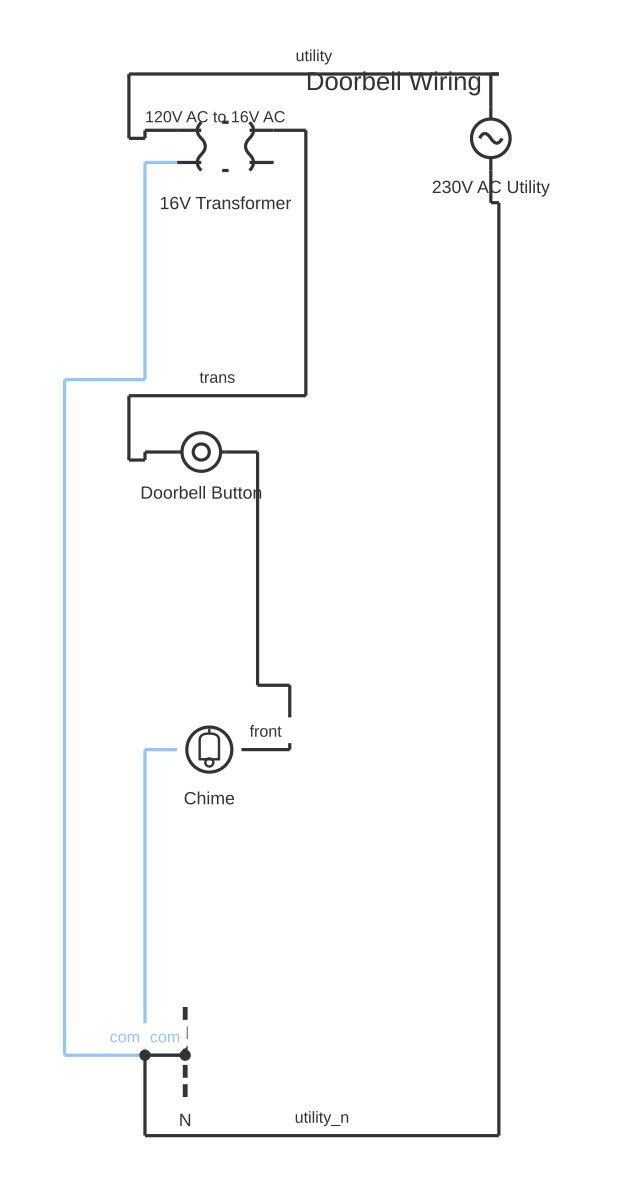

A door bell wiring diagram shows how to connect a transformer, push-button, and chime unit so pressing the button completes a low-voltage circuit that rings or chimes inside the property.

A conventional wired door bell system has three main components connected in a simple series circuit: a step-down transformer, a push button, and a chime unit. The transformer reduces mains voltage (typically 230–240 V AC in the UK, Europe, and many other regions, or 120 V AC in North America) to a safe low voltage — usually 8 V, 12 V, or 16 V AC — that powers the chime mechanism and poses no shock hazard at the button end.

The transformer is wired on its primary side directly to the mains supply via a permanently live feed at the consumer unit (distribution board) or via a spur from a ring circuit. On its secondary (low-voltage) side, two wires run to the chime unit. From the chime unit, one wire runs out to the push button, and the return wire comes back from the button — completing the circuit when the button is pressed. This layout means the transformer is always energised and the button simply completes the secondary circuit to activate the chime.

Chime units contain either a solenoid-and-plunger mechanism (which strikes a tone bar when energised) or an electronic chime circuit. Both types require the correct transformer voltage — too low and the plunger strikes weakly or the electronics malfunction; too high and the solenoid coil or electronics overheat.

Dual-button systems (front door and back door) are common. These use two push buttons wired in parallel between the chime and the transformer secondary, each routed back to the chime's dedicated front or rear terminals, which trigger different chime sequences.

Modern smart door bells (video door bells) either tap into the existing transformer secondary wiring or use their own wireless protocol with a plug-in or wireless chime receiver. Some video bells require a minimum transformer VA rating — check the device manufacturer's specification.

The mains primary side of the transformer must only be connected by a qualified electrician and must comply with local wiring regulations (e.g. BS 7671 in the UK, AS/NZS 3000 in Australia and New Zealand).

How to wire door bell wiring diagram

Turn off the mains power and verify isolation Isolate the circuit at the consumer unit before touching any wiring near the transformer primary. Use a non-contact voltage tester to confirm the supply cable to the transformer is dead. The mains primary connection must be made by a qualified electrician in accordance with local regulations.
Mount the transformer in an accessible location The transformer is typically mounted near the consumer unit, in a cupboard, or in a loft space. Ensure it is accessible for maintenance and that the low-voltage secondary wires can be routed to the chime and button locations. The transformer body should be fixed to a non-combustible surface.
Run the secondary low-voltage cables From the transformer secondary terminals, run a two-core cable (typically 0.5 mm² bell wire) to the chime unit location. From the chime unit, run a further two-core cable to the front door push button location. For a rear button, run an additional cable from the chime to the rear button. Route cables away from mains wiring where possible; if they must cross, use appropriate separation.
Connect the push button The push button has two terminals — connect one wire from the chime unit and one wire returning to the chime on the other. The push button is a simple normally-open (NO) contact and is not polarity-sensitive on an AC system. Ensure the button housing is rated for outdoor use if it is exposed to weather.
Connect the chime unit Connect the transformer secondary wire to the dedicated transformer terminal on the chime (often labelled T or Trans). Connect the front button return wire to the Front terminal and, if used, the rear button return wire to the Rear terminal. The chime's internal circuit completes only when a button is pressed.
Restore power and test Restore mains power to the transformer circuit. Measure the secondary output voltage — it should read near the transformer's rated output (within approximately 10%). Press each button in turn and confirm the chime activates with the correct sound for front and rear if applicable.

Specifications

Typical transformer secondary voltage	8 V, 12 V, or 16 V AC (match to chime unit label)
Minimum transformer rating for standard chime	1–5 VA (solenoid chime); 5–10 VA (electronic multi-tone chime)
Minimum transformer rating for video doorbell	10–30 VA at 16 V AC (refer to individual video bell device specification)
Bell wire conductor cross-section	0.5 mm² (standard; increase for runs over 30 m to limit voltage drop)
Push button ingress protection (outdoor)	Minimum IP44 (splash-proof); IP65 or better for exposed or coastal locations

Safety warnings

The primary (mains voltage) side of the doorbell transformer must only be connected by a qualified electrician in compliance with applicable local wiring regulations (e.g. BS 7671, AS/NZS 3000, NEC). Mains voltage is lethal.
Always isolate and verify isolation of the mains supply before working near or touching the transformer primary terminals — use a non-contact voltage tester, not a visual check alone.
Do not use bell wire or low-voltage cable on the mains primary side of the transformer. Mains wiring requires correctly rated and approved cable.
Ensure the push button and any outdoor wiring enclosures are rated for outdoor use (minimum IP44) if exposed to rain or direct weather to prevent moisture ingress causing short circuits.
If an existing doorbell transformer shows signs of overheating, discolouration, burning smell, or the secondary voltage is significantly outside the rated value, replace it — do not continue using a suspect transformer.

Tools needed

Non-contact voltage tester (to verify mains isolation before working)
Digital multimeter (to measure transformer secondary output and test continuity of bell wire runs)
Flathead and cross-head screwdrivers (for terminal connections)
Wire strippers (for low-voltage bell wire)
Drill and masonry bit or wood bit (for cable routing and button/chime mounting)
Cable clips and hammer (for surface-fixing bell wire runs)

Common mistakes

Connecting mains voltage directly to the chime or push button terminals, bypassing the transformer — this is extremely dangerous and will destroy the chime unit.
Using a transformer with an incorrect secondary voltage for the chime — for example, using a 16 V transformer on a chime rated for 8 V, which can overheat and damage the solenoid or electronics.
Leaving excessive bare conductor exposed at screw terminals — trim conductors so only the minimum length needed to make a secure connection is exposed.
Running bell wire parallel and in contact with mains cables for long distances — this can induce interference and in some jurisdictions is not permitted without separation or conduit.
Not testing the transformer secondary voltage after installation — a transformer wired on the primary side to a switched (rather than permanently live) circuit will only power the doorbell when the switch is on.

Troubleshooting

Doorbell does not ring when button is pressed: Cause: Failed push button, open-circuit bell wire, failed chime, or no secondary voltage from transformer Fix: Measure transformer secondary voltage first. If correct, temporarily short the two wires at the button terminals — if the chime sounds, replace the button. If the chime does not sound, check continuity of the bell wire runs and inspect chime terminals for loose connections.
Chime rings continuously without button being pressed: Cause: Push button contacts are shorted (stuck button, moisture ingress, or the two bell wires have come into contact with each other) Fix: Disconnect the button leads at the chime terminals — if the chime stops ringing, the fault is in the button or the wiring run to the button. Inspect the button for stuck contacts or water in the housing. Check the full cable run for staples or fixings that may have pierced the insulation and shorted the two conductors.
Chime sounds weakly or intermittently: Cause: Transformer secondary voltage too low, loose connections, or high-resistance connection in the bell wire circuit (corroded terminals, too-thin wire over a long run) Fix: Measure the transformer secondary voltage under load (button pressed). If it drops significantly below the rated value, the transformer VA rating is insufficient for the chime load. Check and clean all terminal connections. For very long button runs, ensure wire gauge is adequate to avoid excessive voltage drop.

Frequently asked questions

What voltage does a doorbell transformer output?

Most doorbell transformers output 8 V, 12 V, or 16 V AC on the secondary (low-voltage) side. The correct voltage depends on the chime unit's specification — check the label on both the chime and the transformer. Using a transformer with too low a voltage causes a weak chime; too high can damage the chime electronics or overheat the solenoid.

Can I wire a doorbell myself without an electrician?

The low-voltage secondary side (transformer to button and chime) can generally be connected by a competent DIY person, as the voltages involved (8–16 V AC) are not hazardous. However, connecting the transformer's primary side to the mains supply is mains electrical work and must comply with local regulations — in many jurisdictions this requires a qualified electrician.

My doorbell stopped working — is it the button, transformer, or chime?

Test systematically: measure the transformer secondary output voltage first (should read near its rated voltage). If voltage is present, temporarily short the two wires at the button — if the chime sounds, the button is faulty. If it does not sound with the button shorted, the chime unit is suspect. If there is no secondary voltage, the transformer has failed or lost its primary supply.

How do I wire a second doorbell button for the back door?

Most chime units have terminals labelled Front and Rear (or Door 1 and Door 2). Connect the second push button in the same way as the first — one wire from the transformer secondary to the button, and the return wire from the button to the Rear terminal on the chime. The chime plays a different sequence for each terminal, allowing you to distinguish front and back.

Will a standard doorbell transformer work with a smart video doorbell?

Many video doorbells can use an existing transformer if the voltage and VA (volt-ampere) rating are sufficient. Video bells typically require a minimum of 16 V AC at 10–30 VA to power their electronics and maintain a Wi-Fi connection. Check the video doorbell's specification — if your existing transformer is below the required VA rating, replace it with a rated unit.
