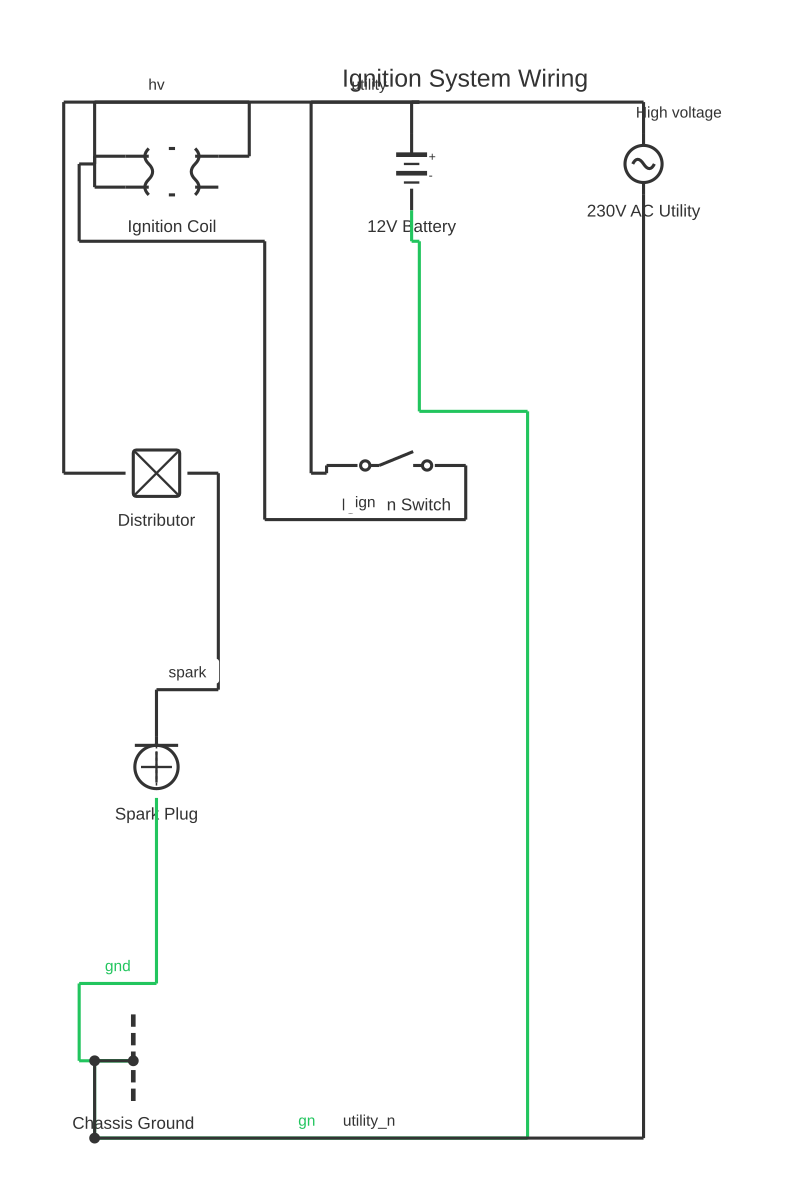

HEI Distributor Wiring Diagram: How to Wire a GM High Energy Ignition System

HEI Distributor Wiring Diagram: How to Wire a GM High Energy Ignition System — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable hei distributor wiring diagram: download the diagram as SVG or open it and print to paper or PDF.

A technical reference for the General Motors High Energy Ignition (HEI) distributor, covering the ignition module, coil-in-cap design, power feed, tachometer, and external wiring connections.

The GM High Energy Ignition (HEI) distributor was introduced on GM vehicles in 1974–1975 as a replacement for the earlier breaker-point ignition systems. It is a self-contained ignition system: the ignition coil is mounted inside the distributor cap on most applications (the 'coil-in-cap' design), and a solid-state ignition module replaces the mechanical contact points. This design produces higher secondary voltage (up to approximately 35,000–45,000 V) than earlier point-type systems, enabling reliable ignition of leaner fuel mixtures and misfiring-resistant performance.

The HEI distributor's external wiring is deliberately simple on most applications. The critical connections are: a battery-voltage (12 V) feed to the 'BAT' terminal, which powers the ignition module and coil primary; a tachometer signal output terminal (TACH) that many vehicles and aftermarket instruments use to read engine speed; and on early or fuel-injected variants, signal wiring for the reference (REF) and control (EST/BYPASS) connections to the ECM.

The 'BAT' terminal must receive full battery voltage (12 V) whenever the ignition switch is in the 'run' and 'start' positions. This is a key distinction from earlier GM ignition systems that used a resistance wire in the run position and bypassed it during cranking. The HEI module requires full voltage at all times — feeding it through a resistance wire (as used on some earlier systems) will cause weak spark and hard starting. Always supply the HEI BAT terminal from an ignition switch 'run' source rated for at least 4–5 A continuous.

The TACH terminal produces a pulsed 12 V signal that triggers a tachometer. Connecting a low-impedance tachometer (or an incompatible tachometer) to this terminal can damage the HEI module — always verify the tachometer's TACH terminal compatibility before connection.

Fuel-injected and computer-controlled HEI variants (4-pin and 7-pin modules) have additional wiring for ECM spark advance control. The specific terminal count and function vary by module type. Always consult the factory service manual or module manufacturer's documentation for the specific application.

This page covers generic HEI wiring concepts. It is not a vehicle-specific wiring guide. Always verify against the factory service manual for the specific vehicle, year, and engine combination.

How to wire hei distributor wiring diagram

Identify the HEI module type and terminal configuration Inspect the distributor cap and module. Count the external connector terminals — a basic carburetted HEI has a single external connector with BAT and TACH terminals. Fuel-injected or computer-controlled variants may have a 4-pin or 7-pin module with additional terminals. Obtain the factory service manual or module documentation for the specific application before wiring.
Disconnect the battery negative terminal Disconnect the battery negative (ground) terminal before beginning any wiring work on the ignition system. This prevents accidental grounding of the ignition coil primary, which can damage the HEI module, and eliminates the risk of spark igniting fuel vapours in the engine bay during wiring.
Verify or install the BAT terminal feed wire Run a dedicated wire from a switched ignition source (ignition switch 'run' and 'start' output) to the HEI BAT terminal. Use a minimum of 14 AWG (1.5 mm²) wire, with 12 AWG (2.5 mm²) preferred for runs over 1 metre. Do not use a resistance wire or share this feed with other high-draw accessories. Protect the wire with an in-line fuse rated at 10–15 A positioned within 300 mm of the battery or primary fuse box. Inspect the ignition switch source wire for voltage drop — it must deliver at least 11.5 V DC at the BAT terminal during cranking.
Inspect and connect the engine ground The HEI module grounds through the distributor housing to the engine block. A poor engine-to-chassis ground is one of the most common causes of HEI misfiring and module damage. Inspect and clean all ground connections: battery negative to chassis, engine block to chassis, and chassis to body. Add a dedicated ground strap between the engine block and the chassis if any corrosion or high-resistance ground paths are found.
Connect the tachometer (if fitted) If a tachometer is to be connected, verify the tachometer is compatible with the HEI TACH terminal output (electronic pulse signal). Connect the tachometer's TACH input wire to the HEI TACH terminal. Do not connect a low-impedance inductive-pickup tachometer directly to this terminal — use a tachometer adapter if required. Route the TACH wire away from spark plug wires to minimise interference.
Connect additional ECM wires (7-pin module applications only) For 7-pin HEI modules in computer-controlled applications, connect the EST (Electronic Spark Timing), BYPASS, and REF wires per the vehicle's factory service manual wiring diagram. Incorrect connection of the EST and BYPASS wires will result in the ECM being unable to advance or retard spark timing, causing poor fuel economy, performance, and potential catalyst damage.
Reconnect the battery and verify spark Reconnect the battery negative terminal. With a spark tester connected to a spark plug wire, crank the engine and verify a strong blue spark is produced. A weak yellow or orange spark indicates insufficient module supply voltage, a failing module, or a grounding problem. Measure battery voltage at the BAT terminal during cranking — it must be above 9.6 V for the module to operate correctly.

Specifications

System type	Capacitor-discharge via solid-state electronic ignition module; coil-in-cap design on standard applications
Secondary voltage output (typical)	Approximately 35,000–45,000 V — significantly higher than earlier breaker-point systems
BAT terminal supply voltage requirement	Full battery voltage (12 V DC); minimum ~9.6 V during cranking — no resistance wire or ballast resistor
BAT terminal feed wire size (minimum)	14 AWG (1.5 mm²); 12 AWG (2.5 mm²) recommended for runs over 1 metre
BAT terminal fuse rating	10–15 A in-line fuse within 300 mm of battery or main fuse block
TACH terminal signal type	Switched 12 V pulsed signal derived from primary coil switching — verify tachometer compatibility before connection
Module types	2-terminal (basic carburetted), 4-pin, 7-pin (ECM-controlled electronic spark timing) — application-specific
Introduction year (GM vehicles)	1974–1975 (USA market GM applications)

Safety warnings

DISCONNECT THE BATTERY: Always disconnect the negative battery terminal before working on the HEI ignition system. The ignition coil stores significant electrical energy and can produce a painful and potentially dangerous high-voltage shock from the secondary circuit — even with the engine off, if the primary circuit is energised.
NO RESISTANCE WIRE: The HEI module and coil require full battery voltage at the BAT terminal. Do not connect the BAT feed through a resistance wire (ballast resistor). A resistance wire will reduce the module's supply voltage, cause chronic misfire, and reduce module life through increased heat generation as the module attempts to compensate for low voltage.
TACHOMETER COMPATIBILITY: Connecting an incompatible (low-impedance) tachometer to the HEI TACH terminal can load the module's output signal excessively and damage the module. Always verify tachometer compatibility with the HEI system before connection.
FUEL VAPOUR: Ignition system work is performed near the fuel system. Ensure there are no fuel leaks, the engine bay is ventilated, and there are no ignition sources (open flame, cigarettes) in the vicinity. Disconnect the battery before any wiring work to eliminate accidental spark generation.
GENERIC REFERENCE: This page describes general HEI wiring principles. Pin counts, terminal labels, and wiring configurations differ between module types, model years, and engine management variants. Always obtain and follow the factory service manual for the specific vehicle and engine. No fabricated pinouts or part numbers are provided on this page.

Tools needed

Calibrated digital multimeter (DC voltage measurement during cranking)
In-line spark tester (for secondary spark verification)
Socket set and spanners (for distributor mounting bolt and clamp)
Timing light (for initial ignition timing verification)
Vacuum pump (for distributor advance testing where applicable)
Wire strippers and crimping tool (for BAT feed wire preparation)
Dielectric grease applicator
Battery negative terminal wrench

Common mistakes

Supplying the BAT terminal through a resistance wire retained from the previous ignition system — this is the single most common HEI retrofitting mistake and results in chronic misfire, particularly at high engine speeds.
Routing the BAT feed wire in the same harness bundle as the spark plug wires — high-voltage noise on the spark plug wires can induce interference into the 12 V feed and cause erratic module behaviour.
Using non-suppressed solid-core spark plug wires with an HEI distributor in a vehicle with an ECM — unsuppressed wires produce significant radio frequency interference (RFI) that can disrupt ECM sensor readings.
Omitting the dielectric grease on spark plug wire boots — boots that bond to the spark plug ceramic under heat can tear when removed, leaving boot material on the plug and making the next service unnecessarily difficult.
Connecting the TACH terminal output directly to a digital dashboard instrument without verifying signal compatibility — many modern digital instruments require a different signal type or conditioning circuit.
Failing to verify adequate ground path resistance between the engine block and chassis after fitting the HEI — a high-resistance ground causes the module to fault on its internal ground reference, producing erratic spark timing or no spark.

Troubleshooting

No spark from any cylinder (engine cranks but does not fire): Cause: No power at BAT terminal, open-circuit ground path, failed HEI module, or failed pickup coil Fix: With the ignition on, measure voltage at the BAT terminal relative to chassis ground — should read battery voltage (12–12.6 V key on, engine off). If low or zero, trace the ignition feed wire. If battery voltage is present, measure voltage at the module's internal ground terminal to chassis — should read near zero. If both power and ground are good, use a module tester or substitute a known-good module. If the module is good, test the pickup coil resistance against the service manual specification.
Weak yellow or intermittent spark: Cause: Low voltage at BAT terminal due to resistance in feed wire or ignition switch, failing HEI module, or high-resistance spark plug wires Fix: Measure BAT terminal voltage during cranking — must be above 9.6 V. A reading below 10 V under crank indicates excessive voltage drop in the feed circuit. Inspect and clean all connections. Measure spark plug wire resistance — high-quality HEI wires should typically measure below 10,000 ohms per foot (30,000 ohms per metre) of wire length, though verify against the wire manufacturer's specification.
Engine misfires at high RPM only: Cause: Deteriorating HEI module (thermally failing), insufficient BAT terminal voltage at speed, failing pickup coil (intermittent at high magnetic flux rates), or cracked or tracking distributor cap Fix: Inspect the distributor cap interior for carbon tracks (dark lines between cap terminals indicating high-voltage tracking). Replace the cap if carbon tracks are present. Check the module heat sink compound — if dried out, replace the module with fresh heat sink compound applied to the module base. Measure BAT terminal voltage at idle and at high RPM — any voltage sag at high RPM indicates the ignition feed circuit has inadequate capacity.
Tachometer reads incorrectly or erratically: Cause: Incompatible tachometer type, noise on the TACH signal line from proximity to spark plug wires, or loose TACH terminal connection Fix: Verify tachometer compatibility with the HEI TACH output signal. Reroute the TACH signal wire away from spark plug wires — maintain minimum 50 mm separation. Check the TACH terminal connection at the distributor connector for security. If the tachometer reads double the correct RPM, it may be configured for a 4-cylinder engine but used on an 8-cylinder — consult the tachometer adjustment procedure in its manual.

Frequently asked questions

What is the 'BAT' terminal on an HEI distributor?

The BAT terminal is the primary power feed to the HEI ignition module and coil. It must receive full battery voltage (12 V DC) whenever the ignition switch is in the 'run' or 'start' position. This wire must come from a switched ignition source — not direct battery — and must not pass through a resistance wire.

What is the 'TACH' terminal used for?

The TACH terminal outputs a pulsed voltage signal derived from the HEI module's switching action. A compatible tachometer connects here to display engine speed. Not all tachometers are compatible — high-current inductive-type tachometers can damage the HEI module. Verify tachometer compatibility before connecting, and use the connection type specified in the tachometer's installation instructions.

Why does the HEI require full 12 V and not a resistance wire?

The HEI electronic ignition module requires full battery voltage to function correctly. A resistance wire reduces voltage under load, weakening the coil primary current and resulting in weak secondary voltage, misfire, and hard starting — particularly at high engine speeds where the module switches rapidly. Earlier GM contact-point systems used resistance wires; the HEI does not.

What is the difference between a 4-pin and 7-pin HEI module?

The basic two-terminal (BAT and TACH) HEI module is found in early carburetted applications. A 4-pin module adds connections for the pickup coil (magnetic trigger) that replaces the external lead. A 7-pin module includes additional terminals for electronic spark timing (EST) control by an ECM — allowing computer-controlled spark advance on fuel-injected and later carburetted applications. Always identify which module type is fitted before wiring.

Can I install an HEI distributor in a vehicle that originally used a different ignition system?

HEI distributors are commonly retrofitted to older vehicles originally equipped with point-type distributors. The main requirements are: the correct distributor housing for the engine (correct gear type, shaft length, and firing order), a 12 V full-voltage ignition feed (remove any resistance wire in the original harness), and a compatible tachometer or tachometer adapter if a dash gauge is to be retained. Consult an HEI conversion guide specific to your engine type.
