Home Wiring Diagram: Understanding Your Home's Electrical System

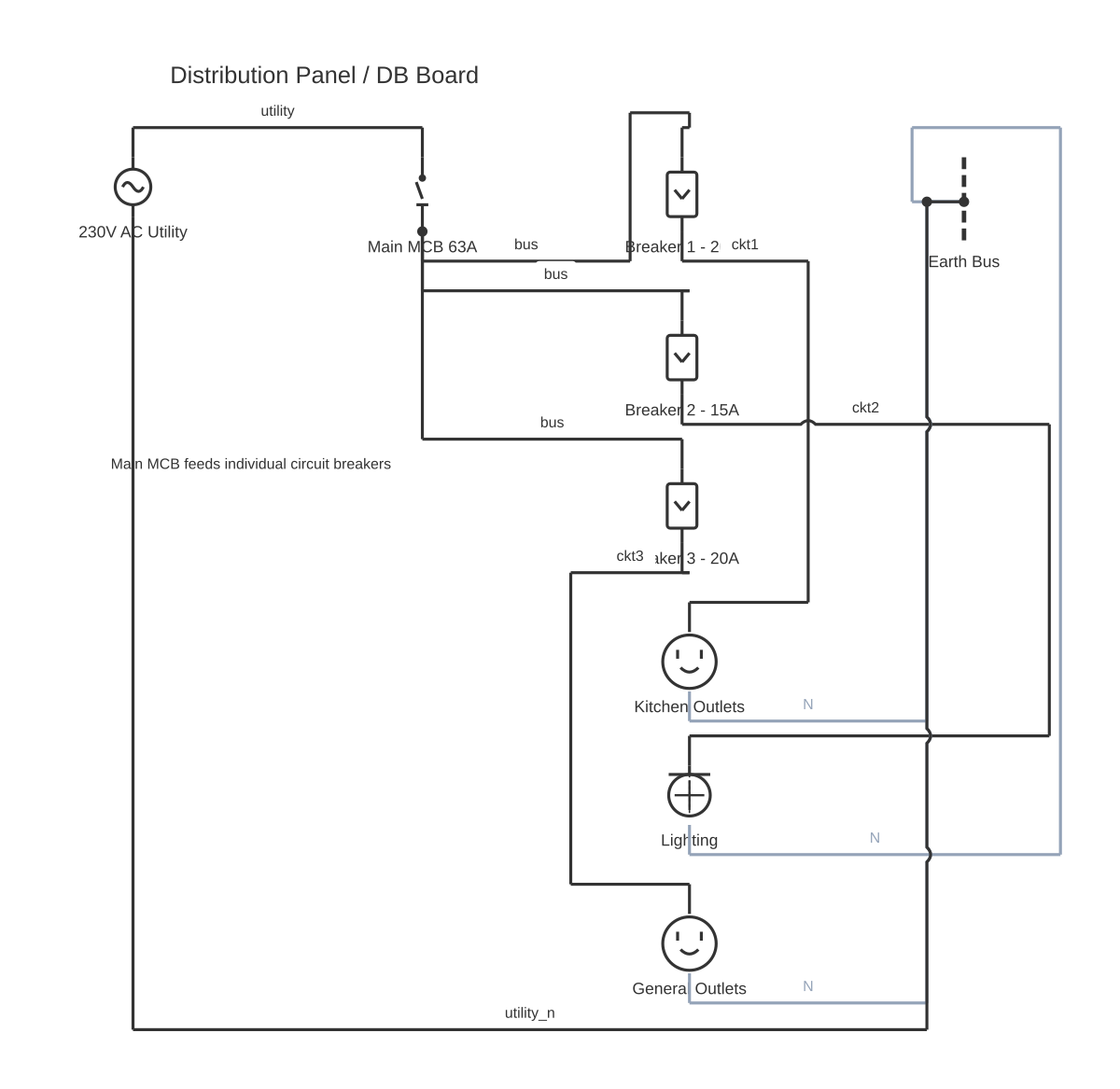

Home Wiring Diagram: Understanding Your Home's Electrical System — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable home wiring diagram: download the diagram as SVG or open it and print to paper or PDF.

A home wiring diagram maps the entire electrical system from the service entrance to every device in the house. This guide explains how to read that diagram, what each symbol means, and how homeowners can use it safely to plan changes or help electricians work more efficiently.

A home wiring diagram serves as the blueprint for a residence's entire electrical system. Unlike a commercial or industrial installation, residential wiring is dominated by single-phase 120/240 V split-phase distribution, where two 120 V hot legs (each 180 degrees out of phase with the other) provide both 120 V branch circuits and 240 V appliance circuits. The diagram begins at the meter base, showing the service entrance conductors connecting to the main panel. From the main panel, branch circuit lines radiate to every room, each labeled with a circuit number that matches the panel schedule. On a floor-plan overlay, each outlet is shown as a duplex receptacle symbol (two small circles on a line), each switch as an "S" (with subscripts for type: S₃ = three-way, S₄ = four-way, Sₚ = pilot light), and each fixture as a circle with a cross (surface mount) or circle alone (recessed). Lines connect switches to the fixtures they control. A legend defines every symbol used. The home wiring diagram also notes special circuits: the 240 V range circuit (often shown as a heavy line), the dryer circuit, the HVAC disconnect, any backup generator transfer switch, and any EV charger circuit. Subpanels for garages, workshops, or additions appear as smaller panel symbols with their own schedule. Understanding this diagram allows a homeowner to quickly locate which breaker controls which area, plan for future additions, communicate clearly with electricians, and perform basic troubleshooting without guesswork. A well-maintained "as-built" wiring diagram—updated whenever changes are made—is one of the most valuable documents for any home.

A home wiring diagram gives you a bird's-eye view of every circuit in the house — from the service entrance and main panel to individual branch circuits feeding lights, outlets, and appliances. Whether you are planning a new build, extending a circuit, or troubleshooting a tripped breaker, having the diagram in front of you removes guesswork and reduces the risk of overloading circuits. Many homeowners want a mobile-friendly way to view or annotate their diagrams in the field; a browser-based app means you can access and edit the diagram on any device without installing software. Start your home wiring diagram free in the online editor.

How to wire home wiring diagram

Photograph and document the panel Open the panel cover. Photograph every breaker position. Note the ampere rating, whether single- or double-pole, and the existing label for each breaker. This is your starting point for the diagram.
Trace each circuit Starting with breaker 1, turn it off. Use a plug-in tester to identify all dead outlets. Note which rooms and outlets are on circuit 1. Turn breaker back on and proceed to circuit 2. Repeat for all breakers.
Mark the floor plan On a simple floor-plan sketch, assign each outlet and fixture to its circuit number. Use a consistent color per circuit (or number labels). This creates the visual wiring diagram of your home.
Identify special circuits Note all 240 V double-pole breakers and their loads (range, dryer, HVAC). Mark GFCI-protected areas (kitchen, baths, garage, outdoor). Mark AFCI-protected circuits (bedrooms, living areas).
Update and store the diagram Transcribe your notes to a clean diagram or digital floor plan. Post a copy inside the panel door. Store a digital copy with home documents. Update it after any future electrical work.

Specifications

Service entrance (typical US home)	120/240 V, 200 A single-phase
General purpose circuit	15 A breaker, 14/2 NM cable
Dryer circuit	30 A double-pole, 10/3 cable, 240 V
Range/oven circuit	50 A double-pole, 6/3 cable, 240 V

Safety warnings

The main panel contains conductors that remain live even when the main breaker is off—only the utility company can disconnect the service entrance conductors; always treat the panel bus as live.
Do not attempt to modify wiring inside the main panel without a licensed electrician—errors in panel wiring cause house fires and void homeowner insurance policies.
Always test circuits as de-energized before touching wires—someone may have re-energized the breaker while you were working if working without a lockout device.

Tools needed

Non-contact voltage tester for all live circuit verification
Plug-in outlet tester (3-light) for receptacle polarity and ground check
Flashlight or headlamp for working in dim panel areas
Pencil and paper (or a home wiring app) for recording panel schedule

Common mistakes

Assuming the panel schedule is accurate without verifying—labels are often wrong after modifications; trace each circuit yourself with a breaker finder.
Leaving the panel directory blank after adding a circuit—an unlabeled breaker is a safety hazard for anyone working on the system in the future.
Using extension cords as permanent wiring—extension cords are for temporary use only; permanently installed cords in walls violate the NEC and are a fire risk.

Troubleshooting

Cannot identify which breaker controls a specific outlet: Cause: Missing or inaccurate panel schedule Fix: Use a circuit breaker finder (transmitter/receiver pair) to positively identify the controlling breaker. Update the schedule immediately.
A breaker trips every time it is reset: Cause: Persistent short circuit, ground fault, or overload on the circuit Fix: Unplug all devices on the circuit. If it holds, add devices back one at a time. If it trips with nothing connected, the wiring has a fault requiring inspection.
One outlet on a circuit has power; the next does not: Cause: Open connection between consecutive outlets—broken wire nut or failed backstab terminal Fix: Open the last working outlet. Inspect all connections at that box. Look for a wire that is loose in a backstab connector; replace backstab with screw terminal connection.

Frequently asked questions

Where can I find the wiring diagram for my home?

Original wiring diagrams are rarely available for existing homes unless the builder or electrician provided them at construction. The best substitute is the panel schedule (the labeled list inside the panel door) combined with your own circuit tracing. For permit work, the local building department may have the original electrical permit drawings on file. For newer homes, the builder may have a "as-built" drawing. You can create your own by systematically tracing each circuit and drawing a floor plan with circuit numbers marked at each outlet and fixture.

How do I find out what is on a specific breaker?

Use a circuit breaker finder: a transmitter plugs into each outlet while a receiver scans the panel and flashes when it detects the matching circuit. Alternatively, turn off the breaker and check which outlets lose power (test with a lamp or outlet tester). Mark the panel schedule as you identify each circuit. Lighting circuits can be identified by which lights go out. For 240 V circuits, look for the double-pole breakers and trace the heavy cable to the connected appliance.

What does a double-pole breaker mean in a home panel?

A double-pole breaker occupies two adjacent positions in the panel and connects to both hot bus bars (L1 and L2), providing 240 V across its two output terminals. It is used for appliances that require 240 V: electric ranges (50 A), dryers (30 A), water heaters (30 A), air conditioners (varies), and EV chargers (varies). Both poles trip simultaneously—if one pole trips due to overload, the breaker locks out both, protecting the full 240 V load.

Is it safe to have multiple circuits in one wall box?

Yes, this is common—multiple cables from different circuits often enter junction boxes in attics and crawlspaces. The critical rule is that wires from different circuits must not be connected together, and the box must be large enough for its fill count (cubic inches per number of conductors). Each circuit must have its own neutral—shared neutrals between different circuits on the same hot leg require a double-pole breaker (MWBC) to ensure simultaneous disconnection of both circuits.

How do I update my home wiring diagram after making changes?

After any electrical work, update the panel schedule label immediately—write the new circuit number, location, and load (e.g., "CKT 9 — Master Bedroom Outlets — 15A AFCI"). If you maintain a floor-plan diagram, mark the new outlet or fixture with its circuit number. Photograph the open wall before closing it to document wire routing. Keep a folder of any permit drawings or inspection certificates with the home's records. An accurate as-built diagram is a meaningful selling point and safety asset for the home.

Is there a home wiring diagram app I can use on my phone or tablet?

Yes — a browser-based wiring diagram editor works on any device with a modern browser, including smartphones and tablets, without needing to download an app. You can draw your home's circuit layout using standard electrical symbols, label circuits with breaker sizes and wire gauges, and save or share the diagram as an image or PDF. This is particularly useful for homeowners who want to annotate an existing diagram on-site or share a circuit layout with an electrician for review.
