How to Wire a Home Inverter: Complete Installation Diagram

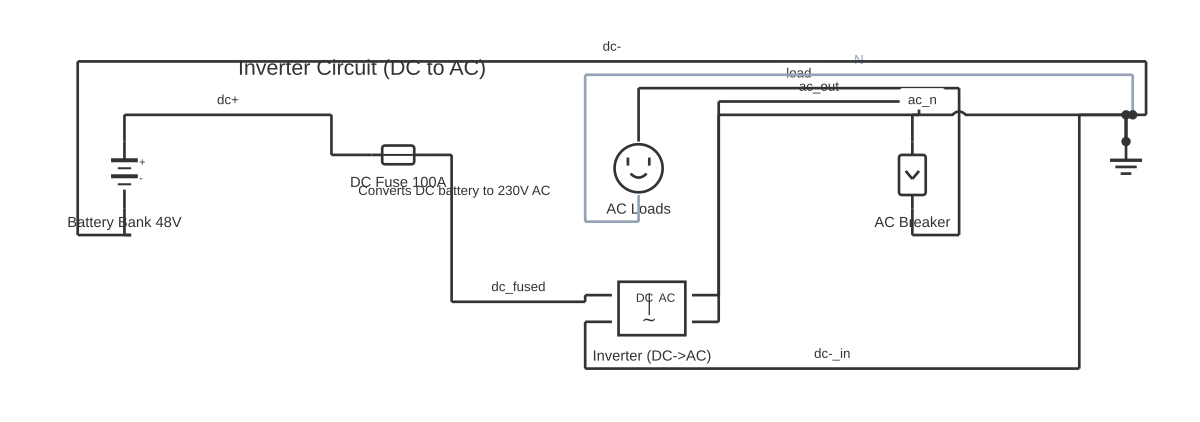

Inverter Connection For Home Diagram — circuit diagram showing component connections+-Battery Bank 48VDC Fuse 100ADCAC~Inverter (DC->AC)AC BreakerAC LoadsInverter Circuit (DC to AC)Converts DC battery to 230V AC
How to Wire a Home Inverter: Complete Installation Diagram — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable inverter connection for home diagram: download the diagram as SVG or open it and print to paper or PDF.

DC to AC power inverters enable backup power and renewable energy integration in residential systems. This guide covers proper installation, sizing, and safety considerations.

Home inverter systems convert stored DC energy from battery banks into AC power compatible with household appliances and the electrical grid. Pure sine wave inverters provide voltage output matching utility power quality for sensitive electronics. System sizing requires analyzing peak load demand and continuous operating capacity. Battery DC bus voltage typically ranges from 12V to 48V depending on storage capacity and available equipment. A correctly sized inverter includes 25-30% capacity headroom above calculated peak loads to accommodate inrush currents. Integrated charge controllers manage solar array input and battery charging according to system state of charge. Isolation transformers prevent backfeed of AC current into battery circuits during utility power interruption. DC disconnect switches provide safe service access and system shutdown capability. AC disconnect switches meet electrical code requirements for utility grid interface. Breaker coordination ensures protective devices clear faults in proper sequence. Bonding conductors interconnect all system components to establish a zero-volt reference. Ground rod installation extends into undisturbed soil for effective RF dissipation. Cable sizing prevents voltage drop exceeding code limits. Proper ventilation prevents thermal runaway during extended high-power operation. Monitoring systems track power flow, battery state of charge, and system efficiency.

How to wire inverter connection for home diagram

  1. Size the inverter based on peak household load analysis
  2. Install a dedicated DC disconnect switch between battery and inverter
  3. Route DC cables using proper gauge and surge protection
  4. Install an AC disconnect switch on the inverter output
  5. Configure grid tie settings and export limits using inverter menu
  6. Commission the system with utility coordination and verification testing

Frequently asked questions

What size inverter do I need for my home?

Calculate total peak loads (sum of simultaneous running appliances) and add 25-30% margin. A 10kW inverter typically supports most residential needs.

Should I use pure sine wave or modified sine wave?

Pure sine wave provides better compatibility with medical equipment, electronics, and motors. It costs more but prevents damage to sensitive devices.

How do I integrate solar panels with an inverter?

Use a charge controller between solar array and battery bank. The inverter draws DC from the battery during usage and when grid is offline.

What is the proper grounding procedure?

Bond all metal enclosures together and establish a single ground reference to a deep earth rod. Avoid multiple grounding points which create ground loops.

Can I parallel multiple inverters for increased capacity?

Yes, with compatible stacking inverters that support parallel operation. Standard inverters cannot safely parallel without synchronization circuitry.
