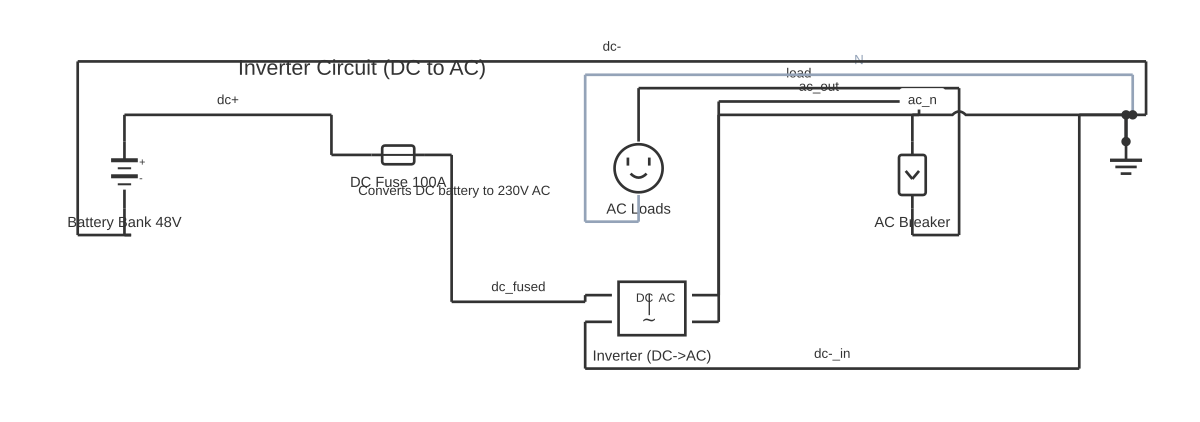

Inverter Connection Diagram for a House — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable inverter connection diagram for house: download the diagram as SVG or open it and print to paper or PDF.

A house inverter connection diagram shows how a battery inverter, battery bank, changeover switch or automatic transfer switch (ATS), and existing distribution board interconnect to supply selected loads during a grid outage, without back-feeding the utility grid.

A household inverter system converts DC battery power to AC mains voltage (230 V / 50 Hz in most countries; 120 V / 60 Hz in North America) to supply essential loads when grid power is unavailable. The critical safety and design principles govern every part of the installation.

The system architecture typically includes: a battery bank (lead-acid flooded, sealed AGM, gel, or lithium-ion/LiFePO4), a DC fuse or circuit breaker between the battery and the inverter, the inverter or inverter-charger unit, a manual changeover switch or automatic transfer switch (ATS), and a sub-distribution board (sub-DB or essential-loads board) containing the circuit breakers for the loads you want to power during an outage.

Grid isolation is the most critical safety requirement. The changeover switch or ATS must provide a break-before-make mechanism that physically disconnects the house from the grid before connecting the inverter output. This prevents the inverter from back-feeding the utility grid — a potentially lethal hazard for line workers. Even where grid-tied inverters with anti-islanding protection are permitted, a standalone off-grid inverter must never be connected in a way that allows it to energise the utility network.

In a typical manual changeover arrangement, position 1 connects the essential-loads board to the utility grid. Position 2 (off/safe) isolates both. Position 3 connects the essential-loads board to the inverter output. The switch must be interlocked so positions 1 and 3 cannot be selected simultaneously.

The battery-to-inverter DC cables must be very short (ideally <1.5 m), large cross-section (70–120 mm² for large inverters), and individually fused or protected by a DC circuit breaker at the battery terminals. Voltage drop on DC cables is the most common cause of low-voltage shutdowns and poor performance.

Inverter-chargers combine the inverter with a battery charger that operates from grid power when available, automatically managing charging and load supply — eliminating the need for a separate charger.

How to wire inverter connection diagram for house

Determine the essential loads and calculate total power List all appliances you want to run during an outage with their wattage. Total them to determine the minimum inverter VA/W rating. Add a 20–25% safety margin above the calculated total.
Select and position the battery bank and inverter Install the battery bank and inverter as close together as possible — preferably within 1.5 m. Both must be in a ventilated area (lead-acid batteries emit hydrogen gas during charging). Do not install in living spaces or near ignition sources.
Install the DC fuse or circuit breaker at the battery Mount a correctly rated DC fuse or circuit breaker directly at the battery positive terminal (within 300 mm). This protects the DC cable run from a short circuit. Size the fuse to the inverter's maximum DC input current plus 25%.
Install the changeover switch between the main DB and the essential-loads sub-DB Wire the changeover switch so that position 1 feeds the essential sub-DB from the main distribution board (grid supply), and position 3 feeds the essential sub-DB from the inverter AC output. The switch must be mechanically interlocked to prevent simultaneous connection to both sources.
Create the essential-loads sub-distribution board Install a small sub-DB with individual MCBs for each essential circuit. Run new circuits from this sub-DB to the essential appliances, or redirect existing circuits from the main DB to the sub-DB.
Connect the inverter AC output to the changeover switch Run appropriately sized AC cable (sized for the inverter's full output current) from the inverter's AC output terminals to the inverter input of the changeover switch. Maintain correct live, neutral, and earth (ground) connections.
Commission under qualified supervision and test Have a licensed electrician verify all connections before energising. Test the changeover in both positions with a multimeter. Test inverter operation with a load connected. Verify no voltage appears at the grid-supply terminals when in inverter mode.

Specifications

Output voltage (most countries)	230 V AC ±2%, 50 Hz
Output voltage (North America)	120 V AC ±2%, 60 Hz
Waveform (recommended for general household use)	Pure sine wave
Battery voltage (common options)	12 V, 24 V, or 48 V DC (48 V preferred for higher power systems)
Maximum DC cable length (battery to inverter)	≤1.5 m recommended; ≤3 m maximum with appropriately upsized cable
DC protection fuse location	Within 300 mm of battery positive terminal
Changeover switch type	Break-before-make, mechanically interlocked (double-pole minimum for single-phase)
Applicable standards	IEC 60364, BS 7671, AS/NZS 3000, SANS 10142, NEC NFPA 70, IEC 62477 (inverter)

Safety warnings

CRITICAL — grid isolation: The inverter output must NEVER be connected to the grid supply without a properly interlocked, break-before-make changeover switch or ATS. Back-feeding the grid energises utility lines and can electrocute line workers and neighbours. This is illegal in virtually all jurisdictions and may result in criminal liability.
All installation work must be carried out by a licensed or registered electrician in accordance with the applicable national standard (IEC 60364, BS 7671, AS/NZS 3000, SANS 10142, NEC NFPA 70). Incorrectly installed inverter systems are a fire, shock, and electrocution risk.
Lead-acid batteries emit explosive hydrogen gas during charging. The battery installation area must be well-ventilated. Never install batteries in a sealed room or near open flames, sparks, or electrical equipment that can arc. Consult IEC 62485-2 for battery installation requirements.
The DC fuse or circuit breaker must be installed as close as physically possible to the battery positive terminal — within 300 mm is the general recommendation. An unprotected length of DC cable at full battery voltage carrying potentially thousands of amps during a short circuit is an extreme fire hazard.
LiFePO4 and lithium-ion battery banks require a battery management system (BMS) to prevent overcharge, over-discharge, and cell imbalance. Never connect lithium batteries without a functioning BMS, regardless of inverter battery-voltage settings.

Tools needed

Calibrated multimeter or voltage tester (CAT III minimum, 600 V rated)
Insulation resistance tester (megohmmeter)
Hydraulic cable lug crimping tool for large-section DC cables
Torque wrench (terminal tightening — DC lugs must be torqued to spec)
Cable management: conduit, cable ties, edge grommets
Wire labels and cable markers
Personal protective equipment: insulated gloves, safety glasses

Common mistakes

Using a transfer switch that is not break-before-make (e.g., a standard light switch), which allows a brief period where both grid and inverter are simultaneously connected — a code violation and safety hazard.
Running DC cables between the battery and inverter that are too long or undersized, causing a voltage drop that triggers the inverter's low-voltage cutoff, particularly at high loads.
Connecting high-draw appliances (electric water heaters, kettles, electric stoves, pool pumps) to the essential-loads board, exhausting the battery bank within minutes and overloading the inverter.
Omitting the DC fuse or installing it at the inverter rather than at the battery terminal, leaving a long unprotected conductor capable of causing a severe fire in the event of a cable short circuit.
Selecting a modified sine wave inverter for loads that include variable-speed motors, medical equipment, or switch-mode power supplies — these loads require pure sine wave output and may be damaged or malfunction on modified sine wave.

Troubleshooting

Inverter shuts down under load with low-voltage fault: Cause: DC cable voltage drop too high, DC fuse or cable connection has high resistance, or battery capacity is insufficient for the load Fix: Measure battery terminal voltage and inverter DC input terminal voltage simultaneously under load. A difference greater than 0.5–1 V indicates excessive resistance in the DC cable or connections. Tighten or replace lugs, shorten cable run, or upsize the cable cross-section.
Inverter output voltage is incorrect or unstable: Cause: Battery voltage too low (battery discharged), faulty inverter, or overloaded inverter Fix: Measure DC input voltage under load — should be within the inverter's specified operating range. Reduce load if output voltage sags. If battery voltage is correct and load is within rating, the inverter may require service.
Changeover switch gets hot during normal operation: Cause: Switch is undersized for the actual load current, or contact surfaces have become corroded/oxidised and have elevated contact resistance Fix: Measure current through the switch with a clamp meter. Compare with switch rating. If within rating, disconnect power, inspect contacts for pitting or arcing. Replace the switch if contacts are damaged; do not attempt to sand or file contacts on moulded-case devices.
Battery does not charge fully when grid is restored: Cause: Inverter-charger charge current set too low, charger output voltage misconfigured for battery chemistry, or battery has aged and reduced capacity Fix: Verify charger settings match the battery chemistry and voltage (e.g., 14.4 V bulk for 12 V AGM, different profiles for LiFePO4). Measure charge current with a DC clamp meter. Perform a battery capacity test to assess health.

Frequently asked questions

Why must the inverter be isolated from the grid with a changeover switch?

Without a changeover switch that physically disconnects the grid connection, the inverter can back-feed the utility network during a grid outage. This creates a live conductor on a line that utility workers believe is de-energised, risking electrocution. Proper isolation is a legal requirement in virtually every jurisdiction.

What size DC cable should I use between the battery and inverter?

Cable size depends on inverter power and cable length. A 3 000 W inverter at 24 V draws up to 125 A peak; at 48 V, approximately 63 A peak. At these currents, cables must be 70–120 mm² for runs under 1.5 m to keep voltage drop below 1 V. Always fuse as close to the battery terminals as possible.

Can I connect a standard household inverter to solar panels?

A standard off-grid battery inverter connects to a battery bank, not directly to solar panels. To use solar panels, you need a separate solar charge controller (PWM or MPPT) between the panels and the battery, or an inverter-charger with an integrated MPPT input. Never connect solar panels directly to an inverter's DC input unless the inverter specifies a solar PV input.

What is an automatic transfer switch (ATS) and do I need one?

An ATS monitors grid voltage and automatically switches the essential-loads board from grid to inverter (and back) without manual intervention. It replaces the manual changeover switch for convenience. ATS units must provide break-before-make operation and must meet relevant safety standards. An ATS is optional but recommended for frequent outages.

How many loads can I run on a home inverter?

The inverter's continuous VA or watt rating defines the total simultaneous load it can support. A 3 000 W inverter can theoretically supply 3 000 W of load simultaneously — lights, fans, a refrigerator, and phone chargers. High-draw appliances (electric water heaters, air conditioners, electric stoves) typically exceed practical inverter sizes and are usually excluded from the essential-loads board.
