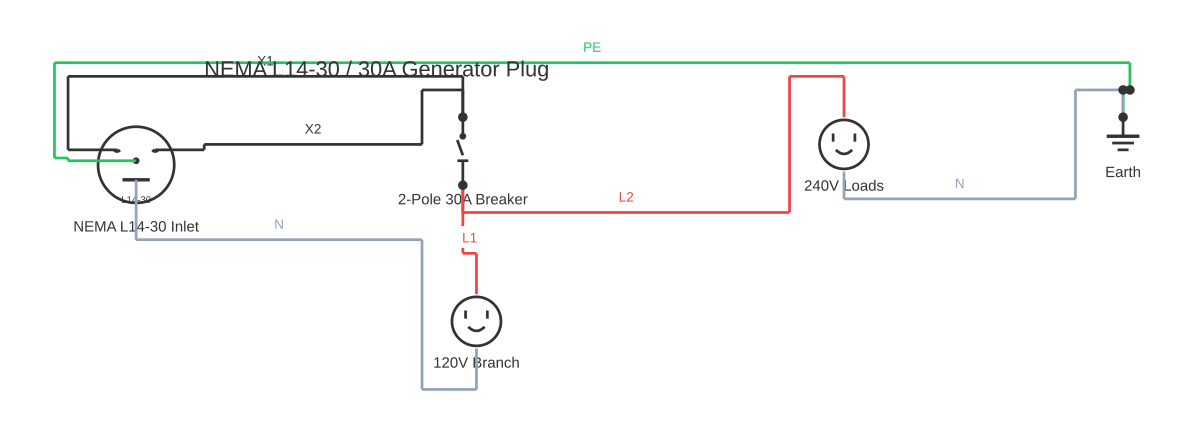

L14-30P Wiring Diagram: NEMA Locking 4-Wire Plug for 120/240V 30A Generator Connections
This is a free printable l14 30p wiring diagram: download the diagram as SVG or open it and print to paper or PDF.
Understand how to wire the NEMA L14-30P locking plug — the male generator-side connector in a 120/240V 30A 4-wire twist-lock system — with terminal identification, wire assignment, and safety requirements.
The NEMA L14-30P is the male plug half of the NEMA L14-30 locking connector system. It is designed for 120/240V AC, single-phase, 4-wire connections at up to 30 amperes. The 'L' prefix indicates a locking-type connector — the plug is inserted and then twisted clockwise to lock, preventing accidental disconnection under load. The '14' indicates 2-pole, 3-wire grounding (two hots, one neutral, one ground), and '30' indicates the 30-ampere rating.
This connector type is extremely common on portable generators rated at 7 500–10 000 W, because such generators produce split-phase 120/240V output and need a connector that can carry both legs simultaneously. The L14-30P (plug) mates exclusively with the L14-30R (receptacle), which is covered in a separate article.
The L14-30P has four terminals, each clearly designated in the NEC and NEMA standards:
— Terminal W: White — Neutral (grounded conductor). This is the centre of the split-phase system, the reference point between the two 120V legs. — Terminal G (or green screw): Green — Equipment grounding conductor. This is the safety earth; it connects to the generator frame ground and must never be used to carry current under normal operation. — Terminal X: Black — Line 1 (L1), the first ungrounded 120V conductor. — Terminal Y: Red — Line 2 (L2), the second ungrounded 120V conductor. Across X and Y, the voltage is 240V.
Cable entry: the L14-30P accepts SO, SOOW, or SJOOW flexible cord. A 10 AWG cable is correct for the 30 A rating — do not use 12 AWG or smaller. The cable must be secured by the cord clamp or strain relief within the plug body so that any pull on the cable is borne by the clamp, not the terminal screws.
The L14-30P is the generator outlet side — it connects to the generator's receptacle outlet or is used in a cord assembly that plugs into the generator. The other end of a transfer cord connects to an L14-30R receptacle or to a transfer switch. Never back-feed the L14-30P into a house panel without an approved transfer switch — this creates lethal backfeed on utility lines and violates NEC Article 702.
All generator transfer wiring must comply with NEC Articles 250, 702, and 702.10, and must be performed by a qualified electrician.
How to wire l14 30p wiring diagram
- Purchase the correct replacement plug and cable before starting Specify an L14-30P rated for 125/250V, 30 A. Purchase 10/4 SOOW or SJOOW flexible cord (10 AWG, 4 conductors) if making a new cord — do not use 12/4 cord. Verify the cord has a suitable outer diameter to engage the plug's strain relief clamp.
- Remove the plug cover and note the terminal labels before disconnecting any wires Open the plug body by removing the cover screw. Inside, locate the four terminal screws: G (green — ground), W (white — neutral), X (black — L1), Y (red — L2). Photograph the existing wiring or note each conductor colour before removing any screws.
- Cut the cable to length, thread it through the cord clamp, and strip conductors Thread the cord through the cord clamp body before terminating — you cannot add it afterwards. Strip approximately 20 mm of outer jacket and 10–12 mm of individual conductor insulation. Do not nick the individual conductor insulation when stripping.
- Terminate the ground conductor (green or bare) to the green screw (G terminal) first The ground conductor is always connected first and disconnected last. This is a safety convention — if the plug is energised accidentally during assembly, the ground connection reduces shock risk. Wrap the conductor clockwise around the terminal screw shank so that tightening the screw draws the conductor tighter.
- Connect the white neutral conductor to terminal W The neutral (white) connects to terminal W. Wrap clockwise and tighten securely. An inadequate neutral connection under load causes a floating neutral condition: if the loads on L1 and L2 are unequal, the neutral voltage shifts, exposing 120V loads to potentially damaging overvoltage.
- Connect the black conductor to terminal X (L1) and the red conductor to terminal Y (L2) Black to X, red to Y. In a split-phase system, X and Y are the two hot legs — each 120V to neutral, 240V between them. These connections carry the highest current. Ensure the conductor is fully seated under the terminal screw and that no bare copper is exposed beyond the terminal.
- Tighten the cord clamp and reassemble the plug body The cord clamp must grip the outer jacket of the cable, not the individual conductors. Tug the cable firmly after tightening to verify the strain relief holds. Reassemble the plug body. Do not over-tighten the cover screw on plastic plug bodies — hand-tight plus a quarter turn is typically sufficient.
Specifications
| NEMA designation | L14-30P (locking, 2-pole 3-wire grounding, 30 A, male plug) |
|---|---|
| Voltage rating | 125/250V AC (split-phase — L1 and L2 each 120V to neutral; L1 to L2 = 240V) |
| Current rating | 30 A |
| Required conductor gauge | 10 AWG (minimum) per NEC Article 310 for 30 A circuits |
| Terminal designations | G = equipment ground (green); W = neutral (white); X = L1 (black); Y = L2 (red) |
| Voltage X to W (L1 to neutral) | ~120V AC |
| Voltage Y to W (L2 to neutral) | ~120V AC |
| Voltage X to Y (L1 to L2) | ~240V AC |
Safety warnings
- BACKFEED HAZARD — NEVER connect a generator to house wiring without an approved transfer switch or interlock kit. Plugging a generator into any household outlet without a properly installed transfer switch feeds live voltage back onto the utility supply lines. This voltage reaches street-level distribution transformers, re-energises lines that utility workers believe are dead, and can kill line workers. It is a criminal offence in most jurisdictions.
- Use only 10 AWG conductors (or larger) with a 30 A rated plug. Undersize wiring is a fire hazard and a code violation. The circuit breaker or fuse protects the wiring — if the wiring cannot handle the full rated current, it will overheat before protection operates.
- Never use the neutral terminal as an additional ground connection. Neutral is a current-carrying conductor. Bonding neutral to ground at any point other than the designated bonding point creates parallel current paths on the grounding system, which can cause shock hazards on conductive surfaces believed to be at ground potential.
- All generator transfer switch wiring and connections to premises wiring must comply with NEC Article 702 (Optional Standby Systems), NEC Article 250 (Grounding and Bonding), and local amendments. Contact the local authority having jurisdiction (AHJ) for permit requirements.
- Do not use the L14-30P plug near water or operate the generator in rain without appropriate weather protection for the plug connection. Ensure the mating connection at the L14-30R receptacle is fully locked before starting the generator.
Tools needed
- Flathead and Phillips screwdrivers (for plug body and terminal screws)
- Wire stripper rated for 10 AWG
- Lineman's pliers (for conductor wrapping and tightening)
- Digital multimeter (for continuity verification of all four conductors after assembly)
- Cable diameter gauge or vernier calipers (to confirm cord OD matches strain relief range)
Common mistakes
- Using 12/4 cord instead of 10/4 cord: A 30 A plug on a 12 AWG cable (rated 20 A) creates an undersized conductor that overheats at anything above 20 A. The 10/4 cord is mandatory for a 30 A circuit.
- Transposing the neutral and ground conductors: Connecting the white neutral to the green G terminal and the green (or bare) ground to the W terminal creates a floating neutral and an energised equipment ground — a serious shock hazard. Always connect white to W and green/bare to G.
- Not engaging the cord clamp around the outer jacket: If the cord clamp grips only individual conductors rather than the outer jacket, a tug on the cable pulls the conductor out of the terminal screw. The clamp must grip the cable's outer jacket firmly.
- Connecting the plug to a household outlet via an adapter ('suicide cord' or 'male-to-male cord'): Adapting a generator plug to feed current back through a household outlet is an extremely dangerous practice. It leaves the male plug pins live on one end while feeding power through unprotected household wiring. This is sometimes called a 'suicide cord' for obvious reasons and is illegal in all jurisdictions.
- Failing to verify all terminal torques: Loose terminal screws on high-current connections generate heat and eventually arc-track the plug body, leading to connector failure and fire. Tighten all screws firmly and verify continuity before use.
Troubleshooting
- Generator trips its circuit breaker immediately when load is connected via the L14-30P cord
- Cause: Short circuit in the cord (conductor-to-conductor or conductor-to-ground), defective connected appliance, or load exceeds generator and cord rating Fix: Disconnect all loads. Measure resistance between each conductor pair with the cord's L14-30R end open (nothing connected). Conductor-to-conductor or conductor-to-ground resistance should be greater than 1 MΩ. Any low resistance reading indicates a fault in the cord. Also verify the connected load's total current does not exceed the 30 A cord and plug rating.
- One leg of 120V output works; the other has no voltage
- Cause: Open-circuit terminal connection at X or Y in the L14-30P plug, broken conductor in the cord, or a generator winding fault on one phase Fix: Measure AC voltage between W and X (should be ~120V) and between W and Y (should be ~120V). If one reading is zero, the fault is either in the plug terminal connection or the cable for that phase. Isolate, open the plug body, and inspect the terminal for a loose or disconnected conductor.
- Plug body becomes warm or hot during operation
- Cause: Loose terminal connection creating a high-resistance joint, undersized cable generating I²R heat, or plug rating being exceeded by the connected load Fix: Stop the generator. Isolate. Open the plug and verify all four terminal screws are tight and conductors fully seated. Confirm cable is 10 AWG. Measure total connected load and verify it does not exceed 30 A at 120V or 7 200 VA at 240V. If all these check out, the plug body itself may be degraded internally and should be replaced.
Frequently asked questions
What is the difference between the L14-30P and L14-30R?
The L14-30P is the male plug — it has blades (male contacts) and is typically attached to the generator's output cord or transfer cord. The L14-30R is the female receptacle — it has sockets (female contacts) and is typically mounted on a wall, transfer switch, or load panel. The P stands for Plug; the R stands for Receptacle. They are the matched pair of the NEMA L14-30 system.
What wire gauge must I use for an L14-30P 30A connection?
10 AWG copper conductors are required for a 30 A circuit under NEC Article 310. Using 12 AWG (rated 20 A) on a 30 A circuit is a code violation and creates a fire risk — the cable can overheat before the 30 A protection operates. Use SO, SOOW, or SJOOW flexible cord in 10/4 (10 AWG, 4 conductors) for portable generator cords.
Can I use the neutral terminal as an extra ground for redundancy?
No. The neutral (white, terminal W) and the equipment ground (green, terminal G) must never be connected together at the plug. In a transfer system, the neutral is a current-carrying conductor that returns load current. Connecting it to the ground creates a dangerous objectionable current path and violates NEC Article 250. The neutral-to-ground bond in a generator transfer system must only exist at the generator's transfer switch or as defined by the generator manufacturer.
What does 'locking' connector mean and why is it important for generators?
A locking connector requires the plug to be twisted after insertion to mechanically lock it in the receptacle — it cannot be pulled out without twisting back. For generators, this is important because a heavy extension cord or power tool can yank on the plug during operation. On a non-locking connector, this could disconnect the plug under load, creating a potentially live exposed plug face. The locking mechanism prevents accidental disconnection.
Is it safe to plug an L14-30P cord directly into a dryer outlet?
No. The NEMA L14-30P does not physically mate with standard household dryer outlets (NEMA 14-30R or NEMA 10-30R). If someone has created an adapter to force this connection, it is an extremely hazardous and code-violating arrangement. Never use adapters to connect generator output to household circuit outlets — always use an approved transfer switch or interlock kit.
