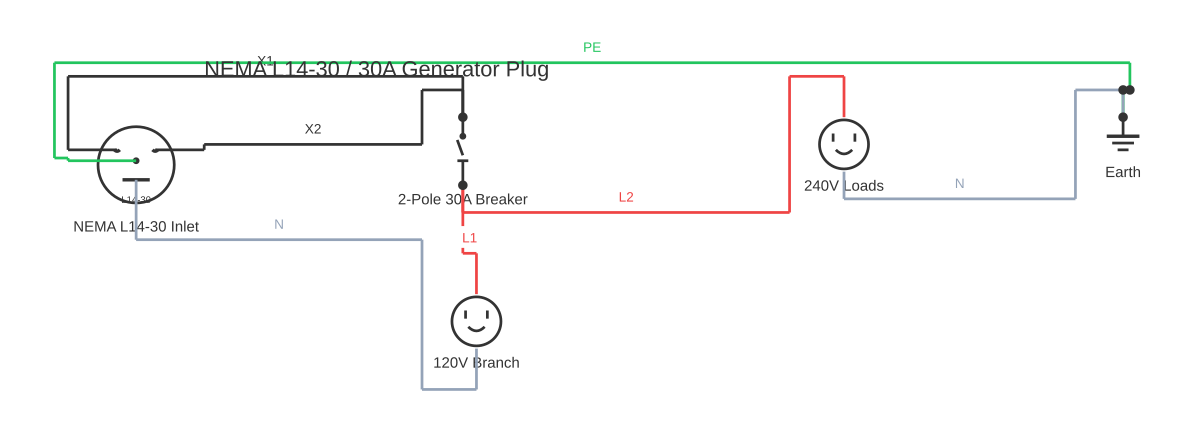

L14-30R Wiring Diagram: NEMA Locking Receptacle for 120/240V 30A Transfer Switch & Panel Installations
This is a free printable l14 30r wiring diagram: download the diagram as SVG or open it and print to paper or PDF.
Understand how to wire the NEMA L14-30R locking receptacle — the fixed female connector in a 120/240V 30A 4-wire generator transfer system — with terminal identification, mounting requirements, and transfer switch integration.
The NEMA L14-30R is the female receptacle half of the NEMA L14-30 locking connector system. It is rated for 125/250V AC, single-phase, 4-wire service at 30 amperes. The receptacle is the fixed (stationary) component — it is permanently mounted on a wall, transfer switch enclosure, or load centre, while the mating L14-30P plug on the generator cord is connected to it when generator power is needed.
The 'R' designation means Receptacle, distinguishing it from the P (Plug). Physically, the L14-30R has four socket openings arranged in a circular pattern with a locking keyway. The four sockets correspond to the four conductors of the split-phase system:
— Ground (G): Green terminal screw — equipment grounding conductor; connects to the premises grounding system. — Neutral (W): White terminal screw — grounded neutral conductor, the midpoint of the split-phase supply. — L1 (X): Black terminal screw — first ungrounded line conductor (~120V to neutral). — L2 (Y): Red terminal screw — second ungrounded line conductor (~120V to neutral, ~240V to L1).
The critical distinction between wiring an L14-30R mounted on a wall outlet versus an L14-30R used as part of a transfer switch input is the source of the conductors. A wall-mounted receptacle served by a dedicated circuit from a transfer switch receives its conductors from the utility side of the panel (via the transfer switch) during normal operation and from the generator during an outage — with the transfer switch preventing simultaneous connection of both sources. An L14-30R mounted adjacent to the main panel as a generator inlet receives conductors that run through a manual or automatic transfer switch.
Never wire an L14-30R receptacle directly to the main panel without a transfer switch. This allows both the utility supply and the generator to be connected simultaneously, creating a phase conflict and a backfeed hazard that is potentially fatal to utility workers.
The receptacle body must be mounted in a weatherproof enclosure if installed outdoors or in damp locations — use an in-use cover rated for the environmental exposure. All wiring must be in appropriate conduit or cable as required by NEC Article 702 and the applicable local electrical code.
For residential use, the L14-30R is commonly paired with a manual transfer switch rated for the loads to be backed up, and connected via a generator cord fitted with the mating L14-30P plug.
How to wire l14 30r wiring diagram
- Confirm transfer switch installation and approval before wiring the L14-30R receptacle The L14-30R receptacle must be the load side of an approved transfer switch — not a direct connection to the panel. Confirm the transfer switch is rated for the intended loads, correctly sized, and installed per the manufacturer's instructions and NEC Article 702. Obtain any required permits from the local authority having jurisdiction (AHJ) before starting wiring.
- Select mounting location — indoors or protected outdoor location with weatherproof cover For outdoor generator hookup points, mount the receptacle on an exterior wall within cord reach of the generator's typical parked position, keeping the generator itself outdoors. Mount in a metallic or appropriate weatherproof box. Install an in-use weatherproof cover. Keep the receptacle away from gas meter inlets, windows, and air intakes.
- Install appropriate conduit or cable from the transfer switch to the receptacle location Run rigid or flexible metallic conduit (or appropriate cable in conduit per local code) from the transfer switch to the receptacle box. The conduit or cable must accommodate four 10 AWG conductors. Size the conduit per NEC Chapter 9 fill tables. Secure the conduit at intervals required by NEC Article 358 or applicable conduit article.
- Pull conductors and terminate at the receptacle Pull 10 AWG conductors through the conduit. At the receptacle, strip approximately 15 mm of insulation from each conductor. Connect: green (or bare) to G, white to W, black to X, red to Y. Wrap each conductor clockwise under its terminal screw. Tighten all terminal screws firmly. Verify no bare conductor is exposed beyond the terminal area.
- Verify correct terminal assignment with a multimeter before energising With the transfer switch in the utility position (generator not connected), verify voltage at the L14-30R receptacle: ~120V between X and W, ~120V between Y and W, ~240V between X and Y, and ground continuity between G terminal and the panel earth. This step confirms correct wiring before any generator connection.
- Test generator connection with all loads disconnected Switch the transfer switch to the generator position. Connect the L14-30P plug from the generator cord. Start the generator and allow it to stabilise (typically 30–60 seconds at no load). Verify ~120V on both L1 and L2 legs using a multimeter at the L14-30R receptacle or a downstream outlet protected by the transfer switch. Connect loads progressively, monitoring generator stability.
- Document the installation and confirm AHJ inspection if required Record the transfer switch model, rating, breaker size, and conductor gauge used. If a permit was required, arrange the AHJ inspection before closing any conduit bodies or concealing wiring. Provide the homeowner with operating instructions for the transfer switch — particularly the correct sequence: disconnect from utility, then connect generator (never simultaneously).
Specifications
| NEMA designation | L14-30R (locking, 2-pole 3-wire grounding, 30 A, female receptacle) |
|---|---|
| Voltage rating | 125/250V AC (L1 to neutral = ~120V; L2 to neutral = ~120V; L1 to L2 = ~240V) |
| Current rating | 30 A |
| Required supply conductor gauge | 10 AWG copper minimum (per NEC Article 310 for 30 A circuits) |
| Required circuit protection | 2-pole 30 A circuit breaker (double-pole, 240V rated) |
| Terminal designations | G = equipment ground (green/bare); W = neutral (white); X = L1 (black); Y = L2 (red) |
| Outdoor installation enclosure rating | NEMA 3R (rain-resistant) minimum for outdoor mounting |
| Mates with | NEMA L14-30P (male plug) exclusively |
Safety warnings
- A TRANSFER SWITCH IS MANDATORY. Never wire an L14-30R receptacle directly to a main panel without a transfer switch. Direct connection allows the generator and utility supply to be connected simultaneously, feeding voltage back onto utility distribution lines. Utility workers restoring power to 'dead' lines can be fatally electrocuted by this backfeed. This is a criminal offence in most jurisdictions.
- Outdoor generator receptacles must be in weatherproof enclosures with in-use covers rated for wet locations. Mains voltage at an exposed receptacle in rain creates an extreme shock and electrocution risk. Do not operate the generator connection point in rain without appropriate weatherproof protection.
- The generator must be operated outdoors only, well clear of windows, doors, and air intakes. Carbon monoxide (CO) from generator exhaust is odourless, colourless, and rapidly fatal in enclosed or partially enclosed spaces. The convenience of an indoor receptacle does not change the requirement for the generator itself to remain outdoors.
- All transfer switch and generator inlet wiring must comply with NEC Articles 250, 702, and applicable local codes. A permit and inspection may be required. Contact the local authority having jurisdiction (AHJ) before installation. Failure to obtain required permits can result in fines and refusal of insurance claims related to generator damage or injury.
- Never exceed the 30 A rating of the L14-30R receptacle and connecting cord. Calculate the total connected load in amperes before energising. On a 30 A circuit, 120V loads must not exceed 30 A on either L1 or L2, and 240V loads must not exceed 30 A total. Overloaded conductors overheat and can cause fire.
Tools needed
- Digital multimeter (AC voltage, continuity, ground verification)
- Conduit bender and conduit cutter (for metallic conduit installation)
- Fish tape (for pulling conductors through conduit)
- Wire stripper rated for 10 AWG
- Lineman's pliers
- Flathead and Phillips screwdrivers
- Drill and masonry/wood bits (for mounting)
- Non-contact voltage tester (verify dead before working)
Common mistakes
- Wiring the L14-30R without a transfer switch: This creates a backfeed hazard and is a code violation. No workaround, adapter, or 'careful operation procedure' makes this acceptable — a transfer switch is required without exception.
- Transposing neutral and ground at the receptacle: White to G and green to W creates an energised ground terminal. Any appliance chassis connected to the ground conductor will be energised at neutral potential — which under fault conditions or load imbalance can rise above true earth, creating a shock hazard on metal appliance surfaces.
- Using undersized conduit that makes pulling 4 conductors of 10 AWG impossible: 10 AWG is physically thicker than many DIYers expect. Calculate conduit fill per NEC Chapter 9 Table 1 before purchasing conduit — 1 inch (25 mm) trade size conduit is typically the minimum practical size for 4 conductors of 10 AWG THWN.
- Installing the receptacle on the same wall face as the gas meter or gas piping: Generator connection points must not be immediately adjacent to gas infrastructure. Check local regulations for minimum separation distances.
- Not providing an in-use weatherproof cover on an outdoor receptacle: A standard indoor cover plate provides no weather protection. Rain ingress into an energised receptacle causes arc faults, trips breakers, and corrodes the terminal connections inside the receptacle body.
Troubleshooting
- Transfer switch trips its 30 A breaker when generator is connected and loads applied
- Cause: Total load on L1 or L2 exceeds 30 A, a connected appliance has a fault causing overcurrent, or the generator's output voltage is outside tolerance causing appliance draw to increase Fix: Reduce connected loads — add loads progressively to identify the overloading appliance. Measure generator output voltage — if significantly below 120V, motor loads draw more current (lower voltage = higher current for same power). A generator running low on fuel or with a failing AVR produces low output voltage that exacerbates overloads.
- Neutral terminal W overheats or shows signs of arcing at the L14-30R
- Cause: Loose neutral terminal screw connection, excessively high neutral current from severely unbalanced L1/L2 loading, or undersized neutral conductor Fix: Isolate. Tighten neutral terminal screw. Verify neutral conductor is 10 AWG. Balance loads between L1 and L2 legs — an extreme imbalance (all loads on one leg) maximises neutral current and terminal heating. Replace the receptacle if the terminal shows visible arcing or melting damage.
- No voltage at L14-30R when generator is running and transfer switch is in generator position
- Cause: Transfer switch contacts not switching correctly, breaker in transfer switch tripped, or open-circuit conductor between transfer switch and receptacle Fix: Verify generator output voltage at the generator's own outlets. Verify transfer switch position and check for a tripped breaker inside the transfer switch. Measure continuity of each conductor between the transfer switch and the receptacle with both ends de-energised.
Frequently asked questions
What is the physical difference between the L14-30R and L14-30P?
The L14-30R is the female receptacle with socket openings — it is mounted in a fixed location and receives the plug. The L14-30P is the male plug with blade contacts — it is attached to the generator cord or transfer cord and inserts into the receptacle. The blades of the P lock into the sockets of the R when twisted clockwise. They are designed to mate only with each other.
Can I install an L14-30R directly on a house wall and connect it to the main panel?
Only if a properly rated transfer switch is installed between the receptacle and the panel. Direct connection to the main panel without a transfer switch allows the generator and utility supply to be connected simultaneously, creating a backfeed path that energises utility lines and poses a fatal risk to line workers restoring power. NEC Article 702 requires a transfer means that prevents simultaneous connection of two power sources.
What circuit protection does the L14-30R circuit require?
The branch circuit supplying the L14-30R from the transfer switch must be protected by a 30 A 2-pole circuit breaker (240V double-pole, not two single-pole breakers). The supply conductors must be 10 AWG copper minimum. The 30 A rating is the maximum current the receptacle and cord are rated to carry — the connected generator and loads must not exceed this.
Does the L14-30R need a weatherproof cover?
When installed outdoors or in wet or damp locations, yes — a weatherproof in-use cover is required. This is a cover that remains closed while protecting the receptacle when not in use and remains closed or semi-closed even when a cord is plugged in. NEC Article 406.9 specifies the requirements for receptacles in wet locations.
Why are the terminal designations different letters (X, Y, W, G) instead of L1, L2, N, G?
The NEMA designation system uses X, Y, W, and G as terminal labels to be unambiguous across different national wiring colour conventions. W = grounded conductor (neutral); G = equipment grounding conductor; X = first ungrounded conductor (Line 1); Y = second ungrounded conductor (Line 2). These are printed inside the receptacle body so the installer assigns the correct local wire colours to each terminal regardless of country.
