Oil Pressure Sensor Wiring Diagram: Pressure Switch and Resistive Sender Explained

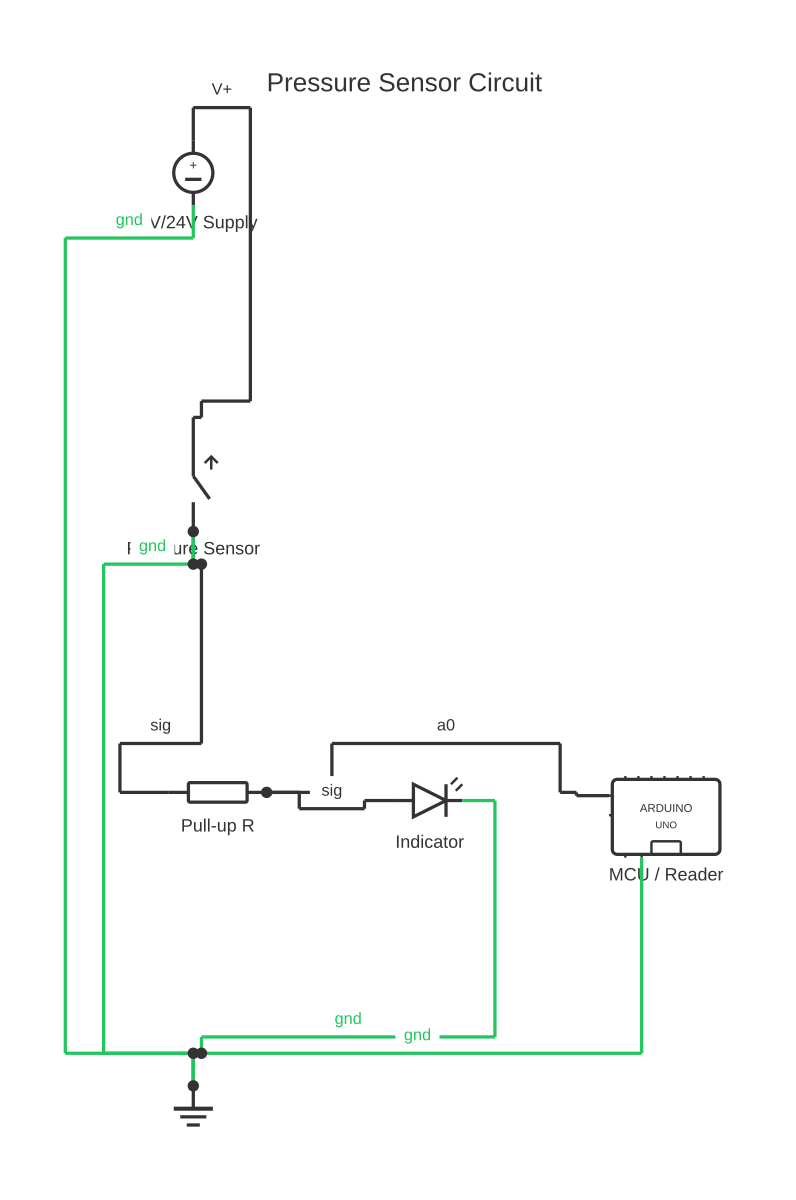

This is a free printable oil pressure sensor wiring diagram: download the diagram as SVG or open it and print to paper or PDF.
An oil pressure sensor wiring diagram shows how to connect a pressure switch or variable-resistance sender to a warning lamp, gauge, or ECU for reliable engine protection.
Engine oil pressure monitoring uses one of two fundamentally different sensor types, and confusing them is the most common cause of a permanently lit warning lamp or an inoperative gauge.
The oil pressure switch is the simpler device. Inside the switch body, a diaphragm deflects against spring pressure. At low oil pressure (typically below 7 kPa to 30 kPa, depending on specification), the contacts remain closed, completing the circuit from the instrument cluster warning-lamp feed through the switch body to ground. When oil pressure rises to normal operating level, the diaphragm deflects enough to open the contacts, breaking the ground path and extinguishing the lamp. Wiring is a single-wire connection: the switch feed wire connects to one terminal of the warning lamp (the other lamp terminal goes to ignition-switched voltage), and the switch body grounds through its threaded case into the engine block.
The oil pressure sender (also called a pressure transducer or sender unit) is a variable-resistance device. Its internal element — either a Bourdon tube driving a wiper across a resistance coil, or a piezoresistive silicon element — changes resistance inversely with oil pressure. At zero pressure the resistance is typically 10 Ω (full deflection) and at maximum rated pressure it rises to 180 Ω (or vice versa, depending on the vehicle standard — Japanese and US standards often differ). The gauge coil on the instrument cluster measures current flow through this resistance and deflects accordingly. Wiring requires a single-wire connection from the sender terminal to the gauge 'S' input, with the sender body grounding through the engine block.
Modern engine management systems may use a three-wire pressure transducer (5 V reference, signal output 0.5 V – 4.5 V, and ground) that provides a linear voltage output to the ECU. This type requires correct 5 V reference and sensor ground — not chassis ground — wiring to avoid measurement errors.
Always consult the engine or vehicle workshop manual for the specific pressure range, resistance curve, and connector pinout before replacement or fault-finding.
How to wire oil pressure sensor wiring diagram
- Identify the sensor type fitted to your engine Locate the oil pressure sensor on the engine block, typically near the oil filter or on the main oil gallery. Count the electrical terminals: one terminal = switch or sender (single-wire, body grounds to block); two terminals = two-wire switch or sensor with separate ground; three terminals = ECU-type linear transducer with 5 V reference, signal, and ground.
- Confirm the replacement specification Check the workshop manual or parts catalogue for the correct thread size (common sizes: 1/8 NPT, 1/4 NPT, M10×1.0, M14×1.5), operating pressure range, resistance curve for senders, or switching pressure for switches. Using an incorrectly rated switch can leave the warning lamp off even with dangerously low oil pressure.
- Disconnect the battery negative terminal Before any electrical work, disconnect the battery negative (–) terminal and secure the cable away from the battery post. This prevents shorts and accidental cranking during sensor removal. Confirm the ignition is off and the key is removed.
- Remove the old sensor and prepare the port Use the correct sensor socket (typically a special crowfoot socket) to avoid damaging the sensor body. Clean the thread port with a lint-free cloth. Apply fresh PTFE tape (1 to 2 wraps only) or the specified thread sealant to the new sensor threads, leaving the first thread clear to avoid contaminating the oil system.
- Install the new sensor and reconnect wiring Torque the sensor to the specified value — typically 15 N·m to 25 N·m for M10 or NPT sensors. Reconnect the wiring connector or spade terminal. Ensure the body-to-block ground path is clean and uncoated — remove any paint or sealant from the mating contact area if necessary.
- Check routing and secure wiring Route the sensor cable away from exhaust manifolds, rotating components, and sharp edges. Use OEM-style clips or cable ties rated for under-bonnet temperatures. Leave adequate slack to allow for engine movement without tension on the connector.
- Start the engine and verify operation Reconnect the battery, start the engine, and observe the warning lamp — it should extinguish within 1 to 3 seconds as oil pressure builds. For a sender-driven gauge, observe gauge deflection reaching the normal band. If the lamp remains on, shut the engine down immediately and diagnose before further running to prevent engine damage.
Specifications
| Typical oil pressure switch opening threshold | 7 kPa – 30 kPa (1 – 4.5 psi) — consult engine spec |
|---|---|
| Common sender resistance range (VDO-compatible) | 10 Ω (0 bar) to 180 Ω (rated maximum pressure) |
| Common sensor thread sizes | 1/8-27 NPT, 1/4-18 NPT, M10×1.0, M14×1.5 |
| Sensor operating temperature range | −40 °C to +150 °C (under-bonnet environment) |
| Typical sensor torque specification | 15 N·m – 25 N·m (consult engine workshop manual) |
| 3-wire ECU transducer output range | 0.5 V (0 kPa) to 4.5 V (rated pressure) at 5 V reference |
Safety warnings
- NEVER run an engine with low or zero oil pressure. If the oil pressure warning lamp illuminates while driving, shut the engine off immediately and investigate. Continued running with insufficient oil pressure will cause irreversible bearing and camshaft damage within seconds to minutes.
- Always disconnect the vehicle battery negative (–) terminal before removing or fitting any electrical sensor. A short circuit on an unfused sensor wire can ignite wiring insulation. Never use steel wool or abrasives near fuel systems.
- Hot oil under pressure can cause severe burns. Allow the engine to cool before removing any oil system component. Even with the engine cold, oil may be pressurised in some systems — have absorbent rags ready and wear protective eyewear.
- Confirm replacement sensor specification exactly before installation. An oil pressure switch with too low a switching threshold will not illuminate the warning lamp at genuinely dangerous pressures, providing false security. A sender with the wrong resistance curve will display incorrect gauge readings.
Tools needed
- Oil pressure sensor socket (crowfoot type, sized to specific sensor)
- Torque wrench (0–50 N·m range)
- Multimeter (resistance, DC voltage, and continuity measurement)
- Mechanical oil pressure test gauge with T-fitting adapter (for verification)
- Wire stripper and crimp terminal tool
- PTFE thread sealing tape
- Drain tray and lint-free rags (for oil spillage)
Common mistakes
- Over-tightening the sensor: many oil pressure sensors have aluminium or plastic housings that crack under excessive torque. Use a torque wrench and adhere to the specified torque value — do not tighten by feel alone.
- Failing to clear paint or sealant from the engine block contact area: the sensor body must make a good electrical contact with the engine block to provide a ground path. Paint or gasket sealant on the mating surface creates a high-resistance ground, causing the warning lamp to stay permanently on.
- Applying too many wraps of PTFE tape: excess tape can enter the oil gallery and contaminate the engine oil system. Apply 1 to 2 wraps maximum and leave the first thread clear.
- Substituting a switch for a sender or vice versa: these are not interchangeable. Installing a switch where a sender is expected will drive the gauge to an extreme reading and may damage the gauge movement.
- Routing the sensor wire across the exhaust manifold: automotive wiring insulation rated at 85 °C will melt on contact with an exhaust manifold running at 400 °C – 700 °C. Route wiring with at least 50 mm clearance from exhaust components.
Troubleshooting
- Warning lamp stays on with engine running at normal idle
- Cause: Low actual oil pressure, faulty switch (stuck closed), or open-circuit ground on switch body Fix: Immediately shut down. Verify oil level. Fit a mechanical oil pressure test gauge to confirm actual pressure. If pressure is normal, test the switch: disconnect the sensor wire — if the lamp extinguishes, the switch is faulty (contacts stuck closed). Check sensor body contact to block.
- Warning lamp never illuminates even when engine is cranked with no oil
- Cause: Switch contacts stuck open, open-circuit in the lamp feed or lamp wire, or bulb failed Fix: Ground the sensor wire temporarily with the ignition on (engine not running). If the lamp illuminates, the switch is faulty (contacts stuck open). If the lamp still does not illuminate, check the bulb, fuse, and wiring continuity.
- Oil pressure gauge reads zero or maximum regardless of engine state
- Cause: Incorrect sender specification (wrong resistance range), open or shorted sender, or incorrect wire routing Fix: Measure sender resistance at the terminal to body ground with engine off — should match specified zero-pressure value. Start engine briefly and re-measure — resistance should change. If it does not, sender has failed. Verify gauge wiring: 'S' terminal must connect to sender, not to switch.
Frequently asked questions
Why does my oil pressure warning lamp stay on after the engine starts?
First verify oil level and actual oil pressure using a mechanical gauge. If oil pressure is confirmed good, the warning lamp staying on indicates either a faulty oil pressure switch (contacts stuck closed), a short to ground on the warning lamp wire, or a broken switch body that cannot ground the engine block correctly. Replace the switch and retest.
Can I use an oil pressure switch in place of a sender for a gauge?
No. A pressure switch has only two states — open or closed. An oil pressure gauge requires a variable-resistance sender whose resistance changes continuously with pressure. Connecting a switch where a sender is expected will drive the gauge to its maximum or minimum deflection only, depending on switch state.
What is the typical resistance range of an oil pressure sender?
This varies by standard. Many European and Australian vehicles follow the VDO-compatible range of 10 Ω at zero pressure to 180 Ω at maximum rated pressure. US domestic vehicles often use 0 Ω at zero to 90 Ω at maximum. Japanese vehicles commonly use 3 Ω to 110 Ω. Always confirm the specific resistance curve from the workshop manual before purchasing a replacement.
How do I test an oil pressure sender with a multimeter?
With the engine off and sender disconnected, measure resistance between the sender terminal and its body — it should read near the zero-pressure value for your specification. Start the engine and, with the connector briefly reinstalled, observe gauge deflection. For a definitive test, remove the sender and apply controlled air pressure (through a T-fitting) while measuring resistance change against a known pressure gauge.
Why does a three-wire pressure transducer need a separate sensor ground?
The 5 V reference and signal are ratiometric — the signal voltage is a fixed ratio of the reference voltage. If sensor ground differs from ECU reference ground due to voltage drop across chassis wiring, the ECU reads a false offset. Sensor ground must run directly back to the ECU ground pin to maintain accuracy, especially on older vehicles with corroded earths.
