Industrial Pressure Transducer Wiring and Signal Conditioning

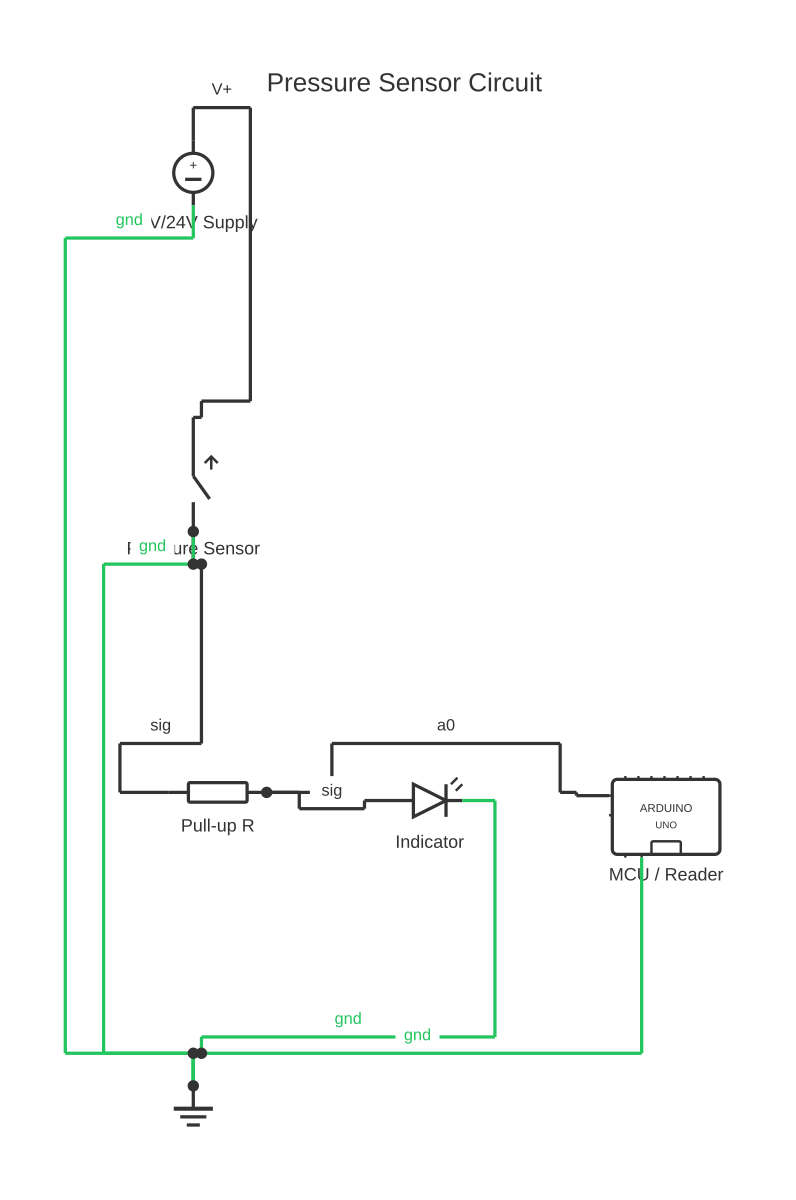

This is a free printable pressure sensor diagram: download the diagram as SVG or open it and print to paper or PDF.
A pressure sensor diagram illustrates how to properly connect pressure transducers with signal conditioning, data acquisition, and safety alarm circuits.
Modern pressure sensors convert physical pressure into electrical signals for monitoring and control applications. The 4-20mA transducer provides a current loop output where 4mA represents minimum pressure and 20mA represents maximum rated pressure. This current loop design provides inherent noise immunity over long cable runs typical in industrial facilities. A precision resistor converts the current signal to voltage for data acquisition card input. Digital output sensors communicate pressure via Modbus, CAN, or Profibus protocols for direct controller connection. Mechanical pressure gauges provide analog reference verification without electronics. Pressure switch modules monitor for over-pressure and under-pressure conditions, triggering alarms or shutdowns. Proper sensor location near the measured point minimizes response lag. Calibration procedures verify accuracy against known pressure standards. Temperature compensation circuits account for sensor drift with thermal variation. Sealed connectors prevent moisture ingress in outdoor installations. Safety relief valves protect against catastrophic pressure overpressure situations.
How to wire pressure sensor diagram
- Select appropriate sensor range exceeding maximum expected pressure by at least 25 percent safety margin
- Install sensor in the process line with an isolation valve for safe removal during maintenance
- Route signal cable through conduit separate from power wiring to prevent electromagnetic interference
- Connect signal conditioning module inputs to sensor terminals and outputs to controller analog card
- Perform sensor verification test comparing digital reading against mechanical gauge at known pressures
Frequently asked questions
What is the difference between 4-20mA and 0-10V sensors?
4-20mA current loops are noise-immune over distance; 0-10V are simpler but more prone to line interference.
How do I connect a pressure sensor to my PLC?
Use a signal conditioning module to convert 4-20mA to 0-10V matching your analog input card specifications.
Can I use a single cable for multiple sensors?
No; each sensor requires dedicated wiring to prevent signal interference between measurement points.
What cable type works best for pressure sensors?
Shielded twisted pair cable prevents electromagnetic interference and signal noise in industrial environments.
How often should pressure sensors be calibrated?
Calibrate annually or per manufacturer recommendation; safety-critical applications may require six-month intervals.
