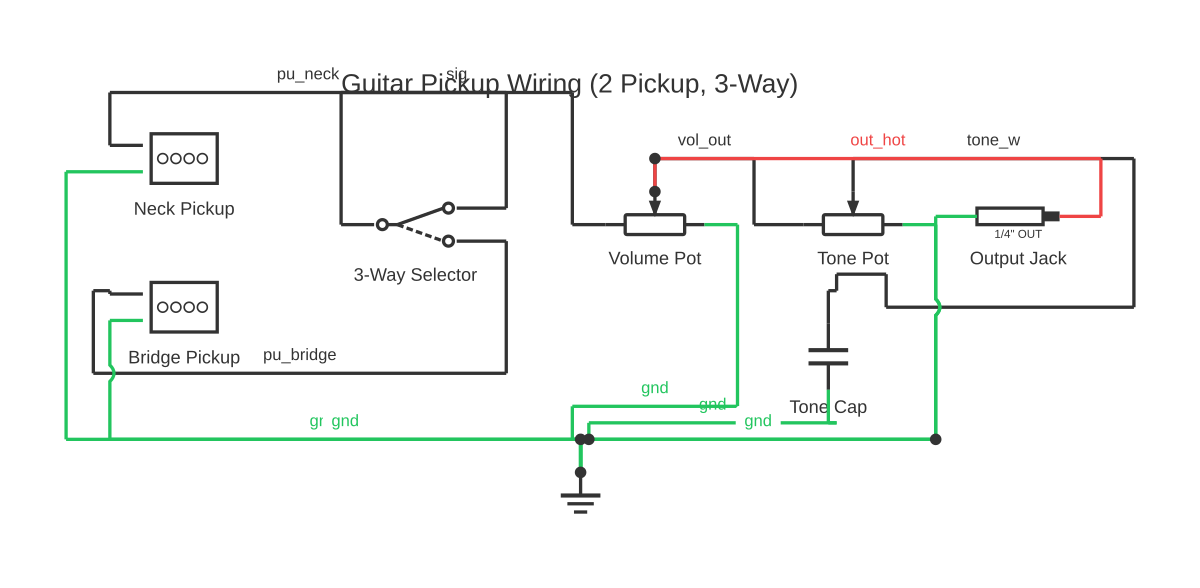

Pickup Wiring Diagrams: Advanced Humbucker Mods, Series, Parallel, and Coil Split
This is a free printable pickup wiring diagrams: download the diagram as SVG or open it and print to paper or PDF.
Go beyond standard wiring with advanced pickup wiring diagrams — coil splitting, series, parallel, and phase switching for maximum tonal range from your guitar.
Standard guitar pickup wiring connects each pickup to a selector switch and a pair of volume and tone controls. Advanced wiring diagrams expand the tonal palette significantly by exploiting the internal structure of 4-conductor humbuckers and the electrical properties of series versus parallel connections between coils and between pickups.
A 4-conductor humbucker exposes four wire terminations: the start and finish of each coil. Typically labelled South Start (S-Start), South Finish (S-Finish), North Start (N-Start), and North Finish (N-Finish) — with colour codes that vary by manufacturer, making the manufacturer's own wiring guide essential. The two coils are internally joined by connecting one coil's finish to the other coil's start, creating a series humbucking connection. By rerouting these connections with a switch, three alternative modes become possible:
Coil split: the junction between the two coils is connected to ground, disabling one coil and leaving the other as a single-coil pickup. Output is lower (roughly half the humbucker output), with a brighter, thinner tone and increased susceptibility to hum. The coil that remains active determines whether the tone is closer to a bridge or a neck single-coil character.
Series / parallel switching: in series mode (the factory standard), both coils are connected end-to-end, doubling the coil length and quadrupling the inductance compared to either coil alone, which gives the warm, high-output humbucker character. In parallel mode, both coils are connected across each other simultaneously. Parallel output is lower than series (typically half the series voltage), the tone is brighter with less mid-range emphasis, and the pickup retains hum cancellation — because the humbucking property depends on magnetic polarity, not on electrical series connection.
Phase reversal: connecting the two pickups out of phase with each other (by reversing one pickup's hot and ground connections) produces a thin, hollow sound as common-frequency content cancels. This is a specialised effect rather than a primary tone, but it is effective for creating funky, quacking tones.
Push-pull or push-push pots allow these switching functions to be added without drilling additional holes in the body, by incorporating a DPDT switch into the shaft of a standard potentiometer.
How to wire pickup wiring diagrams
- Identify the coil conductor colours on your specific pickup Before any wiring work, obtain the manufacturer's 4-conductor wiring diagram for your exact pickup model. Identify which wire is: North Start (usually connected to ground in standard wiring), North Finish (series link start), South Start (series link finish), and South Finish (the hot output). Measure DC resistance between each pair of wires to confirm which two belong to the same coil — each coil will read approximately half the total pickup resistance.
- Decide which switching functions to implement Choose from coil split, series/parallel, phase reversal, or a combination. Each function requires a DPDT (double-pole, double-throw) switch minimum. Coil split alone can use a single-pole switch. If fitting multiple functions, plan whether to use separate mini toggles, a multi-way rotary switch, or a push-pull or push-push pot to minimise additional hardware.
- Wire the coil split function (DPDT push-pull pot) For coil split: the series link junction (typically the join between North Finish and South Start) connects to the DPDT switch. In the switch's normal (out) position, the junction is open and the full humbucker operates. In the switched (pushed) position, the junction connects to ground, bypassing one coil. Which coil to bypass determines the resulting single-coil tone — experiment with both combinations before finalising.
- Wire the series/parallel switching function For series/parallel: in series mode, North Finish connects to South Start and the full series coil chain runs from North Start (ground) to South Finish (hot). In parallel mode, both coil starts connect together as one terminal and both coil finishes connect together as the other terminal. A DPDT switch reroutes the series link to achieve this. The junction of the two coil finishes becomes the hot output in parallel mode.
- Implement phase reversal if desired Phase reversal swaps the hot and ground connections of one pickup relative to the other in the wiring harness. Using a DPDT switch on one pickup: in normal position, the pickup connects hot-to-signal and ground-to-ground. In reversed position, the connections swap. Out-of-phase sounds most dramatic when both pickups are selected simultaneously (positions 2 and 4 on a 5-way switch).
- Build and test the harness before final installation Assemble and test the wiring harness on the workbench before fitting it into the guitar body. Use alligator clips or temporary solder joints to connect each pickup and test with an amplifier. Cycle through every switch position and pot combination and listen for the correct tonal change — splitting, parallel mode, or phase — before making permanent solder joints.
- Solder all joints, check grounds, and install Make all final solder joints with a hot, clean iron — each joint should be bright and smooth. Check continuity from the output jack sleeve to every pot casing and pickup ground wire. Confirm the output jack tip has signal continuity to the volume pot wiper with the volume at maximum. Install the harness, route wires to avoid mechanical contact with moving parts, and string the guitar before final testing through an amplifier.
Specifications
| Recommended pot value (full humbucker) | 500 kΩ audio taper |
|---|---|
| Recommended pot value (coil split to single-coil) | 250 kΩ audio taper (for best tonal balance in split mode) |
| Series humbucker inductance (typical) | Approximately 4× that of a single coil alone |
| Parallel humbucker output vs series | Approximately 50% of series voltage output |
| Coil split output vs full humbucker | Approximately 50% of humbucker output (single coil only) |
| DPDT switch minimum rating | Low voltage, low current audio signal (standard guitar signal) |
| Hook-up wire gauge | 22–24 AWG stranded |
| Tone capacitor range | 0.022 µF to 0.047 µF (film or ceramic) |
Safety warnings
- Guitar electronics operate at signal voltages well below hazardous levels. However, the combination of a guitar connected to a mains-powered amplifier with a faulty earth can expose the player to mains voltage through the strings. Have amplifiers inspected regularly by a qualified technician and never defeat the amplifier's mains earth.
- When soldering, work in a ventilated area to avoid flux fume inhalation. Rosin flux fumes are irritating and can cause respiratory sensitisation with repeated long-term exposure. Use a fume extractor for regular work.
- Avoid applying the soldering iron to the same pot casing area repeatedly for extended periods — excessive heat can melt the internal resistive track and destroy the potentiometer. Pre-tin the solder location first, then apply the iron briefly and allow it to cool between joints.
- When testing pickup DC resistance with a multimeter, ensure the output jack is disconnected from any amplifier. The multimeter's test voltage could interact with amplifier input stages in rare fault conditions.
Tools needed
- Temperature-controlled soldering station
- Rosin-core solder
- Digital multimeter (continuity and resistance)
- Wire strippers for 22–24 AWG
- Flush-cut cutters
- Small needle-nose pliers
- Helping hands / third-hand clamp
- Marker or label tape for conductor identification
Common mistakes
- Using the wrong manufacturer's colour code — assuming, for example, that the colour that means 'hot' on one brand's humbucker applies to a different brand's humbucker with different colour conventions, resulting in phase cancellation or no output.
- Wiring a coil split to disconnect the wrong coil — if the active coil has the wrong magnetic polarity relative to an adjacent single-coil pickup, the split position produces out-of-phase cancellation instead of the expected bright single-coil tone. Swap the split connection to the other coil to correct this.
- Using a standard 2-pole 5-way switch when a 4-pole super switch is needed, then finding the wiring scheme cannot be implemented because there are insufficient switching contacts.
- Not labelling conductors when working with 4-conductor pickup wires, resulting in confusion when troubleshooting or when returning to the wiring after a break.
- Soldering the series link wires (the two that join at the coil junction) together permanently before testing all switch positions — this prevents the split function from working without desoldering.
Troubleshooting
- No output or very weak output in coil-split position
- Cause: The coil split is shorting both the hot and ground of the active coil to ground, or the series link is not correctly interrupted Fix: Check the DPDT switch wiring against the coil split diagram for your specific pickup manufacturer. Verify with a multimeter that in the split position, the output measures the active coil's DC resistance (approximately 4–8 kΩ for a single coil), not a near-zero reading (indicating a short) or an open circuit.
- Out-of-phase sound when both pickups are selected in normal (non-phase-reversal) position
- Cause: One pickup's hot and ground are reversed relative to the other pickup, or the pickup's magnetic polarity is opposite to what is expected for that position Fix: Swap the hot and ground leads of one pickup at the switch terminals (not inside the pickup itself). Test both pickups together — in phase should produce a full, warm sound; out of phase should produce a thin, hollow sound. If the result is reversed from expectation, swap back and verify the pickup's magnetic polarity with a compass.
- Switching function works correctly on the bench but not in the installed guitar
- Cause: A switch terminal contact is intermittent due to mechanical stress when the pot or toggle is installed in the body, or a wire is under tension and pulling from a solder joint Fix: Remove the control plate or cavity cover and manually cycle the switch while monitoring output with the guitar connected to an amplifier. Identify the intermittent connection by touch or by probing with a multimeter. Add slack in any wires under tension and re-solder any cold or pulled joints.
Frequently asked questions
What is the difference between a coil split and a coil tap?
A coil split disconnects one entire coil of a humbucker, leaving the other coil operating as a single-coil. A coil tap connects to a mid-point within a single coil (the tap wire), using fewer turns and therefore producing a lower-output, brighter sound from a single-coil or humbucker. Coil splits require a 4-conductor humbucker; coil taps require a pickup specifically wound with a tap wire.
Does parallel wiring of a humbucker retain the hum-cancelling property?
Yes. The hum-cancelling property of a humbucker depends on the two coils having opposite magnetic polarity and opposite winding direction, which means the induced hum signals are out of phase and cancel in both series and parallel configurations. The hum cancellation is therefore retained in parallel mode, unlike a coil split which leaves only one coil active.
Which conductor colour is the hot output on a humbucker?
Colour codes differ significantly between manufacturers. For example, on some common brands: one uses red as the series link and white as the hot; another uses the opposite. Never assume a colour code from one manufacturer applies to another. Always use the manufacturer's specific wiring diagram for the exact pickup model being installed.
Can I add coil splitting to a guitar that only has 2-conductor humbuckers?
No. Coil splitting requires access to the junction between the two coils — the internal series link — which is only possible with 4-conductor humbuckers. A standard 2-conductor humbucker has this link made internally and inaccessibly inside the pickup cover. You would need to replace the pickup with a 4-conductor version.
What is a super switch and how is it used in advanced wiring?
A super switch (also called a 4-pole 5-way switch) has four wafers (poles) rather than the two-pole standard 5-way switch used in a Stratocaster-style guitar. The two additional poles allow additional switching actions — connecting coils in series or parallel, activating or bypassing tone controls, or switching between pickups — to be tied to the same lever positions as the pickup selection, without needing additional switches.
