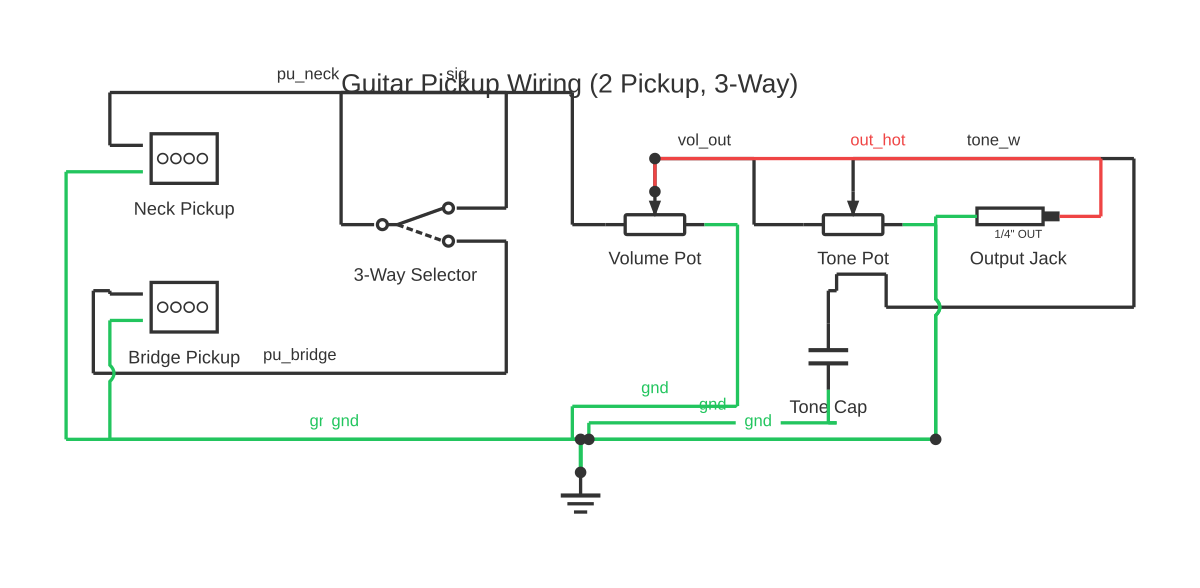

Guitar Pickup Wiring Diagram: How to Wire Single-Coil and Humbucker Pickups
This is a free printable guitar pickup wiring diagram: download the diagram as SVG or open it and print to paper or PDF.
A complete guide to guitar pickup wiring diagrams — covering single-coil and humbucker pickups, volume and tone pots, capacitors, and selector switches.
Guitar pickup wiring translates the magnetic vibration of steel strings into an electrical signal that feeds the amplifier. Every electric guitar wiring diagram consists of the same core elements: one or more pickups, a pickup selector switch, volume potentiometer(s), tone potentiometer(s) with capacitor(s), output jack, and the ground bus that connects all conductive components to a common reference.
A single-coil pickup has two leads: a hot (signal) conductor and a ground. It generates the string signal but is susceptible to electromagnetic interference (50 Hz or 60 Hz hum from mains wiring) because the coil acts as an antenna. A humbucker consists of two coils wound in opposite directions and wired in series with opposite magnetic polarity — this arrangement (humbucking) cancels the common-mode interference while adding the string signals, producing a thicker, quieter output.
Volume potentiometers (pots) are variable voltage dividers wired with one outer lug to the pickup hot signal, the wiper to the output, and the other outer lug to ground. As the pot is turned down, more of the signal is shunted to ground. Standard values are 250 kΩ for single-coil pickups and 500 kΩ for humbuckers — a lower pot resistance loads the pickup more, rolling off high frequencies and giving a warmer tone.
Tone potentiometers work in conjunction with a capacitor: the cap and the pot form a low-pass filter. As the tone pot is reduced, the capacitor is placed increasingly in parallel with the signal path, attenuating higher frequencies. Common capacitor values range from 0.022 µF to 0.047 µF — larger values roll off more high frequency at the same pot position.
The output jack (typically a mono 6.35 mm / quarter-inch TS jack) connects the tip to the signal output and the sleeve to the ground bus. The entire ground bus — including pickup ground wires, pot casings, output jack sleeve, and guitar hardware — must be soldered together to prevent hum from floating ground points.
How to wire guitar pickup wiring diagram
- Gather the wiring diagram and verify pickup conductor codes Before soldering, identify the hot and ground conductors on each pickup. Manufacturer-specific colour codes vary significantly — a conductor that is black on one brand's humbucker may be hot, while on another brand's it is ground. Obtain the wiring diagram for your specific pickup brand and model. Test with a multimeter: the pickup reading between hot and ground should show a DC resistance typically between 5 kΩ and 20 kΩ depending on type.
- Install the components in the guitar body or pickguard Mount the pots, switch, and output jack in their respective holes before wiring. A common assembly error is soldering the wiring harness before installing it, then finding the pots cannot fit through the control holes. Work from the pickguard or control cavity with components loosely mounted.
- Create the ground bus The ground bus connects: the ground lug of each pickup, the casing of each pot (soldered to the back of the pot), the sleeve lug of the output jack, and any earth wire from the bridge or tremolo spring claw. Solder all these together in a continuous bus or star arrangement. A shared cold-iron soldering tip applied to the pot casing for 2–3 seconds pre-tins the back of the pot for easy soldering.
- Wire the volume potentiometer Connect the pickup hot signal to lug 1 of the volume pot. Connect lug 2 (the wiper) to the output — either to the next pot in the chain, the switch, or the output jack tip. Connect lug 3 to the ground bus. Optionally add a treble bleed capacitor (typically 0.001 µF in series with 150 kΩ) between lugs 1 and 2 to prevent high-frequency loss when the volume is turned down.
- Wire the tone potentiometer and capacitor Connect lug 1 of the tone pot to the signal (usually the same point as the volume wiper). Connect the tone capacitor between lug 2 (the tone pot wiper) and the ground bus. Connect lug 3 to the ground bus directly. As the pot is reduced, the wiper moves toward lug 3, placing the capacitor progressively in parallel with the signal path.
- Wire the pickup selector switch Connect each pickup hot to its designated input lug on the selector switch. Connect the output lug of the switch to the volume pot input. Confirm switch operation by measuring continuity between each input lug and the output lug in the corresponding switch position, before soldering everything closed.
- Final check and test before string installation Before installing strings, connect the guitar to an amplifier and tap each pickup pole piece lightly with a metal object while operating the selector switch. You should hear a clear thump through the amp for each pickup position. Adjust the volume and tone pots through their range and confirm smooth, noise-free operation. Check for hum — if present, identify and re-solder any cold or missing ground connections.
Specifications
| Volume pot value (single-coil) | 250 kΩ audio taper |
|---|---|
| Volume pot value (humbucker) | 500 kΩ audio taper |
| Tone capacitor value (typical range) | 0.022 µF to 0.047 µF |
| Single-coil DC resistance (typical) | 5 kΩ – 8 kΩ |
| Humbucker DC resistance (typical) | 7 kΩ – 18 kΩ |
| Output jack standard | 6.35 mm (1/4-inch) mono TS |
| Solder tip temperature (recommended) | 350–380°C |
| Signal wire gauge (typical) | 22–24 AWG stranded |
Safety warnings
- Guitar electronics operate at signal voltages well below hazardous levels. However, electric shock risk exists if the guitar is connected to a mains-powered amplifier and there is a fault in the amplifier's earthing. Never touch the output jack tip or guitar strings simultaneously with another earthed metallic object if the amplifier's safety earth is suspect.
- Use appropriate personal protective equipment when soldering: ventilate the workspace to avoid inhaling flux fumes, wear eye protection, and keep soldering iron tips away from the guitar body finish — a dropped iron will burn lacquer and wood irreparably.
- When using a multimeter to test pickup DC resistance, ensure the guitar is disconnected from the amplifier. Applying external voltage to pickup coils can damage them.
- Do not overtighten pot nuts — the threaded bushings on most pots are aluminium or pot metal and will crack, requiring pot replacement. Tighten finger-tight plus a quarter turn only.
Tools needed
- Temperature-controlled soldering station (350–380°C tip temperature)
- Rosin-core solder (60/40 tin-lead or lead-free equivalent)
- Digital multimeter (continuity, resistance functions)
- Wire strippers (suitable for 22–24 AWG)
- Small needle-nose pliers
- Flush-cut wire cutters
- Third-hand soldering clamp or helping hands
- Heat gun or lighter for heat-shrink tubing
Common mistakes
- Using the wrong colour code for pickup conductors — a conductor colour that means 'hot' on one manufacturer's pickup means 'ground' on another's. Always confirm the pickup manufacturer's specific wiring guide before soldering.
- Failing to solder the ground to the pot casing (back of the pot), only using the terminal lug — the casing must be soldered to the ground bus to prevent the metal pot body from acting as an antenna and picking up hum.
- Cold solder joints, visible as dull or grainy rather than bright and shiny — these create intermittent signal loss and crackling noise. Apply sufficient heat to the work (not the solder) to allow the solder to flow properly.
- Wiring the tone capacitor between the pot wiper and the signal (instead of wiper to ground), which creates a high-pass filter (removes bass) rather than the intended low-pass filter (removes treble as pot is reduced).
- Forgetting to thread the output jack wire through the strap nut before soldering — the nut cannot be threaded on after the jack is wired, requiring desoldering.
Troubleshooting
- No signal from the guitar
- Cause: Open connection at output jack (cold solder, broken lug), broken signal wire, or open pickup Fix: Use a multimeter in continuity mode. With the guitar unplugged from the amp, test continuity from the output jack tip lug through the circuit to each pickup hot conductor. An open reading locates the break. Resolder or replace the failed connection.
- Constant loud hum regardless of selector switch position
- Cause: Missing or broken ground bus connection — a pot casing, bridge ground wire, or output jack sleeve not connected to the common ground Fix: Test continuity between the output jack sleeve and every pot casing, pickup ground wire, and bridge ground wire (the wire from the bridge or tremolo spring claw running through the body to the ground bus). Re-solder any open connection.
- Volume drops and tone becomes dull when turning the volume pot down
- Cause: Missing treble bleed network; the pickup coil inductance interacts with the pot and cable capacitance to form a low-pass filter whose cutoff falls as pot resistance increases Fix: Add a treble bleed network between volume pot lugs 1 and 2: a small capacitor (0.001 µF) in series with a resistor (100–150 kΩ). This maintains high-frequency content as volume decreases. Values should be adjusted by ear to the player's preference.
Frequently asked questions
What is the difference between a humbucker and a single-coil pickup in wiring terms?
A single-coil pickup has two wires (hot and ground). A standard 2-conductor humbucker also has two wires but contains two internally series-connected coils. A 4-conductor humbucker exposes all four coil ends, enabling coil splitting, series/parallel switching, and phase reversal — all achievable by rewiring the coil ends to switches or push-pull pots.
Why do humbuckers use 500 kΩ pots while single-coils use 250 kΩ?
A lower-resistance pot loads the pickup's output coil more heavily, attenuating high frequencies and producing a warmer sound. Single-coil pickups are naturally bright, so 250 kΩ provides a useful tonal balance. Humbuckers are naturally warmer and fuller, so 500 kΩ preserves their extended high-frequency response.
What does coil splitting do and how is it wired?
Coil splitting disconnects one coil of a 4-conductor humbucker from the circuit, leaving only one coil active — producing a single-coil tone and greater susceptibility to hum. It is wired by connecting the junction between the two coils to ground via a switch (push-pull pot, mini toggle, or blade switch). Requires a 4-conductor humbucker.
How do I wire a 5-way blade switch for a Stratocaster-style guitar?
The 5-way blade switch has five positions selecting: bridge alone, bridge and middle in parallel, middle alone, middle and neck in parallel, and neck alone. Each pickup hot connects to its corresponding lug on the switch wafer. The switch output (wiper) connects to the volume pot input. Ground returns from each pickup connect to the ground bus.
What causes a guitar to hum, and how do I fix it in the wiring?
Hum in guitar wiring usually has two causes: single-coil pickup interference (inherent to the design, managed by switching to humbuckers or stacked noiseless singles), or a floating ground connection (a pot casing, pickup ground, or jack sleeve not soldered to the common ground bus). Check every ground connection with a multimeter continuity test before assembly.
