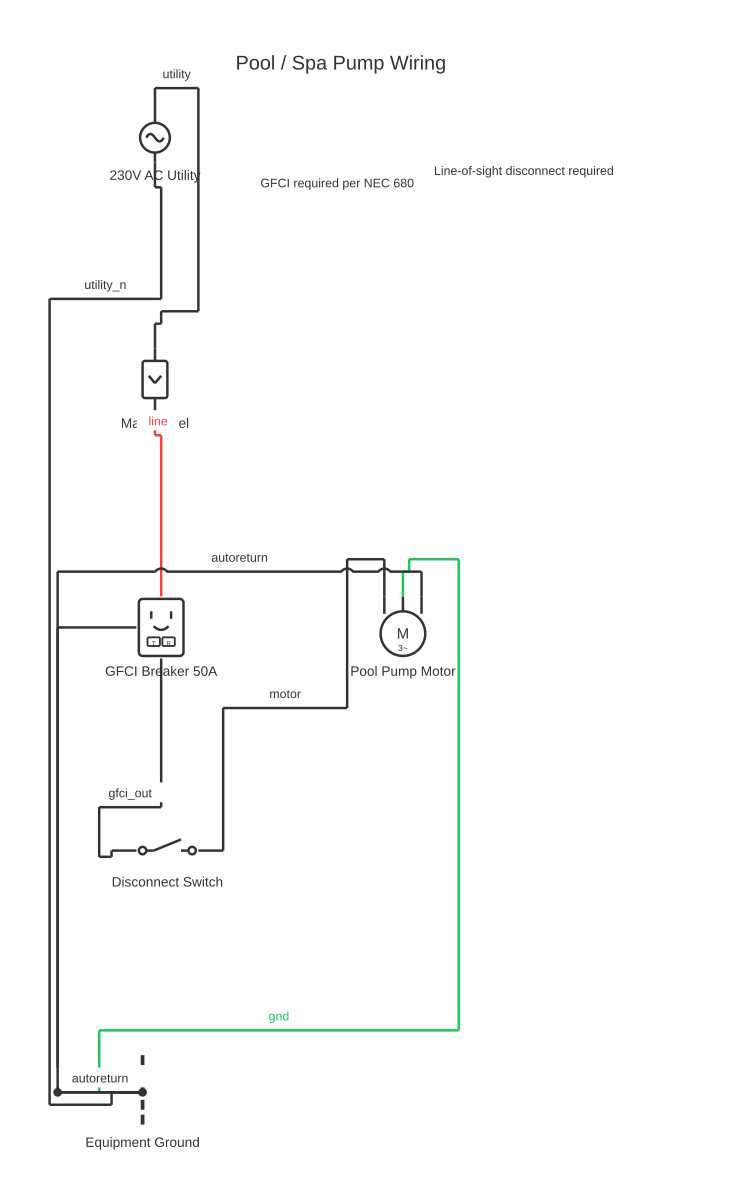

A pool pump wiring diagram shows the 240 V circuit from the dedicated GFCI breaker, through the timer or controller, to the pump motor terminals, plus the separate equipotential bonding grid required by NEC Article 680.

Pool pump wiring involves two distinct and equally important systems: the power wiring that operates the pump motor, and the equipotential bonding system that protects swimmers from electric shock in and around the pool water.

The power circuit for a standard residential pool pump in North America is a 240 V, 60 Hz, single-phase circuit. The circuit originates at a dedicated circuit breaker in the main distribution panel. NEC 680.21 requires that this breaker be a GFCI (ground-fault circuit interrupter) type for single-phase circuits up to 240 V serving pool pumps — replacing the older requirement for a 30 mA GFCI. Alternatively, for two-speed or variable-speed pump motors where the manufacturer specifies no GFCI, a listed equipment leakage circuit interrupter (ELCI) may be used, subject to the exact code edition and AHJ interpretation.

From the GFCI breaker, the circuit runs to a listed pool timer or pump controller (which allows automatic operation on a schedule), and from the timer to the pump motor. The circuit consists of two hot conductors (typically black and red or black and white with re-identification), a neutral where required, and a green or bare equipment grounding conductor. All conduit, junction boxes, and wiring methods must be listed for wet locations.

The pump motor's terminal designation follows single-phase motor conventions — consult the motor's nameplate diagram for the specific terminal assignment, as this varies by motor type and manufacturer.

The bonding system is entirely separate from the power circuit grounding. NEC 680.26 requires that all metal parts associated with the pool — the pump motor casing, the metal parts of the pump, all metal water fittings, the pool reinforcing steel (if accessible), metal ladders, handrails, diving board stands, and the metal parts of lights — be connected by a solid copper conductor not smaller than 8 AWG to create an equipotential plane. This conductor is bonded (not necessarily grounded) — its purpose is to bring all metal parts to the same electrical potential, eliminating any voltage gradient in the water that could cause electric shock. In IEC-region countries, the equivalent requirement comes from IEC 60364-7-702.

In many jurisdictions outside North America, pool pump circuits are wired at 230 V single-phase (50 Hz), and RCD (residual current device) protection to 30 mA trip threshold is required instead of GFCI.

How to wire pool pump wiring diagram

Confirm the pump motor voltage and current rating Read the pump motor nameplate before any wiring. Confirm the operating voltage (115 V, 208–230 V, or dual-voltage such as 115/230 V), the full-load amperes (FLA), and the service factor current (SFA). The service factor current is the maximum continuous current the motor can handle — this drives the cable size and breaker rating selection.
Size the circuit breaker (with GFCI protection) and supply cable Size the circuit breaker at not more than 125% of the motor FLA (NEC Article 430) or per local code. Select a GFCI-type circuit breaker (or ELCI per the specific code edition) rated for the pump's voltage. Size the supply cable (in conduit) for the design current, accounting for conduit fill, ambient temperature, and burial depth. For a typical 1–1.5 HP pool pump at 230 V, a 20 A GFCI breaker and 12 AWG THWN-2 conductors in conduit is typical — always calculate from actual nameplate data.
Run conduit from the panel to the timer and from the timer to the pump Install listed conduit (Schedule 80 PVC underground, or appropriate type for above-grade runs) from the main panel to the timer/controller location, and from the timer to the pump motor junction box. Bury underground conduit at the depth required by NEC Table 300.5. All conduit must enter enclosures with listed wet-location fittings. Maintain the required separation between pool pump wiring and the pool shell — check NEC 680.21 for the minimum distances from the pool edge.
Wire the timer or pump controller Connect the supply conductors (two hots, equipment ground, and neutral if required) to the line side of the timer. Connect the load conductors from the timer's load terminals to the pump motor junction box. Follow the timer manufacturer's wiring diagram. Many pool timers accept the equipment ground at a separate terminal; the ground must be continuous from the GFCI breaker through the timer to the pump motor frame.
Wire the pump motor terminals Open the pump motor terminal box and connect the supply conductors to the motor terminals per the motor nameplate wiring diagram for the supply voltage. For a 230 V connection on a dual-voltage motor, follow the nameplate diagram exactly — incorrect terminal connections will cause motor damage. Connect the equipment ground (green or bare) to the motor frame ground terminal. Tighten all terminals to the motor manufacturer's torque specification.
Install the equipotential bonding system Run a solid bare or insulated copper conductor not smaller than 8 AWG from the pump motor casing bonding lug to all required bonding points: metal pool fittings (inlets, outlets, skimmer), the pool reinforcing steel (rebar grid, at an accessible tie point), metal ladders and handrails, the light niche bonding terminal, and the dive board structure if fitted. All connections must be made with listed bonding clamps or lugs rated for direct burial and wet locations. The bonding conductor must not be used as a grounding conductor.
Test and commission Test the GFCI breaker operation using the test button before energising. After energising, test ground fault operation using a GFCI tester. Verify the pump motor runs in the correct direction (some three-phase pumps require phase rotation checks, but single-phase pumps are direction-fixed). Test the timer operation through a full cycle. Verify the bonding resistance between all bonded parts is less than 0.5 ohms using a low-resistance ohmmeter.

Specifications

Pool pump circuit voltage (North America)	240 V AC, single-phase, 60 Hz (dedicated circuit from main panel)
GFCI protection requirement (NEC 680.21)	GFCI-type circuit breaker required for single-phase 120 V, 208–240 V pool pump circuits; ELCI permitted in specific cases per applicable code edition
GFCI trip level	4–6 mA ground fault current (UL 943 Class A, for personnel protection)
Equipotential bonding conductor minimum size (NEC 680.26)	8 AWG (8.37 mm²) solid copper — insulated or bare
Minimum separation — pool pump from pool water (NEC 680.21(A))	5 feet (1.5 m) from pool water; verify exact requirement with AHJ as NEC editions differ
RCD trip level (IEC 60364-7-702, IEC/BS 7671 jurisdictions)	30 mA (high-sensitivity RCD) required for pool pump and all circuits in pool zones; 10 mA for some zones
Minimum burial depth for underground wiring (NEC Table 300.5, 240 V in conduit)	18 inches (450 mm) for rigid metal conduit; 24 inches (600 mm) for Schedule 80 PVC in direct burial not listed; verify per NEC Table 300.5 for exact wiring method

Safety warnings

All pool pump electrical installations must be designed, installed, and inspected by a licensed electrician in accordance with the applicable wiring regulations: NEC Article 680 and NFPA 70 (USA), BS 7671 Section 702 (UK), AS/NZS 3000 and AS 3004 (Australia), or IEC 60364-7-702 (international). Swimming pool electrical installations carry lethal electric shock risks, including electric shock drowning (ESD). This content is for educational and reference purposes only.
Electric shock drowning (ESD) is caused by AC voltage in the water, typically from a leaking pump, light, or other submerged/adjacent electrical equipment. A GFCI breaker and a correctly installed bonding system are the primary defences against ESD. Never defeat or bypass GFCI protection on a pool pump circuit. Test the GFCI breaker using its test button monthly.
The equipotential bonding system is not optional — it is a code requirement and a critical safety system. An unbonded pool with a ground fault in the pump or light can develop a voltage gradient in the water that can incapacitate or kill a swimmer. Never omit or partially install the bonding system.
All electrical equipment installed within the distances specified by NEC 680.22 (or equivalent local code) from the pool water's edge must be listed for pool and spa applications and must comply with the applicable separation distances. Standard domestic electrical equipment is not suitable for these zones.
Do not work on pool pump wiring, bonding connections, or any submerged or near-pool electrical equipment while the pool is occupied. Always isolate at the GFCI breaker and verify zero voltage with a calibrated tester before working on any pool electrical component.

Tools needed

Calibrated voltage tester and digital multimeter
Low-resistance ohmmeter (for bonding continuity verification)
GFCI outlet tester (for testing GFCI operation after installation)
Conduit bender (for rigid PVC or metal conduit)
Wire strippers and cable knife
Torque screwdriver (for terminal connections)
Clamp-on ammeter (for motor current verification after commissioning)
Lockout/tagout (LOTO) equipment

Common mistakes

Using a standard (non-GFCI) circuit breaker for the pool pump circuit — NEC 680.21 requires GFCI protection for single-phase pool pump circuits. A standard breaker does not provide the mA-level ground fault protection needed to prevent electric shock drowning.
Confusing the equipment grounding conductor with the equipotential bonding conductor — these are separate conductors with different sizes, materials, and functions. The 8 AWG bonding conductor connects metal pool parts together; the equipment grounding conductor (sized per NEC Table 250.122) connects to the panel ground bar.
Using stranded wire instead of solid wire for the bonding conductor — NEC 680.26 requires a solid copper bonding conductor. Stranded wire, while acceptable for power circuits, is not permitted for pool bonding under NEC 680.
Installing the timer or junction box within the minimum separation distance from the pool water — NEC 680.22 specifies minimum separation distances for various electrical equipment from pool water edges. Always verify the exact distance requirement for each type of equipment.
Not bonding the pool reinforcing steel — pool rebar is required to be bonded under NEC 680.26 where accessible. Omitting this allows the concrete and water above the rebar to develop a potential difference from the bonded surface metal, creating a current path through the water and swimmers.
Running pool pump circuit wiring through the same conduit as other circuits — the dedicated pool pump circuit must be in its own conduit, not combined with other circuit conductors.

Troubleshooting

GFCI circuit breaker trips immediately when the pool pump starts: Cause: Ground fault in the pump motor winding or cable insulation, or a leakage current in the pump motor that exceeds the GFCI trip threshold (normal for some older pump motors with degraded insulation) Fix: Isolate and lock out. Disconnect the pump motor from its supply leads and perform an insulation resistance test (megohmmeter) from each conductor to earth. Values below 1 MΩ indicate degraded insulation. Test the supply cable separately from the motor. If the motor insulation is degraded, the motor requires replacement — do not defeat the GFCI protection.
Pool pump motor runs but at reduced speed or trips on overload: Cause: Motor running on incorrect voltage (e.g., a dual-voltage motor wired for 115 V operating on a 230 V supply), clogged pump impeller causing mechanical overload, or supply voltage too low Fix: Isolate and lock out. Check the motor terminal wiring against the nameplate diagram for the supply voltage. Measure the supply voltage at the motor terminals under load. Inspect the pump strainer basket and impeller for blockage. Measure motor running current on all supply conductors with a clamp meter and compare against FLA on the nameplate.
High resistance measured between bonded pool components: Cause: Corroded or loose bonding clamp connection, bonding conductor with a break or corrosion, or bonding clamp not making metal-to-metal contact due to paint or scale Fix: Using a low-resistance ohmmeter (milliohm meter), measure between each bonded component and the pump bonding lug. Values above 0.5 ohms indicate a problem. Trace the bonding conductor to the high-resistance connection. Remove and clean the bonding clamp interface to bare metal. Replace corroded clamps or conductors. Re-test after repair.

Frequently asked questions

Why does a pool pump circuit require a GFCI circuit breaker?

GFCI protection on pool pump circuits addresses the risk of electric shock in and around water. A fault current as low as 5–10 mA can be lethal in water — far below the level that would trip a standard circuit breaker. A GFCI breaker trips on ground faults above approximately 4–6 mA, providing protection against current leakage from a pump with failed insulation or a damaged cord. NEC 680.21 requires GFCI protection for pool pump circuits for this reason.

What is the purpose of pool equipotential bonding and how does it differ from grounding?

Grounding connects equipment to earth to provide a fault current path for overcurrent protection. Equipotential bonding connects all metal parts in and around the pool to each other — creating an equipotential plane where no voltage difference exists between any accessible metal surface or the water. This eliminates the voltage gradient that would otherwise drive current through a swimmer's body. Bonding and grounding are separate systems serving different safety functions.

What conductor size is required for pool bonding (NEC 680.26)?

NEC 680.26(B)(1) requires an insulated or bare solid copper conductor not smaller than 8 AWG (8.37 mm²) to bond all metal parts of the pool structure. This conductor must connect to the pool reinforcing steel, all metal water-containing equipment, pump motor housing, metal handrails, ladders, diving board structures, and underwater light niches. The bonding conductor is not required to be connected to the equipment grounding conductor at the pump, though it may be.

Can I run the pool pump wiring in PVC conduit underground?

Yes — Schedule 80 PVC rigid non-metallic conduit (RNC) is commonly used for underground pool pump wiring. NEC 680.21(A) requires all wiring in wet locations. Rigid metal conduit (RMC) or intermediate metal conduit (IMC) may also be used. Flexible metal conduit has limitations near pools. The conduit must be buried at the depth required by NEC 300.5 for the voltage and wiring method, and must enter all junction boxes with listed wet-location fittings.

Does the pool pump need its own dedicated circuit?

Yes. In most jurisdictions, including NEC (USA), BS 7671 (UK), and AS/NZS 3000 (Australia), a pool pump is required to be on a dedicated circuit — that is, a circuit serving no other outlets or loads. This ensures the circuit breaker is sized for the pump's starting and running current, the cable size is appropriate, and the GFCI/RCD protection applies only to the pump circuit.
