Power Window Wiring Diagram

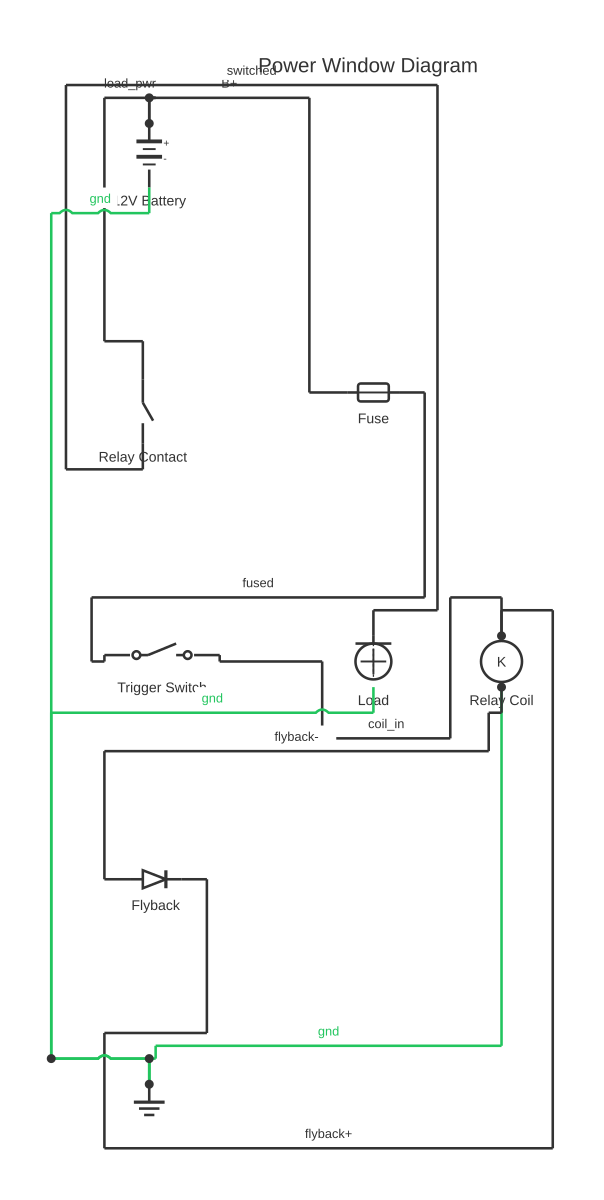

Power Window Wiring Diagram — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable power window diagram: download the diagram as SVG or open it and print to paper or PDF.

Understand how a power window motor, door switch, master switch, and relay or H-bridge circuit interact before tracing a fault or replacing a regulator motor assembly.

Power window systems use a reversible DC motor to drive a mechanical regulator (scissor-type or cable-type) that raises and lowers the glass. The motor's direction of rotation is controlled by reversing the polarity of its supply and return connections — when the motor terminals receive power in one polarity, the window rises; when polarity is reversed, the window lowers. This requires a switching arrangement that can alternate which terminal receives positive voltage and which connects to earth, most commonly implemented via a double-pole double-throw (DPDT) switch arrangement or, on modern vehicles, a solid-state H-bridge driver within a window control module.

On older and simpler systems, the door switch acts directly as the DPDT switch, routing battery voltage to one motor terminal and grounding the other, then reversing both connections when the switch is operated in the opposite direction. A single series resistor or thermal circuit breaker protects against stall current when the window reaches the end of its travel. Each door has its own switch, plus the driver's master switch panel includes individual switches for all windows and a lock-out switch that disables passenger door switches.

On modern vehicles, the window motor is driven by a Body Control Module (BCM) or dedicated window control module receiving switch inputs as low-current signals. The BCM then drives the motor via relays or MOSFET H-bridge outputs. Many systems incorporate auto-up and auto-down functions with Hall-effect or encoder feedback from the motor to detect glass position and detect an obstruction (anti-trap / anti-pinch) during the auto-up cycle, reversing the motor if unexpected resistance is detected. This anti-trap function is a legal requirement in many jurisdictions for sunroofs and rear windows.

Wiring fault diagnosis must account for whether the vehicle uses direct-switch or module-driven architecture. On direct-switch systems, you trace voltage and ground paths directly to the motor. On module-driven systems, you must first confirm the switch signals reach the module before suspecting the motor supply circuit.

The Toyota Corolla power window wiring circuit is a commonly referenced example because Corolla has been produced in high volumes globally across many generations. While exact pinouts and relay locations vary by model year and body variant, the general architecture is consistent: a master switch in the driver's door controls individual window switches and motors via a window regulator relay, with each door motor receiving a reversing polarity signal to raise or lower the glass. When a Corolla window stops working, consulting the generation-specific wiring diagram helps identify whether the fault is in the relay, the switch, the motor, or the wiring harness. You can sketch or annotate a power window circuit layout free at Circuit Diagram Maker.

How to wire power window diagram

Determine the system architecture Identify whether the vehicle uses direct-switch control or module-driven control. On direct-switch systems (common before approximately 2005), the window switch carries full motor current. On module-driven systems, the switch carries only a low-current signal. Check your vehicle's wiring diagram; do not assume based on vehicle age alone.
Check the power window fuse and relay Locate the power window fuse and relay in the fuse/relay panel. Verify fuse continuity with a multimeter. Test the relay coil resistance (typically 70–100 Ω) and contact operation. A relay that has failed open will disable all windows simultaneously.
Measure supply voltage at the switch panel With the ignition on, probe the battery positive supply terminal at the master switch panel. Expect 12–14 V. No voltage indicates a broken supply wire or blown fuse upstream. Low voltage (below 10.5 V) indicates a poor connection or undersized wiring.
Test the switch operation On direct-switch systems, operate the switch and use a multimeter to verify polarity reversal at the motor supply and return terminals. Terminal A should be positive and B ground for up; A should be ground and B positive for down. On module-driven systems, measure the signal pin at the module connector for the expected control voltage when the switch is operated.
Test the motor directly Disconnect the motor connector. Apply 12 V directly to terminal A and ground terminal B — the motor should run in one direction. Reverse polarity — motor should run in the opposite direction. If the motor fails on the bench, replace the motor/regulator assembly. If it runs correctly, the fault is in the supply wiring, switch, or control module.
Inspect regulator mechanism With the door card removed and the glass supported, inspect the regulator for broken cables, sheared pivot pins, or corrosion. A cable-type regulator with a broken or jumped cable will jam the motor. Lubricate nylon guide blocks and pivot points before reassembly.

Specifications

Motor operating voltage	12 V DC (nominal)
Normal operating current draw	5–15 A depending on glass weight and regulator condition
Stall current (end of travel)	20–30 A (limited by thermal circuit breaker)
Thermal circuit breaker rating	20–30 A self-resetting
Switch type (direct-switch systems)	DPDT, rated for full motor current
Motor direction control	Polarity reversal of motor supply and return connections
Anti-pinch obstruction detection	Current monitoring or encoder pulse-rate monitoring (module-specific)
Wiring conductor cross-section	2.5–4.0 mm² for motor supply circuits

Safety warnings

Disconnect the vehicle battery negative terminal before removing door panels or working on window motor wiring. On vehicles with airbags in the door, disconnecting the battery is mandatory — door airbag modules can deploy if the circuit is accidentally energised.
Support the window glass with tape or a suitable prop before disconnecting the regulator from the motor — unsupported glass will drop inside the door when the regulator is released, potentially shattering or causing injury.
Anti-pinch systems must be re-calibrated after motor or regulator replacement. A miscalibrated anti-pinch system may either fail to detect an obstruction (safety risk) or falsely reverse on a clear window (nuisance fault). Follow the manufacturer's calibration procedure.
Do not apply direct battery voltage to a motor that remains mechanically connected to a glass that is at the top of its travel — stall current during the limit-of-travel condition can burn out the motor winding within seconds.
This diagram is a general reference. Always verify against the vehicle manufacturer's wiring diagram before making repairs, particularly on modern vehicles with BCM-controlled window systems.

Tools needed

Digital multimeter
Automotive wiring diagram (vehicle-specific)
Trim removal tools and door card removal kit
Trim clips and weatherstrip adhesive (for refitting)
Glass support tape
Torque wrench
Back-probe pins or piercing probes

Common mistakes

Replacing the motor before testing the regulator mechanism — a seized regulator stalls the motor and exhibits identical symptoms to a failed motor, but the root cause is mechanical.
On module-driven vehicles, applying voltage directly to the motor connector from a direct battery supply to test it, then interpreting incorrect direction as a wiring fault — direction on module systems depends on which output the module energises, not which terminal the technician probes.
Omitting re-calibration of the anti-pinch system after motor replacement, leaving the system set to the previous motor's current signature and potentially allowing obstruction without reversal.
Reconnecting the battery before refitting the door card, then accidentally triggering a window switch and trapping wiring or trim in the regulator mechanism.
Using tape alone to support a heavy door glass instead of a proper prop — tape loses adhesion to cold, oily glass and the glass drops unexpectedly.

Troubleshooting

Window goes down but not up: Cause: Open circuit in the up-direction switch contact or motor brush worn on one polarity Fix: On direct-switch systems, probe the motor supply terminal when switch is operated in the up direction — expect full battery voltage. If voltage present but no movement, the motor's up-direction brush or winding is failed. If no voltage, trace the up circuit through the switch.
Window operates from master switch but not door switch: Cause: Faulty door switch or broken supply wire to the door switch Fix: Test continuity of the door switch through both positions. Test for battery supply voltage at the door switch input terminal. Replace the switch if it fails continuity test; repair the supply wire if voltage is absent at the switch.
Auto-up function reverses unexpectedly on a clear window: Cause: Anti-pinch module miscalibrated, or regulator binding creating elevated motor current Fix: Inspect regulator mechanism for binding points and lubricate. If mechanical condition is good, perform the anti-pinch re-calibration procedure per the vehicle service manual. A miscalibrated module interprets normal end-of-travel resistance as an obstruction.

Frequently asked questions

Why does one window work from the master switch but not its own door switch?

On direct-switch systems, the most common cause is a faulty door switch. The master switch provides the same motor supply but via a parallel circuit path that bypasses the faulty door switch. Test continuity of the door switch in both up and down positions — an open-circuit in one direction is a typical single-contact failure mode.

Why does a power window motor hum but not move?

A humming motor is receiving power but not rotating — the motor is stalled. The most common cause is a seized or binding regulator mechanism, not a failed motor. Disconnect the regulator from the glass and operate the motor: if it runs freely without the regulator load, the regulator is binding, corroded, or broken. Lubricating or replacing the regulator resolves the fault.

What is the purpose of the thermal circuit breaker in a power window circuit?

Power window motors draw 5–15 A during normal operation and up to 25–30 A when the glass is stalled at the end of travel. Rather than blowing a fuse, most systems use a self-resetting thermal circuit breaker that trips under sustained stall current and resets after a brief cooling period, protecting the motor winding from burnout.

How does anti-pinch protection work?

Anti-pinch (anti-trap) systems monitor motor current or encoder pulses during auto-up operation. A sudden increase in current draw (indicating glass resistance from an obstruction) or a drop in encoder pulse rate causes the control module to reverse the motor and lower the window. This function is calibrated at the module — re-calibration is required after motor or regulator replacement.

Why do all four windows stop working simultaneously?

When all windows fail simultaneously, the fault is almost always in the common circuit: the main power window fuse, the power window relay, or the battery positive or ground supply common to the entire system. A fault in one individual door switch or motor affects only that window.

How does the power window wiring diagram for a Toyota Corolla work?

In a typical Toyota Corolla power window circuit, battery power feeds a window relay (or regulator module) that supplies the master and individual door switches. Each window motor has two terminals; the switch applies positive voltage to one terminal and earths the other to raise or lower the glass, reversing polarity to change direction. The master door switch allows the driver to override any passenger switch. When troubleshooting, check fuse condition first, then test for voltage at the motor connector with the switch activated — no voltage points to the switch or relay, while voltage with no movement indicates a faulty motor.
