5-Pin Power Window Switch Wiring Diagram

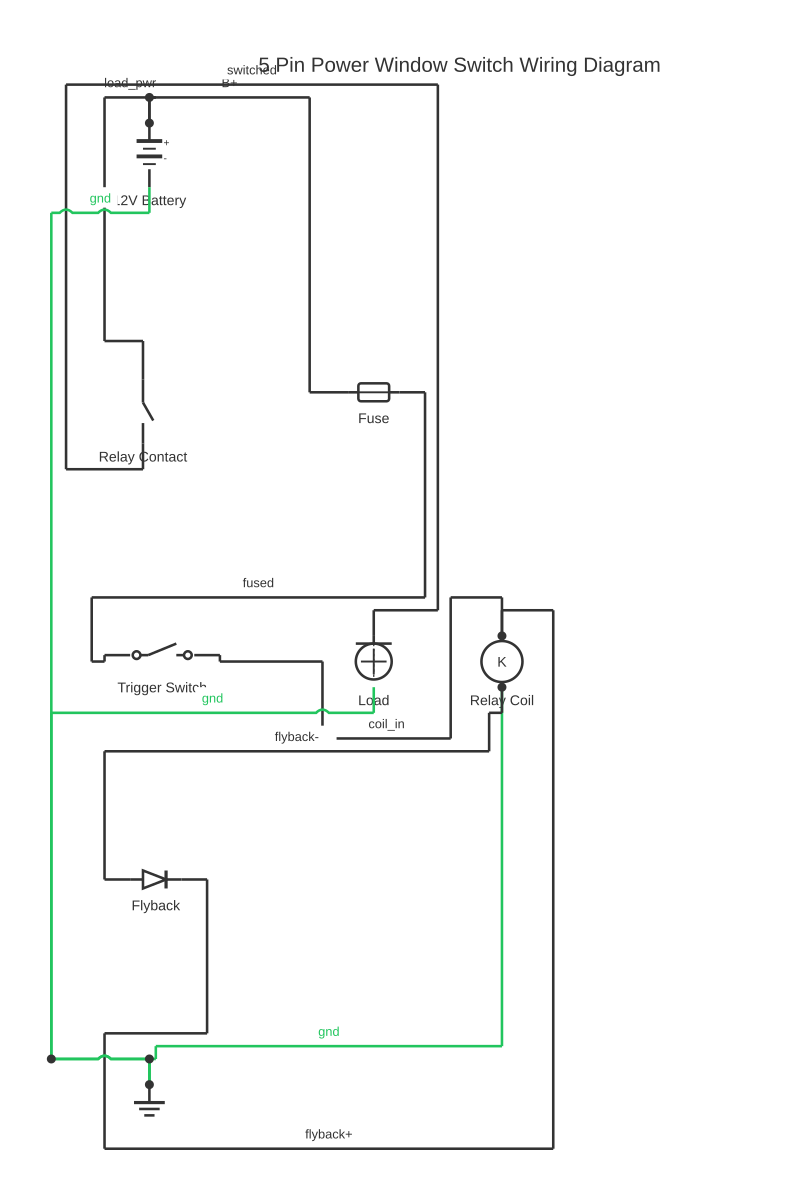

This is a free printable 5 pin power window switch wiring diagram: download the diagram as SVG or open it and print to paper or PDF.
A 5-pin power window switch controls a reversible DC motor by routing battery positive to one motor terminal and grounding the other — swapping the polarity raises or lowers the window — making correct pin identification essential before any wiring work.
Power window switches are DPDT (Double Pole Double Throw) switches that reverse polarity to the window motor. In a 5-pin arrangement, the five functions are typically:
- Pin 1 (Power / B+): constant 12 V supply from the fuse box, present whenever the ignition is on (or, in some vehicles, whenever the door is unlocked or a timer has not yet cut power). - Pin 2 (Motor terminal A / UP): connects to one terminal of the window motor. When the window switch is pressed to raise the glass, this pin receives 12 V positive and the motor runs in the 'up' direction. - Pin 3 (Ground / GND): chassis ground or negative return, always connected. - Pin 4 (Motor terminal B / DOWN): the other motor terminal. When the switch is pressed to lower the glass, this pin receives 12 V and pin 2 is grounded — reversing motor direction. - Pin 5 (Signal or second supply): depending on the vehicle design, this may be a second supply for an illuminated switch, a lock-out signal from the master switch (driver's door panel), or a dedicated ground for the switch illumination circuit.
Note: exact pin assignments vary by manufacturer and vehicle model year. The above represents a common 5-pin layout, but a specific vehicle's wiring diagram must always be consulted — do not assume pin numbering is universal.
The switch uses internal contacts to create two states: - UP: Pin 1 (supply) → Pin 2 (motor A) → motor → Pin 4 (motor B) → Pin 3 (ground) - DOWN: Pin 1 (supply) → Pin 4 (motor B) → motor → Pin 2 (motor A) → Pin 3 (ground)
The window motor itself is a permanent-magnet DC motor. Internal limit switches or current sensing in the motor assembly stop travel at the fully open and fully closed positions to prevent mechanical damage.
Master switch units on the driver's door often consolidate all four window circuits and add a window lockout button that disconnects supply to the passenger door switches.
How to wire 5 pin power window switch wiring diagram
- Disconnect the vehicle battery negative terminal Before removing any door panel or disconnecting electrical connectors, disconnect the battery negative to prevent shorts, inadvertent switch activation, and airbag deployment risks.
- Remove the door panel and locate the window switch connector Release the door panel clips and screws, disconnect any ancillary connectors (courtesy light, speaker), and carefully pull the panel away. The window switch connects via a multi-pin harness connector at the armrest.
- Photograph and label the existing connector Before disconnecting, photograph the connector orientation, noting pin 1 position (usually marked by a triangle, notch, or number on the connector body). This prevents reassembly errors.
- Identify each pin using the vehicle wiring diagram Cross-reference the connector pin diagram in the vehicle service manual. Never assume pin assignments from generic diagrams — verify supply, ground, and motor terminals for your specific make, model, and year.
- Test switch operation with the battery reconnected and a multimeter Reconnect the battery and use a multimeter to probe motor output pins (with the switch pressed up and down) to confirm polarity reversal. This verifies the new or existing switch is functional before reassembling the door.
- Reconnect the harness and test the window Plug in the switch connector, reconnect the battery negative, and test both up and down window travel before refitting the door panel. Listen for smooth motor operation and check that the window seats correctly at both extremes of travel.
Specifications
| Supply voltage | 12 V DC |
|---|---|
| Switch type | DPDT (Double Pole Double Throw), momentary |
| Typical motor stall current | 12–25 A |
| Fuse rating (typical) | 20–30 A per circuit (vehicle specific) |
| Pin 1 | Constant 12 V supply (ignition-switched) |
| Pins 2 and 4 | Motor terminals A and B (reverse polarity) |
| Pin 3 | Chassis ground return |
| Pin 5 | Illumination, lock-out signal, or second ground (vehicle specific) |
Safety warnings
- Always disconnect the battery negative terminal before working on power window wiring to prevent electric shock, accidental window movement, and potential airbag deployment (which is triggered by electrical signals on vehicles with side-curtain airbags routed through the door).
- Never operate a window motor with the regulator mechanism disconnected from the glass — the regulator can move rapidly and cause pinch injuries.
- Do not probe live connector terminals with bare metal objects. Use proper multimeter probes to prevent short circuits that can damage the body control module or blow fuses.
- This diagram is illustrative and reference-only. Always use the vehicle manufacturer's workshop manual and wiring diagram for your specific model before carrying out any repairs.
Tools needed
- Digital multimeter
- Door panel removal kit (trim clip tools)
- Insulated screwdrivers and nut drivers
- Wire strippers and crimping tool
- Electrical contact cleaner spray
- Masking tape and pen (for labelling connectors)
Common mistakes
- Assuming pin numbering on a generic diagram matches the specific vehicle — always use the vehicle's own wiring diagram.
- Swapping the two motor output terminals when installing a replacement switch, causing the window to work in reverse (up button goes down).
- Failing to check and clean corroded connector pins before condemning the switch or motor as faulty.
- Using undersized wire to extend the motor circuit, which causes voltage drop and slow window operation.
- Neglecting to check the window channel lubrication — mechanical binding is often mistaken for an electrical fault and causes premature motor failure.
Troubleshooting
- Window does not move in either direction
- Cause: Blown fuse in window circuit, open supply or ground at switch, or failed motor. Fix: Check the window fuse first. Then probe for 12 V supply at pin 1 of the switch with ignition on. If supply is present, check for ground on pin 3. If both are correct, suspect the switch or motor.
- Window moves in one direction only
- Cause: One set of switch contacts has failed open, or one motor terminal wire is broken. Fix: Press the non-working direction and measure voltage at both motor terminals. If the supply does not reverse, the switch is faulty. If voltage reverses correctly at the switch output but not at the motor connector, trace the wiring for a broken conductor.
- Window moves slowly
- Cause: Corroded switch contacts causing high resistance, worn motor brushes, or stiff window channel. Fix: Measure voltage drop across the switch contacts in each direction — should be less than 0.5 V. Clean or replace the switch if drop is high. Lubricate the window seals and channel. Check motor current draw — excessive draw indicates mechanical binding.
Frequently asked questions
How does a power window switch control motor direction?
The switch is a DPDT (Double Pole Double Throw) mechanism. In one direction, it supplies 12 V to motor terminal A and grounds terminal B, driving the motor one way. In the opposite direction, it reverses the connections — terminal B gets 12 V and terminal A is grounded — reversing the motor and moving the window in the opposite direction.
Why does my window only go up (or only down) but not the other way?
If only one direction works, one set of internal switch contacts has failed. The switch is conducting in one polarity state but not the other. Confirm this by measuring voltage at both motor terminals in each switch direction. If one direction shows no reversal, replace the switch.
Can I test a power window switch without a wiring diagram?
Yes, with a multimeter in continuity or resistance mode: disconnect the switch and probe pairs of terminals while pressing up and down. You are looking for two pairs of terminals that swap continuity depending on the switch position — those are the motor output pins. The pin that is always connected to one of each pair is likely the supply or ground.
What causes a power window to work slowly or not at all?
Slow operation usually indicates high resistance — corrosion in the switch contacts, a corroded motor brush, worn window guide channels causing mechanical binding, or undersized or corroded wiring. No operation with the correct supply voltage suggests a failed switch, failed motor, or a blown fuse in the window circuit.
Do all power window switches have 5 pins?
No. Switches can have 4, 5, 6, 7, or more pins depending on the vehicle. Additional pins handle backlighting, one-touch (auto) up/down functionality, or integration with the vehicle's body control module. Always identify the exact switch by part number and use the vehicle's specific wiring diagram.
