RCA Wiring Diagram: Stereo and AV System Connection Layout Explained
This is a free printable rca wiring diagram: download the diagram as SVG or open it and print to paper or PDF.

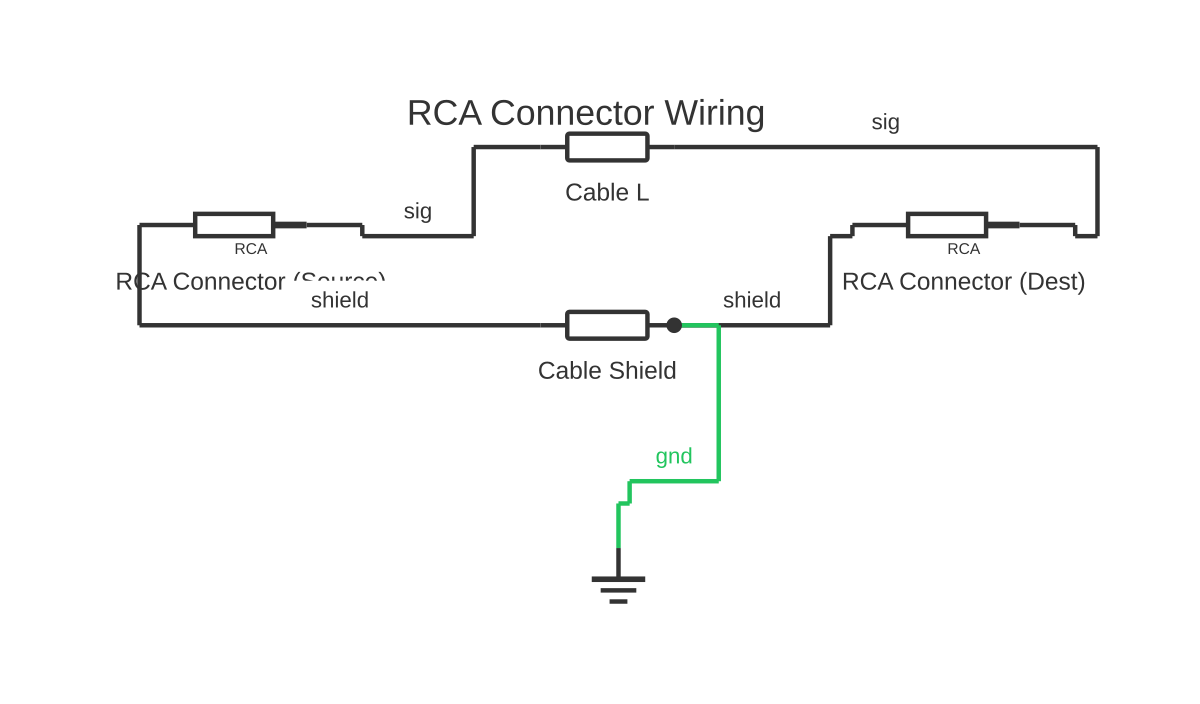

An RCA wiring diagram shows how audio and video signals route between sources, amplifiers, and displays using colour-coded phono connectors and unbalanced coaxial lines.
Where a cable-construction diagram shows the internal anatomy of an RCA lead, a system-level RCA wiring diagram shows how multiple RCA connections route between components in a stereo or AV installation. Understanding the signal flow, correct pairing of outputs to inputs, and the conventions for colour and channel assignment is essential for building a system that works first time.
In a standard two-channel stereo system, the signal chain runs from source to preamplifier (or integrated amplifier) to power amplifier to speakers. RCA interconnects carry the line-level signal between these stages. The left channel uses white (or sometimes black) connectors; the right channel uses red connectors. Left-to-left, right-to-right is the non-negotiable rule. Swapping channels at any link in the chain produces a stereo image that appears mirror-imaged or — in phase-cancelling configurations — produces a hollow centre image.
In a home theatre or AV receiver system, additional RCA connections may include: subwoofer output (single, typically labelled SW or LFE), composite video (yellow), and in older systems, S-Video or component video (which use three RCA connectors for Y/Pb/Pr). Each connection is an unbalanced, single-ended coaxial link: signal on the centre pin, ground on the outer collar.
A key concept in system-level RCA wiring is the distinction between outputs and inputs. Source outputs (from a CD player, DAC, or streaming device) must always connect to amplifier or preamplifier inputs — never output-to-output, which can damage equipment. Most equipment labels sockets clearly, but older or budget gear may only show arrow symbols indicating signal direction.
For longer interconnects (over 5–6 metres), unbalanced RCA becomes susceptible to noise pickup. In professional and semi-professional contexts, balanced XLR wiring is preferred for long runs. Consumer equipment can be adapted using a Jensen-type isolation transformer, which converts to balanced and back without requiring XLR sockets on the source device.
RCA connectors carry unbalanced analogue audio (and composite video) on a single centre pin with a surrounding shield, while XLR connectors carry balanced audio on three pins — so an XLR to RCA adapter cable must convert from balanced to unbalanced correctly to avoid hum or signal loss. A wiring diagram for an XLR-to-RCA cable is a common requirement for connecting professional audio gear to consumer amplifiers or recording interfaces. You can draw and label signal interconnect diagrams free in the browser-based circuit and wiring diagram editor.
How to wire rca wiring diagram
- Map your signal chain on paper before connecting List every component (sources, processor, amplifier, subwoofer, display) and draw the signal paths. Identify which connections are audio (stereo or mono), which are video (composite, component, digital coaxial), and the direction of each signal. Mark outputs with an arrow pointing away from the device and inputs with an arrow pointing into it.
- Power off all equipment Switch off and, where practical, unplug every component before making connections. Live hot-swap of RCA connections can inject transient pulses that damage input stages, particularly in amplifiers where the speaker outputs can be driven by the transient.
- Connect sources to inputs Plug source outputs (CD player, DAC, streaming device) into the corresponding inputs on the preamplifier or AV receiver. Match left to left (white to white or white to L) and right to right (red to red or red to R) without exception. Label each cable at both ends if your rack is complex.
- Connect preamplifier or processor outputs to power amplifier inputs Run the main output pair (left/right) from the preamplifier or AV receiver's pre-out sockets to the power amplifier's input sockets. If the amplifier has two sets of inputs (e.g. balanced and unbalanced), ensure the RCA cables go to the unbalanced or RCA-designated inputs.
- Connect subwoofer and video paths Wire the subwoofer pre-out (single RCA, mono) to the subwoofer input. For composite video, use a 75 Ω cable from the video source output to the display's composite input. Keep video cables physically separated from mains cables to minimise noise coupling.
- Dress cables and prevent mechanical stress Route RCA cables with gentle bends — avoid tight kinks that stress the internal solder joints. Secure with hook-and-loop ties rather than zip ties (which can crush the cable and change impedance). Keep signal cables away from mains power cables and transformer housings.
- Power on in sequence and test each path Power on source equipment first, then preamplifier or AV receiver, then power amplifier last. Test each source in turn. Verify stereo imaging by listening to a known mono signal — it should appear firmly centred. Verify video with a test signal or bright image. Diagnose any hum before proceeding to extended use.
Specifications
| Consumer line-level signal (audio) | −10 dBV (316 mV RMS nominal) |
|---|---|
| Composite video level (NTSC / PAL) | 1.0 V peak-to-peak into 75 Ω |
| S/PDIF digital coaxial level | 0.5 V peak-to-peak into 75 Ω (IEC 60958-1) |
| RCA output impedance (typical consumer source) | 50–600 Ω |
| RCA input impedance (typical amplifier/receiver) | 10 kΩ – 47 kΩ |
| Subwoofer LFE bandwidth (AV receiver pre-out) | 20 Hz – 120 Hz (crossover frequency adjustable) |
| Maximum recommended unbalanced RCA audio run | 5–8 m before noise pickup becomes significant |
| RCA connector insertion life (mating cycles) | ≥ 500 cycles (typical quality connector) |
Safety warnings
- RCA signal cables carry low-level analogue signals and pose no direct electrical shock hazard. However, always power down all equipment before making or changing connections. Connecting cables to powered amplifiers can produce loud transient pops through speakers, risking speaker driver damage — particularly to tweeters.
- Never connect two outputs to each other directly via an RCA cable (output-to-output). Source outputs present a low-impedance drive, and connecting them together can damage output buffer stages in one or both devices. Always ensure signal flows from output to input.
- Do not open mains-powered audio or AV equipment yourself unless you are a qualified technician. Power supply sections in amplifiers and receivers store lethal voltages on capacitors that remain dangerous for minutes to hours after mains disconnection.
Tools needed
- Digital multimeter (for continuity and signal-level verification)
- Cable labels or permanent marker
- Hook-and-loop cable ties for cable management
- Flashlight or head torch for working inside equipment racks
- Audio test tone source or measurement app (for verifying stereo channel assignment)
Common mistakes
- Swapping left and right channels at one end of the signal chain — results in a mirror-imaged stereo image and is easy to miss in a complex rack where both channels sound similar.
- Connecting source outputs to amplifier outputs instead of inputs — both devices try to drive each other and damage can occur to buffer output stages.
- Using a standard audio cable for digital S/PDIF coaxial — works at short distances on many systems but causes jitter, dropout, or no lock at longer lengths or higher sample rates.
- Ignoring ground loop hum and instead increasing volume — the hum level increases too, and the root cause (shared earth paths) remains and can mask fault conditions.
- Tight routing of cables around mains transformers — the magnetic field from large toroidal or EI transformers induces hum directly into adjacent unshielded RCA cables.
Troubleshooting
- One channel is silent, the other plays normally
- Cause: Broken RCA cable on the silent channel, failed solder joint at one plug, or source output for that channel has failed Fix: Swap the left and right cables at the source. If the fault follows the cable, the cable is faulty. If it stays on the same speaker, the fault is in the source output or amplifier input stage for that channel.
- Persistent 50 Hz or 60 Hz hum across all sources
- Cause: Ground loop between components sharing RCA signal grounds and mains earth Fix: Power all components from a single mains strip. If hum persists, insert an audio isolation transformer on the RCA cable between the most likely ground-loop pair (often where a cable-connected source shares mains earth with the amplifier).
- Composite video picture is snowy or has rolling bars
- Cause: 75 Ω impedance mismatch, poor cable quality, or cable run too long for the signal level Fix: Replace cable with rated 75 Ω video coax. Shorten the run if possible. Check that the display's composite video input is set to 75 Ω termination (on professional monitors this may be a switchable setting). Use a video distribution amplifier for runs over 15 m.
Frequently asked questions
What does the colour coding mean on RCA wiring diagrams?
Red is always right-channel audio. White (or black) is left-channel audio. Yellow is composite video. These are universally observed consumer conventions. In older systems, orange may indicate a digital S/PDIF coaxial output. Component video uses red, green, and blue — but these colours refer to video signal types, not audio channels.
Can I connect an RCA output to an RCA input of different impedance?
Line-level RCA sources typically present an output impedance of 50–600 Ω and drive inputs with an impedance of 10–47 kΩ. This large ratio ensures minimal signal loss — impedance bridging rather than matching. For consumer audio, impedance mismatch between line-level devices is rarely a problem. Video impedance (75 Ω) is more critical and should be matched as described in the video context.
Is there a difference between digital coaxial RCA and analogue RCA?
Electrically, a digital coaxial RCA connection (S/PDIF) uses the same physical connector but carries a 75 Ω digital bitstream at up to 3 V peak-to-peak. The cable must be 75 Ω rated for reliable data transmission. Using a standard audio cable over short distances may work, but over longer runs or at higher sample rates, a proper 75 Ω cable is required to avoid jitter and dropout.
How do I wire a subwoofer using RCA in a home theatre setup?
The AV receiver has a dedicated subwoofer pre-out (often labelled SUB or SW), which is a mono LFE channel. Connect this to the LFE or line-level input of the powered subwoofer using a single RCA cable. Some subwoofers accept stereo RCA inputs internally summed to mono — in this case, a Y-splitter from the SUB output to both left and right sub inputs is common practice.
Why does my system produce a loud hum when I connect all RCA cables?
A ground loop. When multiple components are connected both through RCA signal grounds and through mains earth via their power cables, circulating earth currents at 50 Hz or 60 Hz appear as hum. Resolve this by powering all equipment from a single mains outlet strip, using a balanced power conditioner, or inserting an audio-grade isolation transformer on the affected RCA signal path.
How do I wire an XLR to RCA adapter — what does the wiring diagram show?
A wiring diagram for an XLR-to-RCA adapter shows XLR pin 1 (ground/shield) connected to the RCA outer shield, XLR pin 2 (positive/hot signal) connected to the RCA centre pin, and XLR pin 3 (negative/cold signal) either left floating or tied to pin 1 (ground) at the XLR end — tying pin 3 to pin 1 is the most common approach for a passive unbalanced conversion and helps reduce noise. This converts balanced line level from the XLR source to unbalanced for the RCA input. Note that this connection works for sending audio from a balanced XLR output to an unbalanced RCA input; the reverse direction (RCA out to XLR in) uses a different wiring arrangement.
