A reverse camera installation diagram shows how to wire a backup camera to reverse lights, a monitor, and power so the image appears automatically when the vehicle is put into reverse.

A reverse (backup) camera system consists of a camera module mounted at the rear of the vehicle, a video cable running to a monitor or head unit, and a power circuit that activates the camera and switches the monitor to the camera input whenever the vehicle is placed in reverse gear.

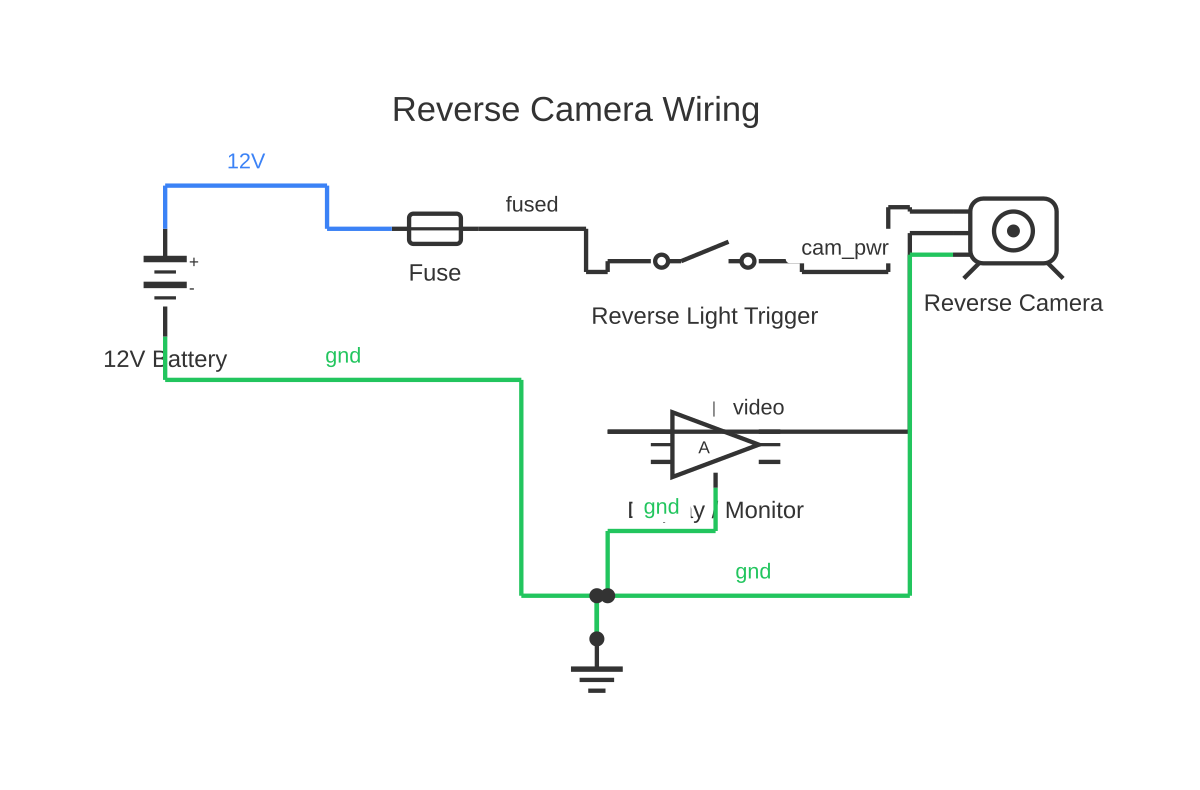

The wiring has three logical parts. First, camera power and trigger: the camera's positive power wire connects to the reverse light circuit. When reverse gear is selected, the gearbox activates the reverse lights, supplying 12 V to the camera and simultaneously providing the trigger signal to the monitor. Some cameras operate on 12 V and others on a lower regulated voltage — verify with the camera's specification sheet before connecting. The camera's negative wire goes to chassis ground, typically a clean, paint-free body bolt near the camera mounting point.

Second, the video signal: an RCA composite video cable (or in modern systems a proprietary digital link) runs from the camera's video output through the vehicle body — usually following existing wiring looms or using grommet-protected holes — to the monitor or head unit located at the dashboard. The video cable shield must maintain good electrical continuity throughout its length; damaged shielding causes noise or interference lines on the image.

Third, the monitor or head unit: the monitor requires constant 12 V (from a fused accessory circuit), ground, an illumination input (to control brightness when headlights are on), and the reverse trigger wire. The reverse trigger wire tells the head unit to switch to the camera view. This wire is typically the same 12 V reverse signal from the reverse light circuit.

Polarities matter. Reversing the camera's power polarity will destroy most cameras immediately. Always verify circuit polarity with a multimeter before connecting.

How to wire reverse camera installation diagram

Plan the cable route from camera to monitor Before mounting anything, trace the full cable path from the rear camera position to the dashboard monitor. Identify existing grommets, body cavities, and loom paths that can be used without drilling new holes. Measure the required cable length, adding 20% for routing curves and securing slack.
Mount the camera Drill or use existing apertures to mount the camera housing. Ensure the camera has a clear, unobstructed view of the area behind the vehicle with the lens angled appropriately (typically 0–10 degrees downward). Apply silicone sealant around any drilled holes to prevent water ingress into the body cavity. Secure the camera power and video pigtails inside the body.
Connect camera power and ground Identify the reverse light positive wire using a multimeter as described in the FAQ. Connect the camera positive power wire to the reverse light positive using an appropriate connector (a waterproof splice connector for exterior locations, or a standard butt connector for interior). Connect the camera negative wire to a clean chassis ground point — scrape paint from the contact area if necessary to ensure metal-to-metal contact.
Run the video cable Feed the RCA video cable through existing grommets and body cavities from rear to front. Use a fish tape or stiff wire to route through tight sections. Secure the cable at regular intervals to prevent it from contacting moving or hot components. Do not stretch or sharply kink the cable, as this damages the inner conductor and shield.
Install and connect the monitor or head unit Mount the monitor in the dashboard location. Connect the video cable RCA plug to the monitor's rear camera input. Connect the monitor's constant power wire to a fused 12 V accessory or ignition-switched circuit. Connect the reverse trigger wire to the same reverse light circuit used for the camera. Connect the monitor ground to chassis ground.
Test the system before completing the installation With all temporary connections made but panels not yet refitted, have an assistant place the vehicle in reverse (with handbrake applied) while you observe the monitor. Confirm the image appears, is correctly orientated, and is free of significant noise. Check that the image disappears when reverse gear is disengaged.
Finalise connections and refit panels Once the system tests correctly, finalise all connections with appropriate connectors — avoid bare wire junctions and loose joints. Secure all cables so they cannot contact moving parts (steering column, pedal linkages) or hot surfaces (exhaust, heater pipes). Refit all panels and trim pieces. Re-test the complete system.

Specifications

Camera power supply voltage	12 V DC (from reverse light circuit)
Minimum camera ingress protection rating	IP67
Video signal standard	NTSC (North America, Japan) or PAL (Europe, Australia, most other regions)
Video cable impedance	75 ohm coaxial
Reverse trigger signal voltage	12 V DC (from reverse light circuit)
Typical camera viewing angle	120–170 degrees (wide-angle)
Typical camera current draw	150–400 mA at 12 V
Fuse rating recommendation (camera)	5 A maximum

Safety warnings

Disconnect the vehicle battery negative terminal before making connections in the dashboard area to prevent short circuits and accidental airbag deployment. Airbag inflator circuits can retain charge for several minutes after battery disconnection — consult the vehicle service manual for the specific discharge wait time.
A reverse camera is a driver aid only. It does not replace the driver's responsibility to check surroundings before reversing. Never rely on the camera as the sole means of obstacle detection.
Ensure all cables are secured well away from moving components including the steering column, pedal linkages, seat runners, and door hinges. A cable snagged by a moving part can fail dangerously or create a fire hazard.
Use only waterproof connectors and grommets for any connections or cable passages in the exterior or under-body of the vehicle. Ordinary butt connectors exposed to water will corrode, fail, and potentially short circuit.
Verify the fuse rating is appropriate for the circuit before inserting. An oversized fuse will not protect the wiring and can result in a fire if a fault develops.

Tools needed

Digital multimeter (DC voltage, continuity)
Wire stripper and crimping tool
Fish tape or cable routing rod
Trim removal tools (plastic pry tools to avoid scratching)
Drill with step bit or hole saw (if new aperture needed for camera)
Silicone sealant or self-amalgamating tape
Heat gun (for heat-shrink connectors)
Cable ties and clip fasteners

Common mistakes

Tapping the camera power from a permanently live circuit rather than the reverse light circuit, so the camera runs continuously and drains the battery.
Running the video cable parallel to and in contact with high-current cables, inducing electrical noise into the video signal.
Using an inadequate chassis ground — painting over the ground bolt contact area or using a body bolt that does not make clean metal-to-metal contact causes poor ground and video noise.
Routing cables through unprotected sharp-edged holes without a grommet, which can chafe through insulation over time.
Not testing before refitting panels, requiring a full disassembly if the system does not work correctly.
Mounting the camera without sufficient downward angle, resulting in an image that shows too much sky and not enough of the reversing area.

Troubleshooting

Camera image does not appear when reverse gear is selected: Cause: No power to camera or no reverse trigger signal to monitor Fix: With the vehicle in reverse, use a multimeter to confirm 12 V is present at the camera power wire and at the monitor reverse trigger input. If power is absent, trace back to the fuse and the reverse light circuit connection.
Image is permanently on regardless of gear selection: Cause: Reverse trigger wire connected to a permanently live circuit, or monitor set to manual camera input mode Fix: Verify the reverse trigger wire reads 12 V only in reverse gear. Check the monitor settings for automatic vs. manual camera switching.
Image is noisy or has alternator whine that changes with engine speed: Cause: Ground loop between camera and monitor, or interference from alternator or ignition system Fix: Ensure camera and monitor share the same chassis ground point. If noise persists, insert a video ground loop isolator between the camera RCA output and the monitor input.
Image is dark or has incorrect colour balance: Cause: Camera lens dirty, camera not suited to the ambient light level, or video standard mismatch (NTSC vs. PAL) Fix: Clean the camera lens. Check whether the monitor and camera are both set to the same video standard. Assess whether a camera with better low-light performance is required.
Camera or monitor stops working after rain or vehicle wash: Cause: Water ingress through poorly sealed camera mount or unprotected connectors Fix: Inspect and re-seal the camera mount with silicone sealant. Replace any non-waterproof connectors with IP-rated alternatives and ensure all cable entry points have grommets properly seated.

Frequently asked questions

How do I find the reverse light wire to connect the camera trigger?

Set your multimeter to DC voltage. With the ignition on and vehicle in reverse gear, probe each wire at the rear light cluster until you find one that reads approximately 12 V and drops to 0 V when reverse is disengaged. Always verify with ignition on — many circuits read residual voltage when ignition is off due to parasitic paths.

Can I run the video cable near other vehicle wiring?

Yes, but keep the RCA video cable away from high-current wiring such as alternator cables, ignition leads, and speaker cables, which can induce interference. If routing is unavoidable, cross high-current cables at right angles rather than running parallel to them, and ensure the cable shield is intact.

My camera image has horizontal lines or noise. What causes this?

Electrical interference, usually from the engine, alternator, or ignition system, is the most common cause. Check that the camera and monitor share a clean common ground. Try a ground loop isolator on the video cable. Confirm the video cable shield is continuous and not damaged where it passes through body grommets.

Does the camera need to be waterproof?

Any camera mounted externally — including those recessed in number plate surrounds or hatch handles — must be rated at minimum IP67 for protection against water ingress. Lower-rated cameras will eventually fail from moisture penetration, especially in high-pressure wash situations.

Do I need to connect the camera trigger wire, or can I leave the monitor switched manually?

Technically optional for function, but the trigger wire is strongly recommended for safety and convenience. Without it, the driver must manually switch to camera view before reversing, which defeats the purpose of the system as a driver aid. In many regions, regulations require backup systems to activate automatically when reverse is selected.
