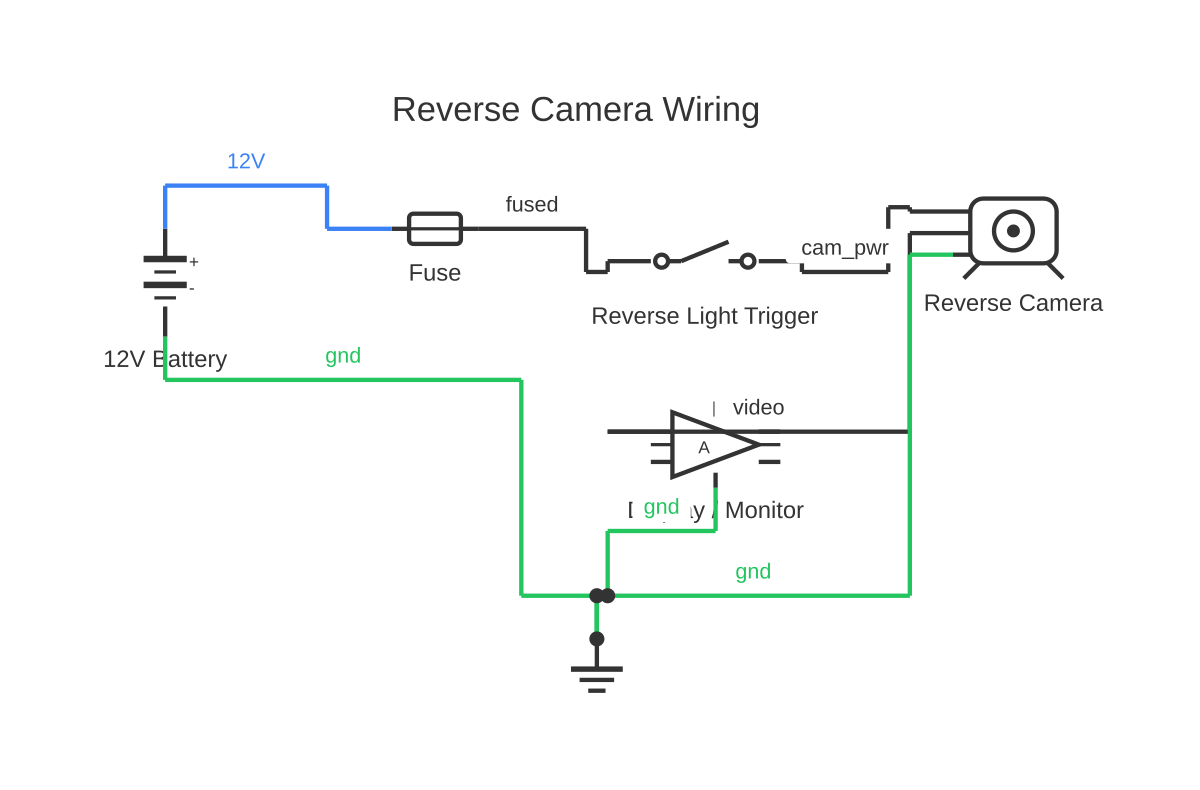

A reverse camera wiring diagram shows how to connect the camera unit, video cable, reverse trigger wire, and head unit to display a live image when reversing.

A reverse camera (reversing camera) system has four main connections: a 12 V DC power supply to the camera, a ground (earth) connection, a composite video signal cable running to the head unit or display, and a reverse trigger wire that tells the head unit to switch its display input to the camera feed when reverse gear is selected.

The camera unit is typically mounted at the rear of the vehicle — in the number plate light housing, integrated into the tailgate handle, or flush-mounted above the number plate. It requires a permanent or ignition-switched 12 V supply, though most installations use the reverse light circuit to power both the camera and trigger the display simultaneously. The camera's power wire connects to the positive terminal of the reversing light circuit (active when reverse gear is engaged), and the ground wire connects to a clean chassis earth point near the installation location.

The composite video signal travels from the camera to the head unit via a coaxial video cable, typically RCA-terminated. Cable routing must avoid heat sources (exhaust pipes, engine components) and protect the cable from chafing through grommets wherever it passes through bodywork. The video cable runs the full length of the vehicle, usually tucked along the sill trim or beneath the carpet.

The reverse trigger wire (sometimes labelled ACC, REVERSE, or RV on the head unit's wiring harness) connects to the positive terminal of the reversing light circuit at the head unit end. When reverse is selected, 12 V appears on this wire, causing the head unit to automatically switch to camera input. Without this connection, the camera may still display if manually selected, but automatic switching on reversing will not work.

Some cameras include parking guidelines overlaid on the image. These are factory-set and do not require any additional wiring. Adjustable guideline systems may have a separate input wire for camera orientation (front or rear) which sets the direction of the guide lines.

How to wire reverse camera wiring diagram

Disconnect the vehicle battery Remove the negative terminal of the vehicle battery before starting any wiring work. This prevents short circuits and avoids triggering airbag or other electronic systems.
Mount the camera Decide on the camera mounting position (number plate light, tailgate handle, rear bumper flush mount). Drill or cut the mounting hole as required. Seal around the camera mount with appropriate weatherproof sealant to prevent water ingress.
Connect camera power and ground Connect the camera's positive wire to the reversing light positive supply (identifiable by 12 V present only in reverse gear). Connect the camera's negative (ground) wire to a bare metal earth point on the vehicle body near the camera mounting location. Scrape paint from the earth point if necessary for good conductivity.
Run the video cable to the head unit Route the coaxial video cable from the camera mount, through the tailgate/boot area grommet, along the vehicle sill or under the carpet, to the head unit location in the dashboard. Secure the cable with clips or ties and ensure it is protected through all bodywork penetrations.
Connect the video cable to the head unit Plug the RCA end of the video cable into the head unit's camera input (often labelled CAM IN, BACK CAM, or REVERSE). Consult the head unit installation manual for the exact connector location.
Connect the reverse trigger wire Run a wire from the head unit's REVERSE input terminal to the positive terminal of the reversing light circuit in the dashboard wiring harness. Verify the source wire by checking for 12 V with the ignition on and gear in reverse. Use a suitable inline connector or solder-and-shrink method.
Reconnect battery and test Reconnect the battery negative terminal. Turn on the ignition, select reverse gear, and verify the head unit display switches to the camera image. Adjust the camera angle if required. Check all cable routes for chafing or heat exposure.

Specifications

Camera supply voltage	12 V DC (nominal vehicle supply)
Typical camera current draw	100–400 mA (including IR LEDs)
Video signal type	Composite video (CVBS), 1 V peak-to-peak, 75 Ω
Camera IP rating (recommended)	IP67 or better
Typical camera field of view	120–170 degrees horizontal
Reverse trigger input voltage (head unit)	12 V DC (vehicle positive when in reverse)
Video cable impedance	75 Ω coaxial

Safety warnings

Always disconnect the vehicle battery's negative terminal before starting any automotive wiring work. This prevents accidental short circuits that can cause wire fires and may prevent unintended airbag deployment.
A reverse camera is a driver aid only and does not replace active observation. Always perform a full physical check around the vehicle before reversing, especially to detect children, animals, and objects below the camera's field of view.
Ensure the video cable and power wires do not pass near hot exhaust components. Cable insulation damage from heat can cause short circuits and fire.
Seal all bodywork penetrations with grommets and weatherproof sealant to prevent water ingress into the vehicle interior and to the camera's wiring connections.

Tools needed

Multimeter
Wire stripper and crimping tool
Trim removal tools (panel pry bars)
Drill and step bits
Cable fish tape or draw string
Screwdrivers (flat and cross-head)
Heat gun (for heat-shrink tubing)

Common mistakes

Grounding the camera to a painted surface rather than bare metal, causing a poor earth and resulting in a noisy or flickering video image.
Running the video cable parallel to and close to 12 V power cables for the full vehicle length, inducing interference (alternator whine or noise bars) into the video signal.
Omitting the reverse trigger wire connection, meaning the display must be manually switched to camera input — the automatic-on-reverse function will not work.
Failing to seal the camera mounting hole, allowing water to enter the bodywork and eventually causing corrosion or reaching interior components.
Using connectors not rated for the outdoor environment at the camera end, leading to corrosion and intermittent faults over time.

Troubleshooting

Camera image appears on display but with rolling interference lines: Cause: Poor earth connection at camera, or video cable running too close to 12 V power wiring Fix: Check camera ground connection is to bare metal. Re-route video cable away from power cables. Add an earthed cable shield or use a video noise filter inline.
Head unit does not switch to camera automatically in reverse: Cause: Reverse trigger wire not connected, or connected to a non-reversing 12 V source Fix: Verify 12 V appears on the source wire only when reverse gear is selected. Check the wire continuity to the head unit REVERSE terminal. Confirm head unit setting for automatic camera input switching.
Camera image not visible at night: Cause: IR LEDs not receiving power, or camera IR cut filter issue Fix: Measure voltage at camera power terminals in reverse. Verify ground connection. With a smartphone camera (which can see IR), look for the camera IR LED illumination — phone cameras detect IR that the human eye cannot.

Frequently asked questions

Where do I connect the reverse camera trigger wire?

Connect the reverse trigger wire to the positive terminal of the vehicle's reversing light circuit — the wire that carries 12 V only when reverse gear is selected. At the head unit end, connect the trigger wire to the head unit's REVERSE or BACK-UP input terminal identified in the head unit's wiring diagram.

Can I use the reversing light power supply to power the camera?

Yes, and most basic installations do exactly this. The camera's positive wire connects to the reversing light positive supply, and the camera only receives power when reverse is engaged. This means the camera is not continuously powered, which is suitable for simple systems. Some installations use a permanent 12 V supply if the system requires the camera to be ready at all times.

How do I run the video cable from the rear to the head unit?

Route the coaxial video cable along the vehicle's door sill trim or beneath the carpet, using cable ties to secure it. Pass the cable through existing rubber grommets in the bodywork wherever it transitions between interior and exterior. Use a cable probe or fish tape to route the cable behind trim panels. Keep the video cable away from power cables to minimise interference.

Why is my reverse camera image very dark or washed out?

Most reverse cameras use built-in IR LEDs for night vision. Excessive darkness may indicate the LEDs are not receiving power or have failed. A washed-out image in daylight often indicates the camera is aimed at a light source or has a lens contamination issue. Check power supply voltage at the camera with a multimeter.

My head unit shows static instead of the camera image — what should I check?

Check that the video cable is fully seated in the RCA sockets at both ends and that the ground connection is clean and secure. A poor earth causes interference patterns. Verify the head unit is set to the correct video input when reverse is engaged. Test the camera signal by connecting it directly to a portable monitor.
