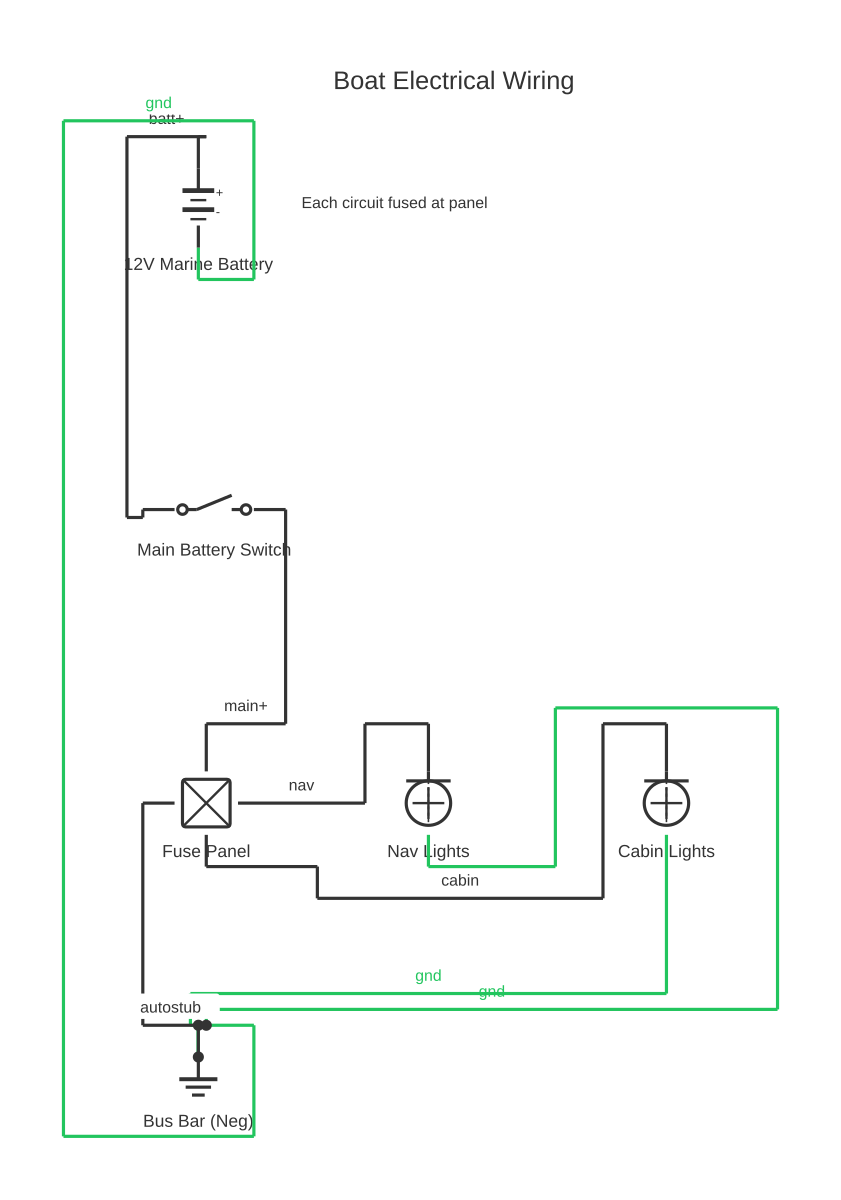

A single-battery boat wiring diagram illustrates the electrical distribution architecture for small recreational boats powered by one 12V battery supplying engine cranking, navigation lighting, and cabin electronics. The diagram shows: battery mounting with marine-grade terminals, main battery disconnect switch isolating all circuits during storage or maintenance, positive distribution bus bar connecting alternator charging and starter motor, and negative bus bar (bonded to engine block and hull) providing ground return. The single-battery approach works well for vessels under 30 feet with moderate electrical demand. The diagram identifies circuits: starter motor (heavy gauge 4 AWG for high crank amperage), alternator charging (minimum 12 AWG), navigation lighting (14-16 AWG for 5A maximum per circuit), and cabin 12V outlets (16 AWG). Battery capacity (typically 80-200Ah for recreational boats) determines runtime for trolling motor, cabin lights, and electronics during day-cruising without engine operation. Understanding boat electrical architecture enables proper fuse sizing for each circuit, safe battery selection for intended vessel use, and troubleshooting of starting failures or instrument power loss.

How to wire single battery boat wiring diagram

Plan your load list List every electrical item on the boat with its amp rating. Add them up to size your battery, cable, and fuse correctly before buying anything.
Mount the battery in a ventilated, secured box Secure the battery against movement in rough water. Vent hydrogen gas overboard. Mount the box as low and central as possible to keep weight trim.
Install the main isolator switch near the battery Mount within 300mm of the battery positive terminal. Run a short heavy cable from positive terminal through the isolator fuse directly to the isolator switch.
Run cables to the positive and negative bus bars Use tinned marine-grade cable throughout. Keep positive and negative runs separate and protected from chafe with conduit or grommets through bulkheads.
Wire individual circuit breakers at the panel Each circuit gets its own breaker sized to the cable, not the load. Label every breaker clearly. Engine start circuit gets a dedicated heavy cable bypassing the panel.
Connect all negative returns to the negative bus bar Every negative wire returns to the bus bar, which connects back to the battery negative with a single heavy cable. Never daisy-chain negatives through components.
Test all circuits before launching With battery connected and isolator on, test each circuit individually. Check voltage drop under load on the starter circuit — more than 0.5V drop indicates a poor connection.

Frequently asked questions

Can I use a car battery instead of a marine deep-cycle battery?

No. Automotive batteries are designed for short high-current cranking bursts, not sustained discharge. A marine deep-cycle battery tolerates repeated 50% discharge without damage. Use a car battery on a boat and you will flatten it within a weekend and it will not recover.

Where must I install the main isolator switch?

Within 300mm of the battery positive terminal, before any other connection. This lets you quickly kill all power in an emergency. Never put the isolator in the negative cable — it leaves the hull under voltage if a positive wire chafes on the metalwork.

Why use tinned copper cable on a boat?

Salt air corrodes bare copper strands rapidly. Tinned copper cable resists oxidation, keeping connections low-resistance for the life of the installation. Untinned cable in a bilge environment turns green and brittle within two to three seasons.

How do I size my battery cables?

Calculate the total starting current draw and add all simultaneous house loads. Use a marine cable sizing chart at 3% maximum voltage drop. Most single-battery setups need minimum 16mm² for starter leads and 6mm² for the main distribution run.

Should the negative cable go directly to the engine block?

Engine negative should return directly to the battery negative terminal, not via the hull. A common negative bus bar handles all house circuit returns. This avoids stray current corrosion that eats through fittings, stern drives, and propellers.
