Dual Battery Boat Wiring Diagram – Marine Two-Battery System

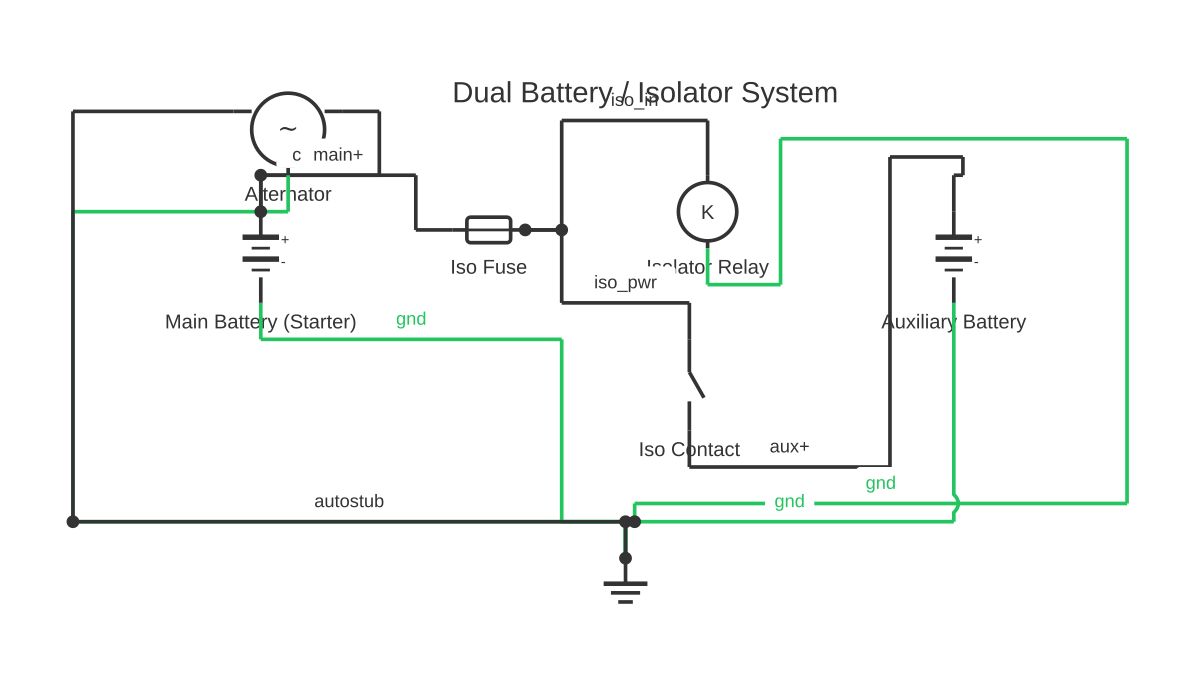

Dual Battery Boat Wiring Diagram – Marine Two-Battery System — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable dual battery boat wiring diagram: download the diagram as SVG or open it and print to paper or PDF.

Wire a dual-battery marine system with battery selector switch, isolator, and correct fusing to keep your start battery always reserved for engine cranking.

A dual-battery system on a boat solves one of the most common problems in recreational boating: running the house loads (electronics, lights, bilge pump, navigation instruments) from the same battery used to start the engine, and finding yourself stranded with a flat start battery at the end of a day on the water.

The standard arrangement uses two batteries — Battery 1 (the start battery, dedicated to engine cranking) and Battery 2 (the house battery, supplying loads while at anchor or underway). A 1-2-BOTH-OFF rotary battery selector switch, or a dual battery isolator, sits between the batteries and the load/source circuits to control which battery is connected to the electrical system at any time.

With the selector on position 1, only Battery 1 feeds the loads and alternator output goes to Battery 1. On position 2, only Battery 2 is in circuit. On BOTH, both batteries are in parallel. The BOTH position is used for charging or for emergencies when one battery is depleted, but running continuously on BOTH means both batteries discharge together — defeating the purpose of the split system.

A battery isolator diode or VSR (voltage-sensing relay) is an alternative approach: the alternator charges whichever battery needs charging without the operator needing to manage the switch. When the engine is running and the primary battery reaches a set voltage threshold, the VSR closes and connects the secondary battery in parallel for charging. When the engine stops and voltage drops, the VSR opens, isolating the batteries.

All wiring must include correctly rated fuses or circuit breakers on every positive conductor within 300 mm (12 inches) of each battery terminal, as required by ABYC E-11 (USA), ISO 10133, and equivalent marine electrical standards. All wire must be marine-grade tinned copper — plain copper corrodes rapidly in a salt air environment.

How to wire dual battery boat wiring diagram

Plan the battery layout and cable runs Determine the physical location of both batteries, the battery switch, any isolator or VSR, and the main distribution panel. Minimise cable length (reduces voltage drop and weight) while keeping batteries accessible and properly vented. Sketch the positive and negative runs before cutting any cable.
Install battery boxes or trays Secure both batteries in ABYC or ISO-compliant battery trays or boxes that prevent movement under all sea conditions. The box must ventilate hydrogen gas safely out of the vessel. Batteries must not be installed in a sealed space with an ignition source.
Install the battery selector switch Mount the 1-2-BOTH-OFF selector switch or the VSR/isolator in an accessible, dry location. Connect Battery 1 positive to switch terminal 1, Battery 2 positive to switch terminal 2, and the main bus or distribution panel positive feed to the COMMON terminal of the switch. Never disconnect the selector switch while the engine is running — this can destroy the alternator diodes.
Install fuses on each positive battery terminal Fit a correctly rated fuse or circuit breaker within 300 mm of the positive terminal of each battery. This protects the cable against short-circuit current. Use marine-rated fuse holders or ANL fuse blocks appropriate for the cable size.
Connect negative conductors Connect the negative terminals of both batteries to the vessel's negative bus bar or common ground point. Do not rely on the hull as a ground path in a negative-ground system — run a dedicated negative conductor from the bus bar back to each battery. Tin all terminal connections.
Connect the alternator output Connect the alternator output to the COMMON terminal of the battery switch or to the input of the VSR, so the charging current is distributed to the selected battery or to both batteries via the VSR. Ensure the alternator charge cable is fused at the alternator end.
Test the system With the engine off, test each battery voltage. Start the engine on position 1 and confirm the alternator charges Battery 1. Switch to position 2 and confirm Battery 2 charges. Verify that switch operation DOES NOT interrupt the alternator circuit while the engine is running (use a dummy load or confirm with VSR auto-isolation). Test bilge pump and house loads on position 2.

Specifications

System voltage (typical recreational marine)	12 V DC
Battery fuse placement	Within 300 mm of positive terminal (ABYC E-11)
Allowable voltage drop (main circuits)	3% maximum (ABYC E-11)
Cable type	Tinned copper, marine-grade, multi-strand
VSR connect threshold (typical)	13.7 V – 14.0 V
VSR disconnect threshold (typical)	12.7 V – 12.8 V
Applicable standard	ABYC E-11, ISO 10133, NMEA 0183 (for instrument integration)
Battery compartment ventilation	Required; direct hydrogen gas overboard

Safety warnings

Never disconnect the battery selector switch or remove a battery cable while the engine is running. The alternator voltage spike when its load is suddenly removed can destroy the alternator's rectifier diodes in milliseconds.
All positive conductors must be fused as close to the battery positive terminal as practicable. An unfused positive cable running to a distribution panel can carry thousands of amperes of short-circuit current and cause a fire.
Use only marine-grade tinned copper cable in all marine installations. Plain copper corrodes rapidly in salt air, increasing resistance and creating fire hazards at connections.
Batteries emit hydrogen gas during charging. Install batteries in a vented compartment that directs gas overboard. Avoid all ignition sources (switches, fuses, relays) inside a sealed battery compartment.
All marine electrical installations should comply with ABYC E-11 (USA), ISO 10133, or the applicable national maritime standard. Consult a certified marine electrician for any installation involving the engine starting circuit or safety-critical loads.

Tools needed

Marine cable crimper and die set (sized for cable)
Heat gun (for adhesive heat-shrink tubing)
Wire strippers suitable for large-gauge cable
Multimeter
Clamp-type DC ammeter
Cable ties and mounting hardware
Drill and hole saw (for cable routing through bulkheads)

Common mistakes

Running both batteries in BOTH position continuously — both batteries discharge together, defeating the purpose of the split system and leaving no reserve start battery.
Omitting fuses on the positive cables near each battery terminal — a chafe or short anywhere in the run can start a fire with no protection.
Using automotive (plain copper) cable instead of marine tinned copper — corrodes at connections and inside the sheath, increasing resistance and creating fire hazards.
Routing positive and negative cables of the same circuit on opposite sides of the vessel — creates a large magnetic loop that causes compass deviation and electromagnetic interference with instruments.
Connecting the alternator output directly to the house battery without a VSR or isolator when using a selector switch — bypasses switch control and may charge only one battery depending on switch position.
Undersizing cable for the battery run length — long cable runs require larger cross-sections to maintain voltage drop within 3% as required by ABYC E-11.

Troubleshooting

Engine cranks slowly or fails to start despite battery selector on position 1: Cause: Start battery depleted from house loads being left on BOTH, or corroded battery cable terminal, or undersized cranking cable Fix: Switch to BOTH temporarily to combine both batteries for cranking. After starting, investigate why the start battery was depleted. Inspect cable terminals for green/white corrosion and clean or replace. Measure cable voltage drop during cranking — more than 0.5 V drop across the cable indicates an undersized or faulty cable.
House battery not charging from alternator: Cause: VSR not activating, battery selector in wrong position, or charge cable not connected to VSR input Fix: Confirm battery selector is in a position that routes alternator output through the VSR or to the house battery. Check VSR input and output voltages with the engine running. VSR threshold is typically 13.7 V – 14.0 V; if start battery voltage does not reach this, the VSR will not connect the house battery.
Fuse blows on the house battery positive cable: Cause: Short circuit in the house wiring, overloaded distribution panel, or incorrect fuse rating below cable ampacity Fix: Isolate all loads. Replace fuse and observe which load or circuit causes the blow. Inspect wiring for chafe at bulkhead passages and bilge areas. If fuse rating is below cable ampacity, upsize fuse only after verifying the cable is protected by the downstream circuit breakers.

Frequently asked questions

What is the difference between a battery selector switch and a battery isolator?

A battery selector switch (1-2-BOTH-OFF) is a manual device the operator controls to choose which battery supplies the system. A battery isolator (diode-based or VSR) is automatic — it allows the alternator to charge both batteries without manual intervention and prevents the batteries from discharging into each other. Both approaches are used in marine applications, often in combination.

Should I leave the battery switch on BOTH while underway?

Operating on BOTH continuously combines both batteries in parallel, meaning if house loads run the bank down, both batteries — including the start battery — become depleted. Use BOTH only for emergency jump-starting from the house battery or during a brief charging period. Underway, use position 1 or 2 with a VSR or isolator handling charge distribution automatically.

What wire size should I use for a dual-battery marine system?

Wire size depends on the maximum current the conductor must carry and its length. ABYC E-11 tables specify minimum wire sizes for marine use based on current, allowable voltage drop, and whether the wiring is in an engine space (derated for heat). As a general starting point, main battery cables are often 35 mm² to 95 mm² (2 AWG to 4/0 AWG), but this must be calculated for each installation.

Why must marine wiring use tinned copper?

In a marine environment — especially saltwater — plain copper conductors corrode at exposed strands and at terminal connections, increasing resistance and creating hot spots that can cause fires. Tinned copper resists corrosion significantly better. ABYC E-11 and ISO 10133 require or strongly recommend tinned conductors for marine electrical systems.

Where must the main fuse be placed on each battery?

ABYC E-11 requires fusing on the positive conductor of every ungrounded battery cable, as close to the battery terminal as practicable — within 72 inches (approximately 1.8 m) for most conductors, and within 7 inches (approximately 180 mm) of the battery for conductors supplying the main distribution panel if the conductor is unprotected in between. Fuse rating should be based on conductor ampacity, not load current.
