Single-Phase Energy Meter Diagram: kWh Meter Line, Load Wiring & Current Transformer Connection

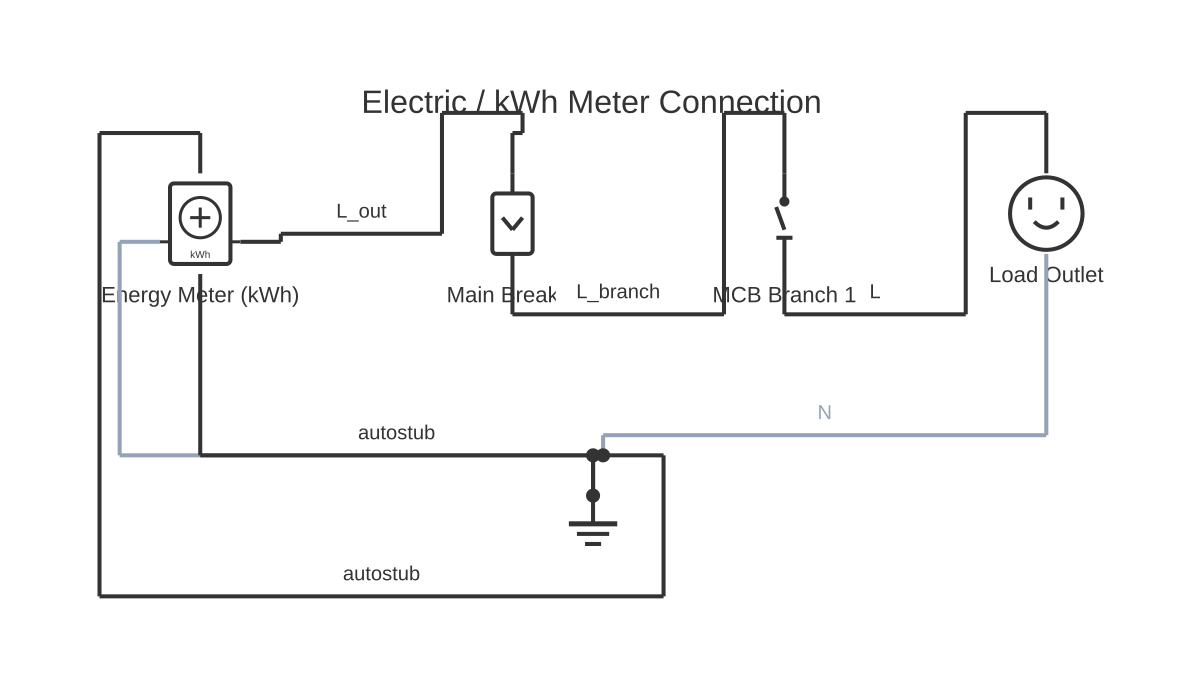

This is a free printable single phase energy meter diagram: download the diagram as SVG or open it and print to paper or PDF.
Understand how a single-phase energy meter connects between the supply (line) and the consumer's installation (load), how direct-connected and CT-operated meters differ, and what each terminal does.
An energy meter — correctly called a kilowatt-hour (kWh) meter — measures the electrical energy consumed by a premises over time. In a single-phase installation, it is the accounting device between the utility network and the consumer's internal wiring: everything on the supply side is the utility's responsibility; everything on the load side is the consumer's.
The basic single-phase energy meter has four terminals, arranged in a standard sequence from left to right in most IEC and BS-compatible designs:
— Terminal 1 (M1 or LINE LIVE IN): The incoming live conductor from the utility supply. This conductor is under the utility's seal. — Terminal 2 (M2 or LINE LIVE OUT): The live conductor continuing to the consumer's main switch and distribution board. — Terminal 3 (M3 or NEUTRAL IN): The incoming neutral from the utility. — Terminal 4 (M4 or NEUTRAL OUT): The neutral continuing to the consumer's installation.
The meter measures the real power (watts) flowing through it by monitoring both the current in the live conductor and the voltage across the supply. The product of these — integrated over time — gives energy in kWh. Modern electronic meters (smart meters) perform this calculation digitally; older electromechanical meters use the torque on a spinning aluminium disc (Ferraris disc) to drive a mechanical counter.
In a direct-connected (whole-current) meter, the full load current flows through the meter's current coil. This design is practical for residential and small commercial loads typically up to 80–100 A. For higher loads, the current would damage the meter's internal windings, so a current transformer (CT) is used instead. A CT meters is a 5-terminal device: separate current terminals (for the CT secondary leads) and voltage terminals (for the supply). The CT reduces the primary load current to a standard secondary signal of 1 A or 5 A for the meter to measure.
The meter must always be connected in the live conductor's current path — it cannot be bypassed, and the meter enclosure is sealed by the utility to prevent tampering. In most countries, meter connections are made by the utility or a licensed metering contractor only. The consumer's electrician works on the load side of the meter, downstream of the meter tails.
All connections to or near the meter must comply with the utility's network connection agreement, IEC 62053, BS EN 62053, or the applicable metering standard, and must be performed only by authorised personnel.
How to wire single phase energy meter diagram
- Understand which side of the meter is accessible to the consumer's electrician The consumer's electrician works only on the LOAD side of the meter — the tails running from the meter's output terminals (M2 and M4) to the consumer unit. The LINE side terminals (M1 and M3) and the meter body seals are the utility's domain and must not be accessed. If the meter tails on the load side need replacement, inform the utility before working near the meter.
- Identify the meter tail routing from the meter to the consumer unit The meter tails are the short heavy-gauge cables (typically 25 mm² in UK residential installations, but varies by supply capacity) running from the meter LOAD terminals to the main isolator switch and consumer unit. These tails are live at mains voltage whenever the utility supply is on — they cannot be isolated without the utility disconnecting or capping the meter. Never work on meter tails without utility authorisation or a confirmed outage.
- For sub-meter installation: isolate the circuit at the consumer unit before connecting A sub-meter is installed on the load side of the main consumer unit. Switch off the consumer unit's main switch and the relevant circuit breaker. Verify dead. The sub-meter's LINE terminals receive live and neutral from the upstream consumer unit output. The sub-meter's LOAD terminals connect to the circuit or sub-distribution board being metered.
- Connect the sub-meter in series with the live and neutral conductors only The sub-meter must be in series with both live and neutral of the circuit being measured — not just the live. Connect: outgoing live from consumer unit → sub-meter M1 → sub-meter M2 → load live. Outgoing neutral from consumer unit → sub-meter M3 → sub-meter M4 → load neutral. Earth conductors bypass the meter entirely.
- Verify polarity and terminal tightness before restoring power Confirm live is on the LINE terminal (M1) and neutral on the LINE neutral terminal (M3). Reversed polarity (neutral on M1) will not damage modern electronic meters but will cause incorrect registration or zero display in some designs. Tighten all terminal screws to the manufacturer's torque specification.
- Restore power and verify meter operation Restore power. The meter display should illuminate (electronic meters) or the disc should rotate slowly under load (electromechanical). With a known load connected (e.g. a resistive heater of known wattage), verify the meter reading rate against the expected energy consumption. For a 1 000 W load, the meter should register approximately 1 kWh per hour of operation.
Specifications
| Meter type | Single-phase two-wire (1P2W) — one live, one neutral |
|---|---|
| Standard measurement unit | Kilowatt-hour (kWh) — energy = power (kW) × time (hours) |
| Direct-connected meter current range (typical residential) | 5–80 A or 5–100 A — confirm meter nameplate |
| CT secondary current (CT-operated meters) | 1 A or 5 A — must match meter CT terminal specification |
| Supply voltage (standard IEC/BS) | 230 V AC ±10%, 50 Hz |
| Accuracy class (IEC 62053-21) | Class 1 or Class 2 (±1% or ±2% at reference current) — confirm meter compliance certificate |
| Terminal numbering (standard 4-terminal direct meter) | M1 = Live in (LINE); M2 = Live out (LOAD); M3 = Neutral in (LINE); M4 = Neutral out (LOAD) |
| Meter tail cable size (UK residential 100 A supply — typical) | 25 mm² copper — confirm with network operator specification |
Safety warnings
- THE LINE SIDE OF THE METER IS LIVE AT ALL TIMES. The incoming supply terminals (M1 and M3) and the sealed meter body are energised continuously by the utility. Only the utility or an authorised metering contractor may access these terminals. Never open the meter seals or terminals — doing so is a criminal offence and creates a lethal shock hazard.
- METER TAILS ARE LIVE EVEN WITH THE CONSUMER UNIT SWITCHED OFF. The meter tails between the meter LOAD terminals and the consumer unit main switch are not isolated by the consumer unit switch. They carry mains voltage at all times the utility supply is connected. Before working anywhere near the meter tails, contact the utility to arrange a supply disconnection.
- DO NOT tamper with meter seals, modify meter connections, or bypass the meter. Energy theft by meter tampering is a criminal offence carrying fines and custodial sentences in most jurisdictions. Tampered meters also create unsafe wiring conditions due to the high fault current available from the utility network.
- For CT-operated meters, never open-circuit the secondary winding of a CT while the primary circuit is energised. An open-circuited CT secondary develops dangerously high voltages across its terminals as the transformer attempts to maintain the ampere-turns balance with no secondary load. Always short-circuit the CT secondary before disconnecting any CT wiring.
- All metering work, including any work that requires access within 300 mm of the utility meter, must be performed by persons authorised by the local network operator and in compliance with IEC 62053, BS EN 62053, or the applicable national metering standard. Comply with all utility network connection agreements.
Tools needed
- Digital multimeter (AC voltage, AC current clamp)
- Insulated screwdrivers (flat head for terminal screws)
- Torque screwdriver (for terminal screw torque specification compliance)
- Non-contact voltage tester (verify dead on load-side tails before working)
- Cable stripper (for meter tail gauge)
- Approved meter seal (for re-sealing after authorised meter work)
Common mistakes
- Connecting the LOAD and LINE terminals of a sub-meter in reverse: Reversed terminals mean the meter registers energy flowing in the wrong direction. Modern bidirectional meters may still record correctly, but single-direction meters will show zero or reverse registration. Always connect LINE to the upstream supply and LOAD to the downstream circuit.
- Using the energy meter as a main switch: The energy meter is a measuring device, not a switching device. Its current connections are not designed for frequent making and breaking of load current. If an isolation point is needed between the meter and the consumer unit, a separate main isolator switch must be installed.
- Leaving CT secondary terminals open-circuit during installation: Open-circuited CT secondaries develop dangerous high voltages. During installation of CT-metered systems, the CT secondary terminals must be short-circuited (via a shorting switch or link) whenever the CT primary circuit is energised and the meter is not connected.
- Sizing the sub-meter below the maximum circuit current: A 40 A sub-meter on a 63 A circuit breaker means the meter can be damaged by the full 63 A fault current that the breaker permits before tripping. Always size the sub-meter at or above the upstream circuit protection rating.
- Not recording the meter reading before and after installation (for billing accuracy): Any work on metering circuits, even on the load side, should be accompanied by a recorded meter reading to establish continuity of the billing record and to resolve any disputes about consumption during the work period.
Troubleshooting
- Energy meter display is blank — no reading
- Cause: No utility supply (power outage), blown isolator fuse or failed main switch, or meter fault (for digital meters: failed display or supply to meter electronics) Fix: Check whether neighbouring premises have supply. Check the main isolator switch. If the supply is confirmed present and the isolator is closed, the meter may be faulty — contact the utility or metering contractor. Do not open the meter or attempt internal investigation.
- Sub-meter reads significantly higher or lower than expected for known load
- Cause: Reversed LINE/LOAD terminals (low or zero reading in single-direction meter), meter not rated for AC loads with high harmonic content, or CT ratio incorrectly programmed in CT-operated sub-meter Fix: Verify LINE and LOAD terminal orientation. Verify that the sub-meter type is compatible with the load (variable speed drives and non-linear loads require a true-RMS or harmonic-capable meter). For CT-operated sub-meters, verify the CT ratio is programmed into the meter's configuration matches the CT installed.
- Meter registration unexpectedly high — consumption much greater than expected
- Cause: Leakage current from faulty appliance insulation, a circuit not previously detected (e.g. an electric underfloor heating circuit active unexpectedly), theft of supply at a shared distribution point, or a meter registering another circuit erroneously Fix: Perform a load audit: switch off all breakers at the consumer unit and observe whether the meter continues to register — if yes, energy is being consumed upstream of the consumer unit (before the main switch). If not, switch on breakers one at a time and identify which circuit drives the meter reading. Measure current on each circuit with a clamp meter.
Frequently asked questions
What is the difference between the LINE side and LOAD side of an energy meter?
The LINE side (terminals M1 and M3 in a basic 4-terminal meter) is the utility supply — the incoming live and neutral from the distribution network. The LOAD side (terminals M2 and M4) is the consumer's installation — the outgoing live and neutral feeding the consumer unit or distribution board. Current flows from LINE into the meter, through the meter's measuring elements, and out to LOAD.
Why is the meter sealed by the utility?
The meter is a billing instrument. Tampering with the meter, its connections, or its seals constitutes energy theft and is a criminal offence. The utility seals the meter tails terminals and the meter cover to detect any interference. Breaking a meter seal without authorisation attracts criminal and civil liability regardless of intent.
What is a current transformer (CT) metered connection?
For loads above approximately 80–100 A, the full load current cannot safely pass through a direct-connected meter's current coil. A CT (current transformer) is instead clamped around the live conductor. The CT's secondary output — a scaled-down current proportional to the primary current, typically 1 A or 5 A for the meter's rated secondary current — feeds the meter's current terminals. The meter calculates energy based on this scaled signal and the supply voltage.
What is the function of the meter's neutral terminal if neutral current is not measured?
In a single-phase installation, a direct-connected meter measures both voltage (via its voltage coil connected across live and neutral) and current (via its current coil in series with the live conductor). The neutral is connected through the meter to maintain the reference voltage for the voltage coil and to provide a return path for the consumer's neutral load current. In some meter designs, the neutral is only looped through without passing through a measuring element — in others it passes through a neutral current coil as well.
Can I install my own sub-meter downstream of the utility meter?
Yes. Sub-meters (sometimes called check meters or tenant meters) can be installed downstream of the utility meter on the consumer's load side, without utility authorisation (though local regulations may apply). Sub-meters are useful for monitoring energy use by individual tenants, circuits, or equipment. They use the same four-terminal connection principle — their LINE terminals connect to the distribution board, and their LOAD terminals connect to the circuit being metered.
