Single-Phase kWh Meter Connection: Wiring and Terminal Layout

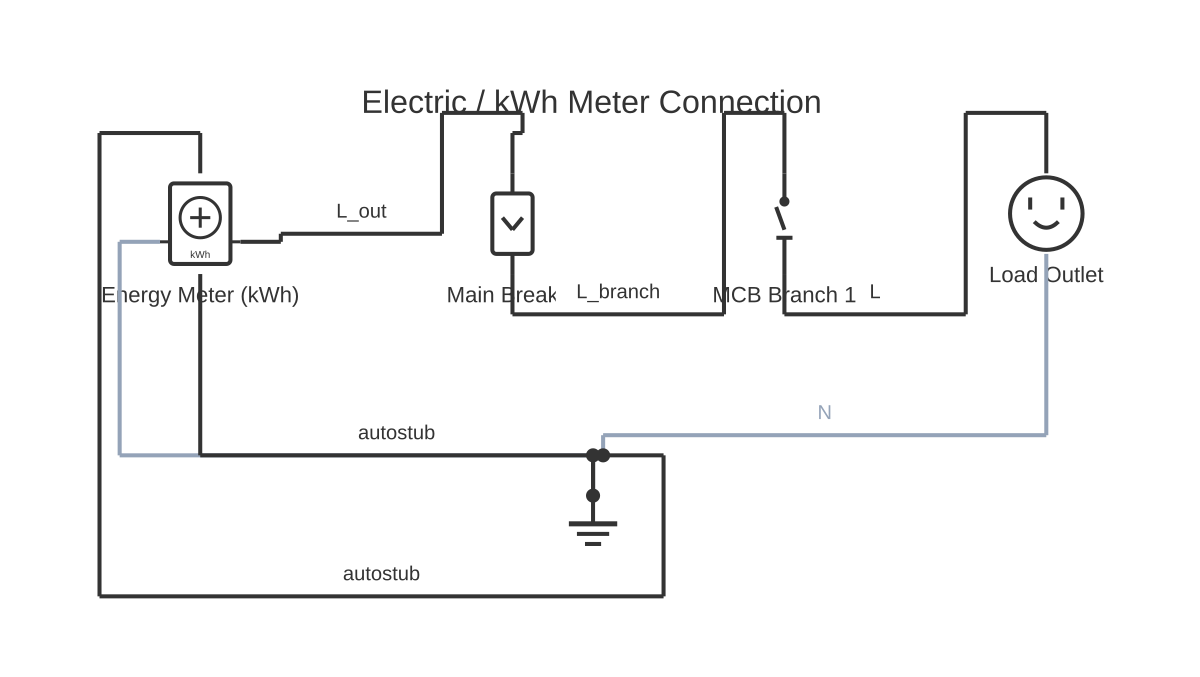

This is a free printable single phase meter connection: download the diagram as SVG or open it and print to paper or PDF.
A single-phase kWh (kilowatt-hour) energy meter connects in series with the line conductor and across the supply using a standardised four-terminal layout, measuring real energy consumed by the load over time.
A single-phase kWh energy meter measures the electrical energy consumed by a load in kilowatt-hours. The meter has two internal circuits: the current coil (current circuit), which is a low-impedance conductor wound around a current transformer core and connected in series with the load on the line conductor; and the voltage coil (potential circuit), which is a high-impedance winding connected in parallel (across) the supply.
The standard four-terminal layout for a single-phase induction (electromechanical Ferraris disc) meter is numbered 1–4 from left to right: terminal 1 is the incoming line (phase), terminal 2 is the outgoing line to the load, terminal 3 is the incoming neutral, and terminal 4 is the outgoing neutral. The line conductor passes through terminals 1 and 2 (in series), and the voltage coil shunt link connects internally across the supply. In some meter configurations, a shorting link bridges terminals 2 and 3, providing the voltage coil connection from the series current path — this is a critical wiring detail that varies by manufacturer and country standard.
Modern electronic (static) meters replace the Ferraris disc with solid-state measurement ICs, but their terminal layout follows the same principle and is typically labelled in the same 1–4 or L1/N arrangement. Electronic meters add data communication ports (RS-485, optical IR port, or Modbus), tamper detection, and multi-tariff capability.
For metering to be accurate and legal for billing, the current coil must carry the full load current in series — any bypassing or shunting of the current coil reduces the indicated consumption. The meter must be sealed by the utility and protected against tampering. Meter installation in most countries is the responsibility of the licensed electricity distributor or a licensed electrician and requires a permit — it is not a DIY activity.
Current transformer (CT) metering is used for large loads where the full load current is too high to pass directly through the meter. A CT with a 5A secondary is installed on the line conductor, and the meter's current coil is connected to the CT secondary. The meter display is scaled by the CT ratio to show actual energy consumption.
How to wire single phase meter connection
- Confirm jurisdiction and regulatory requirements Before any work, verify whether meter connection in your jurisdiction requires a utility permit, must be performed by a licensed metering electrician, or is restricted to the network operator. Proceeding without proper authorisation is illegal and may void insurance.
- Identify the meter's terminal layout from the nameplate or manual Read the terminal numbering and wiring diagram printed on the meter body or in the manufacturer's datasheet. Terminal numbering and shorting link positions vary by manufacturer and country standard — do not assume a universal layout without verification.
- Connect the incoming supply line conductor to terminal 1 The line (phase) conductor from the main supply isolator connects to meter terminal 1 (incoming line). Use the correct cable size as specified by the utility or local wiring code for the metered supply rating.
- Connect the outgoing line conductor from terminal 2 to the consumer unit The outgoing line conductor runs from meter terminal 2 to the main switch or consumer unit (distribution board). This conductor carries the full load current through the meter's current coil.
- Connect neutral conductors through terminals 3 and 4 The incoming neutral from the supply connects to terminal 3. The outgoing neutral to the consumer unit connects to terminal 4. Neutral conductors pass through the meter for metering purposes and are not broken by any switch in the meter.
- Verify the voltage coil connection (shorting link) Confirm the meter's internal voltage coil is connected across the supply as per the manufacturer's wiring diagram. Some meters require an external shorting link between specific terminals; others have this internally configured. An incorrectly connected voltage coil will cause the meter not to register.
- Have the installation inspected, sealed, and commissioned After all connections are made, the meter must be inspected by the utility representative or licensed metering electrician, sealed (tamper-evident seal applied), and a meter reading recorded at commissioning. The meter is then the utility's property under seal.
Specifications
| Standard supply voltage (IEC, most countries) | 230V AC, 50Hz |
|---|---|
| Standard supply voltage (North America) | 120V/240V AC, 60Hz |
| Typical direct-connect meter current rating | 5–60A or 5–100A (varies by utility specification) |
| Meter accuracy class (IEC 62053-21) | Class 1 (±1%) or Class 2 (±2%) for induction meters |
| Meter accuracy class (electronic, IEC 62053-21) | Class 0.2, 0.5, 1, or 2 depending on type |
| CT secondary current (standard for CT metering) | 5A at rated primary current |
| Number of terminals (standard single-phase direct meter) | 4 (Line in, Line out, Neutral in, Neutral out) |
Safety warnings
- Electricity meter terminals on the supply (incoming) side are live at all times — the network operator's main fuse or sealed cutout is the only upstream protection, and working on live terminals at this point is EXTREMELY DANGEROUS. Only the network operator's authorised personnel should work on these terminals.
- Never attempt to remove, bypass, or tamper with the utility-applied seals on a kWh meter. This is illegal in all jurisdictions, may result in criminal prosecution, and creates a serious fire and shock hazard.
- All meter installation, connection, and commissioning must comply with the local electricity distributor's network standards, the national wiring code (BS 7671, NEC, AS/NZS 3000, or equivalent), and must be performed by a licensed or authorised electrician.
- CT secondary circuits must never be open-circuited while the primary conductor is energised. An open CT secondary develops a dangerously high voltage across its terminals (potentially thousands of volts) sufficient to cause fatal electric shock and CT core saturation damage.
- This diagram is for reference and educational purposes only. Meter connection is a licensed activity in most countries. Do not perform any work on metering equipment without the appropriate authority.
Tools needed
- Calibrated voltage tester (CAT IV rated for utility service voltage) for proving dead before any terminal work
- Insulated screwdrivers rated for the working voltage
- Cable strippers and ferrule crimpers for solid or stranded meter tails
- Clamp meter (for post-commissioning verification of load current through meter)
- Terminal torque screwdriver (torque value specified by meter manufacturer for terminal screws)
- Continuity tester (for verifying neutral and earth connections)
Common mistakes
- Connecting the line and neutral conductors in reverse order at the meter terminals — some meters have directional sensitivity and will record in reverse or not at all if polarity is reversed.
- Leaving a CT secondary circuit open-circuited while the primary line is energised — this generates dangerously high voltage across the CT secondary terminals.
- Using undersized meter tails (the cable connecting the meter to the consumer unit) that overheat under sustained maximum load current.
- Assuming all single-phase meters have identical terminal numbering — verify the specific meter's wiring diagram every time, as terminal layouts vary between manufacturers and standards.
- Failing to record the meter reading at installation — without a confirmed installation reading, energy consumed between installation and the first utility bill is unverifiable.
Troubleshooting
- Meter disc does not rotate and display does not increment with load connected
- Cause: Voltage coil not connected across supply (open voltage circuit), or current coil not in the supply path (bypassed or open-circuited), or meter has internal failure Fix: With supply isolated and verified dead, check voltage coil connection per manufacturer's wiring diagram. Verify line conductor passes in series through terminals 1 and 2. If wiring appears correct, the meter may have an internal fault — contact the utility for replacement.
- Meter reads consumption even with all loads switched off
- Cause: Leakage current through insulation, a connected load that is not truly off (standby mode appliances), meter tamper or bypass condition, or meter has an internal fault Fix: Disconnect all load circuits at the consumer unit one by one and observe whether the meter continues to register. If it continues with all MCBs off, there may be a wiring error, earth leakage current path, or a meter fault. Contact the utility.
- Unexpectedly high energy consumption reading
- Cause: Incorrect CT ratio entered in CT-metered installation, additional loads connected without owner's knowledge, or high-consumption appliance drawing much more than expected Fix: Measure actual load current with a clamp meter on the supply conductor and compare to the meter's displayed demand (if available). Verify CT ratio configuration. Investigate all connected loads systematically.
Frequently asked questions
What are the four terminals on a single-phase kWh meter?
The four terminals in standard layout are: terminal 1 (incoming line/phase from the supply), terminal 2 (outgoing line/phase to the load), terminal 3 (incoming neutral from the supply), and terminal 4 (outgoing neutral to the load). The line conductor is in series through terminals 1 and 2; the neutral passes through 3 and 4.
Why is the line conductor in series and the voltage coil in parallel in a kWh meter?
The current coil must carry the full load current in series to measure consumption accurately — like an ammeter. The voltage coil measures the supply voltage in parallel — like a voltmeter. Power (and therefore energy) equals current multiplied by voltage, so both measurements are needed simultaneously.
Can I install a kWh meter myself?
In most jurisdictions, metering equipment that interfaces with the utility distribution network must be installed, commissioned, and sealed by the licensed electricity distributor or a licensed electrician with metering authorisation. Unauthorised interference with a utility meter is illegal in virtually all countries and can result in prosecution.
What is CT (current transformer) metering and when is it used?
CT metering is used when load current exceeds the meter's direct current rating (typically 100A for residential meters). A current transformer is clamped around the line conductor, producing a scaled-down secondary current (usually 5A at full load). The meter's current coil is connected to the CT secondary, and the reading is multiplied by the CT ratio to give actual energy consumption.
What does the rotating disc in an older electromechanical meter indicate?
The Ferraris aluminium disc in an induction-type kWh meter rotates at a speed proportional to the load power — faster rotation means higher power consumption. The disc rotation drives mechanical register counters. A stationary or very slowly rotating disc with loads connected indicates near-zero consumption or a potential metering issue.
