Solar Connection Diagram

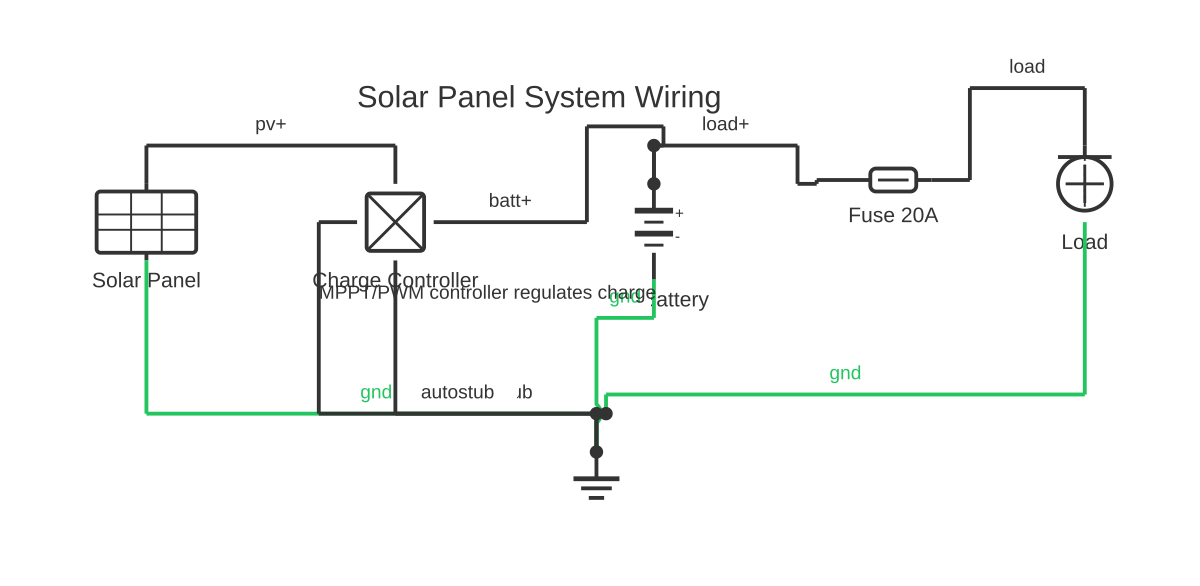

This is a free printable solar connection diagram: download the diagram as SVG or open it and print to paper or PDF.
A solar connection diagram maps the electrical path from solar panels through a charge controller to the battery bank and inverter, showing series and parallel panel configurations, wiring polarity, fusing, and the charge controller's load output for DC loads.
A solar power system diagram has four main stages that must be understood in sequence, because errors in any one stage propagate through the whole system and can damage components or create fire hazards.
Stage 1 — Solar panel array. Panels are DC voltage sources. Their wiring configuration determines both the array voltage and the array current. Panels wired in series add their voltages while keeping current the same (e.g., two 20 V / 10 A panels in series = 40 V / 10 A). Panels wired in parallel add their currents while keeping voltage the same (e.g., two 20 V / 10 A panels in parallel = 20 V / 20 A). Most charge controllers accept a range of panel input voltages — MPPT controllers typically 12–150 V Voc input; PWM controllers must match the battery bank voltage closely. Always verify the panel's open-circuit voltage (Voc) and short-circuit current (Isc) against the controller's maximum ratings before wiring.
Stage 2 — Charge controller. The charge controller sits between the panel array and the battery bank. It prevents overcharging (which can damage or destroy batteries) and, in many designs, prevents battery discharge back through the panels at night. A PWM (pulse-width modulation) controller connects the panels directly to the battery and regulates by rapidly switching the connection. An MPPT (maximum power point tracking) controller uses a DC-DC converter circuit to draw maximum power from the panels regardless of battery voltage, making it more efficient — particularly with higher-voltage panel strings.
Stage 3 — Battery bank. The battery (or battery bank) stores energy for use when panels are not generating. Battery banks may be wired in series (to increase voltage) or parallel (to increase capacity in Ah), or a combination. Lead-acid, AGM, gel, and lithium iron phosphate (LiFePO4) batteries all have different charge voltage profiles; the controller must be programmed for the correct battery chemistry.
Stage 4 — Inverter and DC loads. A DC-to-AC inverter connects to the battery bank to power AC loads. DC loads connect via the charge controller's load output (for small loads) or directly to the battery bank through a separate fused circuit. The diagram must show all fusing: between panels and controller, between controller and battery, and between battery and inverter.
Fusing and cable sizing are critical. Each connection segment has a different current level and must be fused at the source and cabled for the maximum current that circuit will carry.
How to wire solar connection diagram
- Design the panel array configuration Determine the number of panels, their rated Voc (open-circuit voltage) and Isc (short-circuit current), and how to configure them (series, parallel, or series-parallel) to match the charge controller's input voltage and current limits. Verify the combined series Voc does not exceed the controller's maximum input voltage, including at cold-temperature conditions (Voc increases as panel temperature decreases).
- Mount and wire the panel array Connect panels in the designed series/parallel configuration using UV-resistant, twin-core solar cable (rated 600 V DC or higher). Use MC4 connectors at each panel. Label positive and negative at the array output. Install string fuses or circuit breakers for each parallel string in a combiner box.
- Run cable from array to charge controller Size the cable for the maximum expected short-circuit current (Isc) of the array. Use DC-rated cable with UV protection for outdoor runs. Keep cable runs as short as practical to minimise resistive voltage loss. Connect positive to the PV+ terminal and negative to the PV- terminal of the charge controller. Do not yet connect the battery — most controllers require battery connection before panel connection.
- Connect the battery to the charge controller first Before connecting panels, connect the battery bank to the charge controller's BATT+ and BATT- terminals, with a suitably rated fuse on the positive conductor placed as close to the battery terminal as practical. The controller powers up from the battery and reads the battery voltage to configure its charging algorithm.
- Connect the panels to the controller With the battery connected and the controller operational, connect the panel cables to the PV+ and PV- terminals. The controller will begin regulating the panel output into the battery. Monitor the controller display or app for correct input voltage, current, and charging status.
- Connect DC loads or the inverter DC loads can connect to the charge controller's LOAD output (for controllers with this feature), which provides low-voltage disconnect protection. The inverter connects directly to the battery bank — positive to positive and negative to negative — with a fuse on the positive cable at the battery terminal. The fuse must be rated for the inverter's maximum surge current.
- Label all conductors, verify polarity, and document the installation Label every cable with its source, destination, and polarity. Create a final wiring diagram showing all components, cable sizes, fuse ratings, and terminal connections. DC wiring that is incorrectly polarised can destroy components instantly — double-check before energising each stage.
Specifications
| Typical panel open-circuit voltage (Voc) — 72-cell | 44–48 V; increases in cold temperatures |
|---|---|
| Lead-acid battery charge voltages (12 V bank) | Bulk: 14.4–14.6 V; Absorption: 14.4–14.6 V; Float: 13.6–13.8 V |
| LiFePO4 battery charge voltages (12 V nominal) | Bulk/Absorption: 14.4–14.6 V; Float: 13.6 V (or disabled) |
| MPPT controller input voltage range (typical) | 12–150 V DC (verify with specific controller datasheet) |
| Maximum system DC voltage (residential, IEC 60364-7-712) | 1 500 V DC for utility systems; lower limits apply for domestic installations per local code |
| Solar cable temperature rating | 90 °C (XLPE solar cable); rated to 600 V DC or higher |
| Pure sine wave inverter efficiency (typical) | 85–95% depending on load level and design |
| Depth of discharge (DoD) — lead-acid | 50% DoD maximum for long cycle life; 80% DoD maximum LiFePO4 |
Safety warnings
- Solar panels generate voltage whenever exposed to light — they cannot be switched off. Even under overcast conditions, panels produce enough voltage to cause serious shock or fire. Always cover panels with an opaque material when working on the wiring, or work at dawn or dusk if covering is impractical.
- Battery banks — particularly lead-acid types — can deliver enormous short-circuit currents (thousands of amps). Any tool or conductor that bridges the battery terminals even momentarily will cause an explosion of molten metal, fire, and possible battery casing failure. Install fuses immediately at the battery terminals before connecting any other cable.
- All solar system installations must comply with applicable electrical codes. In the USA, photovoltaic system wiring is covered by NEC Article 690. In the UK, BS 7671 Chapter 712 covers PV installations. In Australia, AS/NZS 5033 covers PV array wiring. Consult your local regulations and, where required, engage a licensed electrician or registered PV installer.
- DC arcs are more persistent and harder to extinguish than AC arcs. DC-rated fuses, circuit breakers, and disconnect switches must be used in all DC circuits. An AC-rated device in a DC circuit may not interrupt the arc when it opens, continuing to pass current through the ostensibly open contacts.
- Lithium battery cells (LiFePO4 and others) require a battery management system (BMS) to prevent overcharge, over-discharge, and cell imbalance. Operating lithium cells without a BMS risks thermal runaway — an exothermic reaction that is difficult to extinguish and can cause fire or explosion.
Tools needed
- Digital multimeter with DC voltage and current capability (CAT II or CAT III rated)
- MC4 crimping tool (for panel connectors)
- Hydraulic cable lug crimping tool (for battery and inverter cables)
- Wire stripper (for solar cable cross-sections in use)
- Insulation resistance tester (for cable fault testing)
- Opaque panel covers or tarpaulins (for isolating panels during installation)
- Irradiance meter or reference panel (for commissioning performance check)
- Torque screwdriver (for terminal tightening to manufacturer spec)
Common mistakes
- Exceeding the charge controller's maximum input voltage by wiring too many panels in series — the open-circuit voltage (Voc) of the string must be checked at minimum ambient temperature, where Voc is highest.
- Connecting the panels to the charge controller before the battery — many controllers require the battery to be connected first to establish operating voltage; connecting panels first can damage the controller.
- Using AC-rated fuses and switches in the DC circuits — DC arc extinction requires specifically rated DC devices; AC-rated devices may weld shut or fail to interrupt DC fault current.
- Undersizing battery interconnect cables and inverter cables — these carry the highest currents in the system and must be sized for the inverter's surge current, not just its continuous rating.
- Ignoring voltage drop in long cable runs — in 12 V systems especially, even a small resistance causes significant voltage drop, reducing system efficiency and causing the inverter to shut down on low-voltage protection before the battery is actually depleted.
Troubleshooting
- Charge controller shows panel voltage but zero charging current
- Cause: Panel polarity is reversed at the controller terminals; or the combined panel voltage is below the controller's minimum input threshold; or a string fuse has blown Fix: Measure panel polarity with a multimeter before connecting. Verify the open-circuit voltage of the array against the controller's minimum input voltage specification. Check string fuses for continuity.
- Inverter shuts off under load with low-voltage alarm
- Cause: Battery voltage drops below the inverter's low-voltage cutoff — either the battery is depleted, the battery cables are undersized causing excessive voltage drop under load, or a bad connection has high resistance Fix: Measure battery voltage directly at the battery terminals under full load. Compare to voltage at the inverter input terminals. A discrepancy indicates cable or connection resistance. Check and tighten all connections, and verify cable sizing is adequate for the inverter's full load current.
- Battery is not charging to full capacity despite adequate sunshine
- Cause: Charge controller is in float stage prematurely due to incorrect battery settings; or panel array is partially shaded; or internal battery resistance has increased due to age or sulfation Fix: Review charge controller settings for the correct bulk, absorption, and float voltages for your battery chemistry and voltage. Test the battery under controlled conditions with a dedicated battery charger. Check panels for partial shading from trees, chimneys, or panel soiling.
Frequently asked questions
What is the difference between a PWM and an MPPT solar charge controller?
A PWM controller directly connects the panel array to the battery and regulates current by rapid on-off switching — it is simple and low-cost but requires the panel voltage to closely match the battery voltage, wasting potential power. An MPPT controller uses a DC-DC converter to operate the panels at their optimal power point regardless of battery voltage, improving efficiency by 15–30% especially in cold weather or with higher-voltage panel strings.
Why do solar panels need to be fused between the array and the charge controller?
In a parallel-wired array, if one panel or string develops a short circuit, current from the other parallel strings flows into the fault through the array wiring. Without fuses (or circuit breakers) on each string, this reverse current can significantly exceed the wire's rated capacity and cause a fire. Each parallel string requires its own protection device.
What does series versus parallel panel wiring change in a solar connection diagram?
Wiring panels in series increases array voltage while keeping current the same. Wiring panels in parallel increases array current while keeping voltage the same. Series wiring requires an MPPT controller that can handle higher input voltage. Parallel wiring requires heavier cable to carry higher currents. Most real systems combine both to optimise for the controller's specifications.
Where should fuses be placed in a solar system?
Fuses (or circuit breakers) belong as close as possible to the positive terminal of each power source: at the panel combiner/array output, between the battery bank and the charge controller, between the battery bank and the inverter, and on each individual load circuit. Every unfused conductor between a battery terminal and a protective device is a potential short-circuit fire hazard.
Can I connect solar panels directly to a battery without a charge controller?
Only in very limited circumstances — typically a single small panel (under 5 W) charging a large battery, where the panel's maximum current is well under 1% of the battery's Ah capacity. In almost all practical installations, omitting the charge controller risks overcharging, gassing, and permanent damage to the battery, regardless of battery chemistry.
