Solar Light Diagram: How the Circuit Works, Component Functions, and Common Faults

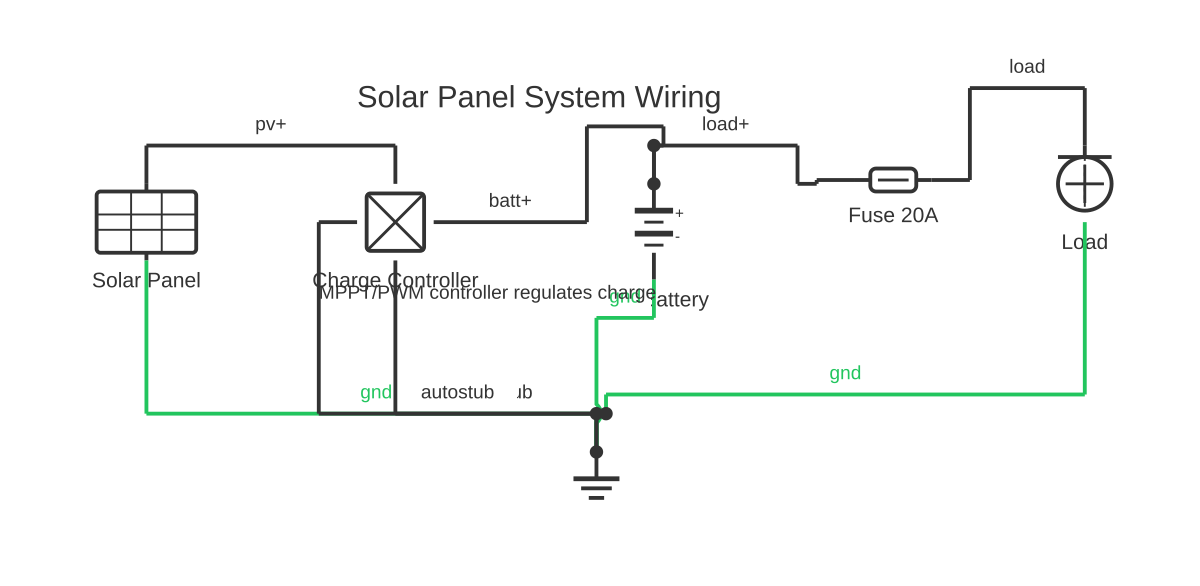

Solar Light Diagram — circuit diagram showing component connectionsSolar PanelCharge Controller+-12V BatteryFuse 20ALoadSolar Panel System WiringMPPT/PWM controller regulates charge
Solar Light Diagram: How the Circuit Works, Component Functions, and Common Faults — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable solar light diagram: download the diagram as SVG or open it and print to paper or PDF.

Understand the complete solar light circuit — solar panel, charge controller, battery, LED driver, and light sensor — and learn how to diagnose faults when a solar light stops working.

A standalone solar garden or pathway light is a self-contained power system in miniature. It harvests energy from sunlight, stores it in a rechargeable battery, and releases that stored energy through an LED driver circuit at night. Understanding how each block in this circuit interacts helps enormously when diagnosing why a solar light stops illuminating, dims prematurely, or fails to charge.

The circuit has four functional blocks:

The solar panel (photovoltaic module) generates a DC voltage proportional to incident light intensity. A typical small solar garden light uses a panel of 2 V to 6 V at a current of 50 mA to 200 mA under direct sunlight. The panel output is fed to a charge controller circuit.

The charge controller manages battery charging. In a simple solar garden light, this is often just a Schottky diode in series between the panel and the battery — the diode passes current from the panel to the battery when the panel voltage exceeds the battery voltage, and blocks reverse current from the battery back through the panel at night. More sophisticated controllers use a PWM (pulse-width modulated) or MPPT (maximum power point tracking) IC to manage charging more efficiently, regulate the charging voltage to prevent overcharge, and protect the battery from deep discharge.

The rechargeable battery stores the energy harvested during daylight. Small solar garden lights use a single AA or AAA nickel-metal hydride (NiMH) cell (1.2 V), or a lithium iron phosphate (LiFePO4) cell. The battery capacity (mAh rating) determines how many hours of runtime the light can deliver on a single day's charge.

The LED driver circuit converts the battery voltage into the correct current for the LED. A simple joule thief or boost converter circuit is often used to drive a white LED (forward voltage approximately 3.0–3.4 V) from a 1.2 V battery cell. The LED driver is controlled by the light sensor — a light-dependent resistor (LDR) or a solar panel voltage detection circuit — which switches the LED circuit on when ambient light falls below a threshold (dusk) and off when light rises above the threshold (dawn).

How to wire solar light diagram

  1. Verify the solar panel is generating voltage In direct sunlight, use a multimeter on DC voltage to measure the open-circuit voltage across the solar panel terminals (positive and negative). A healthy panel should produce a voltage significantly above the battery voltage — typically 3 V to 6 V for a garden light panel. A reading near zero in full sun indicates a failed panel, a broken connection at the panel terminals, or a completely shaded panel. Check the panel surface for dirt or film — a thin layer of grime can reduce output by 20–50%.
  2. Check the battery voltage After a full day of sunlight exposure, measure the battery voltage with the light switched off (if possible) or with the solar panel disconnected. A fully charged NiMH AA cell should read approximately 1.35–1.45 V. A reading below 1.0 V indicates a discharged or failed battery. A reading of 0 V indicates a battery with an open internal connection. Replace the battery if voltage is below 1.0 V after charging, or if capacity-based runtime is short.
  3. Test the blocking diode or charge controller With the panel producing voltage in sunlight, measure voltage at the battery positive terminal. It should be charging (panel voltage drives current through the diode to the battery). If voltage at the battery terminal is zero despite the panel producing voltage, the blocking diode may be open-circuit (failed). Test the diode in circuit by measuring the voltage drop across it in the forward direction (typically 0.2–0.4 V for a Schottky diode) — an open diode shows the full panel voltage across it rather than a forward drop.
  4. Test the light sensor (LDR) function Cover the LDR (or the solar panel, if the light uses panel voltage as the night sensor) completely with a piece of dark material to simulate night. The LED should switch on. Remove the covering and the LED should switch off. If the LED does not respond, either the LDR is faulty (check its resistance — it should be very high in bright light and low in darkness), the control IC is faulty, or the LED driver circuit has failed.
  5. Test the LED If all other components check out but the LED does not light, test the LED directly. Connect a 100 Ω resistor in series with the LED between a 3 V or 5 V DC supply and confirm it illuminates. A failed open-circuit LED shows no light and no current draw. A failed short-circuit LED (less common) shows no light but excessive current — the driver IC may have been damaged by the shorted LED.
  6. Inspect all connections and the enclosure seal Solar lights are exposed to moisture, temperature cycling, and UV radiation. Inspect all wire connections at the panel, battery contacts, and LED for corrosion or fracture. Battery contact springs frequently corrode in outdoor environments — clean with a pencil eraser or fine sandpaper. Inspect the enclosure seal — water ingress into the control board causes corroded tracks and short circuits. Re-seal with silicone if required.

Specifications

Typical solar panel open-circuit voltage4 V to 6 V (small garden light); larger security lights may be higher
Typical NiMH cell voltage1.2 V nominal; 1.4 V fully charged; replace below 1.0 V under load
White LED forward voltageTypically 3.0–3.4 V at 20 mA operating current
LDR resistance in daylightTypically 10 kΩ to 1 MΩ depending on light level and component specification
LDR resistance in darknessTypically 1 kΩ to 10 kΩ depending on component specification
Typical runtime per full charge6 to 12 hours (varies by battery capacity, LED current, and control IC efficiency)
Battery replacement intervalTypically every 1–3 years, or when runtime per charge falls significantly below original specification

Safety warnings

Tools needed

Common mistakes

Troubleshooting

Solar light does not turn on at night
Cause: Discharged or failed battery, failed LED, faulty LDR, or failed LED driver circuit Fix: Cover the solar panel and LDR with dark material to simulate night. If the light still does not turn on, measure the battery voltage — if below 1.0 V (NiMH), the battery is discharged or dead. Charge the light in full sun for a full day and retest. If the battery charges (measures above 1.2 V) but the light still does not activate at night, the LED or driver circuit has failed.
Solar light turns on at night but is very dim compared to when it was new
Cause: Partially degraded battery with reduced capacity, partially failed LED, dirty or degraded solar panel surface reducing charging, or corroded battery contacts increasing resistance Fix: Clean the solar panel surface. Clean the battery contacts. Measure battery voltage after a full day of charging — if it measures well (above 1.2 V) but the LED is dim, the LED has partially degraded. If the battery voltage is low after charging, the battery capacity has degraded and replacement is required.
Solar light stays on during the day and turns off at night
Cause: LDR covered or shaded (sensing permanent darkness), LDR installed facing away from ambient light, or a nearby artificial light source illuminating the LDR at night and the LDR is exposed to darkness during the day Fix: Locate the LDR window on the light body and confirm it is clean and unobstructed. Confirm no nearby structures or plant growth shades the LDR during daylight. If the light is near a streetlamp or security light, reposition it away from the artificial light source that is confusing the dusk/dawn sensor.
Solar panel produces voltage in sunlight but battery does not charge
Cause: Faulty blocking diode (open-circuit), corroded or broken wire between panel and charge circuit, or failed charge controller IC Fix: Measure voltage across the blocking diode in forward direction during sunlight — should show a small forward drop (0.2–0.4 V for Schottky). If voltage across the diode equals the full panel voltage, the diode is open-circuit and not passing current. Replace the diode or the control PCB assembly.

Frequently asked questions

Why does my solar light turn on during the day and off at night?

This indicates the light sensor (LDR or solar panel voltage sense circuit) is functioning in reverse, or the control IC logic is inverted due to a fault. In some cases it is caused by the LDR being covered or shaded during daylight (simulating darkness) and exposed to an artificial light source at night (simulating daylight). Check that the LDR window is clean and that the light is not positioned where a nearby street lamp illuminates it at night.

My solar light charged all day but only lasts 1–2 hours at night. What is wrong?

Short runtime after a full day of charging almost always indicates a degraded battery. Rechargeable NiMH batteries in outdoor solar lights typically last 1–3 years before their capacity degrades to the point where they can no longer hold a useful charge. Replace the battery with a new cell of the same type, voltage, and equal or greater capacity (mAh rating) and test again.

Can I replace the battery in a solar light with any rechargeable battery of the same size?

Not always. While physical size (AA, AAA) must match, the chemistry matters. NiMH batteries (1.2 V) are the correct type for most solar garden lights — lithium cells of the same physical size may have different voltages (3.6 V or 3.7 V) that will damage the charge controller and LED driver designed for a 1.2 V system. Use only a replacement battery of the same chemistry and voltage as the original.

Why does a solar light stop working after a long period of cloudy weather?

Extended cloudy weather prevents the solar panel from fully charging the battery. If the battery discharges below the protection threshold of the charge controller (or is completely exhausted), some solar lights enter a sleep or protection mode and will not re-activate until the battery is recharged to a minimum level. Place the light in direct sunlight for a full day; if it does not recover, the battery may have been damaged by deep discharge and requires replacement.

Can I connect multiple LEDs to a solar light circuit?

Adding LEDs increases the current draw from the battery, which reduces runtime per charge. If you add LEDs in parallel, the total current increases proportionally with the number of LEDs. The LED driver circuit must be rated to supply the additional current, and the battery capacity must be adequate for the desired runtime. Exceeding the driver's maximum output current will overheat and damage the driver IC.
