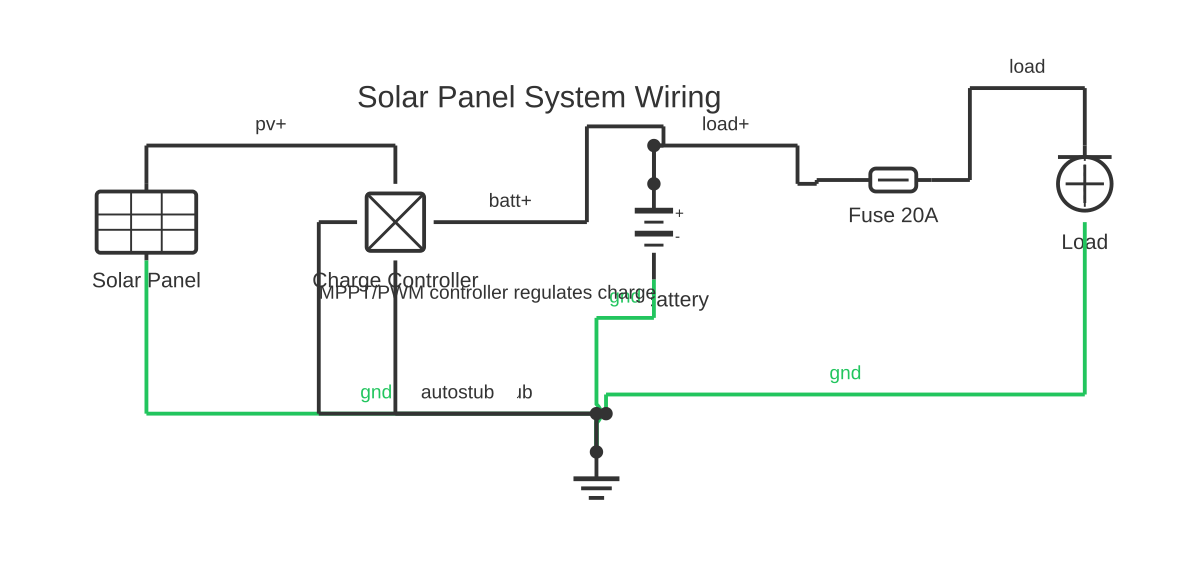

Solar Panel Setup Diagram

Solar Panel Setup Diagram — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable solar panel setup diagram: download the diagram as SVG or open it and print to paper or PDF.

Understand how to wire solar panels in series, parallel, and series-parallel configurations to achieve the correct voltage and current for your charge controller or inverter.

A solar panel setup diagram illustrates how individual photovoltaic (PV) modules connect to form an array that delivers the required voltage and current to a charge controller, MPPT inverter, or string inverter.

Every PV module has four key electrical parameters at Standard Test Conditions (STC: 1000 W/m², 25 °C cell temperature, AM1.5 spectrum): open-circuit voltage (Voc), short-circuit current (Isc), maximum power point voltage (Vmp), and maximum power point current (Imp). System designers use these to configure strings and arrays.

Series wiring connects the positive terminal of one module to the negative terminal of the next. Voltage sums; current remains equal to a single module's Isc. Two modules with Voc = 40 V in series produce an array Voc of 80 V. This is called a string.

Parallel wiring connects all positive terminals together and all negative terminals together. Current sums; voltage remains equal to a single module's Voc. Two strings of identical modules in parallel produce the same string voltage with double the current.

Series-parallel (series-string parallel) combines the two: multiple strings wired in series are then connected in parallel at a combiner box, achieving both the required voltage and the required current for the inverter or charge controller input.

Maximum PV input voltage of the inverter or MPPT controller sets an absolute ceiling on the number of modules in series. The critical calculation is Voc at minimum expected cell temperature — Voc rises as temperature falls (negative temperature coefficient, typically around -0.3 %/°C for crystalline silicon). In cold climates, this can add 15–25% above the STC Voc. Exceeding the controller or inverter's maximum PV input voltage destroys the unit.

String fuses (DC-rated) protect each parallel string against reverse current from other strings in a fault condition. Combiner boxes consolidate string connections and house string fuses. PV connectors (multi-contact type) on module leads are rated for outdoor use and must be of the same brand and rating to ensure reliable mating.

How to wire solar panel setup diagram

Gather module specifications Collect the datasheet for each module: Voc, Isc, Vmp, Imp, power rating, temperature coefficients for Voc and Isc, and maximum system voltage. Also confirm the charge controller or inverter's maximum PV input voltage, MPPT voltage range, and maximum input current.
Calculate cold-temperature Voc Determine the minimum expected ambient temperature at the installation site. Calculate Voc at minimum temperature: Voc_cold = Voc_STC + (TempCoeff_Voc × (T_min – 25) × Voc_STC). This value must not exceed the inverter or charge controller's maximum PV input voltage.
Determine number of modules in series per string Divide the inverter/controller MPPT maximum voltage by Vmp_STC to get the maximum practical number in series. Verify Voc_cold for that string count stays below the absolute maximum input voltage. Also verify the string Vmp range falls within the MPPT tracking range of the inverter/controller.
Determine number of parallel strings Divide the inverter or controller maximum input current by the string Isc. This gives the maximum number of parallel strings. For parallel strings, install string fuses at the combiner box (DC-rated, current rated ≥ 1.5× string Isc, voltage rated for system maximum DC voltage).
Install PV connectors and make string connections Connect module PV connectors in series: positive of module 1 to negative of module 2, and so on. Use only matched PV connectors (same brand and model) — cross-mating different brands can result in uncertified connections that arc or fail. Keep connector pairs of the same string together and labelled.
Wire strings to combiner box Run each string's positive and negative conductors to the DC combiner box. Install DC-rated string fuses on the positive conductors. Install a PV DC disconnect (isolator) between the combiner box output and the charge controller or inverter input.
Connect to charge controller or inverter and verify With the PV isolator open (off), connect combiner box output to the charge controller or inverter PV input, observing polarity. Close the isolator. Verify the controller or inverter displays a PV input voltage consistent with the expected string Voc at current irradiance. Verify charging or grid export begins normally.

Specifications

Crystalline silicon Voc temperature coefficient (typical)	–0.3 %/°C (negative — Voc rises as temperature falls)
STC irradiance and temperature	1000 W/m², 25 °C cell temperature, AM1.5 spectrum
Typical residential string voltage range (MPPT)	150–600 V DC
PV cable outdoor rating	UV-stabilised, double-insulated, rated for system maximum DC voltage
PV connector IP rating (outdoor)	IP67 or IP68
String fuse minimum rating	≥ 1.5× string Isc; voltage rated for max system DC voltage
Applicable installation standards	IEC 60364-7-712, AS/NZS 5033, NEC Article 690, BS 7671 Section 712
Minimum string voltage drop target	≤ 1–3% of string Vmp at full current (cable sizing goal)

Safety warnings

PV arrays produce DC voltage as long as they are illuminated. They cannot be turned off by disconnecting the load — voltage is always present. Always open the PV isolator and shade or cover modules before working on any wiring. PV system voltages are frequently lethal (100–1500 V DC in utility-scale systems; typically 12–600 V in residential systems).
DC arcs in PV systems are sustained and can cause fire. All fuses, disconnects, and cable ratings must be DC-rated for the system maximum voltage. Loose or poorly crimped connections are a significant fire risk in PV systems due to sustained DC arcing at connection faults.
PV system installation is regulated work. In virtually all jurisdictions, the AC connection and grid interconnection must be performed by a licensed electrician or solar installer. Installation certificates and inspection by the relevant authority may be legally required.
Always calculate Voc at the minimum expected installation temperature before finalising string lengths. Exceeding the inverter or charge controller's maximum PV input voltage will destroy the unit immediately and may void warranty and insurance.
Follow applicable standards: IEC 60364-7-712 (PV power supply systems), IEC 61730 and IEC 61215 (module qualification), AS/NZS 5033 (Australia), NEC Article 690 (USA), or BS 7671 Section 712 (UK/Ireland). Non-compliant installations may be illegal and void insurance.

Tools needed

Digital multimeter (DC voltage, continuity, and resistance functions)
DC clamp meter (for string current verification)
PV connector crimping tool (manufacturer-specified for connector type)
Cable lug crimper (for combiner box terminals)
Insulation resistance tester (megger, for cable insulation testing)
Non-contact voltage tester
Cable labels, UV-stable cable ties, and conduit/trunking for outdoor cable management

Common mistakes

Exceeding the inverter or charge controller maximum PV input voltage by not correcting Voc for low temperature: this destroys the controller or inverter immediately.
Cross-mating PV connectors from different manufacturers: this creates uncertified connections that can arc, corrode, and fail. Only mate connectors of the same type and brand.
Not installing string fuses when parallel strings exceed the module maximum reverse current rating: faultless-looking wiring can allow destructive reverse current in the event of a string fault.
Running PV positive and negative cables in separate conduits: both conductors of a string should run together in the same conduit to prevent inductance effects and simplify fault finding.
Assuming panel orientation does not affect wiring decisions: in series-parallel arrays, shading on one string that significantly reduces its output affects the entire parallel connection. Array orientation and shading analysis must inform the wiring configuration.
Omitting the PV array DC isolator: a means of safely disconnecting the array from the system is required by all applicable standards for maintenance and emergency use.

Troubleshooting

One string producing significantly less power than others: Cause: Partial shading, failed bypass diode in a module, blown string fuse, or loose PV connector Fix: Inspect string fuse condition. Check all PV connectors are fully mated and undamaged. Measure string open-circuit voltage — a lower than expected Voc indicates a failed module or open connector in the string. Use a thermal camera to identify hot cells (failed bypass diodes or shaded cells).
Inverter or charge controller shows PV over-voltage fault: Cause: String Voc at low temperature exceeds the maximum PV input voltage of the device Fix: Reduce the number of modules in series per string to bring Voc at minimum temperature below the device maximum. Recalculate using the temperature-corrected Voc formula. Do not restart the device until the string count is corrected.
PV combiner box or wiring shows signs of heat damage or burning: Cause: Loose connection causing sustained DC arc, undersized cable, or failed fuse not interrupting a fault Fix: Immediately isolate the PV array and do not reconnect until a licensed solar installer has inspected all connections. Check all terminal torques, cable ratings, and fuse conditions. DC arc damage requires full replacement of affected components.

Frequently asked questions

What happens if I wire two PV modules with different power ratings in series?

The lower-performing module limits the current of the entire string — the series string can only pass the Isc of the weakest module. Mixing mismatched modules in series causes significant power loss and can cause the weaker module to operate outside its design range. Always use identical modules in series strings.

How do I calculate the maximum number of modules in series for an MPPT controller?

Divide the controller's maximum PV input voltage by the module's Voc corrected for minimum expected temperature: Voc_cold = Voc_STC × (1 + TempCoeff_Voc × (T_min – 25)). The temperature coefficient is negative for crystalline silicon, so Voc rises at low temperatures. Round down to the nearest whole number.

Do PV modules need individual fuses when connected in parallel?

String fuses are generally required when three or more strings are connected in parallel, because a fault in one string could result in reverse current from the other strings exceeding the faulted string's maximum reverse current rating. Consult IEC 60364-7-712 or your applicable installation standard for specific thresholds.

What is shading tolerance and why does it matter for wiring configuration?

Partial shading of even one cell in a series string reduces current for the entire string significantly. Bypass diodes (built into module junction boxes, typically one per 20–24 cells) mitigate this by bypassing shaded cell groups. Module-level power electronics (microinverters or DC optimisers) can further reduce shading impact by decoupling each module's MPPT.

Can I mix panel brands or capacities in the same system?

Mixing modules within a single string is not recommended — mismatch losses reduce total output. Different strings with different module types can sometimes be used on separate charge controller inputs or MPPT trackers, but this requires careful design verification. A licensed solar installer should verify any mixed-module design.
