Starter Motor Diagram: Battery, Solenoid, Ignition Switch and Starter Circuit
This is a free printable starter motor diagram: download the diagram as SVG or open it and print to paper or PDF.

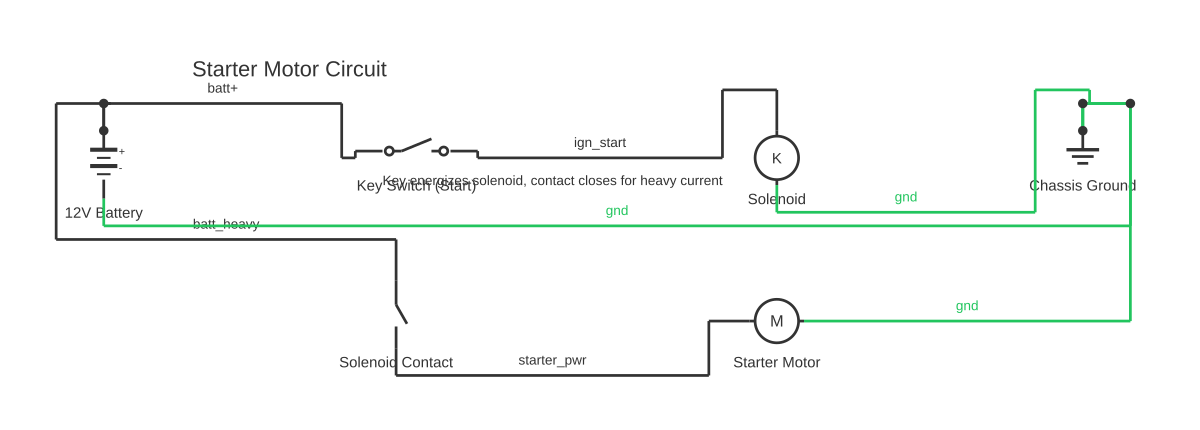

A starter motor diagram shows the high-current circuit from the vehicle battery through the solenoid to the starter motor, and the low-current ignition switch circuit that triggers the solenoid to engage the starter pinion and crank the engine.
The automotive starter motor circuit operates in two parallel paths: a high-current path capable of delivering 150–400 A from the battery to spin the starter motor, and a low-current control path that uses the ignition switch to activate the solenoid that connects the high-current path. This two-path design ensures that the full starter current never flows through the ignition switch — which is connected via thin wiring through the steering column — protecting the switch and column wiring from melting. The starter motor is a series-wound DC motor chosen for its high torque at low speed and high starting current capacity. When energised, it spins at very high speed, typically 3000–5000 RPM at the armature, and through the reduction gear drives the starter pinion gear at a speed appropriate to mesh with the ring gear on the engine flywheel. The engagement is managed by the solenoid — a combined electromagnet and heavy-duty relay. The solenoid has two windings: a pull-in winding and a hold-in winding. When the ignition switch supplies current to the solenoid S (start) terminal, both windings energise simultaneously. The pull-in winding generates sufficient force to push the plunger and engage the starter pinion into the ring gear. The hold-in winding maintains plunger engagement with lower current after the main contacts close. The main contacts of the solenoid are a pair of heavy copper discs that bridge the battery positive stud and the starter motor terminal when the plunger is pulled in, completing the high-current circuit. A flywheel diode or back-EMF suppression device is sometimes fitted across the solenoid coil terminals to suppress the voltage spike when the ignition switch releases and solenoid current is interrupted. Starter cables must be large gauge — typically 25–50 mm² — to minimise voltage drop: a 400 A starting current through 0.005 ohm cable resistance drops only 2 V, leaving adequate voltage for motor torque. Undersized cables cause low cranking speed and hard starting.
How to wire starter motor diagram
- Test battery before testing starter Load test the battery with a carbon pile tester at half the cold cranking amp (CCA) rating for 15 seconds. Voltage must stay above 9.6 V. A battery failing this test cannot supply adequate starter current and must be replaced before diagnosing the starter circuit.
- Inspect and clean cable connections Remove both battery terminal clamps and clean with a terminal brush. Remove the starter positive cable from the battery terminal and starter solenoid B stud and clean both connection points. Remove and clean the negative cable and engine/chassis ground strap connections.
- Measure voltage drop under cranking Reconnect all cables. Disable the ignition (unplug the ignition coil or crankshaft sensor). Crank the engine and measure voltage drop from battery positive to starter B stud. Less than 0.5 V is acceptable. Repeat from battery negative to starter motor case.
- Test solenoid operation With a helper cranking, listen for a solid single click. Use a voltmeter to confirm battery voltage appears at the starter M terminal during cranking. If voltage is present but motor does not spin, the starter motor has failed internally.
- Test starter current draw Fit a DC clamp ammeter and crank for 5 seconds. Record peak and average current. Compare to manufacturer specification. High current with slow cranking indicates mechanical resistance in the starter or engine. Low current with no cranking indicates an open circuit in the starter motor windings.
Specifications
| Starter motor type | Series-wound DC, permanent-magnet or wound-field |
|---|---|
| Cranking current (typical) | 150–400 A depending on engine displacement |
| Starter cable size | 25–50 mm² to minimise voltage drop at cranking current |
| Maximum voltage drop (positive cable) | <0.5 V at full cranking current |
Safety warnings
- The starter circuit carries 150–400 A — never allow any tool to bridge the battery positive terminal to the starter cable or solenoid terminal while the battery is connected.
- Always connect the battery negative last and disconnect it first when working on the starter circuit to prevent accidental energisation through grounded tools.
- Support the vehicle securely before working under it near the starter — the starter engages suddenly and vehicles may shift if on an unstable support.
Tools needed
- Digital multimeter with min-max function for measuring cranking voltage drop
- Carbon pile battery load tester for battery capacity verification
- Clamp-on DC ammeter (600 A range) for measuring starter current draw
- Battery terminal cleaning brush and terminal protector spray
Common mistakes
- Using undersized starter cable — causes high voltage drop, slow cranking speed and hard starting especially in cold weather.
- Poor battery negative ground connection — the ground strap is as important as the positive cable; high ground resistance causes the same voltage drop as a bad positive cable.
- Connecting the solenoid trigger wire directly to the battery instead of through the ignition switch — causes the starter to engage permanently whenever the battery is connected.
Troubleshooting
- No starter operation — no click, no spin
- Cause: No voltage at solenoid S terminal, failed ignition switch, or blown starter circuit fuse Fix: Probe solenoid S terminal with a voltmeter during cranking position. If no voltage, trace back to ignition switch through any starter relay or inhibit switch. Check fusible link and starter relay.
- Starter engages intermittently
- Cause: High resistance in solenoid trigger circuit causing marginal solenoid pull-in Fix: Measure voltage at S terminal during cranking position — should be above 10 V. If low, find and correct resistance in the ignition switch to solenoid wiring. Clean ignition switch contact surfaces if voltage drop is across the switch.
- Battery runs down after starting
- Cause: Starter relay contacts welded shut causing constant partial discharge of starter motor Fix: With engine running, disconnect the ignition switch wire from the solenoid S terminal. If the starter continues to groan or engage, the solenoid main contacts are welded — replace the solenoid immediately.
Frequently asked questions
What is the solenoid pull-in winding for?
The pull-in winding is connected between the solenoid S terminal and the main motor terminal (M terminal) — it uses differential current through both windings to generate the large initial magnetic force needed to push the plunger and engage the starter pinion against the flywheel ring gear spring tension. Once the main contacts close, the pull-in winding is short-circuited by the closed contacts and ceases to carry current. The hold-in winding then maintains engagement with lower current draw from the battery.
Why does my starter spin but not crank the engine?
If you hear the starter motor spinning freely at high speed without engaging the engine, the starter drive (Bendix drive or pre-engaged drive) has failed to engage the pinion with the ring gear. A Bendix drive has a spring-loaded helical thread that drives the pinion into mesh when the motor accelerates — failure occurs when the helix thread corrodes or the spring weakens. A pre-engaged starter has a solenoid fork that mechanically slides the pinion before the main contacts close — failure indicates a broken fork or worn pinion.
How do I test if the starter motor is drawing excessive current?
Fit a DC clamp ammeter rated to at least 600 A around the battery positive cable or starter cable. Crank the engine for 5 seconds and observe the reading. A healthy starter draws 150–250 A on a warm four-cylinder engine and up to 400 A on a large V8 in cold conditions. Values above the specification indicate worn brushes, seized bushings, or a short circuit in the starter motor windings requiring overhaul or replacement.
What causes a slow cranking speed despite a fully charged battery?
Slow cranking with a good battery most often results from high resistance in the starter circuit. Measure voltage at the battery positive terminal during cranking and at the starter motor terminal. A difference greater than 0.5 V indicates excessive cable or connection resistance. Repeat between battery negative and starter motor housing. Locate and clean or replace the high-resistance connection.
Why does the solenoid click but the starter does not spin?
A single click indicates the solenoid plunger moved and the main contacts closed, but the starter motor did not turn. This points to a fault in the starter motor itself: open field winding, severely worn brushes, open armature winding, or seized armature bearings. A volley of rapid clicks indicates the solenoid is chattering — the battery voltage collapses when the main contacts close, releasing the solenoid, which then re-energises, indicating a battery with insufficient cranking capacity or a high-resistance battery cable.
