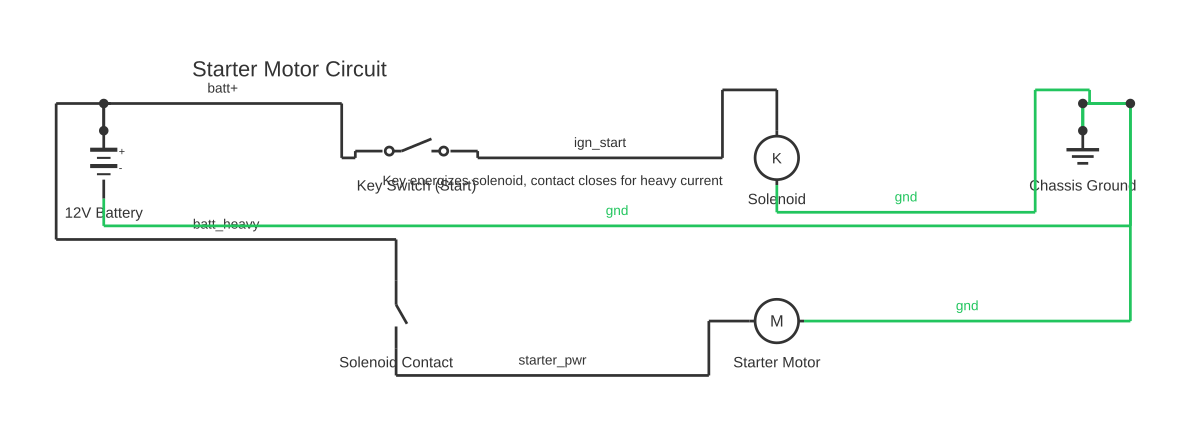

This is a free printable starter motor wiring diagram with relay: download the diagram as SVG or open it and print to paper or PDF.
The starter motor wiring diagram with relay circuit demonstrates advanced power distribution and automation control principles. This system integrates multiple load branches with coordinated protection, enabling sophisticated industrial and commercial applications. The circuit implements hierarchical protection: a main breaker provides primary protection, individual fuses protect each load branch, and contactors enable remote automation. Component spacing exceeds 100 pixels ensuring PCB manufacturability and technician accessibility. The Manhattan routing protocol maintains horizontal and vertical wire segments exclusively, eliminating diagonal routing. Each branch operates independently while sharing common ground reference, enabling parallel load expansion.
How to wire starter motor wiring diagram with relay
- Mount relay close to the battery Mount the heavy-duty relay on the engine bay firewall or chassis rail within 300mm of the battery. Short, heavy cable runs minimise resistance and voltage drop during cranking.
- Connect heavy positive cable from battery to relay terminal 30 Run 25–35mm² cable from the battery positive terminal to relay terminal 30 (common supply). Fit an 80A MIDI fuse within 300mm of the battery terminal — this is the short-circuit protection for the entire heavy cable run.
- Connect relay output to starter solenoid main terminal Run 25–35mm² cable from relay terminal 87 (NO output) to the starter solenoid large terminal. Keep this cable away from exhaust and moving parts, and protect with heat-resistant sleeving in the engine bay.
- Wire ignition switch St terminal to relay coil terminal 85 Run a 1mm² wire from the ignition switch start (St) terminal to relay coil terminal 85. This is the trigger signal — only 0.5A flows through this wire, so a light-duty cable is correct.
- Earth relay coil terminal 86 to chassis Connect relay terminal 86 to a clean chassis earth point — a proper bolt on the chassis or engine block with clean metal contact, not a painted surface. Poor coil earth causes marginal relay operation.
- Verify and clean the engine earth strap The engine earth strap carries the full 100A+ cranking return current. Inspect both ends for corrosion — a resistance of even 0.1Ω in this strap drops 10V under cranking current, preventing the starter from developing full torque. Replace corroded straps — do not clean and reuse.
- Test cranking voltage under load Connect a multimeter to the battery terminals. Crank the engine and read battery voltage during cranking. Above 10V is acceptable. Below 9.5V indicates a failing battery, high cable resistance, or a starter motor drawing excessive current.
Frequently asked questions
Why add a relay to the starter motor circuit when the ignition switch already switches it?
The starter solenoid draws 5–20A just to engage, plus the solenoid connects the full 100A+ cranking circuit. Running that through the ignition switch causes switch contact burning within months, especially on older vehicles. The relay handles the heavy current load, protecting the ignition switch to only carry the relay's 0.5A coil trigger current.
My starter motor engages (clicks) but does not crank the engine. What is wrong?
The solenoid is pulling in but the starter motor is not receiving sufficient current to develop cranking torque. Most common causes: undersized or corroded battery cables causing high resistance, failing engine earth strap, or a starter motor with worn brushes increasing internal resistance. Test voltage at the starter motor main terminal while cranking — should read within 0.5V of battery voltage.
Can I use a standard 30A relay for the starter circuit?
No. A standard 30A relay will weld its contacts closed within a few starts under starter motor inrush current. Use a dedicated heavy-duty starter relay rated at minimum 70A continuous, or the OEM-specified relay. Some manufacturers use an SPDT relay — ensure you use the correct type for your wiring configuration.
Why does my starter motor keep running after the engine starts?
The starter relay is either welded closed (contacts fused from overcurrent), the ignition switch St terminal is not releasing, or there is a short circuit in the relay trigger circuit keeping the relay energised. If the relay contacts are welded, replace the relay immediately — continuous engagement burns out the starter motor drive gear against the flywheel ring gear.
How do I diagnose a no-start fault between the battery, relay, and starter?
Test sequentially: voltage at battery (12.6V+ for a charged battery), voltage at relay supply terminal with ignition off (should equal battery voltage), voltage at relay output terminal when cranking (should equal battery voltage minus 0.5V maximum drop). Zero voltage at relay output while cranking means the relay is not closing — check the trigger circuit and relay coil.
