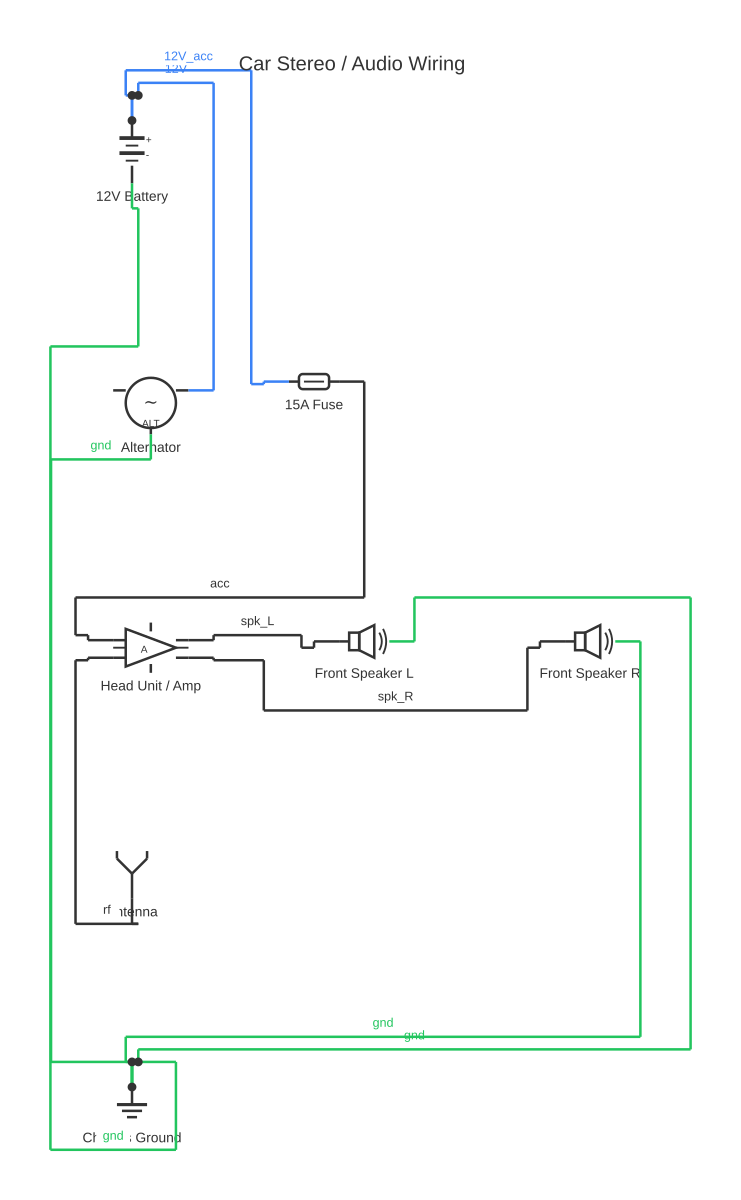

This is a free printable stereo wiring diagram: download the diagram as SVG or open it and print to paper or PDF.
A stereo wiring diagram illustrates the left and right channel signal paths from source unit to amplifier and speakers, covering ISO 10487 harness connections and speaker polarity.
A stereo wiring diagram maps the two-channel audio signal path from the source unit (head unit or preamplifier) through the amplifier stage and on to the left and right loudspeaker pairs. In a car audio context, the diagram must also account for the DC power supply wiring that enables the system to operate.
The ISO 10487 standard defines the speaker outputs in the head unit connector. The ISO B block carries all four speaker channels: front-left (B1+, B2−), front-right (B3+, B4−), rear-left (B5+, B6−), and rear-right (B7+, B8−). Each channel is a differential (bridged) output: both the positive and negative terminals are driven — neither is at ground potential. This is why speaker negatives must never be grounded.
In a simple OEM-replacement installation without an external amplifier, the head unit's ISO B connector provides enough power to drive door-mounted speakers directly, typically at 4 × 25–50 W (peak / music power). The left channel positive and negative feed the left speaker, and the right channel feeds the right speaker. Both front and rear pairs are run independently.
When an external amplifier is added, the head unit's preamp RCA outputs (usually 2 V or 4 V nominal) carry the line-level stereo signal to the amplifier's inputs. The amplifier then drives the speakers at higher power. In this case, the ISO B speaker outputs from the head unit are usually left unconnected or connected to front fill speakers, while the amplifier handles the main drivers.
Stereo image quality depends on matched speaker polarity on both channels. Left positive must connect to the positive terminal of the left driver, and right positive to the right driver positive. A polarity reversal on one side causes the two channels to partially cancel each other's low-frequency output (acoustic phase cancellation), producing thin bass and a collapsed stereo image that appears to come from the centre.
This diagram is a generic illustrative reference. Consult the vehicle service manual and all component manufacturer installation instructions before any wiring work.
How to wire stereo wiring diagram
- Identify the head unit output type: ISO speaker, RCA line, or both Determine whether the head unit provides ISO B speaker outputs, RCA preamp line outputs, or both. ISO B outputs connect directly to speakers. RCA line outputs connect to external amplifier inputs. Knowing which outputs are available determines the topology of the stereo system wiring diagram.
- Draw the signal path from source to speaker for each channel Sketch the left channel signal flow: head unit left output → left speaker (or → amplifier left input → amplifier left output → left speaker). Mirror this for the right channel. Clearly label each wire segment with the channel (L+ , L−, R+, R−). The diagram must account for every node where wires join or branch.
- Map the ISO 10487 B-block connector pin assignments Reference the ISO B block pin assignments: B1 (front-left +), B2 (front-left −), B3 (front-right +), B4 (front-right −), B5 (rear-left +), B6 (rear-left −), B7 (rear-right +), B8 (rear-right −). Use a vehicle-specific ISO adapter harness to avoid cutting factory wiring. Verify wire colours against the adapter harness documentation — do not rely solely on colour conventions.
- Plan the amplifier power wiring separately from the signal wiring External amplifiers require a dedicated 12 V supply from the battery (fused at the battery end), a chassis ground connection (as short and direct as possible), and a remote turn-on wire from the head unit. Keep power wiring physically separated from RCA signal cables to avoid noise induction. Route power cables on the opposite side of the vehicle from signal cables wherever possible.
- Connect all wiring and verify polarity before closing up panels Reconnect each channel observing consistent polarity throughout. Connect the amplifier remote turn-on wire. Power the system at low volume and verify audio on all channels. Play a stereo music source and check that the stereo image is wide and centred. A narrow or centre-collapsed image with weak bass indicates a phase reversal on one speaker.
Specifications
| ISO B front-left output pins | B1 (+), B2 (−) |
|---|---|
| ISO B front-right output pins | B3 (+), B4 (−) |
| ISO B rear-left output pins | B5 (+), B6 (−) |
| ISO B rear-right output pins | B7 (+), B8 (−) |
| Typical head unit RCA preamp output | 2 V or 4 V RMS nominal |
| Nominal speaker impedance | 4 Ω (car audio standard) |
| Amplifier power cable fuse location | Within 300 mm of battery positive terminal |
| RCA cable shield termination | Single-end grounded (amplifier end) to avoid ground loops |
Safety warnings
- Disconnect the vehicle battery negative terminal before making any wiring connections. Short circuits in a vehicle's 12 V system can generate very high currents capable of igniting insulation and causing a vehicle fire.
- Fuse the amplifier power cable at the battery end within 300 mm of the battery positive terminal. An unfused high-current cable running through the vehicle cabin is a severe fire hazard if the cable is damaged or pinched.
- Never ground speaker negative wires to the vehicle chassis. Car audio systems use bridged amplifier outputs; grounding a speaker negative short-circuits the output stage and causes amplifier damage.
- This diagram is a generic illustrative reference only. Always consult the specific vehicle service manual and the head unit and amplifier manufacturer's installation instructions.
Tools needed
- Digital multimeter
- Wire stripper and crimper
- RCA cable and continuity tester
- Trim removal tools (plastic)
- Electrical tape or heat-shrink tubing
- Cable ties
- Panel fish wire (cable routing tool)
Common mistakes
- Routing RCA signal cables parallel to and in contact with power cables, inducing alternator whine (interference) into the audio signal.
- Connecting speaker negative wires to the chassis ground instead of the amplifier or head unit negative speaker terminal.
- Using a single ground point for both the amplifier chassis ground and the signal ground, creating ground loops that introduce audible hum.
- Failing to fuse the amplifier power cable at the battery, leaving a long unfused conductor routed through the vehicle.
- Connecting both channels' speaker negative wires together at a common ground point, which effectively shorts the two channels.
Troubleshooting
- Alternator whine or buzzing heard through speakers when engine is running
- Cause: Ground loop between head unit and amplifier, or power and signal cables routed together causing electromagnetic induction Fix: Verify the head unit and amplifier share a common clean chassis ground at a single point. Reroute RCA signal cables away from power cables, on the opposite side of the vehicle. A ground loop isolator inline on the RCA cables can suppress residual ground-loop-induced noise.
- One channel has no audio output
- Cause: Broken RCA cable, failed amplifier channel, reversed or broken speaker connection, or a blown speaker Fix: Swap the left and right RCA cables at the amplifier input. If the silent channel follows the swapped cable, the fault is upstream in the head unit or RCA cable. If the fault stays on the same amplifier output, the amplifier channel is faulty. If neither cable swap nor amplifier swap resolves it, check the speaker connections and measure speaker impedance.
- Stereo image is narrow and bass is weak
- Cause: Phase reversal on one speaker — one channel's speaker polarity is inverted, causing acoustic cancellation Fix: Identify which speaker is phase-reversed by playing a mono centre-panned signal while swapping polarity on each speaker one at a time. The configuration that produces the widest stereo image and fullest bass is the correctly phased connection. Correct the reversed wiring.
Frequently asked questions
What is the difference between front and rear stereo outputs on a car head unit?
Front outputs drive the dash or door-mounted speakers closest to the listener and typically carry a slightly brighter high-frequency character to compensate for their forward placement. Rear outputs drive the rear deck or rear door speakers. Both are full stereo (left and right) and identical in signal format; the distinction is routing and physical speaker placement. Many head units allow independent fade control between front and rear.
What are RCA line outputs and when do I use them?
RCA line outputs (preamp outputs) carry a low-level, high-impedance audio signal — typically 2 V or 4 V RMS — to the input of an external amplifier. They are used whenever an external amplifier is added to the system. Line-level signals are less susceptible to interference than speaker-level signals run over long cable runs, and connecting an external amplifier via line-level RCA outputs avoids loading the head unit's built-in output stage.
Can I convert a speaker-level signal to a line-level RCA signal?
Yes. A speaker-level-to-RCA converter (high-low adapter) uses resistive voltage dividers or a transformer to attenuate and impedance-match the speaker-level output to line level. These are commonly used when an OEM head unit without RCA outputs is retained and an external amplifier is added. Quality varies significantly between converter designs; a good quality converter minimises signal noise and distortion.
How does stereo wiring differ between home audio and car audio?
Home audio amplifiers connect to AC mains and use transformer-coupled power supplies with floating or earth-referenced outputs. Car audio systems run from a 12 V DC chassis-grounded supply and use bridged (BTL) amplifier stages with floating speaker outputs — neither speaker terminal is at ground potential. This is why car speaker negatives must never be grounded to the chassis, whereas home audio negative speaker terminals are often at ground potential.
What gauge wire should I use for speaker runs in a car audio installation?
For typical in-door runs under 2 m, 18 AWG (0.75 mm²) is adequate. For runs to rear speakers of 3–5 m, use 16 AWG (1.5 mm²). For high-power external amplifier outputs driving 4 Ω speakers at 100 W or more, use 14 AWG (2.5 mm²) or heavier. Cable resistance should remain below 5% of the speaker impedance for the run length.
