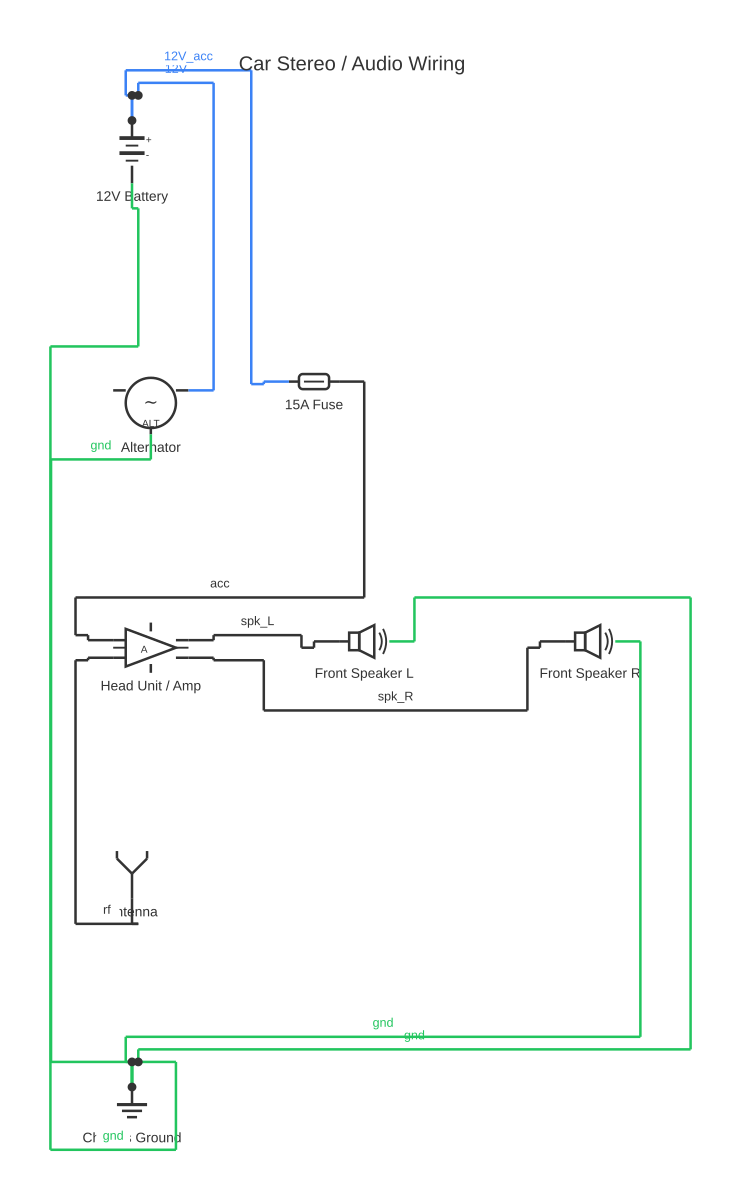

Car Stereo Wiring Diagram — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable car stereo wiring diagram: download the diagram as SVG or open it and print to paper or PDF.

A car stereo wiring diagram identifies the speaker colour-code conventions, power connections, and ground references used when replacing or integrating an aftermarket stereo into a vehicle's electrical system.

Where a car radio wiring diagram focuses on the ISO standard and head unit connector pins, a car stereo wiring diagram takes a broader systems view: how does the stereo interact with the vehicle's speakers, amplifier, and chassis? This perspective is most useful when integrating a complete stereo system — head unit, amplifier, subwoofer — into a vehicle, and when understanding why the specific wire colours and routing conventions matter to the final performance of the system.

The aftermarket head unit wire colour convention has been widely adopted across manufacturers. While not universally mandated, the following is standard across most aftermarket units:

Power and ground: Yellow (constant +12 V), Red (switched +12 V/ACC), Black (chassis ground).

Audio control: Blue (powered antenna/amplifier remote turn-on), Blue/White stripe (amplifier remote turn-on, where blue is antenna motor control only).

Speaker pairs (ISO-compatible): Left front positive/negative — white and white/black. Right front positive/negative — grey and grey/black. Left rear positive/negative — green and green/black. Right rear positive/negative — violet (purple) and violet/black.

The polarity stripe (black stripe on the negative wire of each speaker pair) is the key to consistent polarity across all four channels. Connecting every speaker with the striped wire to the speaker's negative terminal and the solid colour to the positive produces a system where all speaker cones move in the same direction in response to a given audio signal — the correct condition for good stereo imaging and bass reproduction.

Speaker wire gauge matters for losses and power handling. A head unit's internal amplifier typically delivers 15–20 W RMS per channel into 4 ohms. At these power levels, 18 AWG speaker wire is adequate for the typical factory cable lengths in a vehicle. External amplifiers producing 50 W or more per channel require 16 AWG or heavier cable for longer runs to the rear speakers and subwoofer.

The stereo's ground wire (black) must be a short, direct path to a clean chassis metal point. A long or resistive ground wire creates a shared impedance between all audio circuits and is the root cause of most system noise problems.

A car stereo wiring diagram must show the head unit's ISO harness or proprietary connector alongside the vehicle's factory harness, since wire colours and pin assignments differ between manufacturers. Pioneer head units follow a standardised ISO-A (power) and ISO-B (speaker) connector layout across most of their range, making a Pioneer-specific wiring diagram straightforward once you understand the colour coding. You can map out any head unit installation — including accessory power, ignition-switched power, constant memory supply, and all speaker pairs — free in the online car wiring diagram editor.

How to wire car stereo wiring diagram

Map the existing stereo system before removing any components Before removing the factory stereo or any component, photograph the original connections. Note the location of factory speaker wiring at each door and rear shelf. Identify whether a factory amplifier is present — look for an additional module in the boot, under a seat, or behind a panel. Understanding the existing system prevents errors when integrating the replacement.
Trace and label factory speaker wires at the head unit end At the factory head unit connector or the vehicle ISO adapter harness, identify all speaker wire pairs using a multimeter or battery tester as described in the FAQ. Label each pair: left front, right front, left rear, right rear. Note which wire in each pair is positive and which is negative — mark this clearly before making any new connections.
Match aftermarket head unit wire colours to vehicle speaker wires Using the adapter harness, match the aftermarket head unit's speaker wires to the vehicle's factory speaker wires: white and white/black stripe to left front, grey and grey/black to right front, green and green/black to left rear, violet and violet/black to left rear. Connect positive to positive and negative to negative in each pair. Confirm polarity by briefly playing a test tone.
Connect power, ground, and accessories Connect yellow (constant +12 V) to the permanent 12 V supply via the adapter harness. Connect red (switched +12 V) to the ignition ACC supply. Connect black (chassis ground) to a clean metal chassis point near the head unit location. Connect blue or blue/white stripe to the amplifier remote trigger input if an external amplifier is installed.
Test and check phase across all speakers Connect the battery and switch on the head unit. Play a mono test signal (or sum the stereo signal to mono using the head unit's balance and fader controls set to centre). Walk around the vehicle and listen at each speaker. All speakers should sound similar in level and character. A reversed speaker will have noticeably thin bass compared to its correctly wired pair. Correct any reversed connections before completing the installation.
Set crossover and equalization after completing wiring Once all wiring is confirmed correct, set the head unit's high-pass crossover to protect front and rear speakers from bass frequencies they cannot reproduce cleanly. If a subwoofer is present, set the low-pass crossover on the subwoofer amplifier to complement the high-pass setting. Flat equalization at the head unit is the starting point — adjust for room acoustics and preference after the crossover settings are established.

Specifications

Head unit constant 12 V wire colour (aftermarket standard)	Yellow
Head unit switched 12 V wire colour (aftermarket standard)	Red
Head unit ground wire colour	Black
Left front speaker pair colours	White (positive), White/Black stripe (negative)
Right front speaker pair colours	Grey (positive), Grey/Black stripe (negative)
Left rear speaker pair colours	Green (positive), Green/Black stripe (negative)
Right rear speaker pair colours	Violet/Purple (positive), Violet/Black stripe (negative)
Standard vehicle speaker nominal impedance	4 ohms

Safety warnings

Disconnect the battery negative terminal before making any speaker or power connections. Although speaker-level voltages are low, the power connections involved in stereo installation carry full battery voltage and sufficient current to cause burns and fire if shorted.
Do not connect either terminal of a bridged (BTL) head unit speaker output to chassis ground. Doing so creates a short circuit through one side of the output bridge amplifier, which will immediately destroy the output stage.
When fitting aftermarket speakers in door panels, ensure speaker cable routed through door apertures uses flexible spiral-wrapped protection and is routed through the door hinge area via the factory cable grommet — the cable must flex with every door opening without chafing.
Check the impedance of all speakers connected to the head unit's internal amplifier. Most head units specify a minimum load of 4 ohms. Wiring two 4-ohm speakers in parallel on one channel creates a 2-ohm load that will overheat and destroy the internal amplifier.

Tools needed

Digital multimeter (DC voltage, resistance, continuity)
1.5 V AA battery and two short test leads (for speaker polarity testing without risk of damage)
Trim removal tools
Soldering iron and solder or crimp connectors
Wire stripper
Speaker mount template and appropriate drill bits (for aftermarket speaker fitting)
Cable routing rod or fish tape (for routing speaker wire through doors)

Common mistakes

Connecting both speaker terminals of a BTL output to chassis ground through poor-quality speaker wire that has degraded insulation, creating an intermittent short.
Mixing speaker impedances across channels — for example, fitting 2-ohm aftermarket speakers to a head unit rated for 4 ohms minimum, causing overheating of the internal amplifier.
Routing door speaker cables through door hinges without a proper grommet and flexible conduit, causing the cable to chafe and short within weeks of installation.
Setting the bass boost or loudness control to maximum before adjusting overall gain, causing the internal amplifier to clip continuously and producing both distorted sound and premature component failure.
Omitting the ground connection for the head unit chassis (separate from the black audio ground wire in some installations) — this can cause interference and in some vehicles triggers fault codes.
Using packing tape or masking tape for wire insulation — these adhesives fail within months in a vehicle environment; always use self-amalgamating tape or proper heat-shrink for any exposed joints.

Troubleshooting

Bass sounds thin or hollow — stereo image is off: Cause: One or more speakers wired in reverse polarity relative to the others, causing acoustic cancellation in the bass frequency range Fix: Test speaker polarity for all four speakers using the battery method described in the FAQ. Identify and correct any reversed polarity connections. In a vehicle, the most common polarity error is the rear left or right speaker reversed relative to the fronts.
Head unit shuts off after a short period of use, especially at higher volumes: Cause: Overheating of internal amplifier from driving too low an impedance load, or insufficient ventilation in the head unit recess Fix: Measure the impedance of all speakers when the head unit is disconnected. If any pair in parallel drops below the rated minimum, reconfigure. Ensure the head unit recess has adequate ventilation — some aftermarket head units require airflow around the chassis.
Rear speakers are significantly quieter than front speakers: Cause: Fader set incorrectly, rear speaker wires not fully connected, or rear factory speaker location uses a higher-impedance speaker than the front Fix: Set fader to centre. Verify continuity on all four rear speaker wires. Measure impedance of rear speakers — if significantly different from front (e.g., 8 ohms vs. 4 ohms), the head unit's amplifier will deliver half the power to the higher-impedance rear speakers.
Crackling or distortion from one speaker when turning the steering wheel or opening a door: Cause: Damaged or chafed speaker cable in the door hinge area, creating an intermittent fault that appears under cable flexing Fix: Inspect the door speaker cable at the hinge area. Look for worn insulation, pinched conductors, or inadequate routing through the factory cable grommet. Replace damaged cable section and re-route through the grommet with appropriate slack.

Frequently asked questions

What does the blue remote wire on a car stereo do?

The blue wire (sometimes labelled REMOTE or ANT CONT) outputs 12 V when the head unit is powered on. It is used to trigger the antenna mast motor in vehicles with a powered antenna — the mast extends when the radio turns on and retracts when it turns off. A second wire, blue with a white stripe, is provided on many head units specifically for triggering an external amplifier's remote turn-on input while the blue wire controls only the antenna.

How do I identify which factory speaker wires are positive and negative?

Use a 1.5 V AA battery and touch its terminals briefly to the speaker wire pair. The speaker cone moves outward when the battery positive connects to the speaker positive wire. Observe the cone direction carefully — inward movement means your connections are reversed. Do not use a vehicle battery for this test — the higher voltage and current will damage the speaker.

My car stereo produces good sound at low volume but distorts at higher volumes — why?

Distortion at higher volumes from the head unit's internal amplifier most commonly indicates the gain structure is incorrectly set (if an external amplifier is used), or the head unit's internal amplifier is being driven into clipping. Reduce the bass boost setting to zero first — bass boost is the fastest way to clip a head unit's output. If distortion persists, the internal amplifier may be underpowered for the speakers fitted, and an external amplifier is the solution.

Can I connect a subwoofer directly to the head unit's speaker outputs?

Yes, for a low-powered passive subwoofer that presents a 4-ohm load. The head unit's internal amplifier will drive it, but output will be limited (typically 15–20 W RMS). For meaningful bass output, an external monaural amplifier driven from the head unit's subwoofer RCA output (a single, mixed low-pass filtered signal) is the correct approach. Running a subwoofer from bridged rear speaker outputs is also common but requires careful impedance calculation.

Why is the speaker output from a car stereo not referenced to chassis ground?

Aftermarket head units use a bridged output design (BTL — bridge-tied load). The speaker is connected between two output terminals that are both actively driven — neither is at chassis ground potential. This doubles the effective output voltage across the speaker and increases power output compared to a single-ended design. It also means you must not connect either speaker terminal to chassis ground, which would short one side of the bridge amplifier.

What are the wire colours on a Pioneer car stereo wiring diagram?

On a Pioneer car stereo wiring diagram, the standard colour code for the ISO power connector is: yellow — constant 12 V (battery/memory), red — accessory 12 V (ignition switched), black — ground, blue — power antenna or amplifier remote turn-on, and blue/white stripe — amplifier remote (some models split these). Speaker wiring on the ISO-B connector follows: front left positive/negative (white/white-black), front right positive/negative (grey/grey-black), rear left positive/negative (green/green-black), and rear right positive/negative (purple/purple-black). These colours are consistent across most Pioneer models, but always verify against the specific model's installation manual before connecting.
