Submersible Pump Wiring Diagram: Control Box, Capacitor & Pressure Switch

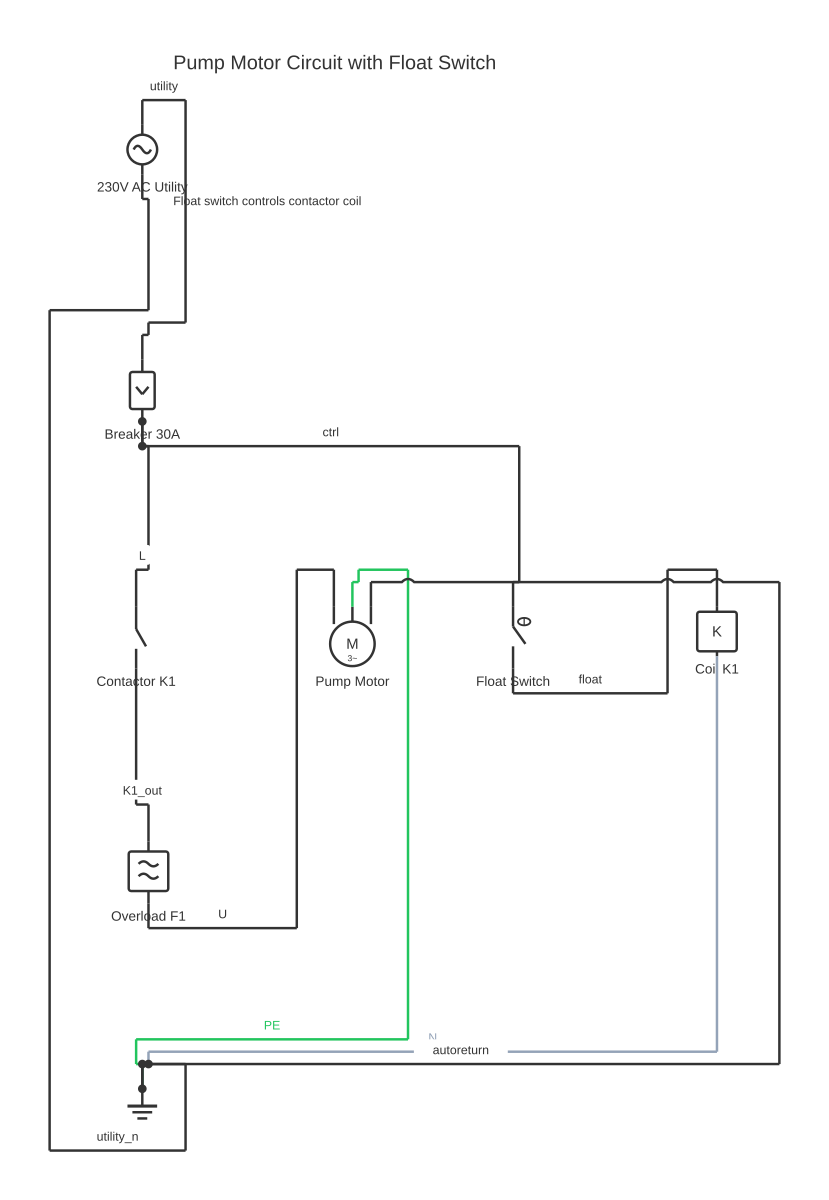

Submersible Pump Wiring Diagram: Control Box, Capacitor & Pressure Switch — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable submersible pump wiring diagram: download the diagram as SVG or open it and print to paper or PDF.

A reference wiring diagram for single-phase submersible well pumps, covering 2-wire and 3-wire motor configurations, control boxes, and pressure switch wiring.

Submersible pump wiring is more nuanced than most residential electrical work because the motor is inaccessible once installed — troubleshooting must be done at the surface through the control box and wiring.

**2-wire versus 3-wire motors:** The naming refers to the number of conductors running from the surface to the pump motor (excluding ground). A 2-wire motor has its start capacitor and start switch built into the motor housing — no separate control box is required, only a standard double-pole breaker and pressure switch. A 3-wire motor requires a separate surface-mounted control box containing the start capacitor, run capacitor, and starting relay (Potential start relay or Solid State relay). The 3-wire motor has separate start and run windings accessible via three conductors: common, start, and run.

**Control box internals (3-wire system):** The control box connects to the circuit breaker panel via a 2-pole breaker. It contains: a start capacitor (electrolytic, high microfarad rating, short-duty rated), a run capacitor (oil-filled or film type, continuous duty), and a start relay. At startup, both start and run windings are energised through the start capacitor, providing high starting torque. Once the motor reaches approximately 75% of full speed, the starting relay disconnects the start winding. The run capacitor remains in circuit continuously to improve power factor and efficiency.

**Pressure switch:** The pressure switch is a normally-open (for low-pressure start) SPDT device installed in the water line. It is wired in series with the motor supply. Common residential settings are 20–40 PSI or 30–50 PSI. The switch has two sets of contacts and a differential adjustment. The switch disconnects power when system pressure reaches the cut-out set point.

**Wire sizing:** Run lengths in well installations are significant. Wire must be sized not only for current but for voltage drop over the total loop length (feed + return). Consult NEC Table 310.16 for current capacity and calculate voltage drop; more than 3% drop at full load indicates undersized wire.

How to wire submersible pump wiring diagram

Identify motor configuration (2-wire or 3-wire) Check the motor nameplate data and the number of conductors emerging from the well casing. A 2-wire motor has two active conductors plus earth; a 3-wire motor has three active conductors (common, start, run) plus earth. The control box requirement and wiring diagram differ between the two configurations.
Install and size the dedicated circuit breaker Submersible pumps must have a dedicated double-pole breaker sized per the motor nameplate full-load amps (FLA) with appropriate overload protection. NEC 430.52 specifies maximum breaker sizes for motor branch circuits. Do not share this circuit with other loads.
Mount the control box (3-wire systems only) Install the control box near the wellhead, protected from direct moisture exposure, in a location accessible for servicing. Mount it securely at a height that keeps it above any expected flood level. The control box must match the pump motor horsepower rating exactly — substituting control boxes of different ratings causes premature motor failure.
Wire the pressure switch Install the pressure switch in the discharge line using the factory port or a tee fitting. Wire the line side of the pressure switch from the control box or breaker output. Wire the load side of the pressure switch to the pump motor supply conductors. Ensure the switch contacts are rated for the motor's locked-rotor current.
Connect pump drop cable at surface junction Join the submersible-rated drop cable to the surface wiring using waterproof wire connectors rated for the application. Many installers use a pitless adapter wiring port. Identify each conductor (common, start, run) by colour code and motor wiring diagram — colour codes vary by manufacturer and region.
Verify earth/ground continuity The ground conductor must run continuously from the breaker panel earth bar to the pump motor housing. Measure continuity from the panel earth to the pump ground terminal before energising. A ground fault in a well installation creates extremely hazardous conditions in and around the well casing.
Test and commission under supervision Energise the circuit briefly and confirm the pump starts without tripping the breaker. Monitor starting current if a clamp meter is available — it should not exceed the locked-rotor current on the motor nameplate for more than a few seconds. Allow system to pressurize and verify pressure switch cuts out at the set point.

Specifications

Supply voltage (single phase)	120/240 V AC, 60 Hz (North America); 230 V AC, 50 Hz (IEC regions)
Typical residential pump HP range	0.5–2 HP (375 W–1.5 kW)
Pressure switch set points (common)	30/50 PSI or 20/40 PSI cut-in/cut-out
Wire type for submersion	Direct burial submersible-rated cable (polyethylene jacket)
Maximum recommended voltage drop	3% at full load (NEC guidance)
Motor insulation resistance (new motor)	Greater than 1 MΩ to earth at 500 V DC test voltage
Pressure tank pre-charge (bladder type)	2 PSI below cut-in pressure set point

Safety warnings

Submersible pump wiring must comply with NEC Articles 422, 430, and 680, or the equivalent standard in your jurisdiction (BS 7671, AS/NZS 3000, IEC 60364). Engage a licensed electrician for all installation and fault-finding work.
Always isolate the circuit at the breaker and verify with a multimeter that voltage is absent before touching any conductors. Lock out and tag out the breaker to prevent accidental re-energisation.
A ground fault in or near a well creates an electrocution hazard in the water and at any grounded metalwork near the wellhead. Never assume the well is safe without verifying ground integrity.
Capacitors store charge even after the circuit is de-energised. Discharge capacitors safely through a rated resistor before handling. A charged start capacitor can deliver a severe electrical shock.
This diagram is provided for reference and educational purposes only. Always follow the pump manufacturer's installation manual and applicable electrical codes for your jurisdiction.

Tools needed

Multimeter (voltage, resistance, continuity)
Capacitor meter (for testing start and run capacitors)
Clamp-type ammeter (to verify starting and running current)
Voltage tester (non-contact type for initial isolation verification)
Submersible wire crimping or resin-splice kit
Insulation resistance tester (megohmmeter) for motor winding testing
Lockout/tagout equipment

Common mistakes

Installing a control box with a different horsepower rating than the motor. The start and run capacitor values are matched to the motor HP — a mismatch causes overheating and motor damage.
Using standard NM-B cable or THHN wire in submersible applications. Only cable rated for continuous water immersion and direct burial should be used below the wellhead.
Sizing the breaker only for cable current capacity without accounting for motor locked-rotor current, causing nuisance tripping at every start.
Failing to calculate voltage drop over the full drop cable length. Long runs in deep wells cause significant voltage drop that reduces motor torque and causes overheating.
Connecting wiring without verifying conductor identification. Common, start, and run conductors vary in colour code between manufacturers — always cross-reference the motor wiring diagram.

Troubleshooting

Pump does not start; breaker trips immediately: Cause: Motor winding short, seized pump/impeller, or failed start capacitor causing excessive locked-rotor current Fix: Isolate circuit. Test motor winding resistance from surface with a megohmmeter — any reading below 1 MΩ to earth indicates an insulation fault. Test the start capacitor with a capacitor meter; replace if out of specification. If windings are shorted, motor must be replaced.
Pump runs but does not build pressure: Cause: Check valve failure, worn impeller, incorrect rotation (3-phase motors), or pump set above static water level Fix: Verify water level above pump intake. Listen for the pump running — if it spins freely but produces no pressure, the check valve may be stuck open or the impeller may be worn. For 3-phase installations, swap any two motor leads to reverse rotation.
Pump short-cycles (starts and stops rapidly): Cause: Waterlogged pressure tank, failed tank bladder, or pressure switch differential set too narrow Fix: Check air charge in the pressure tank — a waterlogged tank has no air cushion and causes rapid cycling. On bladder-type tanks, check pre-charge pressure (typically 2 PSI below cut-in set point) with the system depressurised. Replace bladder if ruptured.

Frequently asked questions

What is the difference between a 2-wire and 3-wire submersible pump?

A 2-wire pump has the starting components inside the motor — no surface control box is needed. A 3-wire pump requires a surface-mounted control box containing the start capacitor, run capacitor, and starting relay. 3-wire systems are generally easier to service because the starting components are accessible above ground.

Why does my submersible pump keep tripping the breaker?

Common causes include a failed start capacitor (motor draws excess current trying to start), a seized motor or impeller, a winding short in the motor, or a pump running against a closed valve. Start with a capacitor test using a capacitor meter. Also measure motor winding resistance from the surface — compare all three windings against motor data.

What wire type is required for submersible pump installations?

Use submersible-rated cable specifically designed for wet burial and submersion — typically flat or round multi-conductor cable with a polyethylene jacket rated for direct burial and continuous water immersion. Standard NM-B (Romex) or THHN wire is not suitable for submersion. Check local code; NEC Article 680 and 310 apply.

How does the pressure switch control the pump?

The pressure switch monitors system water pressure via a diaphragm sensing port. When pressure drops to the cut-in set point (e.g. 30 PSI), the contacts close and power reaches the motor. When pressure rises to the cut-out set point (e.g. 50 PSI), the contacts open and the motor stops. The differential between cut-in and cut-out is typically 20 PSI.

Can I wire a submersible pump myself?

Wiring requirements vary by jurisdiction. Many regions require a licensed electrician for any pump installation connected to a potable water supply. Even where permitted for owner-occupiers, submersible installations involve significant depth, inaccessible components, and potential for electrocution in wet environments. Consult a qualified electrician and your local authority.
