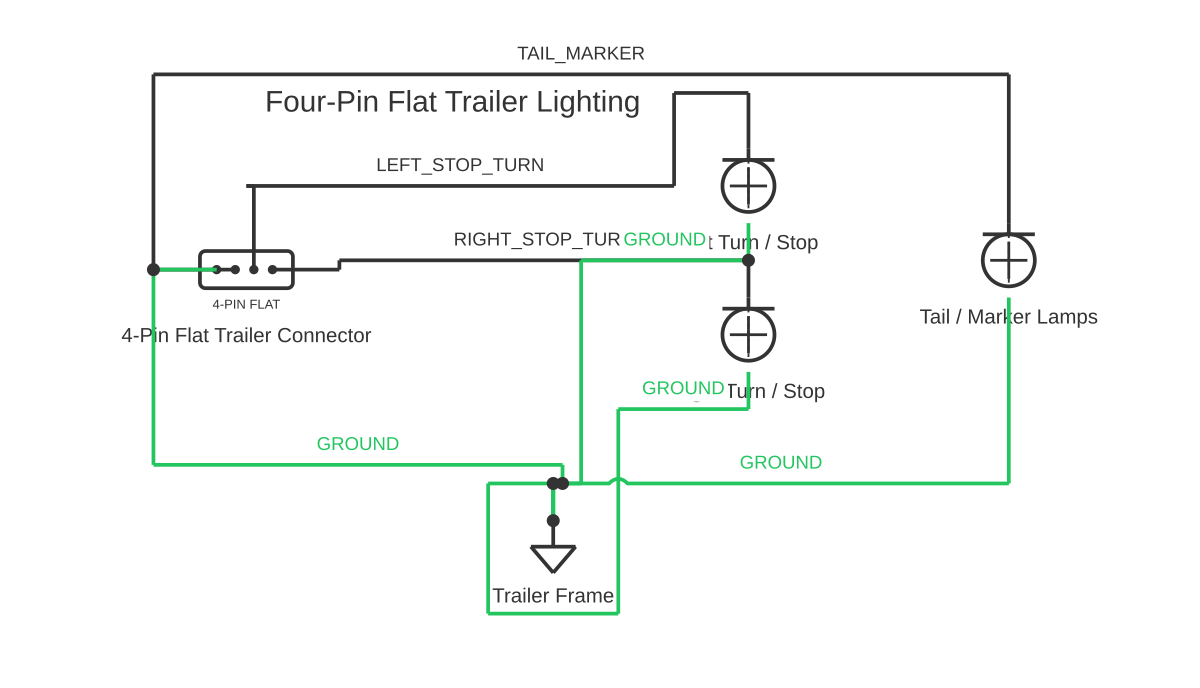

A trailer plug wiring diagram for a 4-pin connector identifies each of the four blade contacts by function: white carries the chassis ground, brown carries tail lights, yellow carries the left combined brake and turn signal, and green carries the right combined brake and turn signal.

The 4-pin trailer plug is a small but legally critical component. A failure at this plug means the trailer's lights stop working entirely or behave erratically, creating a rear-end collision hazard. Looking at the wiring diagram for this plug in a systematic way — from the vehicle connector, through the plug-and-socket interface, to the trailer lamps — reveals why each design decision was made and where faults most commonly originate.

The plug has four flat blade contacts arranged in a row or rectangle depending on design generation. The contacts are not interchangeable — they carry different circuit types, and the ground pin is physically located so it mates and breaks last during connection/disconnection, maximising safety. By convention, the white wire is the ground and the three signal wires (brown, yellow, green) are the active supply conductors.

A diagram of this connector should show two views: the mating face of the vehicle socket (from the front, as you approach it to plug in), and the rear of the plug (as you prepare to crimp or solder the wires). This dual-view approach is essential because a wiring diagram drawn from the wrong perspective will result in a mirror-image wiring error — the most common source of left-right transposition mistakes.

The tow vehicle side of the diagram feeds signals from the vehicle's body control module (BCM) or physical flasher relay into the socket contacts. On modern vehicles with CAN bus-controlled lighting, the trailer socket output is managed by the BCM, and adding load-sensing trailer wiring must be done via a matched T-harness to avoid BCM faults and loss of trailer-present detection.

The trailer side of the diagram distributes current from each plug contact through the trailer's wiring harness to the light clusters. The diagram should show the harness running along the trailer frame with branch circuits to each lamp, all lamp negatives returning to the trailer frame, and the frame connected to the white ground wire.

Connector maintenance is often neglected. The diagram context should always note that the plug blade contacts must be inspected annually, cleaned of corrosion, and coated with dielectric grease. A corroded 4-pin plug that appears superficially intact can have contact resistance of several ohms — enough to cause dim lights, cross-illumination, and overheating.

How to wire trailer plug wiring diagram 4 pin

Orient the diagram correctly before wiring Always identify whether the diagram shows the plug from the rear (wire entry side) or the front (mating face). A mistake here mirrors every connection. The female socket diagram should show the socket from the front (as seen by the plug approaching it) and the plug from the rear (as you wire it).
Strip and prepare the harness wires Strip 8–10 mm of insulation from each wire. Twist stranded wire ends tightly to prevent stray strands from bridging adjacent terminals. If the plug uses screw terminals, tin the wire ends with a small amount of solder to prevent strands loosening under vibration.
Identify and connect white (ground) first Locate the ground terminal in the plug body (usually marked G or marked with the ground symbol). Insert and secure the white wire. This ensures continuity throughout the rest of the wiring process — you can test as you go.
Connect brown (tail lights) Locate the tail/running terminal (often marked TM or with a tail lamp icon). Insert and secure the brown wire. Test with a multimeter that continuity exists from this terminal through to the tail lamp connection point.
Connect yellow (left stop/turn) and green (right stop/turn) Insert yellow into the left turn terminal and green into the right turn terminal. Confirm the orientation matches the diagram's perspective. Secure all terminals to the manufacturer's torque specification if screw-type, or crimp if crimp-type.
Assemble and seal the plug body Thread wires through the plug's back shell or strain relief, assemble the plug body, and tighten the strain relief nut to grip the outer jacket of the harness cable. Apply dielectric grease to the blade contacts before first mating.
Carry out a full lighting test Connect to the vehicle and test all four functions. Check that ground resistance is below 1 ohm. Check that no cross-illumination exists between left and right circuits. Confirm running lights are on the brown circuit, not shared with stop/turn.

Specifications

Standard designation	4-way flat (4-flat), SAE J1239
Contact 1 — white wire	Ground (chassis common negative)
Contact 2 — brown wire	Tail / running lights
Contact 3 — yellow wire	Left combined stop and turn
Contact 4 — green wire	Right combined stop and turn
Rated voltage	12 V DC
Current rating per contact	≥ 7 A (contact manufacturer's datasheet)
Environmental rating (typical)	IP54 splash-resistant; not rated for submersion

Safety warnings

Unplug the 4-pin connector from the vehicle before doing any wiring work on the trailer or the connector itself. The vehicle socket is energised by the vehicle's lighting circuits regardless of ignition state on most vehicles.
Damaged or cracked plug bodies allow water into the contact area, causing rapid corrosion and potential short circuits. Inspect the plastic body and the strain relief for cracks before every season of use.
Never repair a damaged trailer plug by wrapping damaged insulation with tape. Replace the plug body. A poor connection at the trailer plug can cause open circuits in brake lights, which is a road safety hazard.
The 4-pin connector is rated for lighting circuits only. Do not attempt to draw other loads (inverters, battery chargers, refrigerators) through the 4-pin circuit — the contacts and vehicle fusing are not rated for it.

Tools needed

Multimeter
12 V test light
Flat-blade screwdriver (for screw-terminal plugs)
Wire stripper (14 AWG)
Solder iron and solder (optional, for tinning wire ends)
Crimp tool (for crimp-terminal connector variants)
Dielectric grease
Electrical contact cleaner spray

Common mistakes

Viewing the wiring diagram from the wrong face of the connector and wiring yellow and green to the opposite sides, transposing left and right signals.
Over-stripping wire insulation so bare copper is exposed at the back of the terminal, creating a short-circuit risk against the plug body.
Not tightening the strain relief, allowing the harness to pull at the terminal crimps under road vibration and trailer articulation, causing intermittent open circuits.
Using a universal pin diagram without confirming it matches the specific connector body in hand — pin numbering is not globally standardised across manufacturers.
Failing to apply dielectric grease, then being surprised by green-white corrosion on the blade contacts within a single season.

Troubleshooting

Plug feels loose in the socket and lights flicker at speed: Cause: Worn or bent blade contacts in the plug, or a stretched socket that no longer makes firm contact with the blades Fix: Inspect blade contacts for straightness and signs of wear (thinning, bowing). A bent blade can sometimes be carefully straightened with needle-nose pliers. If contact material is worn, replace the plug. If the socket is the problem, replace the vehicle socket.
Dielectric grease has turned dark brown inside the connector: Cause: Electrical arcing has carbonised the grease, indicating a high-resistance connection that is causing sparking at the contact Fix: Clean all contacts with electrical contact cleaner. Inspect the blade and socket contacts for pitting or burn marks. If pitting is present, replace the connector set — arcing damage will cause continued unreliable contact.
One circuit works only when the plug is pushed in firmly by hand: Cause: A blade contact is slightly short or the socket spring contact is fatigued, resulting in marginal electrical contact Fix: Identify the affected circuit. Inspect the corresponding blade for correct protrusion from the plug body. Check the socket contact for correct spring tension. Replace whichever component has the weak contact.

Frequently asked questions

Which pin on a 4-pin trailer plug is the ground?

The white wire terminal is the ground pin on a SAE J1239 4-flat connector. It provides the common negative return for all trailer lighting circuits. This pin should always be tested for continuity to the tow vehicle chassis — not just to the trailer frame — before diagnosing any lighting fault.

Why does my 4-pin trailer plug get corroded so quickly?

Trailer plug contacts are exposed to water, mud, and road salt. The dissimilar metals at the blade-to-socket contact point create galvanic corrosion, especially when the plug is left exposed and unplugged. Coating blade contacts with dielectric grease after each cleaning significantly slows corrosion. Stainless blade plugs corrode slower than bare steel.

Can I convert a 4-pin connector to a 7-pin without rewiring the trailer?

You can fit an adapter plug that converts the 4-pin male trailer plug to a 7-pin male, allowing it to mate with a 7-pin vehicle socket. This adapter passes through the four lighting functions. However, the trailer will still lack electric brake, battery charge, and auxiliary circuits — those require actual re-wiring of the trailer harness, not just an adapter.

What does it mean when the trailer plug wiring diagram shows a 'combiner'?

A combiner (also called a brake/turn signal converter) is a small electronic module inserted between the vehicle's body wiring and the trailer socket. It combines the vehicle's separate brake signal wire and turn signal wire into a single combined output per side, matching what the 4-pin standard requires on yellow (left) and green (right).

Is the 4-pin connector waterproof?

Standard 4-flat connectors are water-resistant, not fully waterproof. They tolerate road splash but are not rated for submersion. Trailers that launch into water — boat trailers — should use submerged-rated lighting assemblies and consider a sealed connector or inspect and regrease the plug thoroughly after each water launch.
