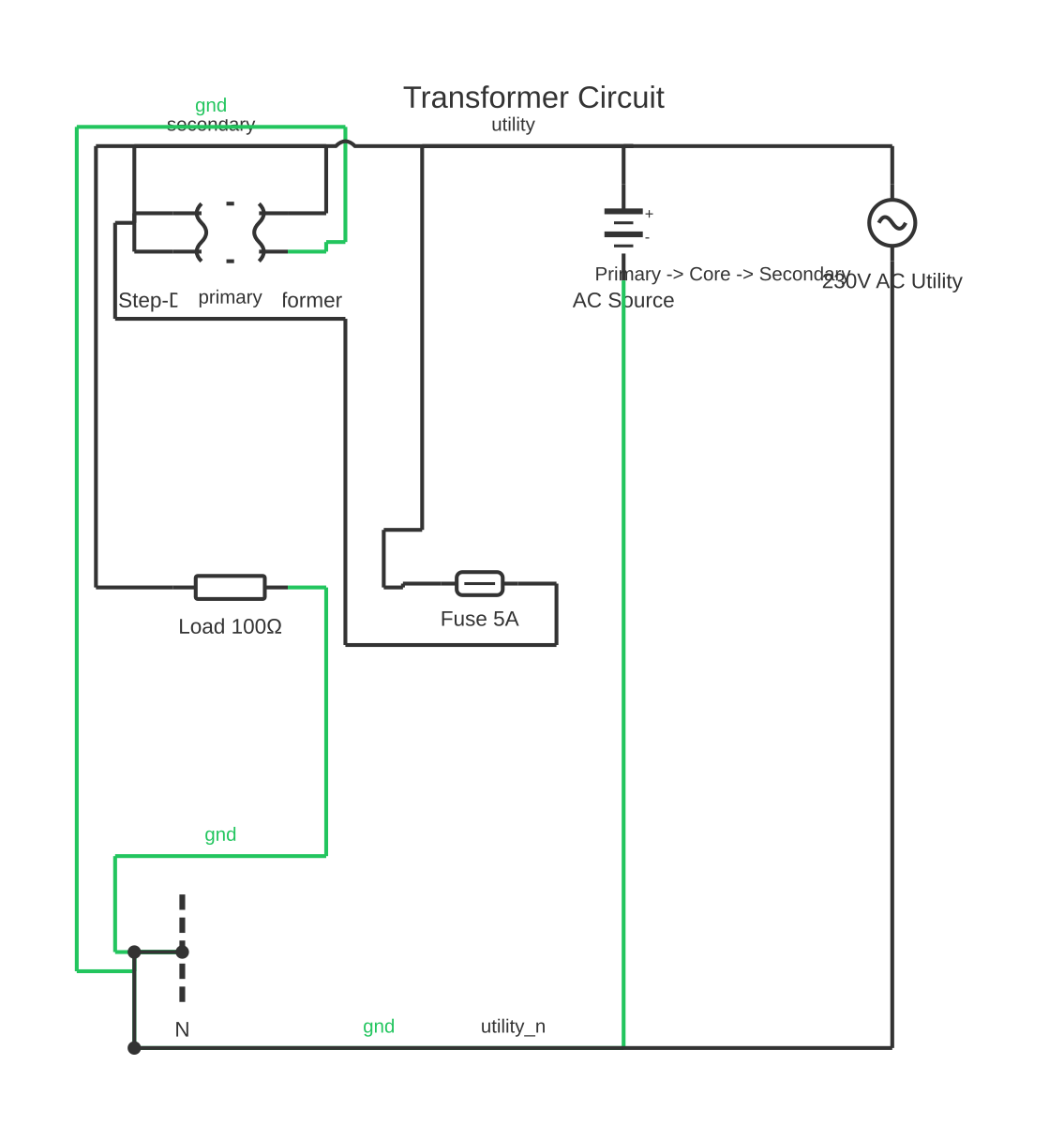

Transformer Wiring Diagram
This is a free printable transformer wiring diagram: download the diagram as SVG or open it and print to paper or PDF.
Transformers step voltage up or down between circuits using electromagnetic induction. This guide covers primary and secondary connections, centre-tap wiring, polarity dots, and safe installation practices.
A transformer transfers electrical energy between two or more circuits through a shared magnetic flux in an iron core. The primary winding connects to the supply voltage; the secondary winding delivers the transformed output voltage to the load. Voltage ratio follows the turns ratio: V_secondary divided by V_primary equals N_secondary divided by N_primary. A step-down transformer used to convert 240 V to 120 V has a 2:1 turns ratio. Current transforms inversely: if voltage halves, current doubles (assuming 100% efficiency). Real transformers are 95-99% efficient; the loss appears as heat in the core (eddy current and hysteresis losses) and in the winding resistance (copper loss). Polarity dots on transformer schematic symbols indicate winding phase. When both dots are at the top of their respective windings, the voltages rise together -- this is additive polarity. Reversing the secondary connection reverses its phase relative to the primary, which matters when paralleling transformers or creating centre-tap circuits. A centre-tap transformer has a midpoint on the secondary creating two equal voltages. A 240 V secondary with a centre tap provides 120 V from each half -- the standard arrangement in North American residential service. Three-phase transformer banks connect individual single-phase units or a single three-phase unit in delta or wye configuration. Protection includes primary fusing, thermal cutouts, and in power transformers, oil-immersed conservator tanks with Buchholz relays detecting gas accumulation from internal faults. All transformer enclosures must be grounded, and the secondary neutral must be bonded to ground at the first means of disconnect.
How to wire transformer wiring diagram
- Verify transformer ratings Check the nameplate for kVA, primary voltage, secondary voltage, impedance percentage, and frequency. Confirm these match the application requirements before installation.
- Install and ground the enclosure Mount the transformer on a vibration-isolating pad. Bond the enclosure to the building ground system with a ground conductor sized per NEC Table 250.66.
- Connect primary wiring Run conductors sized for primary full-load current times 1.25 from the primary disconnect to H1 and H2 (single phase) or H1, H2, H3 (three phase). Install primary fusing.
- Connect secondary wiring Connect secondary load conductors to X1, X2, X3 terminals. Bond the secondary neutral (centre tap X2) to ground at the first means of disconnect per NEC 250.30.
- Energise and verify voltages Energise the primary. Measure secondary voltages at all terminal combinations with a calibrated meter. Verify voltages match nameplate specifications within +/-5%.
- Connect loads and re-verify Connect loads progressively. Measure secondary voltage under load -- ensure it does not drop more than 3% below no-load voltage. Monitor transformer temperature for the first hour of operation.
Specifications
| Typical efficiency | 95-99% |
|---|---|
| Primary fusing | 125% of primary full-load current |
| Insulation class | Class F (155 degrees C) or Class H (180 degrees C) |
| Impedance (%Z) | 2-6% for distribution transformers |
| Minimum insulation resistance | 1 Megohm per kV + 1 Megohm (Megger test) |
Safety warnings
- Never work on a transformer that is energised -- even the secondary side can carry lethal voltage if loaded with a step-up configuration.
- Allow transformers to cool at least 30 minutes after de-energising -- iron cores store heat and winding insulation can cause burns.
- Ensure primary fusing protects the transformer: secondary fault current reflected to the primary can exceed primary conductor ratings.
Tools needed
- Clamp-style AC ammeter for measuring winding currents safely
- Digital multimeter with AC voltage range
- Insulation resistance tester (megohmmeter) for winding health check
- Torque wrench for terminal block bolt tightening to specification
Common mistakes
- Connecting the primary to the secondary terminals -- the turns ratio then steps up or down voltage in the wrong direction, potentially applying dangerous voltage to control circuits.
- Omitting primary overcurrent protection -- without a correctly rated fuse or breaker on the primary, a secondary fault can overheat the primary winding.
- Grounding the secondary neutral at more than one point in a separately derived system -- multiple neutral grounds create parallel return paths and dangerous circulating currents.
Troubleshooting
- Secondary voltage incorrect
- Cause: Tap selection incorrect or primary voltage not matching rated primary Fix: De-energise. Check primary voltage with meter. Adjust tap changer to correct primary tap matching measured supply voltage. Re-energise and verify secondary.
- Transformer overheating
- Cause: Overloaded beyond kVA rating, blocked ventilation, or ambient temperature too high Fix: Measure secondary current with clamp meter. If load exceeds nameplate rating, shed non-essential loads or install larger transformer. Clear ventilation openings.
- Insulation resistance low (less than 1 megohm)
- Cause: Moisture ingress, insulation aging, or winding fault Fix: Dry the transformer in a warm oven at 60 degrees C for 24 hours and re-test. If insulation resistance remains below 1 megohm, the transformer requires rewinding or replacement.
Frequently asked questions
How do I determine the kVA rating needed for my load?
Transformer kVA rating must exceed the total connected load with a margin for future growth. Calculate: kVA = (Total watts) divided by (Power factor times 1000). For resistive loads, PF = 1. For motor loads, PF = 0.7-0.85. Add all simultaneous loads together. Select a transformer rated at least 125% of the calculated kVA to allow for inrush current and load growth without overheating.
What do polarity dots mean on a transformer schematic?
Polarity dots indicate which terminal of the primary and secondary have the same instantaneous polarity. When current enters the dotted terminal of the primary, it exits the dotted terminal of the secondary. This information is critical when connecting transformers in parallel or when configuring centre-tap circuits to ensure voltages add correctly rather than cancelling.
Can I run a transformer backwards (use the secondary as the primary)?
Technically yes -- transformers are bi-directional -- but it is not recommended without engineering review. The primary winding is designed for the supply voltage insulation level and current density. Running it in reverse changes which winding carries primary current, potentially overloading the thinner secondary wire. Also, primary protection and tap configurations are designed for specific input voltages.
How do I wire a 480 V to 120/240 V centre-tap transformer?
Connect the primary terminals to 480 V supply (H1 and H2). The secondary has terminals X1, X2 (centre tap), and X3. Connect the centre tap (X2) to neutral and ground at the disconnect. X1 to X3 provides 240 V. X1 to X2 or X2 to X3 provides 120 V. Verify with a voltmeter before connecting loads. Primary fusing must protect primary conductors rated for 480 V divided by kVA times 1.25.
What causes a transformer to hum loudly?
All transformers produce a 120 Hz hum (double line frequency) from magnetostrictive core vibration. Excessive hum beyond normal levels is caused by: operation above rated voltage (core saturation), loose laminations in the core (tighten through-bolts), nearby resonant panels (add vibration isolator mounts), or DC offset in the supply (from half-wave rectifier loads on the circuit). Measure supply voltage -- if it exceeds 105% of transformer rating, the core is partially saturated.
