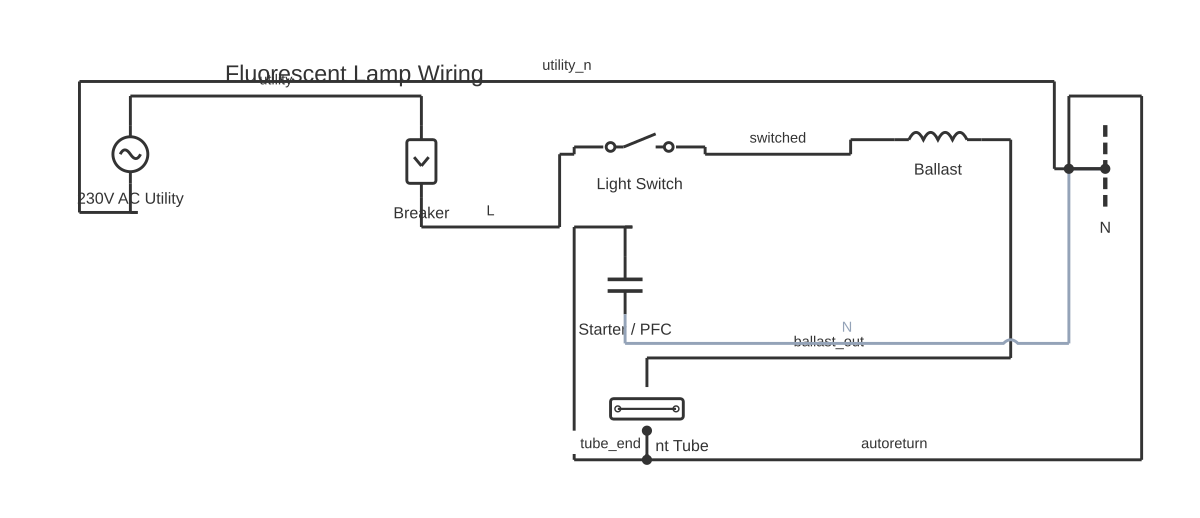

Tube Light Wiring Diagram: Fluorescent Lamp, Ballast, and Starter Circuit
This is a free printable tube light diagram: download the diagram as SVG or open it and print to paper or PDF.
A tube light circuit connects a fluorescent lamp in series with a ballast (choke) and, in older electromagnetic circuits, a starter switch that provides the initial heating current surge to ionise the gas and strike the arc.
A fluorescent tube light operates on the principle of gas discharge: an electric arc through mercury vapour and inert gas produces ultraviolet radiation, which excites a phosphor coating on the inside of the glass tube to emit visible light. The tube cannot operate directly from a mains supply — it requires two supporting components: a ballast and, in older designs, a glow starter.
The ballast (also called a choke or control gear) is a inductive impedance device connected in series with the tube. Its two functions are: providing the high-voltage starting surge needed to ionise the gas and strike the arc; and limiting the current once the arc is established (a discharge lamp has a negative resistance characteristic — as current increases, resistance drops, which would cause runaway current without the ballast's current-limiting impedance). Electromagnetic (magnetic) ballasts are heavy iron-core inductors; electronic ballasts are switch-mode circuits operating at 20kHz–50kHz, which eliminates the 100Hz flicker associated with magnetic ballasts and is more energy-efficient.
In a conventional two-pin tube with electromagnetic ballast, the glow starter is a small gas-filled switch containing a bimetallic strip. At power-on, the starter switch is initially open; the full mains voltage appears across it and causes a glow discharge inside the starter, heating the bimetallic strip, which closes. The closed starter completes a series circuit through the filament electrodes at each end of the tube, passing heating current through them and preheating the cathodes. After a fraction of a second, the bimetallic strip cools and opens again. This sudden interruption of current through the inductive ballast causes a high-voltage spike (typically 600V–1000V) across the tube, which ionises the gas and strikes the arc. Once the arc is struck, the voltage across the tube drops below the level required to re-ignite the starter, so the starter remains open and plays no further role during normal operation.
Electronic ballasts (now the standard in new installations) eliminate the glow starter entirely. They use active circuits to rapidly preheat the cathodes and apply a controlled high-frequency starting voltage, striking the arc reliably without the delay and flicker of the glow-start process. LED tube replacements eliminate both the ballast and starter in retrofit applications, though wiring implications vary by retrofit type (Type A, B, or C).
How to wire tube light diagram
- Isolate and verify dead before working on the fitting Switch off the circuit at the distribution board, apply a lockout clip to the circuit breaker or remove the fuse, and verify there is no voltage at the fitting using a calibrated voltage tester. Fluorescent fittings connect to mains voltage — this step is mandatory.
- Identify the circuit components Open the fitting and identify the ballast (choke), starter holder, lamp holders (tombstone holders) at each end of the tube, and the mains supply terminals. In twin-tube fittings, identify which ballast serves which tube.
- Connect the mains supply Line (live/phase) and neutral conductors connect to the fitting's supply terminals. The earth conductor connects to the fitting's earth terminal, which bonds to the metal body of the luminaire.
- Wire the ballast in series with the tube One end of the ballast connects to the mains live (line) conductor. The other end connects to one of the lamp holder pins. This series connection is the current-limiting path through the tube. The neutral connects to the other lamp holder pin (at the opposite end of the tube).
- Wire the starter in parallel with the tube The starter holder connects in parallel across the tube — one contact to the lamp holder terminal on the ballast side, the other to the lamp holder terminal on the neutral side. This allows the starter to apply mains voltage across itself during the starting phase.
- Insert the tube and starter Insert the fluorescent tube into the lamp holders by aligning the pins and rotating 90 degrees to lock (bi-pin T8 or T12 tubes) or pushing straight in (single-pin T12). Insert the starter into its holder. Restore mains supply.
- Test operation and verify starting behaviour Observe starting behaviour — the tube should strike within 1–3 attempts on a correctly functioning electromagnetic circuit, or within 1 second on an electronic ballast. If the tube fails to strike after several attempts, test the starter by replacement first (it is the most common failure component).
Specifications
| Common tube diameter and designation | T5 (16mm), T8 (26mm), T12 (38mm) — T8 most common in commercial use |
|---|---|
| Common tube wattages (T8) | 18W (600mm), 36W (1200mm), 58W (1500mm) |
| Starting voltage spike (electromagnetic ballast) | 600V – 1000V peak across tube at start |
| Normal operating tube voltage (steady state) | Approximately 57V–110V RMS depending on tube wattage (well below starting spike) |
| Flicker frequency — magnetic ballast at 50Hz supply | 100Hz (perceptible to some individuals, especially in peripheral vision) |
| Operating frequency — electronic ballast | 20kHz – 50kHz (above human visual flicker detection threshold) |
| Mercury content (typical T8 tube) | 3mg – 5mg per tube (classified as hazardous waste) |
Safety warnings
- Fluorescent tube fittings are connected to mains voltage. Always isolate the circuit at the distribution board and verify dead with a calibrated voltage tester before opening the fitting, replacing components, or touching any internal wiring.
- Fluorescent tubes contain mercury vapour. If a tube breaks, ventilate the area immediately, avoid inhaling any vapour, and dispose of broken tubes as hazardous waste in accordance with local environmental regulations — do not discard in general waste.
- Do not touch the tube envelope with bare hands during installation — oils from skin can create a hot spot that causes premature tube failure. Use gloves or handle the tube by its end pins.
- Verify the earth conductor is correctly connected to the luminaire body. A luminaire with a damaged mains conductor and an open earth creates a shock hazard if the metal body becomes live.
- Type B LED tube retrofits require mains voltage to be connected directly to the lamp holders — ensure the ballast and starter are completely bypassed or removed per the manufacturer's instructions, and label the fitting clearly to warn future maintenance personnel.
Tools needed
- Calibrated voltage tester or non-contact voltage detector (for proving circuit dead before working)
- Screwdrivers for luminaire cover screws
- Wire strippers for any rewiring work
- Replacement starter (for fault diagnosis by substitution)
- Digital multimeter (for testing ballast continuity and lamp holder wiring)
- Insulating gloves (when handling tubes to avoid skin oil contamination)
Common mistakes
- Replacing the tube when the starter is the fault — the starter is the most common and cheapest failure component, and a dim, flickering, or non-starting tube should always have the starter replaced first before condemning the tube or ballast.
- Installing a starter of the wrong current rating for the tube wattage — an undersized starter cannot provide sufficient preheating current; an oversized starter may strike the tube too quickly without adequate cathode preheat, shortening tube life.
- Omitting the earth connection to the luminaire body on a metal-bodied fitting — this is a serious safety fault that leaves the luminaire potentially live if an insulation failure occurs.
- Using an electronic ballast without removing the existing starter — electronic ballasts do not use a starter; leaving a functional glow starter in circuit will cause interference and may prevent the electronic ballast from operating correctly.
- Wiring the ballast in parallel with the tube rather than in series — the ballast must be in the series current path to limit tube current. Parallel wiring causes uncontrolled current through the tube (and rapid destruction of tube and ballast).
Troubleshooting
- Tube does not start — no light, no flicker
- Cause: Failed starter, failed ballast, open lamp holder contact, faulty tube, or no mains supply to the fitting Fix: Verify mains voltage at the fitting supply terminals. Replace the starter first (most common fault, cheapest part). If the tube still does not start, swap in a known-good tube. If still no start, measure ballast resistance — an open-circuit ballast reads infinite resistance and must be replaced.
- Tube ends glow but full arc does not strike
- Cause: Worn-out or faulty starter, very cold ambient temperature reducing gas pressure, or tube nearing end of life with degraded cathode emission Fix: Replace the starter. If the fitting is in a cold environment (below 10°C), use a low-temperature starter rated for cold starting. If a new starter does not resolve the issue, replace the tube.
- Tube lights but flickers continuously in steady operation
- Cause: Loose lamp holder contact allowing intermittent arc interruption, or a degraded tube nearing end of life, or a faulty ballast with varying impedance Fix: Twist and reseat the tube in the lamp holders. Check lamp holder spring contacts for corrosion or mechanical fatigue. Replace tube if it is old. Test with a known-good ballast.
- Ballast hums loudly
- Cause: Normal characteristic of electromagnetic (magnetic) ballasts — the laminated core vibrates at twice the mains frequency (100Hz or 120Hz). Excessive hum indicates a failing ballast with loose core laminations or a resonance issue. Fix: Check that the ballast is securely mounted. Replace the ballast if hum is excessive. For a permanently quiet installation, replace the electromagnetic ballast with an electronic ballast, which operates at high frequency (20kHz+) above the audible range.
Frequently asked questions
What does the starter do in a fluorescent tube circuit?
The starter is a glow-discharge switch containing a bimetallic strip. It closes when mains voltage is applied, allowing preheating current to flow through the tube's cathode electrodes. When it then opens, the inductive ballast generates a high-voltage spike across the tube, ionising the gas and striking the fluorescent arc. It plays no role during normal steady-state lamp operation.
Why does a fluorescent tube flicker at startup but stabilise after a few seconds?
During glow-start operation, the starter may cycle several times before the tube strikes — each attempt heats the cathodes further and produces a flash as partial ionisation occurs. Once the full arc is established, the starter opens and remains open, and the lamp reaches steady-state operation at the mains frequency (50Hz or 60Hz) or at the electronic ballast's high frequency (20kHz+).
Can I replace an electromagnetic ballast with an electronic ballast?
Yes — electronic ballasts are direct replacements for electromagnetic ballasts in most single-tube and twin-tube fittings, and they eliminate the need for the starter (the starter is bypassed or replaced with a dummy starter). Verify the electronic ballast is compatible with the specific tube type and wattage. An electronic ballast improves energy efficiency by 25–30% and eliminates 100Hz flicker.
What does it mean when a fluorescent tube glows at the ends but does not strike?
Glow at the tube ends without a full arc indicates the cathode electrodes are still emitting (the tube has some remaining life) but the mercury vapour is not fully ionising. This is typically caused by a faulty or worn-out starter, low mains voltage, very cold ambient temperature (below 10°C impairs gas ionisation), or a tube nearing the end of its service life.
How is an LED tube retrofit wired differently from a fluorescent tube?
Type A LED tubes are designed to work with the existing ballast (no rewiring needed). Type B LED tubes bypass the ballast entirely — mains voltage is connected directly to the tube holders, which requires rewiring the fitting and removing or bypassing the ballast and starter. Type C LED tubes use an external LED driver (replacing the ballast). Always follow the specific LED tube manufacturer's wiring instructions and disable the ballast if specified.
