Washing Machine Circuit Diagram

Washing Machine Circuit Diagram — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable washing machine circuit diagram: download the diagram as SVG or open it and print to paper or PDF.

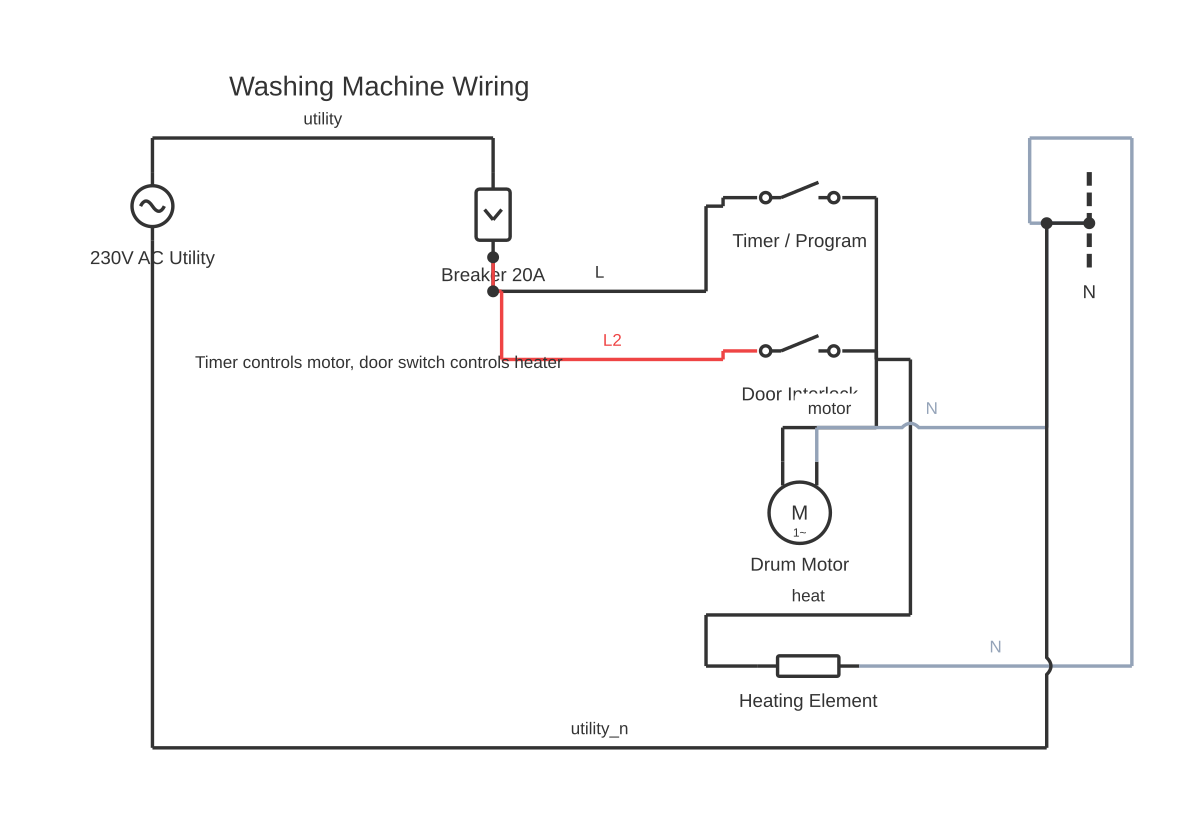

A washing machine circuit diagram maps how the programme timer or electronic control module coordinates the motor, water inlet valves, heating element, drain pump, door interlock, and thermal safety devices through a single mains-connected control system.

A domestic washing machine is a complex electromechanical system in which a programme controller — either an electromechanical cam timer or a microcontroller-based electronic module — sequentially energises and de-energises a set of electrical loads to achieve a complete wash programme. Understanding the circuit makes fault-finding logical rather than random.

The mains supply (230 V AC at 50 Hz in most countries, or 120 V AC at 60 Hz in North America) enters through the machine's main filter. This filter is a mains interference filter (also called an RFI or EMC filter) that attenuates conducted electrical noise generated by the motor's switching and the triac control stages, preventing interference reaching the household wiring.

Door Interlock (Door Lock Switch): This is the most important safety device in the circuit. The door interlock switch is a thermally or electromagnetically locked switch that prevents the door from being opened while the drum is rotating or while the drum contains hot water above a safe threshold. The interlock switch opens the main supply path to most loads if the door is open. The machine will not run any programme with the door open, and the door cannot be physically opened during a cycle (there is a deliberate 2–3 minute delay after the programme ends before the door unlocks, allowing the drum to decelerate).

Programme Timer / Electronic Control Module: In older machines, a motorised cam timer rotates through the programme, sequentially making and breaking contacts that control each load. In modern machines, a microcontroller-based Electronic Control Module (ECM) reads sensors (water level, drum speed via motor tachogenerator, water temperature via NTC thermistor) and switches loads through triacs or relays according to the programmed wash sequence.

Motor: Most front-loading washing machines use a single-phase induction motor with a centrifugal speed switch, or a brushed universal motor. Modern high-efficiency machines use a permanent magnet synchronous (BLDC) motor with an inverter drive. The universal motor (brushed) allows variable speed by varying the applied voltage through a triac, which is why older machines can spin and wash at multiple speeds. The centrifugal switch on induction-motor machines switches out the start winding once running speed is achieved.

Heating Element: A 2–2.5 kW tubular immersion element heats the wash water. It is controlled by the programme timer or ECM, switching on and off to reach the target temperature measured by the NTC thermistor. A thermal cutout (bimetallic TCO) in series with the element protects against element overheating.

Water Inlet Valves: One or more solenoid valves (typically 24 V DC or directly mains-powered) open to admit water from the household supply. The water level is monitored by a pressure switch (air dome and bellows system) or a pressure sensor connected to the ECM.

How to wire washing machine circuit diagram

Disconnect from mains supply before any internal access Unplug the machine from the wall socket. Confirm the machine is fully unplugged — not just switched off — before removing any panels. Capacitors associated with the motor start winding or the interference filter may retain charge. Avoid touching any components on the main PCB or the motor circuit immediately after disconnection without first waiting 60 seconds.
Access the relevant internal components For most front-loading machines, the top panel is removed by releasing 2–3 screws at the rear. The control panel is typically removed by releasing clips at the top and sliding it forward or upward. The rear panel is removed for access to the motor, pump, and drum components. For the heating element and NTC thermistor, access is from the front or bottom after removing the front panel or lower service panel. Consult a model-specific service manual before disassembly to avoid damaging wiring looms and clip locations.
Test the door interlock switch Locate the door interlock (typically mounted on the front frame behind the door seal/bellows). Disconnect the wiring connector. Use a multimeter in resistance mode to test each contact group: with the door-latch hook physically inserted into the interlock (simulating a closed door), the main switching contacts should show continuity. With the hook removed (door open), they should show open circuit. A faulty interlock that reads continuity whether the door is open or closed is a safety hazard and must be replaced.
Test the heating element Disconnect the wiring to the heating element at both spade terminals. Measure the resistance between the two element terminals. A typical 2 kW element on a 230 V supply has a resistance of approximately 26 Ω (R = V²/P = 230²/2000). An element reading open circuit (OL) is broken and must be replaced. Also measure resistance between each element terminal and the element's earth tag — any reading other than open circuit (OL) indicates an internal short to earth, and the element must be replaced regardless of whether it heats.
Test the NTC thermistor Disconnect the NTC thermistor connector (typically a 2-pin connector from the lower portion of the drum). Measure resistance across the thermistor. At room temperature (approximately 20°C), a typical washing machine NTC thermistor measures approximately 7–12 kΩ depending on the characteristic. Compare this to the resistance-versus-temperature table in the service manual. An open-circuit or short-circuit reading indicates a failed thermistor. Use a cup of water at known temperature to verify the reading.
Test the pressure switch (water level sensor) Locate the pressure switch — a component with a small-diameter flexible hose connecting it to the lower drum section (the air dome). Disconnect the multi-pin connector. The pressure switch has normally-open and normally-closed contacts that change state when air pressure from the rising water compresses the air dome. With no water in the drum (no pressure), verify the switch contacts match the expected open/closed state from the service manual. Blow gently into the hose connection on the switch — the contacts should change state at a low air pressure.
Test the motor and motor capacitor For an induction motor, measure the resistance of the main winding and start winding at their respective terminals — each should measure a low resistance (2–20 Ω typical, varying by motor size). Measure insulation resistance between winding terminals and the motor frame — should be greater than 1 MΩ. Test the start/run capacitor for correct capacitance (measured value within ±10% of marked value) and for the absence of a short circuit. A failed capacitor commonly causes the motor to hum without rotating.

Specifications

Mains supply (Europe, UK, Australia, Africa)	230 V AC, 50 Hz; typical machine rated current 6–15 A
Heating element power (typical)	1.8 kW to 2.5 kW at 230 V AC
Heating element resistance (2 kW at 230 V AC)	Approximately 26 Ω (R = V²/P)
NTC thermistor resistance at 20°C (typical)	Approximately 7–12 kΩ (verify against model service manual)
Motor start/run capacitor (typical range)	8–16 µF, 400–450 V AC, non-polarised film type
Thermal cutout (TCO) trip temperature (typical)	150–175°C on heating element assembly
Minimum element insulation resistance to earth	> 1 MΩ at 500 V DC megohmmeter test

Safety warnings

Washing machine repairs involving the mains supply wiring, heating element, ECM/PCB, or motor must be performed by a qualified appliance repair technician. In many jurisdictions (UK, Australia, and others), repaired electrical appliances must pass a portable appliance test (PAT or AS/NZS 3760 equivalent) before being returned to service. An unqualified repair that results in injury or fire can have serious legal consequences for the person who performed the repair.
If the washing machine trips the household RCD when operating, do not reset the RCD and continue using the machine. An RCD trip indicates a leakage current to earth from the appliance — typically from a deteriorating heating element, water ingress into the motor, or a fault in the wiring loom. Continued use risks electric shock to anyone touching the machine while standing on a conductive floor. Remove the machine from service until the fault is repaired and verified.
The heating element operates at mains voltage and reaches temperatures sufficient to cause serious burns if touched during operation. The element and its surrounding components also retain heat for some time after power is disconnected. Always disconnect from mains and allow adequate cooling time before accessing the element area.
Always verify the machine is completely unplugged before disassembling any panel. Some machines have capacitors in the motor circuit and interference filter that retain charge for a short period after unplugging. Do not assume any component is safe to touch immediately after disconnection from the mains supply.

Tools needed

Digital multimeter with resistance, voltage, and continuity modes
Capacitance meter or multimeter with capacitance function (for testing motor capacitor)
Insulation resistance tester (megohmmeter) — 500 V DC for testing element insulation to earth
Torx and cross-head screwdriver set (many washing machines use Torx fasteners for panels)
Flat-blade screwdriver for releasing wiring loom clips
Needle-nose pliers for spade terminal removal
Bucket and towels for draining residual water before accessing pump or drum components
Camera or phone for photographing wiring loom connections before disconnection

Common mistakes

Testing the heating element resistance only between its two supply terminals and not checking insulation from terminals to earth — an element that measures the correct 26 Ω across its terminals but has a partial short to earth (e.g., 50 kΩ to frame) will cause repeated RCD tripping. Always measure element-to-earth insulation as a second step.
Replacing the thermal cutout (TCO) without investigating why it tripped — the TCO on the heating element assembly trips due to element overheating, which is usually caused by limescale buildup reducing heat transfer from the element into the water, or by a faulty ECM that is not cycling the element off at the target temperature. Replacing the TCO alone and not addressing the root cause will result in the new TCO tripping again.
Reconnecting wiring loom connectors in the wrong orientation — many washing machine wiring connectors are identical in size across different circuits. Photographing each connector's location and labelling disconnected harnesses before removal is essential to avoid cross-connection during reassembly.
Using a non-rated replacement motor capacitor — motor capacitors for washing machines must be non-polarised film type, rated for the correct capacitance and for AC mains voltage (400 V AC or 450 V AC minimum). Using a capacitor with a lower voltage rating or using an electrolytic capacitor will result in rapid failure or a dangerous capacitor rupture.
Reassembling without testing the door interlock function — a machine returned to service with a faulty or bypassed door interlock is a safety hazard. Always test interlock function before the machine is returned to the customer or put back into use.

Troubleshooting

Machine fills with water but does not heat: Cause: Broken heating element (most common), tripped thermal cutout in series with the element, faulty NTC thermistor giving a false high-temperature reading, or a failed heater relay/triac on the ECM Fix: Disconnect power and disconnect the heating element terminals. Measure resistance across the element — a good 2 kW / 230 V element reads approximately 26 Ω. An open-circuit reading (OL) confirms a broken element requiring replacement. If the element is intact, check the TCO in series with the element for continuity — a tripped one-shot TCO reads open circuit. If both are good, read ECM fault codes if available, and check the NTC thermistor resistance against the temperature-resistance characteristic.
Motor hums but drum does not rotate: Cause: Failed motor start/run capacitor (most likely on induction motor type), jammed drum or pump, or a faulty motor start winding Fix: Power down and access the motor. Disconnect and test the motor capacitor — measure capacitance and verify it is within ±10% of the marked value. A capacitor reading significantly below its rated value or reading open-circuit is failed. Also manually rotate the drum by hand to check it is not mechanically seized. If the drum rotates freely and the capacitor tests good, measure the motor winding resistances and compare to service manual values.
Machine does not drain at the end of a cycle: Cause: Blocked drain filter (by far the most common cause), failed drain pump motor, kinked or obstructed drain hose, or a faulty ECM output to the pump Fix: Access the drain filter (usually behind a small access panel at the front lower section of the machine). Place towels and a container beneath — there will be water. Remove and clean the filter of lint, coins, buttons, and debris — this resolves the vast majority of drainage failures. If the filter is clear, check for a kink in the external drain hose. If both are clear, measure the drain pump motor resistance (typically 80–200 Ω) and verify the ECM is supplying voltage to the pump terminals during the drain programme step.

Frequently asked questions

What does the door interlock switch do in a washing machine circuit?

The door interlock switch is a safety device that prevents the machine from running when the door is open and prevents the door from opening during a cycle. Electrically, it is wired in series with the main supply to the motor and heater loads — an open door means an open circuit that disables these loads. The interlock typically has a time-delayed unlocking mechanism that keeps the door locked for 2–3 minutes after the programme ends, allowing the drum to stop.

What is a washing machine NTC thermistor and what happens if it fails?

The NTC (Negative Temperature Coefficient) thermistor is a temperature sensor immersed in the wash water. Its resistance decreases as temperature increases in a predictable curve. The electronic control module reads this resistance to determine water temperature and control the heating element. If the NTC thermistor fails open-circuit, the ECM interprets this as a very low (cold) temperature and may overheat the water. If it fails short-circuit, the ECM interprets boiling water and may not heat at all. Either fault typically generates a fault code.

Why does my washing machine trip the RCD but not the MCB?

An RCD trip indicates a leakage current to earth exceeding 30 mA — a fault that involves current flowing to earth but not large enough to trip an overcurrent MCB. In a washing machine this usually indicates degraded insulation on the heating element (the most common source), moisture inside the motor or wiring loom, or a failing capacitor leaking to the chassis. The fault must be diagnosed and repaired — do not reset the RCD and continue operating the machine.

What is the function of the mains interference filter in a washing machine?

The mains EMC/RFI filter at the machine's supply input reduces conducted electromagnetic interference generated by the motor's triac speed controller and the brushes of a universal motor. Without this filter, the switching noise would travel back through the mains wiring and interfere with radios, televisions, and other sensitive electronics in the property. This filter is required for the machine to comply with the EMC Directive (EU) or equivalent national electromagnetic compatibility regulations.

What causes a washing machine to fill with water but not heat it?

The most common causes are: a failed heating element (open circuit, measurable with a multimeter — expect 20–30 Ω on a typical 2 kW element); a failed NTC thermistor giving the ECM a false 'already hot' reading; a tripped thermal cutout (TCO) in series with the element that has not reset; or a fault in the ECM's heater relay or triac output. Begin with an element resistance measurement — an open-circuit reading (OL) confirms a failed element.
