Wiring Harness Diagram

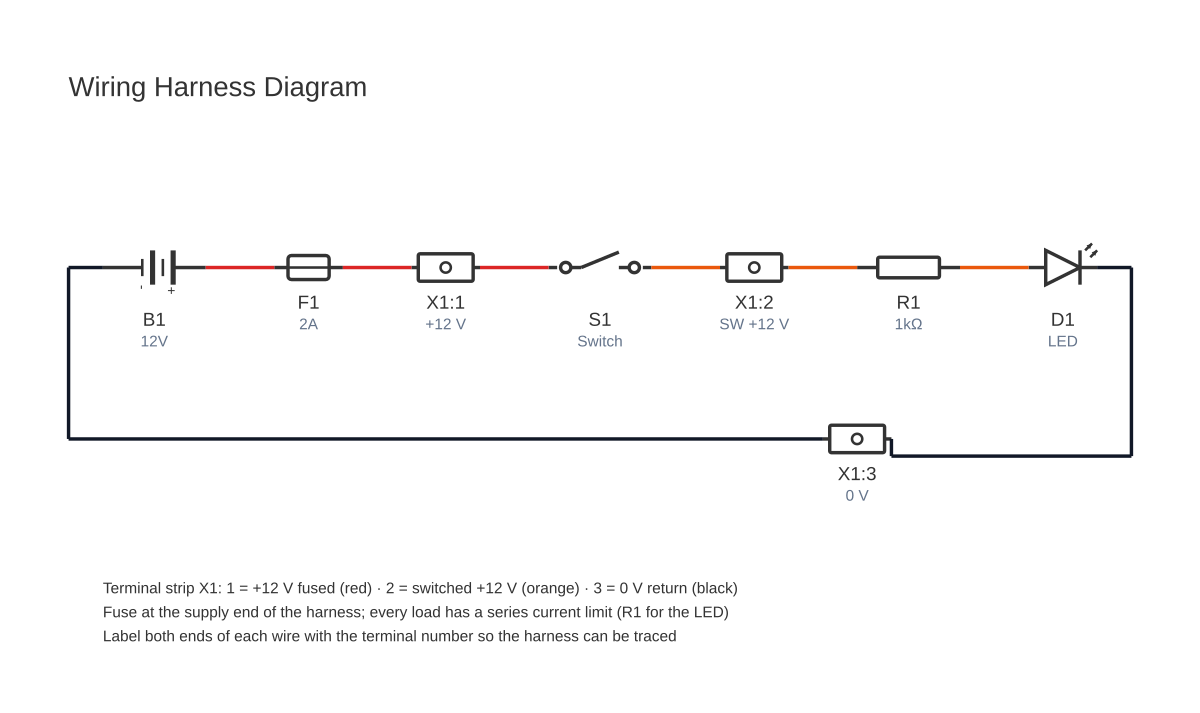

Wiring Harness Diagram — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable wiring harness diagram: download the diagram as SVG or open it and print to paper or PDF.

A wiring harness diagram documents the complete bundle of cables, connectors, and protective sleeving that routes electrical signals and power throughout a vehicle or machine, enabling systematic manufacture, installation, and fault diagnosis.

A wiring harness — also called a cable harness or wire loom — is an organised bundle of electrical conductors bound together with sleeving, tape, lacing cord, or conduit, routed and terminated to interconnect the electrical and electronic systems of a vehicle, aircraft, appliance, or industrial machine. The harness is manufactured as a complete sub-assembly, tested before installation, and then fitted to the machine as a single piece, which dramatically reduces assembly time and the risk of wiring errors compared to point-to-point wiring in situ.

A wiring harness diagram is the engineering document that defines the harness: it shows every conductor (wire number, gauge, colour, material), every connector (part designation, pin-out, connector type, mating connector), every terminal (crimp type, terminal part number), and the routing path of the bundle from connector to connector. It also shows branch points (where sub-bundles split from the main bundle), grommet locations, clamp positions, and protective sleeving start and end points.

Wiring harness diagrams are produced in several forms. A schematic-based harness drawing shows conductors as logical lines between connector blocks. A form board diagram (or layout diagram) shows the physical harness laid flat on a 1:1 or scaled drawing board, used to guide manufacturing. A connector face view or pin-out table defines which signal goes to which pin in every connector on the harness, cross-referenced to the circuit schematic.

In automotive engineering, harnesses are designed to ISO 6722 (road vehicle — cables — dimensional, sampling, and requirement) and terminated per IEC 60352 (solderless connections) and manufacturer-specific crimp quality standards. Aerospace harnesses are governed by IPC/WHMA-A-620 (requirements and acceptance for cable and wire harness assemblies) and MIL-DTL-23053 for sleeving. Industrial harnesses follow IEC 60204-1 (safety of machinery — electrical equipment of machines).

A correctly designed wiring harness diagram allows a manufacturer to cut conductors to exact lengths, crimp terminals, insert into connectors, and assemble the bundle without reference to the overall machine schematic. For fault-finding, the diagram allows a technician to trace a specific circuit by wire number from one end of the harness to the other without unpicking the bundle.

How to wire wiring harness diagram

Collect the circuit schematic and component location drawings The harness diagram is derived from the circuit schematic. Identify every circuit that will be in the harness, every component the harness serves, and the physical location of each component and connector in the finished machine. These define the routing and connector locations.
Define harness branches and routing paths Group conductors by routing: conductors that follow the same path from source to destination travel together in a bundle. Where circuits diverge (e.g. one branch goes to the left headlight, another to the right), note the branch point. Define clamp, grommet, and conduit positions to protect the harness at entry points, bends, and areas of mechanical abrasion risk.
Assign wire numbers and define conductor specifications Assign a unique wire number to every conductor. For each conductor, specify: gauge (mm² or AWG), insulation colour, insulation material (XLPE, PVC, PTFE), temperature rating, and voltage rating. Calculate the required conductor cross-section from the maximum continuous current and allowable voltage drop.
Create connector and pin-out definitions For every connector in the harness, specify: connector part designation, connector type and mating connector, number of positions, keying, sealing type (sealed or unsealed), and the wire number and signal name at each pin position. Produce a pin-out table for each connector.
Produce the form board or flat layout drawing Create a 1:1 (or scaled) flat layout drawing of the harness as if it were laid out on a flat surface. Show the exact length of each conductor segment between branches and between connectors. This drawing is used to set up the harness manufacturing board.
Specify sleeving, taping, and protective elements Specify the type and extent of bundle wrapping (PVC tape, corrugated split conduit, woven sleeving), grommet positions, heat-shrink boot positions at connectors, and any firewall grommets or pass-through grommets. Note the bundle diameter at each point for clamp selection.
Define test requirements Specify the continuity test (all wire numbers must test continuous end to end), insulation resistance test (between each conductor and all others plus shield, minimum resistance per circuit voltage), and connector seating verification. Define acceptance criteria. Harnesses should be fully tested before installation.

Specifications

Minimum conductor cross-section (signal circuits)	0.35 mm² (ISO 6722); some manufacturers allow 0.22 mm² for data-only circuits
Current capacity — 0.5 mm² conductor (bundled, 60 °C ambient)	Approximately 7–9 A (derate for bundle size per IEC 60364-5-52 or SAE J1284)
Automotive harness conductor temperature rating	85 °C minimum (general underbody); 105 °C or 125 °C (engine bay, near exhaust)
Insulation resistance minimum (after assembly test)	≥ 100 MΩ at 500 V DC (automotive); ≥ 1 MΩ at 500 V DC (per IEC 60204-1 for industrial)
Governing assembly standard	IPC/WHMA-A-620 (cable and wire harness assemblies); ISO 6722 (vehicle cables)
Connector protection (underbonnet/outdoor)	IP67 (temporary immersion) or IP6K9K (high-pressure wash, automotive)
Minimum bend radius	10× conductor outer diameter (general); 5× for individual conductors without bundle

Safety warnings

Before working on any vehicle or machine wiring harness, disconnect the battery negative terminal and verify with a multimeter that all circuits are de-energised. In hybrid or electric vehicles, high-voltage systems (above 60 V DC or 25 V AC) require specific high-voltage isolation procedures and trained personnel — never work on high-voltage harnesses without proper HV safety training, insulated tools, and following the manufacturer's HV isolation procedures.
Automotive and vehicle wiring must be correctly fused. Every conductor must be protected by a fuse or circuit breaker rated to the conductor's current capacity. A conductor without a fuse is a fire hazard: in the event of a short circuit, the wire becomes the fuse, and vehicle fires from electrical faults are a leading cause of total vehicle loss.
Ensure all harness grommets are correctly fitted where the harness passes through metal panels. A missing or damaged grommet allows the conductor insulation to chafe against the metal edge, creating a short circuit and fire risk. All pass-through locations must be inspected after harness installation.
Crimp connections in automotive harnesses must be made with the correct crimping tool and die set for the terminal type and conductor gauge. A poor-quality crimp has elevated resistance, generates heat under current, and may fail intermittently or catastrophically. Never use pliers as a substitute for a proper crimp tool.

Tools needed

Calibrated ratchet crimp tool with interchangeable dies (for each terminal type and gauge)
Harness assembly form board (for manufacturing)
Wire cutters and automatic wire stripper
Digital multimeter (continuity, resistance, insulation resistance)
Megohmmeter/insulation resistance tester (for post-assembly dielectric test)
Connector pin removal tool (for servicing sealed connectors)
Heat gun (for heat-shrink and connector boots)
Cable tie applicator tool

Common mistakes

Under-sizing conductor cross-section for the actual continuous current, causing excessive voltage drop, conductor overheating, and insulation degradation.
Making conductor-to-conductor joins within the bundle body rather than at defined connector or junction points, creating hidden and inaccessible faults.
Using incorrect crimp tooling or incorrect die size for the terminal type, producing a crimp that passes pull-force test when fresh but fails from vibration after a few months.
Routing signal conductors (CAN bus, sensor signals) bundled tightly against high-current power conductors, inducing electromagnetic interference in sensitive signal lines.
Not fitting a grommet at every panel pass-through, allowing the harness to chafe on the metal edge and create an intermittent or permanent short circuit.
Omitting bundle identification labels or fuse identification, making fault-finding time-consuming and error-prone during servicing.

Troubleshooting

Intermittent circuit fault that does not appear during bench testing: Cause: Conductor is broken internally but makes contact when the harness is still — movement during driving opens the break. Typically occurs at a bend point or chafe location where insulation has worn through. Fix: Flex the harness along its length while monitoring circuit continuity. The fault will appear when the break is stressed. Trace the wire number on the harness diagram to find the routing path and locate the damaged section. Repair by splicing with a properly crimped and heat-shrunk joining sleeve.
Circuit breaker or fuse blows repeatedly in a specific harness circuit: Cause: Conductor insulation is chafed at a grommet, clamp, or metal edge, intermittently or permanently shorting to chassis ground Fix: Remove the fuse and use a megohmmeter to measure insulation resistance between the conductor and ground. Values below 1 MΩ indicate a conductor-to-chassis leakage path. Trace the conductor routing from the harness diagram and inspect every grommet, clamp, and exposed section for insulation damage.
High resistance on a circuit despite no obvious open circuit: Cause: Poor-quality or corroded crimp terminal, oxidised connector contact, or an undersized splice within the harness Fix: Measure resistance along the circuit with a four-wire (Kelvin) measurement technique if possible, or measure voltage drop across each connector and splice under load. High resistance at a connector indicates oxidation or micro-fretting corrosion — disconnect, inspect, clean with electrical contact cleaner, and reconnect. Corroded or distorted terminals must be replaced.

Frequently asked questions

What is the difference between a wiring harness diagram and a circuit schematic?

A circuit schematic shows the electrical connections between components using standardised symbols, without regard for physical routing or wire lengths. A wiring harness diagram documents the physical cable assembly: wire lengths, colours, gauges, connector pin-outs, bundle diameters, routing paths, and branch points. Both are needed for a complete engineering package.

How are individual wires identified in a wiring harness diagram?

Each conductor in a harness is given a unique wire number, which appears at both ends of the wire on the harness diagram and is cross-referenced to the circuit schematic. Wires are further identified by colour, gauge, and insulation material. The wire number, not the colour, is the definitive identifier — colours alone are unreliable in large harnesses where many conductors share the same colour.

What does a connector pin-out table show in a harness diagram?

A connector pin-out table lists every cavity (pin position) in each connector and defines: the wire number inserted in that cavity, the wire colour and gauge, the terminal part number, the signal name or function, and the mating connector reference. This allows harness assembly, connector loading, and circuit testing without referring to the main schematic.

What gauge wire should I use for automotive harnesses?

Wire gauge selection depends on the current load, circuit length, and allowable voltage drop. Common automotive harness gauges range from 0.35 mm² (signal wiring: sensors, switches) to 16 mm² or larger (battery cables, starter circuits). ISO 6722 specifies dimensional and electrical requirements for road vehicle cables. Always calculate the conductor cross-section from the maximum continuous current and the allowable voltage drop for the circuit.

How do I find a fault in a wiring harness?

Start with the harness diagram: identify the circuit in fault, find the wire number from the schematic, then trace that wire number on the harness diagram to find every connector it passes through and every branch it takes. Measure continuity and resistance at each connector using a multimeter, working from the load back to the source. Insulation resistance testing (using a megohmmeter) identifies conductor-to-conductor or conductor-to-shield shorts.
