Coolant Temperature Sensor: 2-Wire Wiring Installation Guide

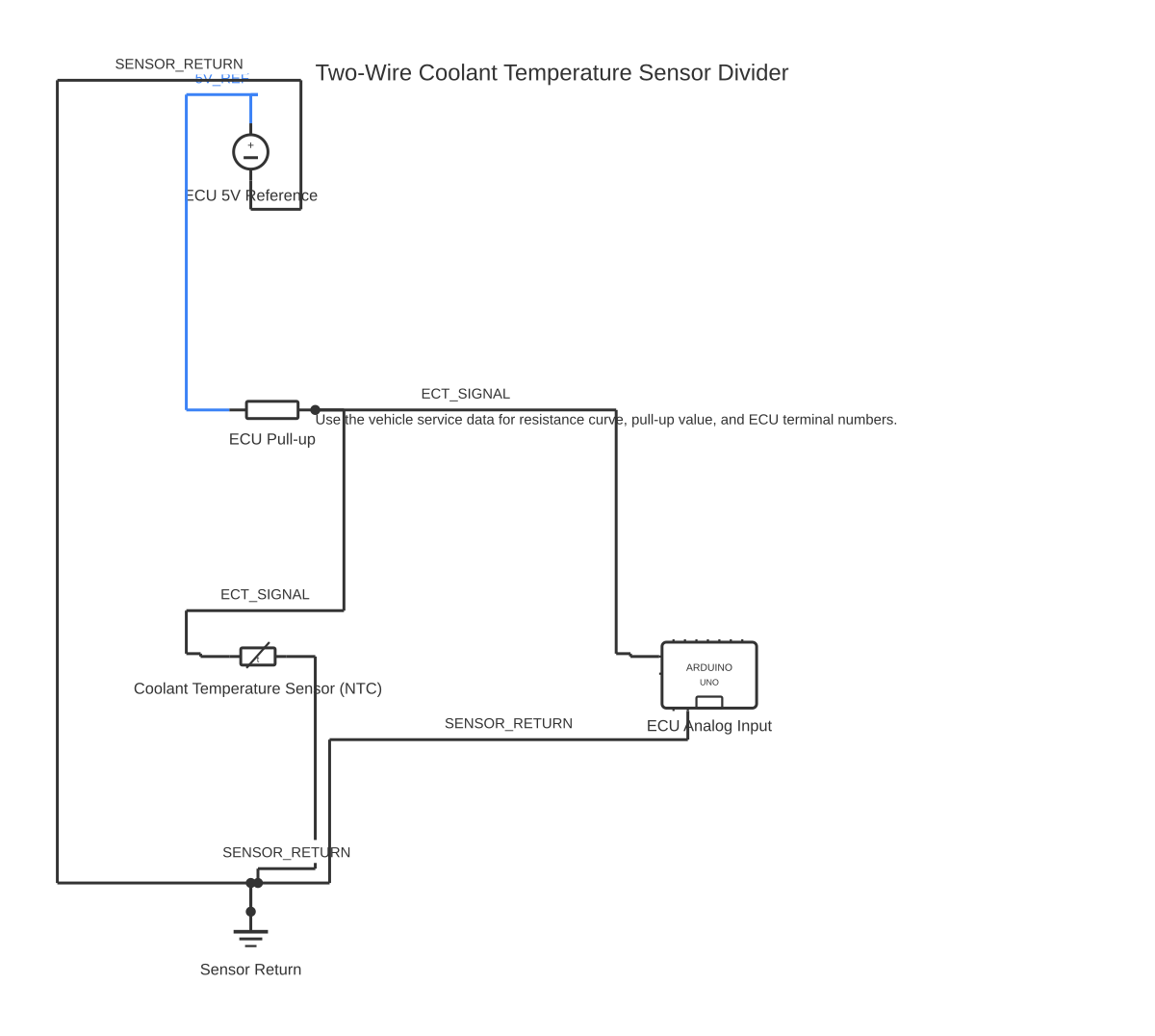

This is a free printable 2 wire temp sensor coolant temperature sensor wiring diagram: download the diagram as SVG or open it and print to paper or PDF.
Two-wire temperature sensors provide simple, reliable engine coolant monitoring with standard electrical interface. This guide covers installation, calibration, and troubleshooting.
Temperature sensors in automotive cooling systems utilize thermistive elements with negative temperature coefficient characteristics to provide resistance changes proportional to temperature. A two-wire configuration simplifies installation by eliminating the need for dedicated ground lines and complex signal conditioning. The sensor element typically consists of a ceramic bead or film thermistor sealed within a metal probe immersed in the coolant stream. As engine temperature increases, sensor resistance decreases according to a precise mathematical relationship defined by the thermistor manufacturer. The engine control module supplies a fixed reference voltage to the sensor and measures the resulting voltage divider output. Sensor resolution typically ranges from 0.5 to 1.0 degrees Celsius depending on thermistor tolerance and signal conditioning circuitry. Proper sensor mounting requires direct immersion in the coolant stream to ensure rapid temperature response. Thermal shock resistance prevents sensor damage from rapid temperature transients during cold starts and shutdown cycles. Electrical noise immunity protects against capacitive coupling from ignition systems and alternator ripple current. Sensor output typically uses a 0-5 volt range or 0-10 milliamp current loop depending on control module input requirements. Calibration procedures verify sensor response across the full operating temperature range. Some advanced sensors include integrated signal conditioning to linearize the thermistor response curve.
How to wire 2 wire temp sensor coolant temperature sensor wiring diagram
- Allow engine to cool completely before sensor removal
- Drain or partially drain cooling system to prevent spillage
- Unscrew the old sensor from the thermostat housing or engine block
- Clean threads with a wire brush to remove corrosion
- Install the new sensor and tighten to manufacturer specifications
- Refill cooling system and check operation on scan tool
Frequently asked questions
What is the typical resistance range for a coolant temperature sensor?
Most sensors vary from 200 ohms at 120 degrees Celsius to 10,000 ohms at 40 degrees Celsius, following an exponential curve.
How do I test a temperature sensor with a multimeter?
Measure resistance at known temperatures and verify the reading matches the sensor calibration curve. Test heating in hot water and cooling in ice water.
What causes temperature sensor reading errors?
Contaminated coolant, sensor fouling, improper mounting, or wiring faults. Clean connections and verify proper thermal contact.
Can I use a different sensor model?
Only if the resistance-temperature curve matches the control module calibration. Mismatched curves cause incorrect temperature readings.
What is the maximum coolant temperature for sensor operation?
Most sensors are rated to 150 degrees Celsius maximum. Higher temperatures may cause permanent thermistor damage.
