Coolant Temperature Sensor Wiring Diagram — Editable Wiring Diagram

Coolant Temperature Sensor Wiring Diagram — Editable Wiring Diagram — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable coolant temperature sensor wiring diagram: download the diagram as SVG or open it and print to paper or PDF.

This editable coolant temperature sensor wiring diagram reference is generated from the displayed electrical graph, not from a generic article outline. The current drawing contains 5 components and 6 routed connections, including 1 × ECU 5V Reference (DC voltage source), 1 × ECU Pull-up (Resistor), 1 × Coolant Temperature Sensor (NTC) (Thermistor), 1 × ECU Analog Input (Arduino) and 1 × Sensor Return (signal ground). Use it to inspect the shown topology, then confirm ratings and terminal assignments against the equipment documentation for your installation.

Diagram checks and scope

Components: 5
Wired connections: 6
Automated check: Automated pin, route, source, and topology checks passed; this is not a safety certification.

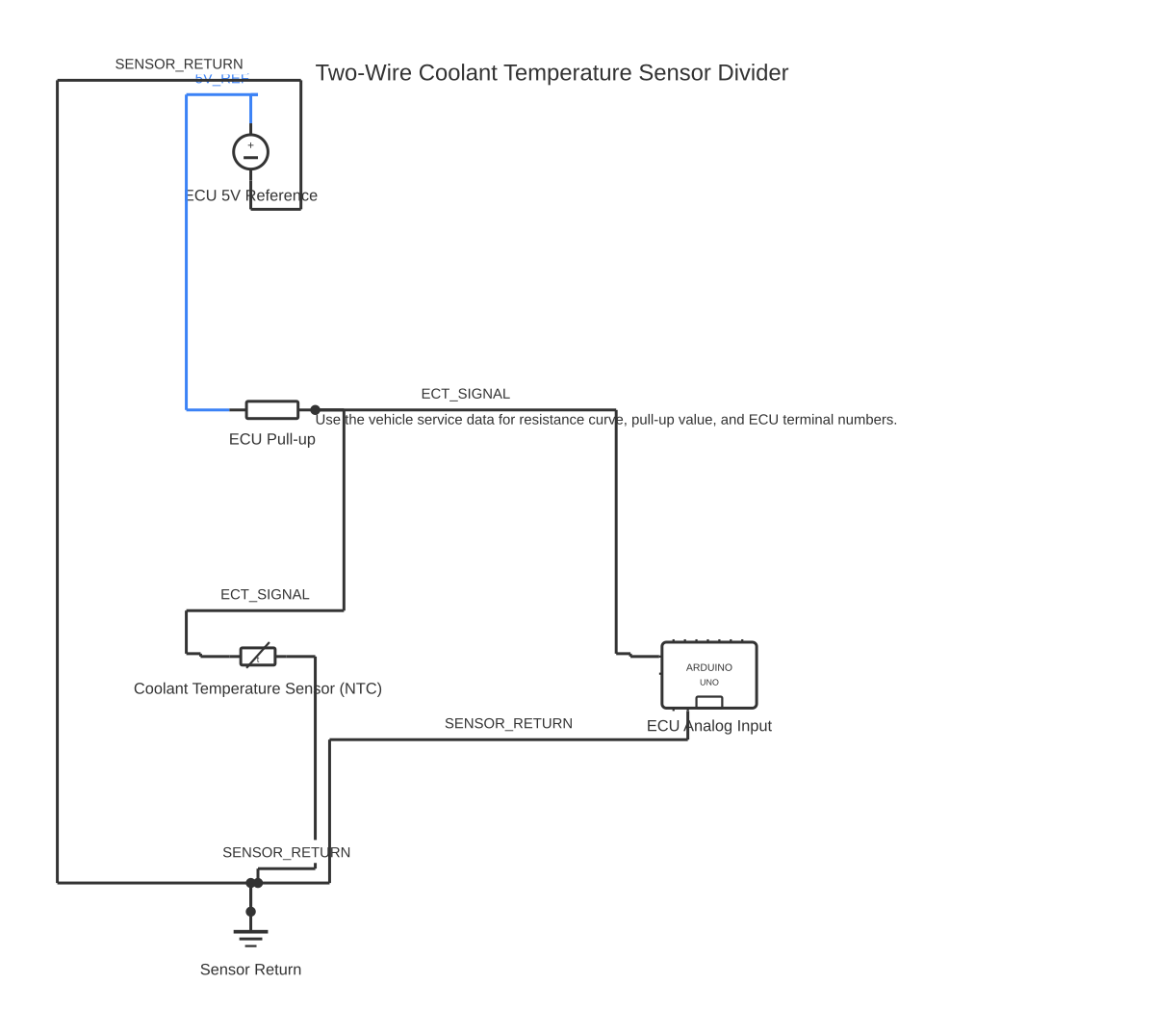

What this Coolant Temperature Sensor Wiring Diagram drawing contains. The rendered example uses 1 × ECU 5V Reference (DC voltage source), 1 × ECU Pull-up (Resistor), 1 × Coolant Temperature Sensor (NTC) (Thermistor), 1 × ECU Analog Input (Arduino) and 1 × Sensor Return (signal ground). Instrumentation drawings must distinguish supply, signal, return, shield and any loop-power relationship. The component names in the list below come from the editable canvas, while the wire summary comes from the saved start and end terminals. This makes the written explanation auditable against the image instead of presenting an unrelated stock circuit.

Reading the stored graph from terminal to terminal gives this sequence: 1. ECU 5V Reference pos terminal connects to ECU Pull-up a terminal on the 5V_REF net. 2. ECU Pull-up b terminal connects to Coolant Temperature Sensor (NTC) a terminal on the ECT_SIGNAL net. 3. ECU Pull-up b terminal connects to ECU Analog Input a0 terminal on the ECT_SIGNAL net. 4. Coolant Temperature Sensor (NTC) b terminal connects to Sensor Return gnd terminal on the SENSOR_RETURN net. 5. ECU Analog Input gnd terminal connects to Sensor Return gnd terminal on the SENSOR_RETURN net. 6. ECU 5V Reference neg terminal connects to Sensor Return gnd terminal on the SENSOR_RETURN net. Its named nets are “5V_REF”, “ECT_SIGNAL” and “SENSOR_RETURN”. A line joining two terminals records electrical continuity in this reference; visual proximity alone does not create a connection. Junctions, bridges and terminal labels therefore matter when the drawing is edited or exported.

Trace the measurement loop from the power source through the field device and input channel, respecting polarity and whether the device is two-, three- or four-wire. A shield is normally shown separately from the signal return. In this particular graph, the first visible path is ECU 5V Reference pos terminal connects to ECU Pull-up a terminal on the 5V_REF net., ECU Pull-up b terminal connects to Coolant Temperature Sensor (NTC) a terminal on the ECT_SIGNAL net., ECU Pull-up b terminal connects to ECU Analog Input a0 terminal on the ECT_SIGNAL net. and Coolant Temperature Sensor (NTC) b terminal connects to Sensor Return gnd terminal on the SENSOR_RETURN net.. Follow the remaining rows in the connection table before changing a symbol or moving a conductor, because a neat layout is not evidence that a terminal function is correct.

Confirm sensor output type, supply range, polarity, input mode, common-mode limits, barrier requirements and shield practice from the exact device manuals. Test the loop with an appropriate simulator or meter before commissioning. Automated validation checks that component IDs and terminal IDs exist, routes terminate on pins, the graph has a recognized source, and the saved topology has no blocking structural fault. It does not determine conductor size, protective-device rating, fault current, insulation class, environmental suitability or compliance with local rules. Those decisions require project values and the current primary documentation.

How to wire coolant temperature sensor wiring diagram

Read the Coolant Temperature Sensor Wiring Diagram source path For this coolant temperature sensor wiring diagram, begin at ECU 5V Reference (DC voltage source) and trace every stored terminal pair toward the load or output; do not infer continuity from lines that merely cross.
Match every terminal name Compare the Coolant Temperature Sensor Wiring Diagram terminal labels shown in the connection table with the current device or standard documentation before assigning real conductors.
Set project-specific ratings Replace placeholder values in the coolant temperature sensor wiring diagram with verified voltage, current, protection, conductor and environmental data for the actual installation.
Run the electrical checks again After editing ECU Pull-up (Resistor) or any route, validate the graph and inspect every reported open terminal, source fault, collision and disconnected island.
Release a controlled copy Export the revised Coolant Temperature Sensor Wiring Diagram drawing only after a competent reviewer has compared it with the bill of materials, manufacturer documents and applicable rules.

Specifications

Topic	Coolant Temperature Sensor Wiring Diagram
Components shown	5
Routed connections	6
Named nets	5V_REF, ECT_SIGNAL, SENSOR_RETURN
Verification scope	Stored pins, routes, source path and graph topology

Safety warnings

Follow hazardous-area, intrinsic-safety and isolation requirements where applicable.
Do not inject a test signal until the input type and permissible range have been verified.

Tools needed

The current manufacturer datasheet, connector schedule or applicable standard for every real device
A suitable meter and proving method for the voltage class being worked on
The editor validation report and a controlled terminal or wire schedule

Common mistakes

Treating the coolant temperature sensor wiring diagram illustration as proof of a manufacturer pinout or conductor rating when those values are not encoded in the graph.
Connecting by component position or wire colour instead of checking the named terminals in the Coolant Temperature Sensor Wiring Diagram connection path.
Assuming every sensor with the same conductor count has the same supply and output assignment.

Troubleshooting

The Coolant Temperature Sensor Wiring Diagram path appears open: Cause: A route ends on the wrong pin, a terminal was renamed, or a required return path is absent. Fix: Trace the connection rows in order, restore the documented terminal mapping, and run validation again.
The edited drawing passes visually but validation fails: Cause: A conductor may stop off-pin, cross a component body, create a source short or leave a disconnected island. Fix: Open each blocking finding, correct the referenced component or route, then re-run the topology check before export.
The real equipment behaves differently: Cause: The stored reference does not match the exact model, revision, supply or contact state. Fix: De-energize safely, return to the current primary documentation, and revise the symbol terminals and values before further testing.

Frequently asked questions

What exactly is verified on this coolant temperature sensor wiring diagram?

The saved Coolant Temperature Sensor Wiring Diagram graph is checked for known components and terminals, pin-snapped routes, a recognizable source path and blocking topology defects. Exact equipment ratings and manufacturer assignments are outside that automated scope.

Which components are actually shown in this Coolant Temperature Sensor Wiring Diagram diagram?

The current editable graph contains 1 × ECU 5V Reference (DC voltage source), 1 × ECU Pull-up (Resistor), 1 × Coolant Temperature Sensor (NTC) (Thermistor), 1 × ECU Analog Input (Arduino) and 1 × Sensor Return (signal ground). The bill of materials on this page is derived from those saved symbols rather than a generic shopping list.

How are the coolant temperature sensor wiring diagram connections documented?

The graph contains 6 terminal-to-terminal links. The first path shown is ECU 5V Reference pos terminal connects to ECU Pull-up a terminal on the 5V_REF net.

Can I use the drawing as an installation instruction?

Use it as an editable reference and review aid. Verify the exact equipment documentation, ratings, protection, conductor selection and local requirements before construction or release.

Sources and verification

Review status: Not independently reviewed. Automated topology checks confirm stored terminals and routes, not the correctness of manufacturer pin assignments, ratings, regional codes, or installation decisions. Verify those claims against the current primary documentation before use.

IEC 61082-1:2014 — Rules for electrotechnical documents — International Electrotechnical Commission. Supports: General diagram, drawing, table, and reference-designation presentation conventions. Checked 2026-07-15.
Arduino UNO R3 hardware documentation — Arduino. Supports: UNO R3 product identity, technical specifications, pinout, schematic, datasheet, and CAD resources. Checked 2026-07-15.
