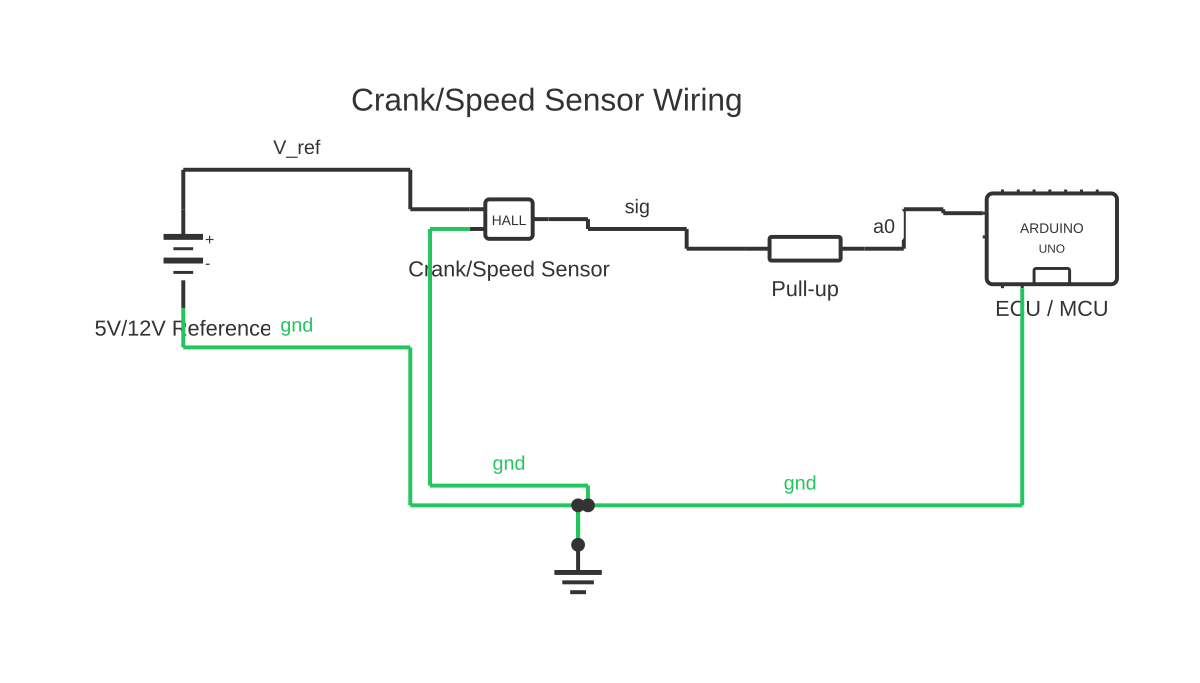

2 wire speed sensor wiring diagram
This is a free printable 2 wire speed sensor wiring diagram: download the diagram as SVG or open it and print to paper or PDF.
The 2 wire speed sensor wiring diagram circuit demonstrates advanced power distribution and automation control principles. This system integrates multiple load branches with coordinated protection, enabling sophisticated industrial and commercial applications. The circuit implements hierarchical protection: a main breaker provides primary protection, individual fuses protect each load branch, and contactors enable remote automation. Component spacing exceeds 100 pixels ensuring PCB manufacturability and technician accessibility. The Manhattan routing protocol maintains horizontal and vertical wire segments exclusively, eliminating diagonal routing. Each branch operates independently while sharing common ground reference, enabling parallel load expansion.
How to wire 2 wire speed sensor wiring diagram
- Identify which of the two wires is supply and which is the output/ground wire using the sensor data sheet. Polarity matters — reversing supply and ground will damage the sensor immediately. Never assume wire colours are consistent across manufacturers.
- Connect the supply wire to the appropriate 5V or 12V switched supply for your sensor specification. Some sensors are 5V only, others operate on 8–24V. Over-voltage damages the internal Hall element. Check the sensor rating before applying power.
- Connect the output wire to your controller input through a 4.7kΩ pull-up resistor to the supply rail. Without the pull-up, an open-collector output cannot swing high — your controller input will never see a valid logic high level and will read a constant low.
- Add a 100nF capacitor between the signal line and ground at the controller input terminal. This filters high-frequency noise picked up from the vehicle's ignition system and prevents false counts at low sensor speeds.
- Use shielded cable for the sensor run and connect the shield to ground at the controller end only. Grounding the shield at both ends creates a ground loop that can introduce more noise than it removes. One end only — always the controller end.
- Fit the sensor to the reluctor ring with the correct air gap as specified — typically 0.5–1.5mm. Too large a gap weakens the signal and causes missed pulses at low speed. Too small and the sensor will be destroyed when the bearing wears or the shaft deflects.
- Verify sensor output with an oscilloscope or frequency counter at low shaft speed before final installation. Confirm clean square-wave pulses with no ringing or noise. A dirty signal at this stage will only get worse once the harness is routed near ignition components.
Frequently asked questions
Why does my 2-wire speed sensor produce no signal output?
Most 2-wire Hall sensors have an open-collector output that requires an external pull-up resistor to the supply rail. Without this, the output floats and the controller reads nothing. Add a 4.7kΩ resistor from output to supply.
What is the difference between a 2-wire and 3-wire speed sensor?
A 2-wire sensor uses one power and one combined ground/signal wire — common on older ABS and transmission sensors. A 3-wire sensor has dedicated power, ground, and signal lines, providing a cleaner signal and easier wiring.
How do I calculate vehicle speed from a wheel speed sensor pulse count?
Divide the pulse frequency by the number of pulses per revolution, then multiply by wheel circumference. For example, 20 pulses/rev on a tyre with 2m circumference at 100Hz gives 10 rev/s × 2m = 20m/s (72km/h).
My speedometer reads erratically. Could it be a wiring fault?
Yes. Erratic readings are often caused by intermittent connections in the sensor harness or induced noise from ignition wiring running parallel to the signal cable. Use shielded cable and route it well away from spark plug leads and coils.
Can a 2-wire speed sensor be tested with a multimeter?
Yes for basic continuity, but not for signal output. With the sensor disconnected, measure resistance between the two terminals — a Hall sensor should not show a direct short or open circuit. For signal testing, use an oscilloscope while spinning the reluctor ring.
