3 prong outlet wiring diagram: Complete Wiring Reference

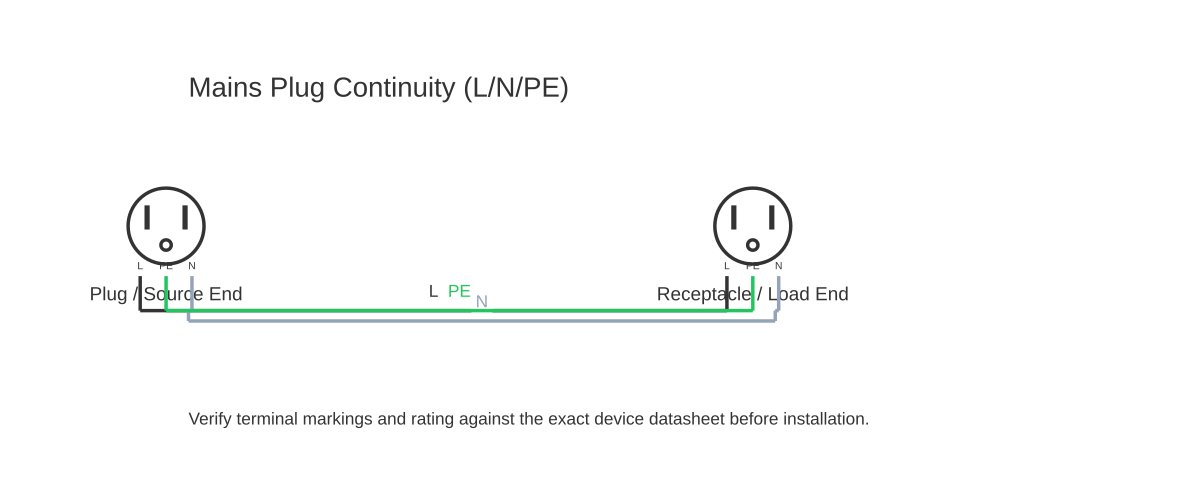

This is a free printable 3 prong outlet wiring diagram: download the diagram as SVG or open it and print to paper or PDF.
Understanding 3 prong outlet wiring diagram is essential for proper electrical system installation and operation. This guide provides detailed instructions for safe wiring.
The 3 prong outlet wiring diagram system requires proper component selection, appropriate wire gauging, and correct connection methods. Installation follows standard electrical practices: de-energize before work, use appropriate protection devices, ensure reliable ground connections, and test all circuits before operation. Proper wire gauge selection prevents voltage drop and overheating. Protection devices must match wire ampacity, not load requirements. Grounding provides safe fault current paths. Common failures result from inadequate protection, poor connections, or undersized conductors. Professional installation includes measuring run distances, selecting color-coded wires, and verifying operation under full load. Component quality matters—cheap connectors cause intermittent failures. Regular maintenance and visual inspection confirm continued safe operation. Thermal management through proper ventilation prevents overheating and extends equipment lifespan.
Electric ranges and large ovens in North America typically require a dedicated 240 V/50 A circuit and use either a 3-prong (NEMA 14-30 or the older NEMA 10-50) or 4-prong (NEMA 14-50) outlet depending on when the home was wired. The shift from 3-prong to 4-prong range outlets reflects the NEC requirement, introduced in 1996, to separate the neutral and grounding conductors in appliance circuits. Understanding the difference is important when replacing a range or outlet in an older home. You can map either wiring configuration free at circuitdiagrammaker.com.
How to wire 3 prong outlet wiring diagram
- Review the complete wiring diagram and gather all required components matching your application and local codes.
- Prepare wiring: measure lengths, strip insulation carefully, and prepare terminal connections with appropriate crimpers.
- Install components securely with proper orientation and adequate ventilation clearance.
- Make connections following the diagram exactly, using color-coded wires and rated terminals.
- Test and verify: confirm continuity, polarity, and voltage; operate under load and verify all functions work.
Frequently asked questions
What are the key safety rules for electrical installation?
Always de-energize circuits before working. Use lockout/tagout procedures. Wear insulated tools and PPE. Test for voltage presence before touching. Follow manufacturer specs and local codes. Never work alone on high-voltage systems.
How do I determine proper wire gauge?
Wire gauge depends on circuit current and run length. Higher current requires thicker wire. Use ampacity tables from NEC codes. For runs over 100 feet, increase gauge by one or two steps to compensate for voltage drop.
What fuse or breaker rating should I use?
Breaker rating must match the circuit wire gauge, never the load. Undersized breakers cause nuisance trips; oversized creates fire hazards. Always follow application manual specifications exactly.
Why is grounding so critical?
Grounding provides safe return paths for fault currents, allowing protection devices to detect shorts quickly. It prevents dangerous voltages on exposed metal and reduces electrical noise. Never compromise grounding.
What tools do I need?
Wire strippers, crimpers, multimeter, screwdrivers, insulated pliers, and torque wrenches for high-current connections. Always use quality, insulated tools for safety.
How does a 4-prong range outlet wiring diagram differ from a 3-prong?
A 3-prong range outlet (NEMA 10-50 or NEMA 10-30) uses two hot legs and a combined neutral/ground conductor, meaning the appliance chassis and neutral are bonded together — a practice now prohibited in new installations. A 4-prong range outlet (NEMA 14-50 or NEMA 14-30) adds a separate equipment ground wire so the chassis is independently grounded and the neutral carries only return current. Converting a 3-prong outlet to 4-prong requires running a new 4-wire cable (two hots, one neutral, one ground) from the breaker panel and replacing the outlet; the appliance's internal neutral-to-ground strap must also be removed.
