4-Wire Trailer Wiring Diagram
This is a free printable 4 wire trailer wiring diagram: download the diagram as SVG or open it and print to paper or PDF.

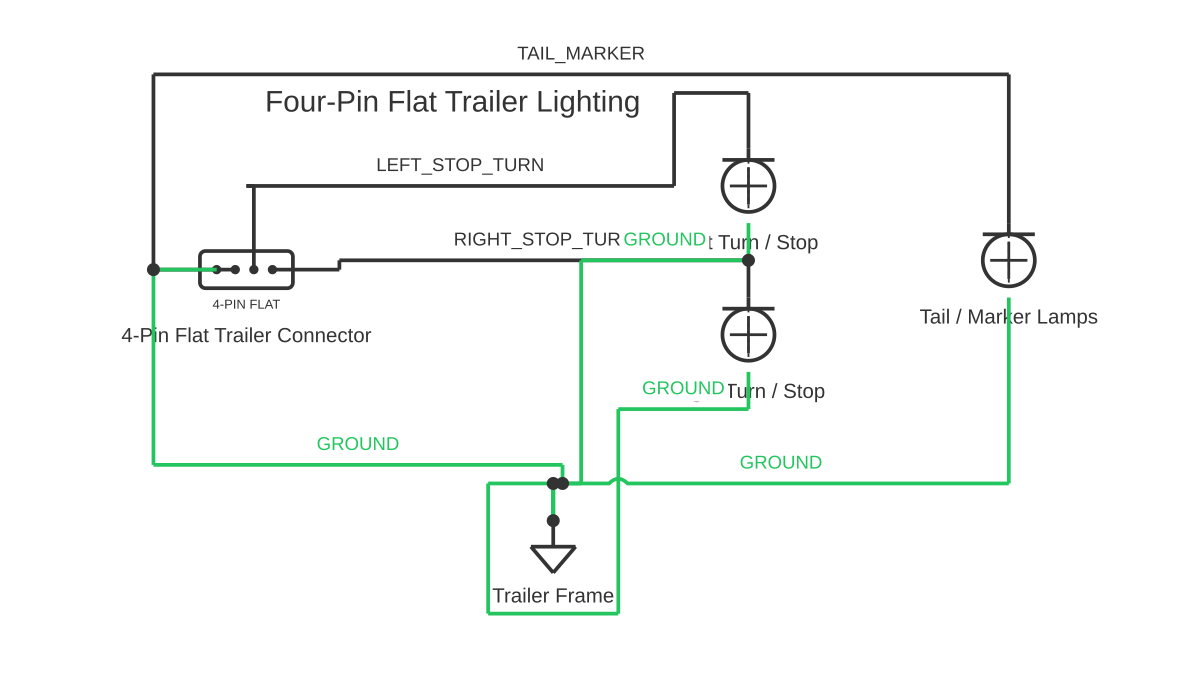

A 4-wire trailer wiring diagram illustrates how a four-conductor harness carries the minimum legal lighting signals from tow vehicle to trailer: ground (white), running lights (brown), left brake/turn (yellow), and right brake/turn (green).
A 4-wire trailer harness is the simplest complete wiring solution for light-duty trailers — utility trailers, boat trailers, jet-ski trailers, small enclosed cargo trailers, and cycle carriers. Understanding what each wire does, where it runs, and how it interacts with the rest of the circuit is essential for reliable, legal trailer lighting.
The four conductors each serve a dedicated role:
The white wire is the common ground return. Every other circuit depends on it. Current from every lamp on the trailer flows outward through its coloured conductor and returns through the white wire to the tow vehicle chassis, completing the circuit. The trailer frame itself often supplements this path (since the coupler's metal-to-metal contact can conduct ground), but relying on the coupler alone is unreliable — it corrodes and loosens. A dedicated white wire ensures a stable return path regardless of coupler condition.
The brown wire carries the running or tail-light signal. Whenever the tow vehicle's parking or headlights are switched on, this wire is energised. It feeds all trailer lights that should be visible whenever the vehicle is in driving mode: tail lamps, side marker lights, and the licence plate light.
The yellow wire carries the combined left brake and turn-signal output. In the typical North American wiring convention, the stop lamp and direction indicator on the left side of the trailer share a single circuit. When the brake pedal is pressed, both left and right yellow/green circuits are energised; when the left indicator is on, only yellow is energised.
The green wire mirrors yellow but for the right side.
When drawing a 4-wire diagram, represent the tow vehicle and trailer as two separate blocks connected at the plug/socket interface. Show each conductor as a labelled line with its function and colour. Show the trailer lamps and their connection points. Always include a note that the white wire terminates at a clean chassis ground on the trailer frame, not on a light housing stud.
When towing a larger trailer that needs electric brakes or a 12 V auxiliary power feed, you will need to step up from a 4-pin flat connector to a 7-way round connector. The 7-way adds a dedicated brake-controller output wire (typically blue), a 12 V battery charge/auxiliary wire (black), and a reverse light wire (purple), while retaining the same ground (white), left turn/brake (yellow), right turn/brake (green), and running lights (brown) functions from the 4-pin standard. Sketch the full 7-way layout — including break-away battery connections — in the free online editor at circuitdiagrammaker.com.
How to wire 4 wire trailer wiring diagram
- Match the trailer connector to the vehicle socket Confirm both the vehicle and trailer use the same connector type. The 4-flat is standard for light trailers in North America. If the vehicle has a 7-pin socket, use a 7-to-4 adapter. Never force incompatible connectors together.
- Test the vehicle's trailer socket output With a 12 V test light or multimeter, probe each socket position with parking lights on and then with the brake pedal pressed and each turn signal activated. Confirm which terminal corresponds to white (ground), brown, yellow, and green. Document before wiring.
- Lay out the harness along the trailer frame Starting from the connector at the coupler, route the harness rearward along the trailer frame's outer rail. Clip or tie the harness at 30–40 cm intervals to prevent sagging. Keep it away from exhaust, moving axle parts, and sharp edges. Leave 30 cm of slack at the connector end.
- Bond the white ground wire to the trailer frame At or near the rear of the trailer, use a ring terminal bolted to a drilled hole through the bare frame rail. Apply dielectric grease under and over the terminal. Test with a multimeter: resistance from the ring terminal to the tow vehicle's chassis should be below 1 ohm.
- Wire each lamp cluster At the left rear cluster, connect the brown wire to the tail-light filament positive and the yellow wire to the brake/turn filament positive. Repeat on the right side with green. The lamps' negative leads connect to the trailer frame (chassis ground), which is bonded to the white wire.
- Weatherproof all connections Use heat-shrink solder connectors or weatherproof crimp connectors at every joint. Avoid bare twist-and-tape connections, which corrode within one season in road-salt environments. Apply dielectric grease inside the main connector.
- Carry out a full function test Test every circuit: parking lights on (brown — all running lights illuminate), brake pedal (both rear lamps bright), left turn (left rear flashes only), right turn (right rear flashes only). If any function cross-illuminates, suspect a ground fault and recheck the white wire connection.
Specifications
| Connector standard | 4-way flat (4-flat), SAE J1239 |
|---|---|
| Ground wire colour | White — chassis return |
| Running lights wire colour | Brown — parking/headlight activated |
| Left turn + brake wire colour | Yellow — combined stop and left turn |
| Right turn + brake wire colour | Green — combined stop and right turn |
| Recommended wire gauge | 14 AWG for runs up to 7.5 m; 12 AWG for longer trailers |
| Maximum circuit load per conductor | ≤ 7 A (connector contact rating); fuse each circuit accordingly |
| Connector body rating | 12 V DC, IP54 typical for standard 4-flat connectors |
Safety warnings
- Disconnect the trailer plug from the tow vehicle before working on trailer wiring. The socket is powered by the vehicle's electrical system and can deliver current that causes burns or shorts if tools bridge terminals.
- Trailer lighting requirements are mandated by road traffic law. Ensure all lamps are DOT-compliant (USA/Canada) or meet the applicable national standard in your country. Never tow with non-functional brake lights or turn signals.
- All wire joints must be properly insulated and weatherproofed. Bare or poorly insulated splices in wheel-well areas can short-circuit against the trailer frame, causing fuse failures or, in worst cases, wiring fires.
- The white ground wire must connect directly to the trailer frame at a corrosion-free metal-to-metal joint. Never rely solely on the hitch coupler as the ground return path — it corrodes and provides an unreliable return path.
Tools needed
- Multimeter (DC voltage and continuity/resistance functions)
- 12 V test light
- Wire stripper (14–18 AWG capacity)
- Ratchet crimping tool for insulated terminals
- Heat gun for heat-shrink connectors
- Drill with 6 mm metal bit (for ground terminal hole)
- Cable ties and mounting clips
- Dielectric grease
Common mistakes
- Routing the harness through areas exposed to the trailer's axle travel, causing the wire to chafe or snap as the suspension articulates.
- Grounding through the light housing mounting screws rather than a dedicated frame ground, resulting in a ground that corrodes away within one winter season.
- Using the same colour wire for all four conductors (e.g. from scrap wire) and failing to label them, making future fault-finding extremely difficult.
- Connecting the running-light circuit (brown) to a brake/turn output on the vehicle, so the tail lights only illuminate when braking — not when the headlights are on.
- Skipping the connector weatherproofing step, causing green corrosion on the blade contacts within months of use in wet or salty conditions.
Troubleshooting
- One side of trailer does not flash when that turn signal is activated
- Cause: Open circuit in the yellow or green wire, corroded connector pin, or a failed lamp on that side Fix: Test voltage at the trailer plug's yellow (left) or green (right) pin with the corresponding turn signal active on the vehicle. If voltage is present at the plug but absent at the lamp, trace the wire for breaks or corroded in-line connections.
- Running lights work but brake lights do not activate on trailer
- Cause: The yellow and green wires are connected to the running-light circuit instead of the brake/turn outputs; or the tow vehicle's brake light switch output is not reaching the trailer socket Fix: Re-test the vehicle socket with the brake pedal pressed. Confirm which pin goes high. Re-check that yellow and green are connected to brake/turn outputs, not the brown running-light pin.
- Fuse on vehicle trailer socket circuit blows repeatedly
- Cause: Short circuit in the trailer wiring — a wire has chafed against the frame and is grounding out, or water has entered a connector and is bridging pins Fix: Disconnect the trailer plug and test each wire to chassis ground with a multimeter on resistance. An unexpectedly low reading (below 1 kΩ) indicates a fault on that conductor. Inspect the harness along its full length for chafe points and water ingress.
Frequently asked questions
How many wires does a standard trailer harness have?
A standard light trailer harness has four wires: white (ground), brown (running lights), yellow (left brake and turn), and green (right brake and turn). This 4-wire arrangement is the minimum required for road-legal lighting on simple trailers without electric brakes or auxiliary circuits.
What is the difference between a 4-wire and a 7-wire trailer harness?
A 4-wire harness covers lighting only: ground, running lights, and left/right combined brake/turn. A 7-wire harness adds a blue wire for electric brake controller output, a red wire for battery charge (12 V auxiliary), and a black wire for a 12 V power feed, enabling electric brakes, breakaway batteries, and interior accessories.
Why does my 4-wire trailer harness need a converter on some vehicles?
Many European-origin vehicles and some modern trucks use separate circuits for brake lights and turn signals. A trailer requires a combined brake/turn output on each side. A brake/turn signal converter (also called a T-harness or 4-flat adapter) merges the two signals into the correct combined output before the 4-flat connector.
What gauge (AWG) wire should a 4-wire trailer harness use?
For trailers with standard incandescent lights, 16 AWG is the practical minimum for short runs (under 4.5 m). For longer trailers or those with multiple light clusters wired in parallel, use 14 AWG to limit voltage drop. The ground (white) wire should always be at least as large as the largest signal conductor.
Can I splice into the tow vehicle's existing light wiring instead of using a T-harness?
Splicing directly into factory wiring is generally not recommended. It can void warranties, damage vehicle electronics, or interfere with safety systems on vehicles equipped with LED tail lights and load-sensing circuits. A plug-in T-harness adapter that taps the existing tail-light bulb sockets is the preferred no-cut installation method.
How do you wire a 7-way trailer wiring diagram with brakes?
A standard SAE 7-way trailer connector uses these pin assignments: pin 1 (white) = ground/GND, pin 2 (blue) = electric brake output from brake controller, pin 3 (green) = right turn and stop, pin 4 (yellow) = left turn and stop, pin 5 (brown) = running/tail lights, pin 6 (red or black) = 12 V auxiliary/battery charge, pin 7 (purple) = reverse/backup lights. The brake controller in the tow vehicle sends a proportional or timed signal on the blue wire to energise trailer brake magnets. Always verify your vehicle's connector pinout against the manufacturer's documentation, as some truck manufacturers swap the auxiliary and brake pins.
