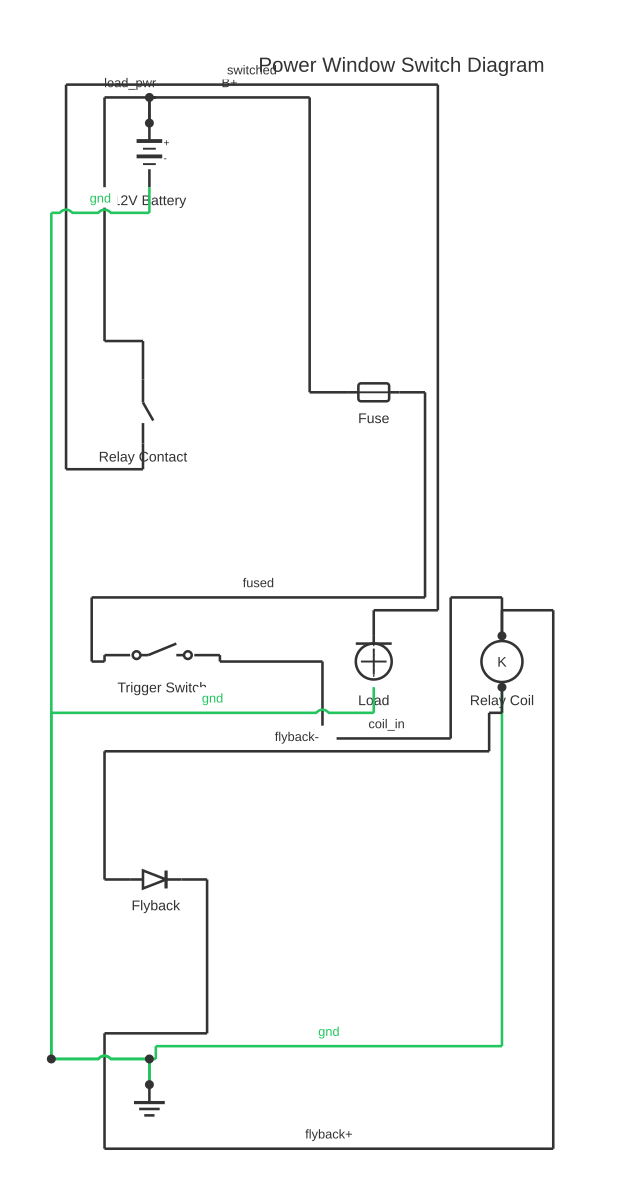

A power window switch diagram shows how the reversible 12V DC motor, master switch assembly, door switch, and relay circuit connect to raise and lower a vehicle window, with polarity reversal providing bidirectional motor control.

Automotive power window systems use a permanent-magnet DC motor (typically 12 V, 5–15 A running current) to drive a window regulator mechanism through a worm-gear reduction. The motor's direction of rotation — and therefore the window movement — is controlled by reversing the polarity of the DC supply applied to the motor terminals.

The switch assembly performs this polarity reversal. Inside each door switch (and the master switch on the driver's door), a double-pole double-throw (DPDT) rocker mechanism connects the motor terminals to either positive or ground (earth) depending on which direction the switch is pressed. When the switch is pushed to raise: motor terminal A receives +12 V and motor terminal B receives ground. When pushed to lower: motor terminal A receives ground and motor terminal B receives +12 V. In the centre (off) position, both motor terminals are open.

The circuit feeds from a dedicated circuit breaker or fuse (typically 20–30 A for the combined window circuit, or individual fuses per window) protected by an auto-reset circuit breaker in many vehicles. Power is usually ignition-switched live or a dedicated relay controlled by the ignition, though many modern vehicles include a power-window timer relay that keeps windows operational for a period after ignition-off.

The master switch on the driver's door contains individual switches for all windows plus a window lock switch that disconnects the passenger door switches from the motor circuit, preventing passengers from independently operating their windows. The lock function either disconnects the passenger switch supply or grounds the passenger switch output to prevent motor energisation.

Ground (negative) for each window motor is typically made directly to the door chassis or a door earth point — not through the wiring harness back to the battery. This makes door earth connection quality critical to window motor performance.

Modern vehicles increasingly use a Body Control Module (BCM) to control window functions, with the switch inputs providing low-current signal inputs to the BCM rather than directly switching motor current. The BCM then operates high-current relays or MOSFETs to drive the motor. Anti-pinch sensors measure motor current draw — a stalled motor in the closing direction (obstacle detected) causes the BCM to reverse direction automatically.

Always consult the vehicle-specific wiring diagram for the make, model, and year, as circuit layouts, connector pin-outs, and BCM integration vary significantly.

A power window switch diagram shows how the master switch (driver's door) and the individual passenger switches each route current to reverse the polarity across the window motor, causing it to run in either direction. Because reversing motor polarity requires the switch to connect the motor leads alternately to supply and ground, the diagram typically shows a double-pole double-throw (DPDT) arrangement inside each switch, along with the window motor's two terminals. You can build a detailed power window switch wiring diagram free in the browser-based diagram editor — no download required.

How to wire power window switch diagram

Disconnect the vehicle battery before any door wiring work Remove the negative (earth/ground) terminal first, then positive. For vehicles with airbag (SRS) systems in door panels, wait at least 60 seconds after battery disconnection before removing the door panel — follow the vehicle manufacturer's airbag safety procedure.
Remove door panel to access switch and motor Remove all screws, clips, and fasteners per the vehicle-specific procedure. Disconnect all multi-connector plugs at the back of the door panel before fully removing it. Photograph connector positions and routing before disconnection. Handle the door panel carefully to avoid breaking plastic clips.
Test the switch and identify the fault location Reconnect the battery with the door panel removed (carefully, keeping clear of moving components). Use a multimeter to measure voltage at the switch input terminals (supply present?), switch output terminals during press (is the switch switching polarity?), and motor connector terminals during switch press (is voltage reaching the motor?). This sequence isolates whether the fault is in supply, switch, harness, or motor.
Check the door earth (ground) connection Locate the door earth point — typically a bolt through the door inner skin near the bottom. Check for corrosion, loose fasteners, or paint contamination under the terminal. A voltage drop measurement between battery negative and the door earth point under motor load (window pressing against travel limit) will reveal any earth resistance problem.
Test and replace the motor if required Disconnect the motor connector. Apply +12 V and ground directly from the battery to the motor terminals (polarity matched to one direction) to verify the motor operates independently of the switch. Reverse polarity to test the other direction. If the motor does not operate, has poor speed, or draws excessive current, replace it with a correctly rated equivalent.
Check the door harness connector at the door hinge The flexing wiring harness between the body and door is a high-failure-rate location. Flex the harness by hand while observing switch function — intermittent operation during flexing confirms a broken conductor inside the harness. Cut back to sound wire and install a new grommet-protected section, or replace the door harness if breaks are extensive.
Reconnect, test all switch positions, and reinstall door panel With the battery reconnected, test full window travel (up and down) from both master and door switch. Confirm the window lock function prevents door switch operation. Verify smooth, full-travel operation before reinstalling the door panel and all trim pieces.

Specifications

Nominal supply voltage	12 V DC (nominal); operating range approximately 9–16 V DC
Typical motor running current	5–10 A under normal load; up to 20–30 A at stall — vehicle and window size dependent
Typical circuit fuse rating	20–30 A per window circuit — verify against vehicle fuse box label; do not substitute
Motor control method	DPDT polarity reversal switch (direct switching) or BCM-controlled relay/MOSFET (modern vehicles)
Anti-pinch detection method (modern vehicles)	Motor current monitoring by BCM; threshold and calibration vehicle-specific
Earth system	Negative earth (battery negative to chassis); door earth via door-to-body bond
Wiring standard	Vehicle manufacturer's OEM specification; diagnostic via OBD-II DTC codes on BCM-controlled systems

Safety warnings

Always disconnect the vehicle battery negative terminal before working inside any door panel. Wait at least 60 seconds if the vehicle has airbag (SRS) inflators in the door — failure to de-energise the SRS system can cause accidental airbag deployment, resulting in serious injury.
Power window motors and mechanisms generate significant force sufficient to trap and injure fingers and hands. Do not reach into the window channel or regulator mechanism while the battery is connected and any switch could be pressed — even inadvertently.
Do not exceed the specified fuse rating for the power window circuit. A higher-rated fuse allows the wiring and motor to overheat in the event of a stall or short, creating a fire risk inside the door.
Vehicles with anti-pinch window systems require specialist diagnosis and calibration tools if the BCM or window motor is replaced. Incorrect calibration of anti-pinch thresholds can result in a window that does not detect an obstacle and continues to apply closing force — a safety hazard for occupants.
The door hinge area harness is in a confined, typically inaccessible location. Protect any repaired section from abrasion on metal edges using appropriate loom tape and grommets. An unprotected conductor can chafe through and short to the door metalwork.

Tools needed

Digital multimeter (DC voltage, continuity, current)
Automotive test light
Door panel removal tools (plastic trim removal tools to avoid scratching)
Torx, Phillips, and flat-blade screwdrivers
Wire strippers and automotive crimping tool
Heat gun (for heat-shrink tubing)
Electrical contact cleaner
Memory saver (optional, for vehicles with adaptive electronic systems)

Common mistakes

Testing the switch with the battery disconnected using a multimeter — the switch must be tested under live conditions to accurately diagnose polarity reversal function and voltage levels.
Replacing the motor without first checking the door earth connection and harness — a poor earth or broken harness conductor causes the same symptoms as a faulty motor.
Forcing a window by hand against the motor travel limits — the motor and regulator are under mechanical load at both ends of travel; forcing further risks damaging the regulator.
Installing a fuse of a higher rating than specified to stop nuisance tripping — the root cause (stiff regulator, seized motor, short circuit) must be repaired, not masked by a higher-rated fuse.
Reconnecting the door panel without fully testing all switch functions first — accessing the motor and harness through a trimmed door panel is significantly more time-consuming.
Failing to secure and protect repaired harness sections at the door hinge — conductor fatigue failure at unprotected repair points is a common comeback fault.

Troubleshooting

Window does not operate from any switch: Cause: Blown fuse or tripped circuit breaker, loss of ignition-switched supply to window circuit, or failed BCM relay (on BCM-controlled systems) Fix: Check the fuse/circuit breaker in the fusebox per the owner's manual. Restore the circuit breaker if tripped (wait for it to cool first). If it trips again, do not reset repeatedly — diagnose the overcurrent cause. Verify ignition-switched supply at the master switch connector with a multimeter.
Window moves in only one direction: Cause: One of the switch contact sets has failed open, or one of the two supply/earth connections from the switch to the motor is broken Fix: Measure voltage at both motor terminals while pressing in each direction. One direction should show approximately +12 V on terminal A and 0 V on terminal B; the other direction the reverse. If both terminals show the same polarity (or no voltage) in one switch direction, the switch is faulty. Replace the switch.
Window operates slowly and draws high current: Cause: Mechanical stiffness in the regulator mechanism, worn motor brushes, seized or corroded regulator guide rails, or a poor earth connection causing voltage drop Fix: Measure battery voltage and motor terminal voltage under load — significant drop at the motor indicates supply or earth resistance. Check door earth integrity. Lubricate regulator guide rails. If motor current is consistently high with regulator disconnected, the motor is worn and should be replaced.
Window works intermittently — fails while moving then resumes: Cause: Broken conductor in the door hinge harness that intermittently connects and disconnects as the harness flexes with door movement Fix: With battery connected and window operating, flex the door harness by hand at the hinge area while observing window function. Intermittent failure during flexing confirms a broken conductor. Inspect the harness, identify the broken conductor(s), and repair or replace the harness section.

Frequently asked questions

How does reversing a power window motor direction work electrically?

The DPDT switch reverses the polarity applied to the two motor terminals. In the UP position, +12 V connects to one motor terminal and ground to the other. In the DOWN position, the connections swap — the first terminal goes to ground and the second to +12 V. Reversing polarity across a permanent-magnet DC motor reverses the direction of rotation.

Why does the window work from the master switch but not the door switch?

The most common causes are: the window lock button is engaged at the master switch (disconnecting passenger switches); the door switch itself is faulty (check for power supply at the switch with a multimeter); or the door wiring harness connector at the door hinge area is broken or corroded — this is a very common failure point due to repeated door flexing.

What is anti-pinch and how does it work?

Anti-pinch is a safety feature that detects an obstacle in the window's path while closing and automatically reverses the window. It works by the BCM monitoring motor current: a stalled or heavily loaded motor draws significantly more current than normal. When current exceeds a threshold, the BCM reverses the motor direction. Anti-pinch is mandatory in many markets for vehicle windows reachable by occupants.

Why does my window move slowly or stop partway through travel?

Common causes: corroded motor brush contacts causing high resistance and reduced torque; a worn or stiff regulator mechanism increasing mechanical load; a poor door earth connection causing voltage drop at the motor; or an intermittent connection in the wiring harness. Measure voltage directly at the motor terminals under load — a significant drop from battery voltage indicates a wiring resistance problem.

What fuse or circuit breaker protects the power window circuit?

Vehicle-specific — always check the owner's manual and the fuse box label. Typically 20–30 A per circuit, using a blade fuse or an auto-reset thermal circuit breaker. Some vehicles use one fuse for all windows; others fuse each window individually. The circuit breaker in older vehicles is self-resetting, which is why a stalled window might start working again after a few minutes once the breaker cools.

How does the wiring diagram for a power window switch work?

A power window switch wiring diagram shows the switch receiving a constant 12 V supply on one terminal, with the two output terminals each connecting to one lead of the reversible window motor and the other motor lead returning to ground — when the switch is pressed up, current flows in one direction through the motor (window rises); when pressed down, the switch contacts reverse, current flows the opposite way and the motor drives the window down. The master switch on the driver's door also includes lockout contacts that can disable the individual passenger switches. A common fault traced through this diagram is a broken ground or a burned switch contact causing the window to work in only one direction.
